Page 1
Item
Model
Project Name
Vegetable slicers
601167
TR300

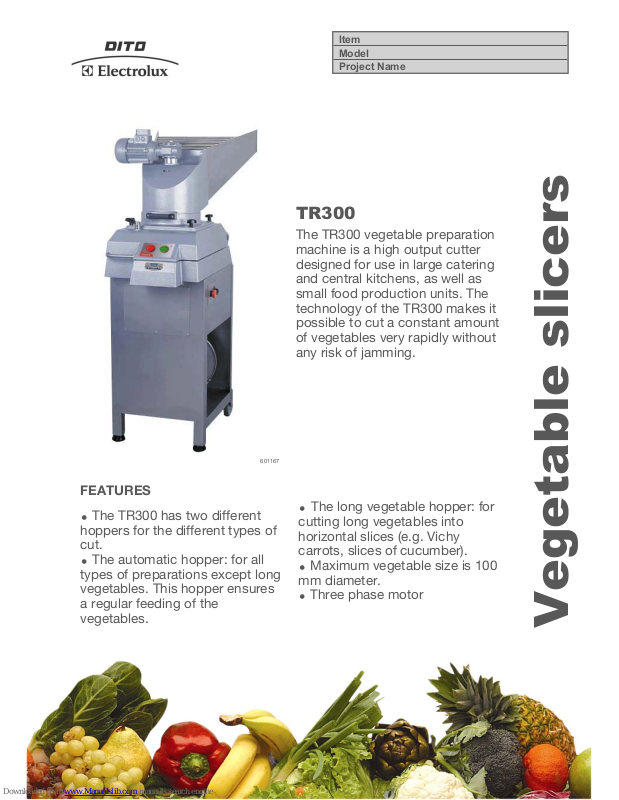

The TR300 vegetable preparation
machine is a high output cutter
designed for use in large catering
and central kitchens, as well as
small food production units. The
technology of the TR300 makes it
possible to cut a constant amount
of vegetables very rapidly without
any risk of jamming.
FEATURES
V The TR300 has two different
hoppers for the different types of
cut.
V The automatic hopper: for all
types of preparations except long
vegetables. This hopper ensures
a regular feeding of the
vegetables.
V The long vegetable hopper: for
cutting long vegetables into
horizontal slices (e.g. Vichy
carrots, slices of cucumber).
V Maximum vegetable size is 100
mm diameter.
V Three phase motor
Page 2
Specifications
MODEL
TR300
601167
External dimensions - mm
width 470
depth 710
height 1070
Cutting capacity - kg/h
carrots 1200
chips 5000
dicing 5000
Cutting capacity - kg/h
potatoes 5000
Power - kW
installed-electric 1.5
Net weight - kg. 100
Supply voltage 220...240/380...415 V, 3, 50
Included accessories
CODE DESCRIPTION
653142 EJECTOR F.ALL TYPES OF WORK-EXCEPT CHIPS 1
Optional accessories
CODE DESCRIPTION
653141 AUTOMATIC HOPPER ✓
653613 AUTOMATIC HOPPER FOR CARROTS-TR300 ✓
653069 CHIP EQUIPMENT 10X10 MM ✓
653076 CHIP EQUIPMENT 6X6 MM ✓
653074 CHIP EQUIPMENT 8X8 MM ✓
653068 DICING GRID 10 MM ✓
653499 DICING GRID 12 MM ✓
653075 DICING GRID 16 MM ✓
653073 DICING GRID 20 MM ✓
653259 DICING GRID 32 MM ✓
653217 DISC WITH CORRUGATED BLADES 2 MM ✓
653218 DISC WITH CORRUGATED BLADES 3 MM ✓
653219 DISC WITH CORRUGATED BLADES 6 MM ✓
653142 EJECTOR F.ALL TYPES OF WORK-EXCEPT CHIPS ✓
653143 EJECTOR FOR CHIPS ✓
653174 GRATING DISC 2 MM ✓
653175 GRATING DISC 3 MM ✓
653194 GRATING DISC 4 MM ✓
653215 GRATING DISC 7 MM ✓
653220 GRATING DISC FOR KNOEDELN ✓
653216 GRATING DISC FOR PARMESAN ✓
653129 LONG VEGETABLE HOPPER ✓
653224 S/S TROLLEY FOR GN2/1 TRAYS ✓
653195 SHREDDING DISC 2X2 MM ✓
653196 SHREDDING DISC 3X3 MM ✓
653197 SHREDDING DISC 4X4 MM ✓
653188 SLICING DISC 1 MM ✓
653192 SLICING DISC 10 MM ✓
653193 SLICING DISC 16 MM ✓
653172 SLICING DISC 2 MM ✓
653173 SLICING DISC 3 MM ✓
653189 SLICING DISC 5 MM ✓
653190 SLICING DISC 6 MM ✓
653191 SLICING DISC 8 MM ✓
Page 3
AAAG010
www.dito-electrolux.com
Vegetable slicers
The manufacturer reserves the right to modify and make improvements to the products without
giving prior warning. Dimensions, illustrations, technical data, weights, etc. are given as an
indication only.
Installation drawings
XXX
I - Electrical connection 220...240/380...415 V, 3, 50
MODEL
TR300
601167
601167
592
710
1070
I
470
