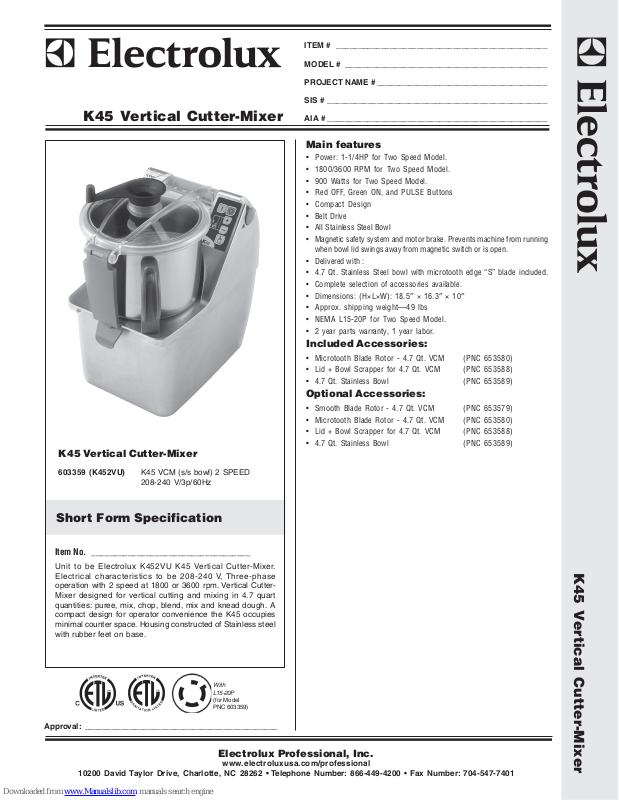

K45 Vertical Cutter-Mixer

K45 Vertical Cutter-Mixer

AIA # _________________________________________________

Main features

• Power: 1-1/4HP for Two Speed Model.

• 1800/3600 RPM for Two Speed Model.

• 900 Watts for Two Speed Model.

• Red OFF, Green ON, and PULSE Buttons

• Compact Design

• Belt Drive

• All Stainless Steel Bowl

• Magnetic safety system and motor brake. Prevents machine from running
when bowl lid swings away from magnetic switch or is open.

• Delivered with :

• 4.7 Qt. Stainless Steel bowl with microtooth edge “S” blade included.

• Complete selection of accessories available.

• Dimensions: (H×L×W): 18.5″ × 16.3″ × 10″

• Approx. shipping weight—49 lbs

• NEMA L15-20P for Two Speed Model.

• 2 year parts warranty, 1 year labor.

Included Accessories:

• Microtooth Blade Rotor - 4.7 Qt. VCM (PNC 653580)

• Lid + Bowl Scrapper for 4.7 Qt. VCM (PNC 653588)

• 4.7 Qt. Stainless Bowl (PNC 653589)

Optional Accessories:

• Smooth Blade Rotor - 4.7 Qt. VCM (PNC 653579)

• Microtooth Blade Rotor - 4.7 Qt. VCM (PNC 653580)

• Lid + Bowl Scrapper for 4.7 Qt. VCM (PNC 653588)

• 4.7 Qt. Stainless Bowl (PNC 653589)

603359 (K452VU) K45 VCM (s/s bowl) 2 SPEED

208-240 V/3p/60Hz

Short Form Specification

Item No. ___________________________________

Unit to be Electrolux K452VU K45 Vertical Cutter-Mixer.
Electrical characteristics to be 208-240 V, Three-phase
operation with 2 speed at 1800 or 3600 rpm. Vertical Cutter­Mixer designed for vertical cutting and mixing in 4.7 quart
quantities: puree, mix, chop, blend, mix and knead dough. A
compact design for operator convenience the K45 occupies
minimal counter space. Housing constructed of Stainless steel
with rubber feet on base.

With
L15-20P

(for Model
PNC 603359)

Approval: ___________________________________________

Electrolux Professional, Inc.

10200 David Taylor Drive, Charlotte, NC 28262 • Telephone Number: 866-449-4200 • Fax Number: 704-547-7401

www.electroluxusa.com/professional

K45 Vertical Cutter-Mixer

K45 Vertical Cutter-Mixer

10.08

256 mm

18.50

470 mm

16.34

415 mm

Front View

Side View

Top View

Electric

Supply voltage:

603359 (K452VU) 208-240 V/3p/60Hz – 3.8A

Key Information

Uses of Food Processor

MEAT

Rough mincing

Pates

Small sausages

Large sausages

Minced meat

Shellfish

Fine mincing

Stuffing

Mousses

PASTRY

Shortcrust

Cold water paste

Flan

POWDER

Almonds

Hazelnuts

FRUITS AND VEGETABLES

Purees

Mousses

Syrups

CHOPPING

Parsley

Onions

EC

7.95

202 mm

27.0

685 mm

K45 Vertical Cutter-Mixer

The company reserves the right to make modifications to the products

without prior notice. All information correct at time of printing.

12-15-10
