Page 1
Item
Model
ProjectName
Food Processors
603301

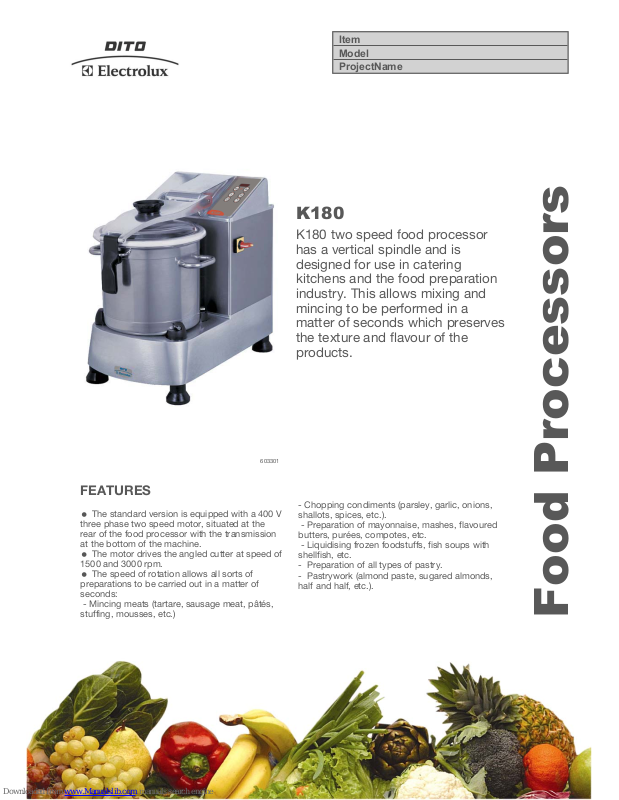

K180
K180 two speed food processor
has a vertical spindle and is
designed for use in catering
kitchens and the food preparation
industry. This allows mixing and
mincing to be performed in a
matter of seconds which preserves
the texture and flavour of the
products.
FEATURES
V The standard version is equipped with a 400 V
three phase two speed motor, situated at the
rear of the food processor with the transmission
at the bottom of the machine.
V The motor drives the angled cutter at speed of
1500 and 3000 rpm.
V The speed of rotation allows all sorts of
preparations to be carried out in a matter of
seconds:
- Mincing meats (tartare, sausage meat, pâtés,
stuffing, mousses, etc.)
- Chopping condiments (parsley, garlic, onions,
shallots, spices, etc.).
- Preparation of mayonnaise, mashes, flavoured
butters, purées, compotes, etc.
- Liquidising frozen foodstuffs, fish soups with
shellfish, etc.
- Preparation of all types of pastry.
- Pastrywork (almond paste, sugared almonds,
half and half, etc.).
Page 2
Specifications
MODEL
K180F385
603301
K180FSR385
603305
External dimensions - mm
width 416 416
depth 680 680
height 603 603
Chopping capacity - kg/cycle
condiments 5 5
Mincing capacity - kg/cycle
meats 8 8
Preparation mayonnaise/sauces - kg/cycle
mayonnaise 8 8
Pastry preparation - kg/cycle 6 6
Power - kW
installed-electric 3.6 3.6
Net weight - kg. 68 68
Supply voltage 380...415 V, 3, 50 400...415 V, 3, 50
Included accessories
CODE DESCRIPTION
K180F385
603301
K180FSR385
603305
653272 17.5 LITRE S/S BOWL FOR CUTTER-MIXER 1 1
653120 SERRATED BLADE ROTOR -17.5L CUTTER-MIXER 1
653119 SMOOTH BLADE ROTOR FOR 17.5 CUTTER-MIXER 1
Optional accessories
CODE DESCRIPTION
K180F385
603301
K180FSR385
603305
653272 17.5 LITRE S/S BOWL FOR CUTTER-MIXER ✓ ✓
653279 EQUIPPED SCRAPER FOR 17.5L CUTTER-MIXER ✓ ✓
653017 S/S MOBILE STAND ✓ ✓
653120 SERRATED BLADE ROTOR -17.5L CUTTER-MIXER ✓ ✓
653539 SERRATED ROTOR-MEAT-17.5L CUTTER-MIXER ✓ ✓
653119 SMOOTH BLADE ROTOR FOR 17.5 CUTTER-MIXER ✓ ✓
V The stainless steel bowl is supplied complete with
a leak resistant spout and has a transparent lid with
a watertight seal and a large central rotating shaft
that allows liquids to be mixed without overflowing.
V The spout allows products to be added in
mid-cycle without stopping the machine.
V The blades are angled and the base of the bowl is
conical to ensure consistent mixing every time.
V Operator safety is guaranteed by the presence of
a magnetic microswitch which stops the machine
whenever the lid or the bowl are not correctly
positioned.
V A safety device stops the machine from restarting
after a power cut until the operator presses the start
button.
V Touch control panel allows the entire machine to
be cleaned with a jet of water.
Page 3
Installation drawings
XXX
I - Electrical connection 380...415 V, 3, 50 400...415 V, 3, 50
MODEL
K180F385
603301
K180FSR385
603305
603301, 603305
I
I
416
590
1245
820
680
726
430
Page 4
ABG010
www.dito-electrolux.com
Food Processors
The manufacturer reserves the right to modify and make improvements to the products without
giving prior warning. Dimensions, illustrations, technical data, weights, etc. are given as an
indication only.
