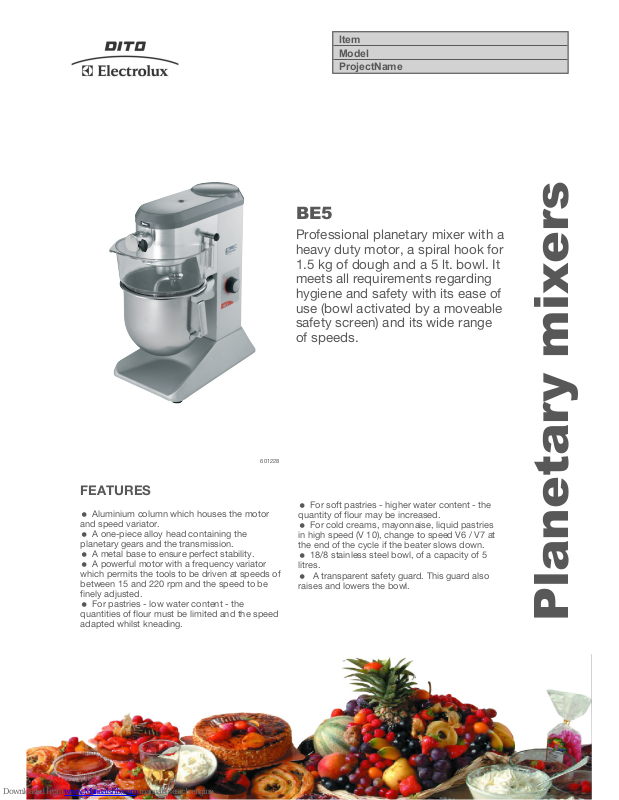

Page 1
Item
Model
ProjectName
Planetary mixers
601228
BE5
Professional planetary mixer with a
heavy duty motor, a spiral hook for
1.5 kg of dough and a 5 lt. bowl. It
meets all requirements regarding
hygiene and safety with its ease of
use (bowl activated by a moveable
safety screen) and its wide range
of speeds.
FEATURES
V Aluminium column which houses the motor
and speed variator.
V A one-piece alloy head containing the
planetary gears and the transmission.
V A metal base to ensure perfect stability.
V A powerful motor with a frequency variator
which permits the tools to be driven at speeds of
between 15 and 220 rpm and the speed to be
finely adjusted.
V For pastries - low water content - the
quantities of flour must be limited and the speed
adapted whilst kneading.
V For soft pastries - higher water content - the
quantity of flour may be increased.
V For cold creams, mayonnaise, liquid pastries
in high speed (V 10), change to speed V6 / V7 at
the end of the cycle if the beater slows down.
V 18/8 stainless steel bowl, of a capacity of 5
litres.
V A transparent safety guard. This guard also
raises and lowers the bowl.
Page 2
Specifications
MODEL
BE5
601168
BE5A
601228
External dimensions - mm
width 279 279
depth 416 416
height 487 487
Working capacity - kg of flour
Choux pastry 0.8 0.8
Shortcrust pastry 1 1
Cold water paste 1.5 1.5
Sweet pastry 0.75 0.75
Croissant 1 1
Brioche 1 1
Pizza 0.5 0.5
Meat kg 2 2
Puree - kg of potatoes 2 2
Power - kW
installed-electric 0.3 0.3
Net weight - kg. 14.5 14.5
Supply voltage 208...240 V, 1N,
50/60
208...240 V, 1N,
50/60
Accessory Hub ✓
Included accessories
CODE DESCRIPTION
BE5
601168
BE5A
601228
653295 BOWL FOR 5LT MIXER 1 1
653251 DOUGH HOOK FOR 5LT MIXER 1 1
653252 PADDLE FOR 5LT MIXER 1 1
653250 WHISK FOR 5LT MIXER 1 1
Optional accessories
CODE DESCRIPTION
BE5
601168
BE5A
601228
653295 BOWL FOR 5LT MIXER ✓ ✓
653251 DOUGH HOOK FOR 5LT MIXER ✓ ✓
653427 MEATMINCER 50MM FOR K HUB 3 DISCS ✓
653252 PADDLE FOR 5LT MIXER ✓ ✓
653611 PASTA ACCESSORY FOR SPAGHETTI ✓ ✓
653610 PASTA KIT-LASAGNE,TAGLIATELLE,TAGLIOLINI ✓ ✓
653493 VEGETABLE SLICER-K HUB- 5L PLAN.MIXER ✓
653250 WHISK FOR 5LT MIXER ✓ ✓
Page 3
Installation drawings
XXX
I - Electrical connection 208...240 V, 1N, 50/60 208...240 V, 1N, 50/60
MODEL
BE5
601168
BE5A
601228
601168, 601228
I
20
627
487
279
416
Page 4
ADBA010
www.dito-electrolux.com
Planetary mixers
The manufacturer reserves the right to modify and make improvements to the products without
giving prior warning. Dimensions, illustrations, technical data, weights, etc. are given as an
indication only.
