READ AND SAVE THESE INSTRUCTIONS
AVANT ECO™
Ceiling Fan Owner's Manual
Model Numbers
CF921BS00
CF921CK00
CF921GES00
CF921ORB00
Net Weight: 18.7 Lbs. |
|
|
54”, 60” or 72” Fan Blades |
|
|
Not Included |
|
|
|
|
|
|
|
|
|
Part No. F40BP74330000 |
Form No. BP7433 |
|
ETL Model No.: CF921 |
!WARNING
WARNING: To avoid fire, shock, and serious personal injury, follow these instructions.
Safety Instructions
1.Read your owner’s manual carefully and keep it for future reference.
2.Before servicing or cleaning unit, switch power off at service panel and lock service panel disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a warning device, such as a tag, to the service panel.
3.Be careful of the fan and blades when cleaning, painting, or working near the fan. Always turn off the power to the ceiling fan before servicing.
4.Do not put anything into the fan blades while they are turning.
5.Do not operate reversing switch until fan blades have come to a complete stop.
Additional Safety Instructions for Installation
1.To avoid possible shock, be sure electricity is turned off at the fuse box before wiring, and do not operate fan without blades.
2.All wiring must be in accordance with the National Electrical Codes “ANSI/NFPA 70-2008” and Local Electrical Codes. Use the National Electrical Code if Local Codes do not exist. The ceiling fan must be grounded as a precaution against possible electrical shock. Electrical installation should be made or approved by a licensed electrician.
3.The outlet box and joist must be securely mounted and capable of reliably supporting at least 50 pounds. Use only U.L. outlet boxes listed as “Acceptable for Fan Support of 22.7 kg. (50 lbs.) or less”, and use the mounting screws provided with the outlet box. Most outlet boxes commonly used for support of light fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified electrician if in doubt.
4.The downrod furnished with the fan provides the minimum recommended floor to fan blade clearance for an 8 foot ceiling.
5.The fan must be mounted with the fan blades at least 7 feet from the floor to prevent accidental contact with the fan blades.
6.Follow the recommended instructions for the proper method of wiring your ceiling fan. If you do not know enough about electrical wiring, have your fan installed by a licensed electrician.
NOTE: All setscrews must be checked and re-tightened where necessary before installation. NOTE: This fan is suitable for use with solid-state speed controls.
WARNING: To reduce the risk of fire or electric shock, this fan should only be used with fan speed control, Model No. FR-7861LMBG manufactured by Rhine Electric Co., Ltd.
WARNING: To avoid fire, shock or injury, do not use an Emerson or any other brand of control not specifically approved for this fan.
WARNING: This product is designed to use only those parts supplied with this product and/or any accessories designated specifically for use with this product by Emerson Electric Co. Substitution of parts or accessories not designated for use with this product by Emerson Electric Co. could result in personal injury or property damage.
WARNING: To reduce the risk of personal injury, do not bend the blade flange when installing the blade flanges, balancing the blades or cleaning the fan. Do not insert foreign objects in between rotating fan blades.
WARNING: To reduce the risk of electrical shock, this fan must be installed with an isolating wall control/switch.
DATE CODE:
The date code of this fan may be found on the box, stamped in ink on a white label. You should record this data above and keep it in a safe place for future use.
2 |
ETL Model No.: CF921 |
EMERSON QUICK START GUIDE
The Quick Start Guide covers the installation |
! |
WARNING |
|
instructions common for ceiling fan operations. If |
|||
|
|
||
additional assistance with wiring, alternate hanging |
To reduce the risk of fire, electric shock, or personal |
||
systems, or lighting options, proceed to the complete |
injury, mount fan to outlet box marked “Acceptable for Fan |
||
instructions of this Owner’s Manual. |
Support of 22.7 kg. (50 lbs.) or less”, and use screws |
||
The Quick Start Guide sections include page numbers |
supplied with outlet box. Most outlet boxes commonly used |
||
to correspond with the appropriate sections of the |
for support of light fixtures are not acceptable for fan |
||
Owner’s Manual for detailed instructions. |
support and may need to be replaced. Consult a qualified |
||
* See Unpacking Instructions for a complete list of |
electrician if in doubt. |
|
|
parts for installation. |
|
|
|
Installation of Downrod (page 6) |
Installation of Ceiling Fan (page 7) |
||
1. Remove the hanger ball from |
1. Install the coupler cover and |
||
the downrod. |
ceiling cover onto |
the |
|
2. Install the downrod to the |
downrod. |
|
|
2. Reinstall the hanger ball onto |
|||
motor coupling using the |
|||
the downrod, place the pin |
|||
clevis pin and hairpin clip. |
|||
into the hanger ball and |
|||
3. Tighten the setscrews. |
|||
tighten the setscrew. |
|
||

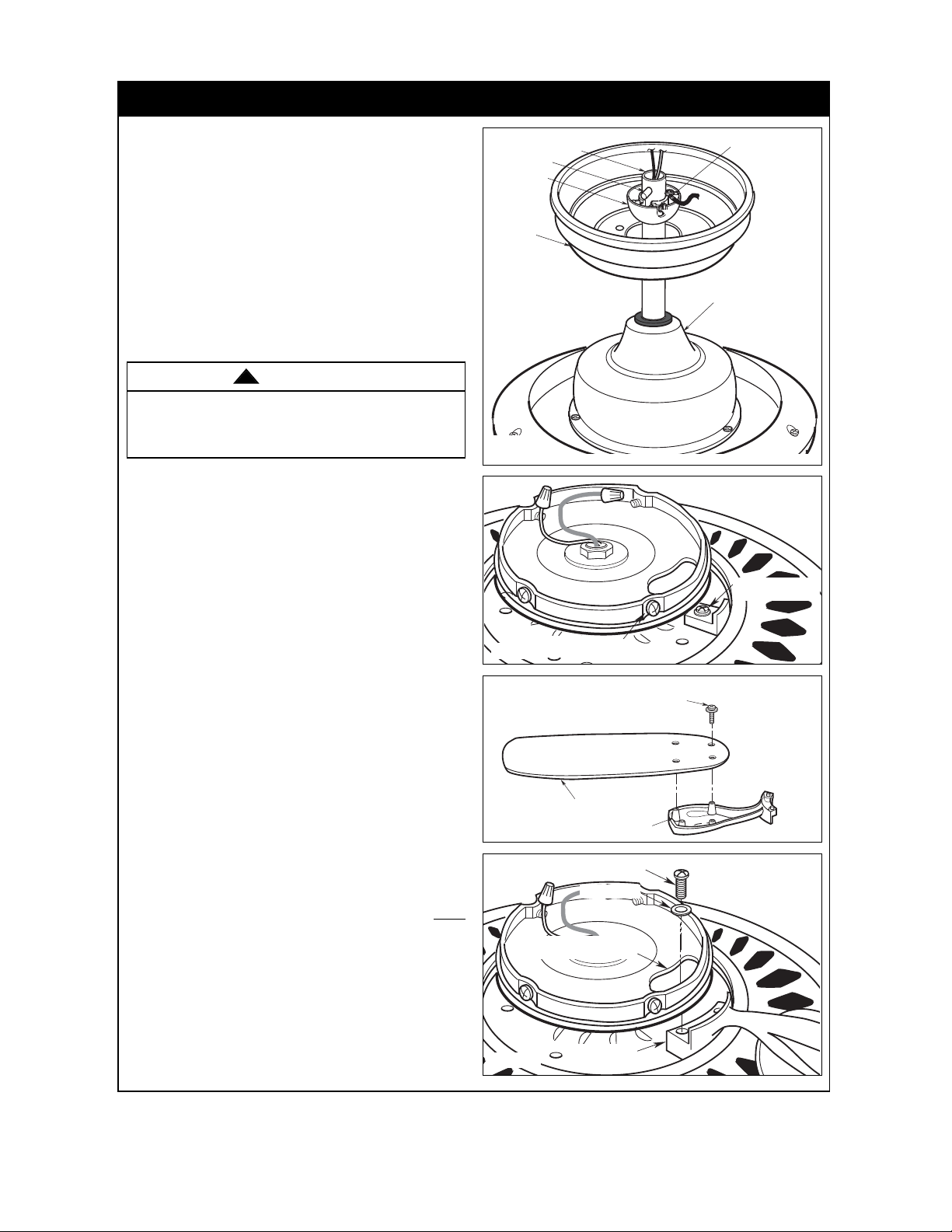

Installation of Blade Assembly (page 7) |

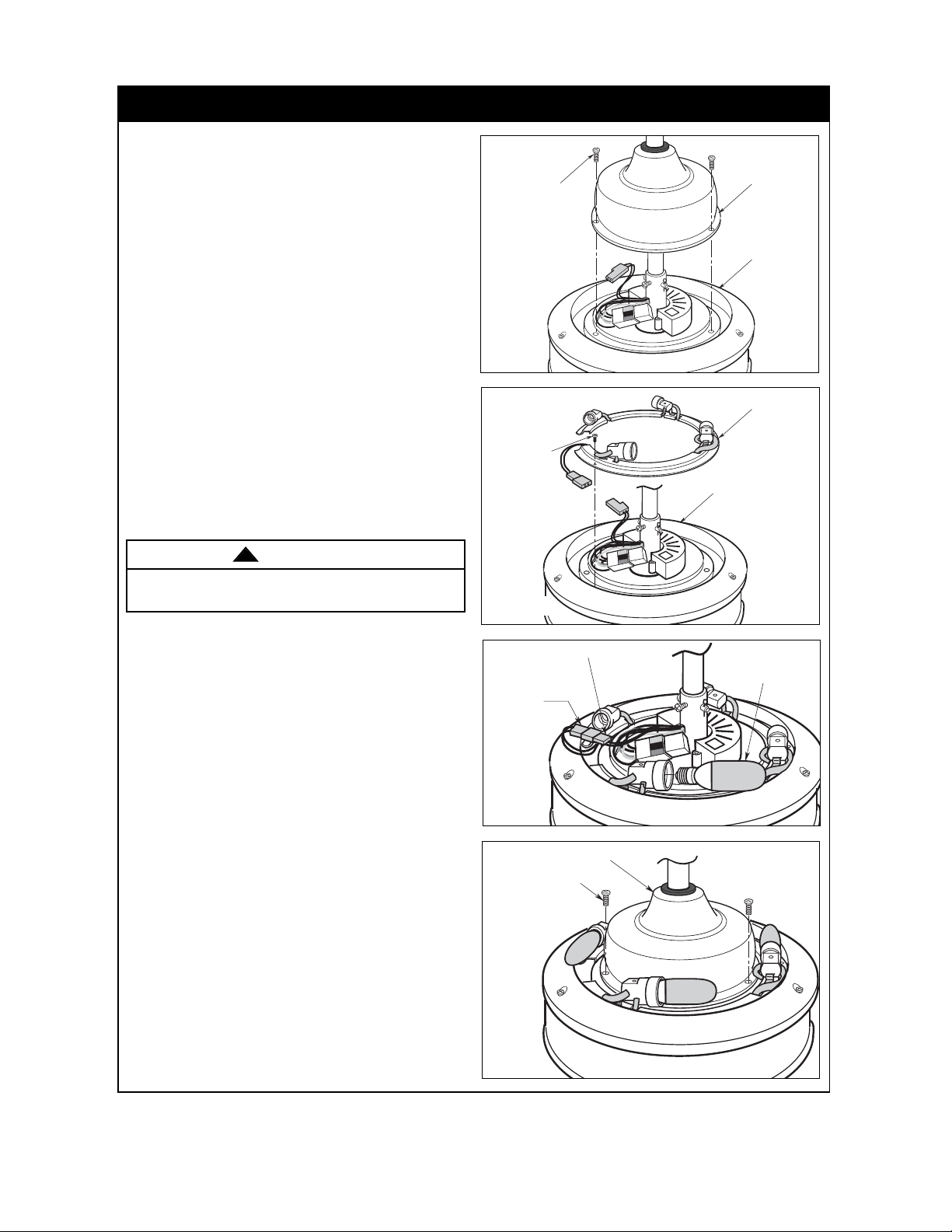

Installation of Switch Housing (page 8) |
|
1. Mount blade flanges to fan |
1. Remove the four switch |
|
blades (sold separately) using |
housing mounting screws |
|
four #10-24 x 12mm washer |
from the switch housing |
|
head blade screws. |
plate. Position the switch |
|
2. Loosely attach one blade |
housing assembly on the |
|
switch housing plate and |
||
assembly to the motor hub |
||
align the holes in the switch |
||
using two 1/4-20 x 14mm |
||
housing assembly with the |
||
captive screws with lock- |
||
holes in the plate. Secure the |
||
washers. Make sure the |
||
switch housing assembly by |
||
screws are NOT tightened. |
||
installing the four screws. |
||
Repeat this procedure for |
||
NOTE: Tuck in both the blue and white wires carefully under the |
||
other four blade assemblies. |
||
|
switch housing cover |
|

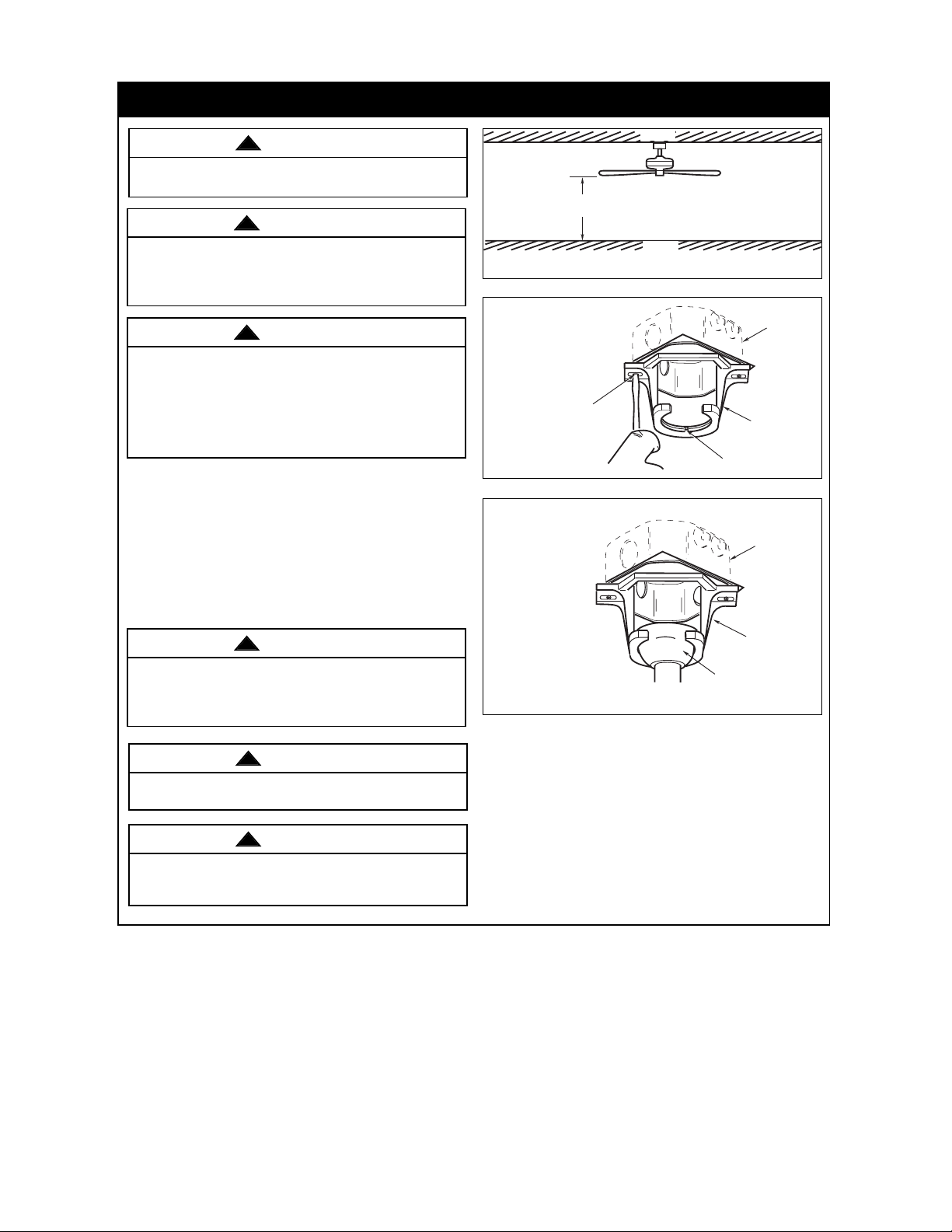

Hanging Your Ceiling Fan (page 9) |
||
1. Disconnect electrical power to |
CEILING |
the branch circuit at the |
|
circuit breaker or fuse box |
|
before attempting to install |
AT LEAST |
the ceiling fan hanger bracket |
7' |
on the outlet box. |
FLOOR |
|
!WARNING
Turning off wall switch is not sufficient. To avoid possible electrical shock, be sure electricity is turned off at the main fuse or circuit breaker box before wiring. All wiring must be in accordance with National and Local codes and the ceiling fan must be properly grounded as a precaution against possible electrical shock.
2.The fan must be hung with at least 7’ of clearance from floor to ceiling.
3.Attach the hanger bracket to the outlet box.
4.Seat the hanger ball/downrod assembly on the hanger bracket.
3 |
ETL Model No.: CF921 |
EMERSON QUICK START GUIDE

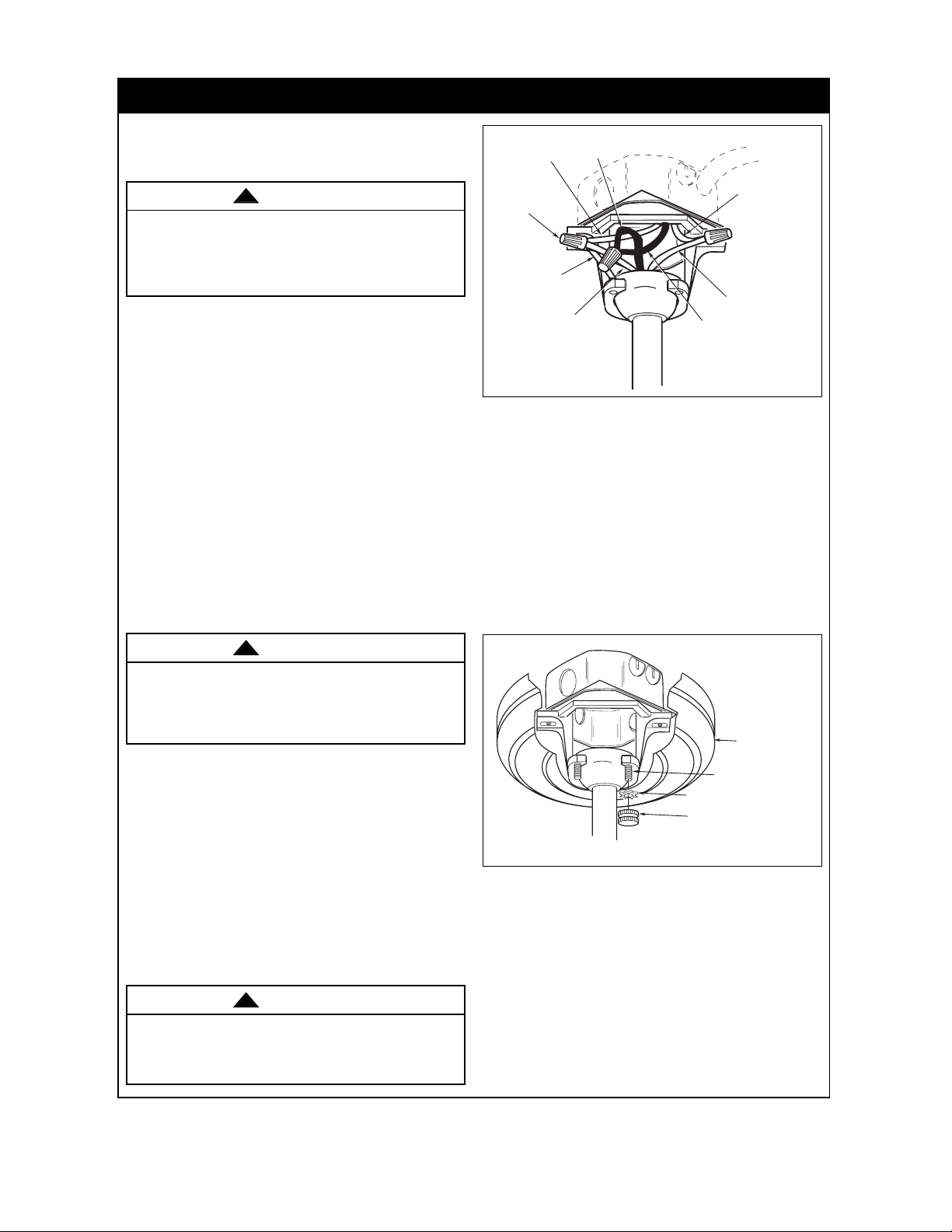

Wiring Ceiling Fan (page 10)
1.Connect the green grounding lead from the hanger ball and the green grounding lead from the hanger bracket to the grounding conductor of supply (this may be a bare wire or wire with green colored insulation). Securely connect wires with wire connectors supplied.
NOTE: If you are using an Emerson Light Fixture with your fan, see Light Fixture Owner’s Manual for wiring.
2.Securely connect the fan motor white wire to the supply white (neutral) wire using wire connector supplied. Securely connect the fan motor black wire to the supply black (hot) wire using wire connector supplied.
3.After connections have been made, turn leads upward and carefully push leads into the outlet box, with the white and green leads on one side of the outlet box and the black on the other side of the outlet box.
|
BLACK |
|
GROUND |
FAN WIRE |
|
WIRE |
|
|
LISTED WIRE |
|
WHITE SUPPLY |
CONNECTOR (3) |
|
(NEUTRAL) |
GREEN WIRE |
|
WHITE FAN WIRE |
(GROUND) FROM |
|
|
HANGER BRACKET |
BLACK SUPPLY (HOT) |
|
GREEN WIRE |
|
|
|
|
|
(GROUND) FROM |
NOTE: CEILING COVER |
|
HANGER BALL |
OMITTED FOR CLARITY. |
|
|
|
|
Installation of Ceiling Cover (page 10)
1.Separate the grounded white neutral and green wires on one side of the outlet box from the ungrounded black wire on the other side of the outlet box
2. Insert the grounded green and white wires into one side of the outlet box, and the ungrounded black wire into the other side of the outlet box.
3. Screw the two threaded studs into the tapped holes in the hanger bracket.
4. Install the ceiling cover onto the hanger bracket. using the studs, lock washers and knurled nuts supplied.

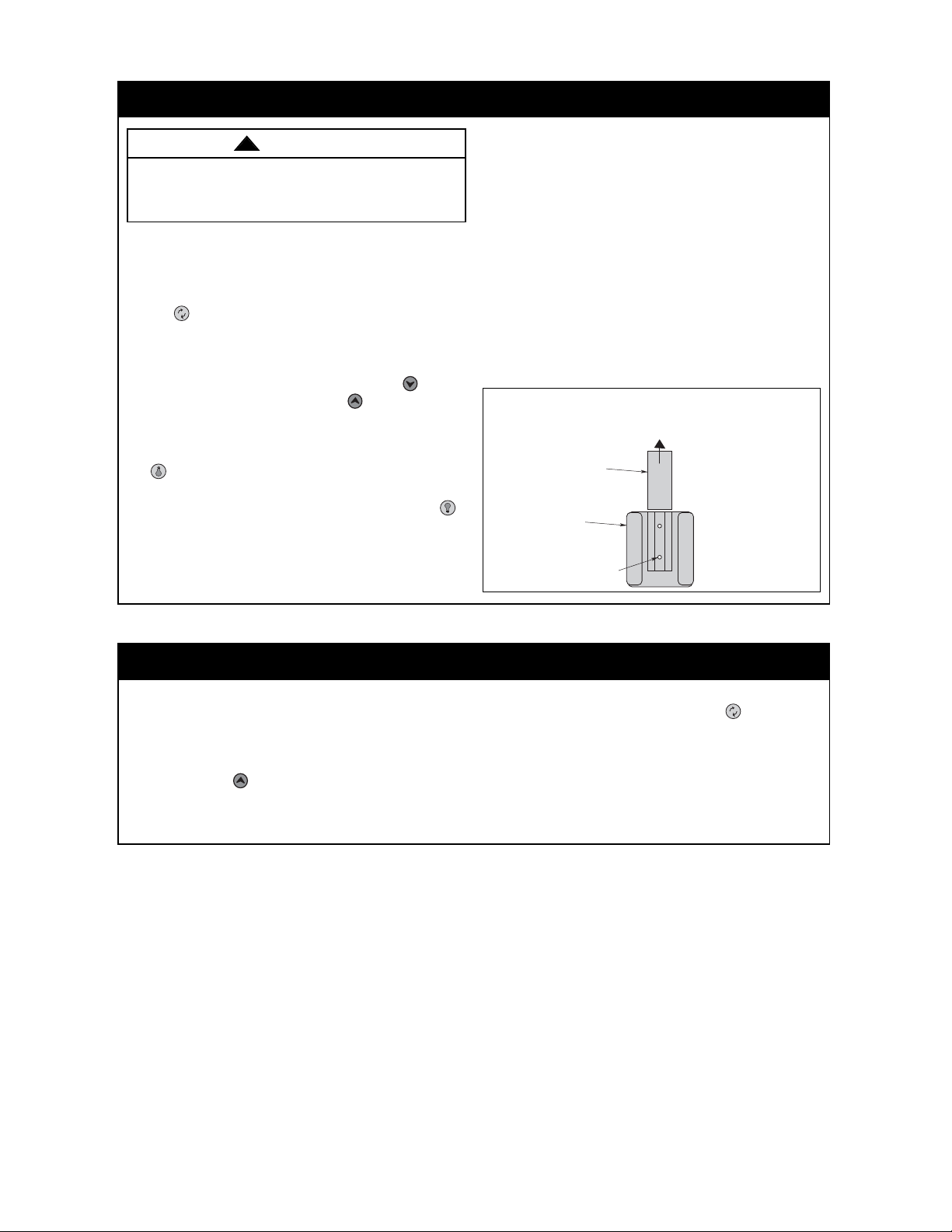

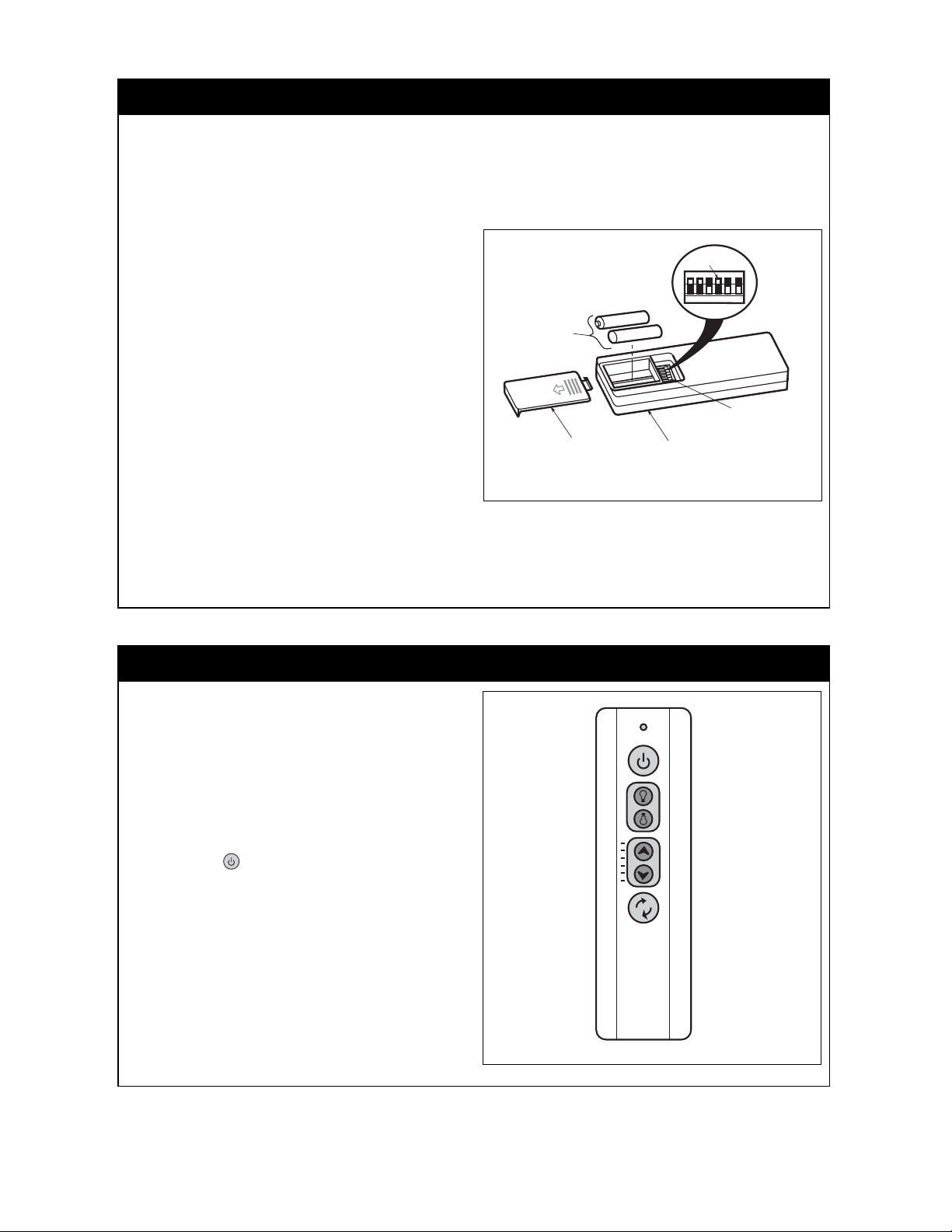

Programming and Operation of Remote Control (pages 11 and 12)
1. The receiver must be programmed within 2 minutes of restoring electricity to the fan. Program the receiver code by pushing and holding down the remote control OFF button for 3-5 seconds. The ceiling fan lights will blink when the receiver has completed programming.
2. If programming fails, shut off and turn on the electricity at the wall switch to reset the receiver. Repeat Step 1 above.
3. If programming continues to fail, change the remote code and repeat Steps 1 and 2 as necessary until the fan successfully completes the programming procedure.
NOTE: Fan installation must be completed, including the installation of the fan blades, before testing the remote control.
4.Your SR600 Fan/Light remote control has full control of your fan speed, air flow direction and light intensity.
*For additional installation review full instructions on page 12.
4 |
ETL Model No.: CF921 |
This Manual Is Designed to Make it as Easy as Possible for You to Assemble, Install, Operate and Maintain Your Ceiling Fan
Tools Needed for Assembly
One Phillips head screwdriver |
One stepladder |
One 1/4” blade screwdriver |
One wire stripper |
MATERIALS
Wiring outlet box and box connectors must be of type required by the local code. The minimum wire would be a 3-conductor (2-wire with ground) of the following size:
Installed Wire Length |
Wire Size A.W.G. |
Up to 50 ft. |
14 |
50-100 ft. |
12 |
|
|
!WARNING
Before assembly your ceiling fan, refer to section on proper method of wiring your fan (page 10). If you feel you do not have enough wiring knowledge or experience, have your fan installed by a licensed electrician.
Unpacking Instructions
!WARNING
Do not install or use fan if any part is damaged or missing. Call Toll-Free:
1-800-654-3545
!WARNING
This product is designed to use only those parts supplied with this product and/or any accessories designated specifically for use with this product by Emerson Electric Co. Substitution of parts or accessories not designated for use with this product by Emerson Electric Co. could result in personal injury or property damage.
1.Check to see that you have received the following parts:

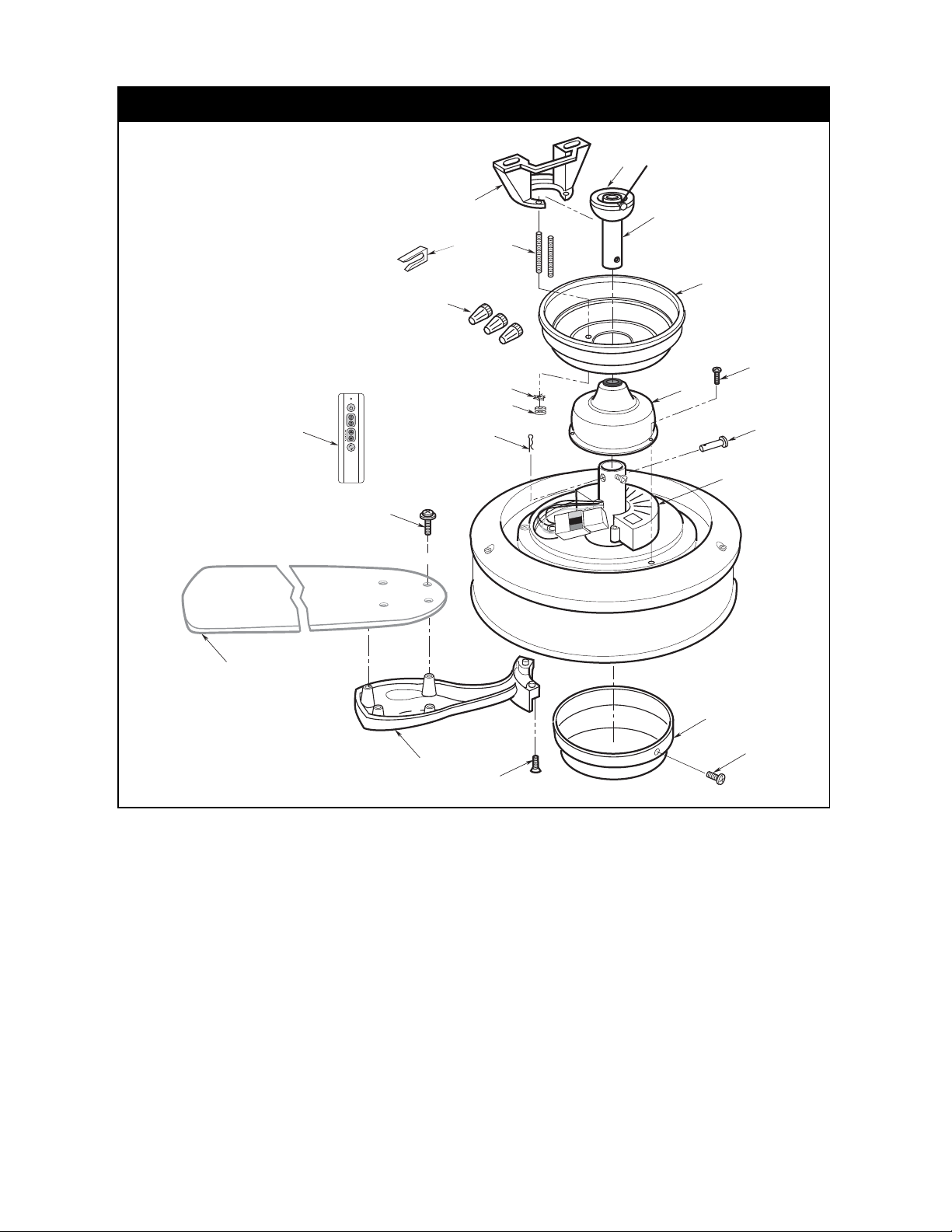

NOTE: If you are uncertain of part description, refer to exploded view illustration.
a.Fan motor assembly
b.One switch housing assembly
c.One ceiling cover
d.Five blade flanges
e.One hanger ball/downrod assembly
f.One hanger bracket
g.One coupling cover
h.One remote control
i.One loose parts bag containing:
1.Twenty-one #10-24 x 12mm washer head blade screws
2.One 1/4-20 x 14 captive screw with lockwasher
3.One #8-32 x 8mm flat head screw
4.One #8-32 x 8mm pan head screw
5.Three wire connectors
6.Two threaded studs
7.Two knurled knobs
8.Two lockwashers
9.One clevis pin
10.One hairpin clip
11.One balancing kit
NOTE: Place the parts from the loose parts bags in a small container to keep them from being lost. If any parts are missing, contact your local retailer or catalog outlet for replacement before proceeding.
2.Remove the fan assembly from the protective plastic bag. Place the fan assembly into the upper foam pad with the bottom of the motor facing up.
The upper foam pad serves as a holder for the fan during the first stages of assembly.
|
i. LOOSE |
|
|
PARTS BAG |
a. FAN MOTOR |
|
|
|
|
|
ASSEMBLY |
|
|
f. HANGER |
|
|
BRACKET |
|
|
e. HANGER BALL/ |
|
|
DOWNROD |
|
|
ASSEMBLY |
|
d. BLADE |
b. SWITCH |
|
FLANGES |
|
|
HOUSING |
|
|
|
|
|
|
ASSEMBLY |
|
|
g. COUPLING |
|
|
COVER |
c. CEILING |
|
h. REMOTE |
|
CONTROL |
|
COVER |
|
|
|
|
5 |
ETL Model No.: CF921 |
Electrical Requirements
Your new ceiling fan will require a grounded electrical supply line of 120 volts AC, 60 Hz, 15 amp circuit.
The outlet box must be securely anchored and capable of withstanding a load of at least 50 pounds.
!WARNING
To reduce the risk of fire, electrical shock, or personal injury, mount fan to outlet box marked “Acceptable for Fan Support of 22.7 kg. (50 lbs.) or less”, and use screws supplied with outlet box. Most outlet boxes commonly used for support of light fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified electrician if in doubt.
If your fan is to replace an existing ceiling light fixture, turn electricity off at the main fuse box at this time and remove the existing light fixture.
!WARNING
Turning off wall switch is not sufficient. To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. All wiring must be in accordance with National and Local codes and the ceiling fan must be properly grounded as a precaution against possible electrical shock.
!WARNING
To avoid fire or shock, follow all wiring instructions carefully. Any electrical work not described in these instructions should be done or approved by a licensed electrician.
How to Put Your Ceiling Fan Together
1.Remove the hanger ball by loosening the setscrew in the hanger ball until the ball falls freely down the downrod (Figure 1). Remove the pin from the downrod, then remove the hanger ball. Retain the pin and hanger ball for reinstallation in Step 4.
2.Separate, untwist and unkink the two 80” motor leads. Route the motor lead wires through the downrod. Remove the upper setscrew from the motor coupling. Align the clevis pin holes in the downrod with the holes in the motor coupling. Install the clevis pin and secure with the hairpin clip (Figure 2). The clevis pin must go through the holes in the motor coupling and the holes in the downrod. Be sure to push the straight leg of the hairpin clip through the hole near the end of the clevis pin until the curved portion of the hairpin clip snaps around the clevis pin. The hairpin clip must be properly installed to prevent the clevis pin from working loose. Pull on the downrod to make sure the clevis pin is properly installed. Reinstall the upper setscrew in the motor coupling. Check that the lower setscrew is tightened securely (Figure 2).
NOTE: The setscrews must be properly installed as described above, or fan wobble could result.
!WARNING
It is critical that the clevis pin in the motor coupling is properly installed and the setscrews securely tightened. Failure to verify that the pin and setscrews are properly installed could result in the fan falling.
NOTE: If LKU100 is being assembled, see Page 13, “Optional Accent Light Kit Installation” of instruction procedures.
PIN
HANGER
BALL
SETSCREW
DOWNROD
Figure 1
MOTOR
COUPLING
SETSCREW |
HAIRPIN |
|
CLEVIS PIN |
||
CLIP |
|
DOWNROD |
CLEVIS |
|
PIN |
CLEVIS |
|
PIN |
HAIRPIN UPPER CLIP SETSCREW
Figure 2
6 |
ETL Model No.: CF921 |
