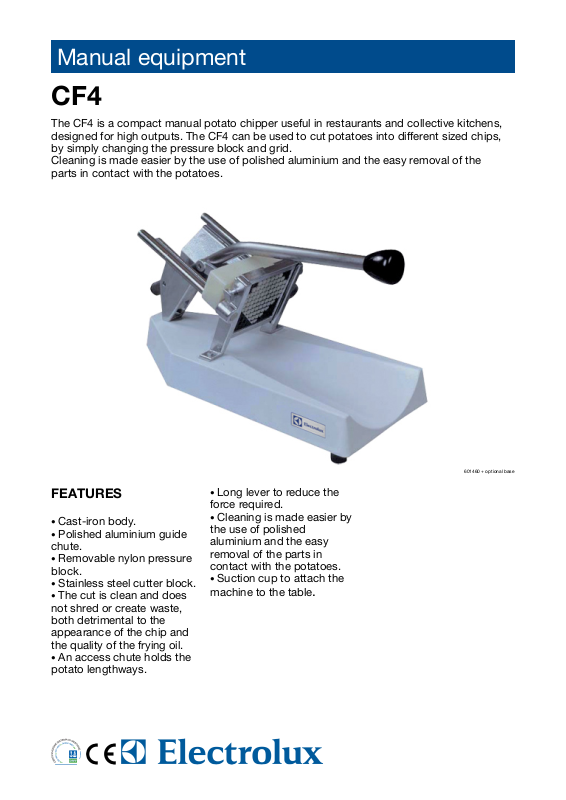

Electrolux CF4 User Manual
Manual equipment
CF4
The CF4 is a compact manual potato chipper useful in restaurants and collective kitchens,
designed for high outputs. The CF4 can be used to cut potatoes into different sized chips,
by simply changing the pressure block and grid.
Cleaning is made easier by the use of polished aluminium and the easy removal of the
parts in contact with the potatoes.
FEATURES
• Cast-iron body.
• Polished aluminium guide
chute.
• Removable nylon pressure
block.
• Stainless steel cutter block.
• The cut is clean and does
not shred or create waste,
both detrimental to the
appearance of the chip and
the quality of the frying oil.
• An access chute holds the
potato lengthways.
601460 + optional base
• Long lever to reduce the
force required.
• Cleaning is made easier by
the use of polished
aluminium and the easy
removal of the parts in
contact with the potatoes.
• Suction cup to attach the
machine to the table.
601459, 601461, 601460
Manual equipmentCF4
CF407
601459
TECHNICAL DATA
External dimensions - mm
width 200 200 200
depth 450 450 450
height 250 250 250
Net weight - kg. 2 2 2
INCLUDED ACCESSORIES
GRID 11MM FOR POTATO CHIPPER 1
GRID 7MM FOR POTATO CHIPPER 1
GRID 9MM FOR POTATO CHIPPER 1
PRESSURE BLOCK 11MM FOR
POTATO CHIPPER
PRESSURE BLOCK 7MM FOR
POTATO CHIPPER
PRESSURE BLOCK 9MM FOR
POTATO CHIPPER
ACCESSORIES
BASE FOR POTATO CHIPPER 653124 653124 653124
GRID 11MM FOR POTATO CHIPPER 653461 653461 653461
GRID 7MM FOR POTATO CHIPPER 653445 653445 653445
GRID 9MM FOR POTATO CHIPPER 653460 653460 653460
PRESSURE BLOCK 11MM FOR
POTATO CHIPPER
PRESSURE BLOCK 7MM FOR
POTATO CHIPPER
PRESSURE BLOCK 9MM FOR
POTATO CHIPPER
1
653464 653464 653464
653462 653462 653462
653463 653463 653463
CF409
601460
1
CF411
601461
1
BADD0102012-07-26Subject to change without notice
Internet: http://www.electrolux.com/foodservice
