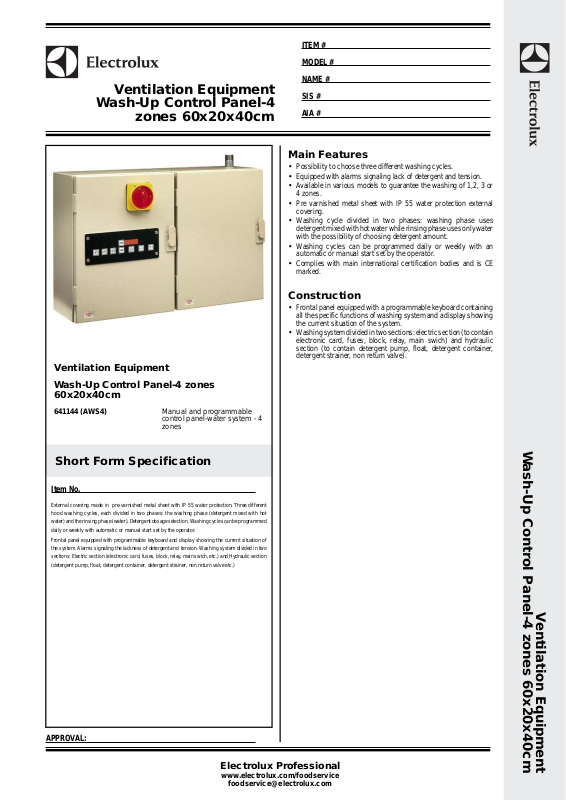

Electrolux 641144, AWS4 User Manual

ITEM #
MODEL #
NAME #

Ventilation Equipment

SIS #

Wash-Up Control Panel-4

zones 60x20x40cm

Ventilation Equipment

AIA #

Main Features

•Possibility to choose three different washing cycles.

•Equipped with alarms signaling lack of detergent and tension.

•Available in various models to guarantee the washing of 1,2, 3 or

4 zones.

•Pre varnished metal sheet with IP 55 water protection external
covering.

•Washing cycle divided in two phases: washing phase uses
detergent mixed with hot water while rinsing phase uses only water
with the possibility of choosing detergent amount.

•Washing cycles can be programmed daily or weekly with an
automatic or manual start set by the operator.

•Complies with main international certification bodies and is CE
marked.

Construction

•Frontal panel equipped with a programmable keyboard containing
all the specific functions of washing system and a display showing
the current situation of the system.

•Washing system divided in two sections: electric section (to contain
electronic card, fuses, block, relay, main swich) and hydraulic
section (to contain detergent pump, float, detergent container,
detergent strainer, non return valve).

Wash-Up Control Panel-4 zones
60x20x40cm

641144 (AWS4)Manual and programmable

control panel-water system - 4
zones

Short Form Specification

Item No.

External covering made in pre-varnished metal sheet with IP 55 water protection. Three different
hood washing cycles, each divided in two phases: the washing phase (detergent mixed with hot
water) and the rinsing phase (water). Detergent dosage selection. Washing cycles can be programmed
daily or weekly with automatic or manual start set by the operator.

Frontal panel equipped with programmable keyboard and display showing the current situation of
the system. Alarms signaling the lackness of detergent and tension. Washing system divided in two
sections: Electric section (electronic card, fuses, block, relay, main swich, etc.) and Hydraulic section
(detergent pump, float, detergent container, detergent strainer, non return valve etc.)

Wash-Up Control Panel-4 zones 60x20x40cm

Ventilation Equipment

APPROVAL:

Electrolux Professional

www.electrolux.com/foodservice

[e-mail]

Ventilation Equipment

Wash-Up Control Panel-4 zones

60x20x40cm

CWI

=Cold Water inlet

EI=Electrical connection

Electric

Supply voltage:

641144(AWS4)230 V/1N ph/50/60 Hz

Total Watts:0.2 kW

Key Information:

External dimensions, Height:400 mm
External dimensions, Width:600 mm
External dimensions, Depth:200 mm
Net weight:15 kg

Wash-Up Control Panel-4 zones 60x20x40cm

The company reserves the right to make modifications to the products

without prior notice. All information correct at time of printing.

Ventilation Equipment

2012.09.28
