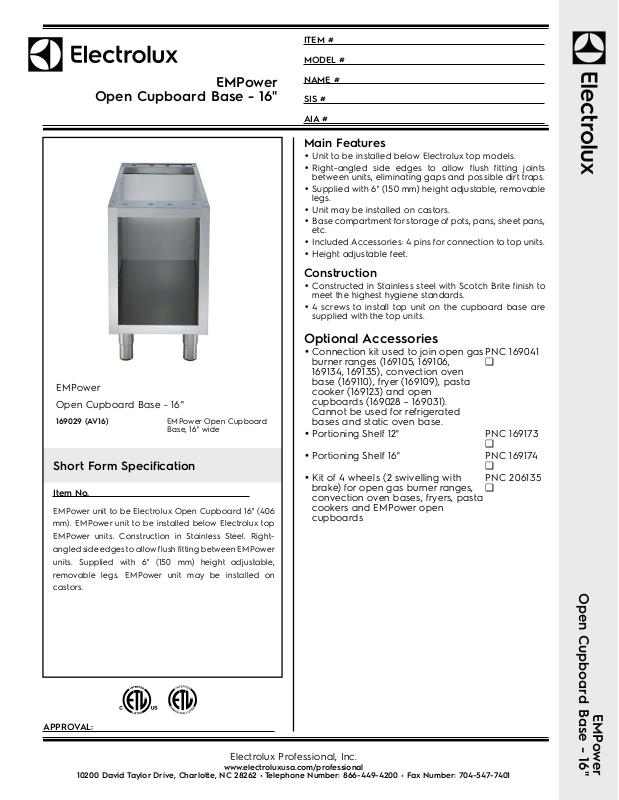

Electrolux AV16 User Manual

ITEM #

MODEL #

EMPower

Open Cupboard Base - 16"

EMPower

Open Cupboard Base - 16"

169029 (A V16)EMPower Open Cupboard

Short Form Specification

Item No.

EMPower unit to be Electrolux Open Cupboard 16" (406
mm). EMPower unit to be installed below Electrolux top
EMPower units. Construction in Stainless Steel. Right­angled side edges to allow flush fitting between EMPower
units. Supplied with 6" (150 mm) height adjustable,
removable legs. EMPower unit may be installed on
castors.

Base, 16" wide

NAME #

SIS #

AIA #

Main Features

•Unit to be installed below Electrolux top models.

•Right-angled side edges to allow flush fitting joints

between units, eliminating gaps and possible dirt traps.

•Supplied with 6" (150 mm) height adjustable, removable

legs.

•Unit may be installed on castors.

•Base compartment for storage of pots, pans, sheet pans,

etc.

•Included Accessories: 4 pins for connection to top units.

•Height adjustable feet.

Construction

•Constructed in Stainless steel with Scotch Brite finish to

meet the highest hygiene standards.

•4 screws to install top unit on the cupboard base are

supplied with the top units.

Optional Accessories

•Connection kit used to join open gas

burner ranges (169105, 169106,
169134, 169135), convection oven
base (169110), fryer (169109), pasta
cooker (169123) and open
cupboards (169028 – 169031).
Cannot be used for refrigerated
bases and static oven base.

•Portioning Shelf 12" PNC 169173

•Portioning Shelf 16" PNC 16917 4

•Kit of 4 wheels (2 swivelling with

brake) for open gas burner ranges,
convection oven bases, fryers, pasta
cookers and EMPower open
cupboards

PNC 169041

❑

❑
❑

PNC 206135

❑

Open Cupboard Base - 16"

APPROV AL:

EMPower

Electrolux Professional, Inc.

www.electroluxusa.com/professional

10200 David T aylor Drive, Charlotte, NC 28262 • Telephone Number: 866-449-4200 • Fax Number: 704-547-7401

EMPower

Open Cupboard Base - 16"

Front

Key Information:

External dimensions, Width:

169029 (AV16)16 " (406 mm)
External dimensions, Depth:29 15/16" (7 60 mm)
External dimensions, Height:26 11/16" (678 mm)
Net weight:33 lbs (15 kg)
Shipping width:17 15/16" (456 mm)
Shipping depth:35 7 /16" (900 mm)
Shipping height:34 1/4" (870 mm)
Shipping weight:42 lbs (19 kg)
Shipping volume:12.61 ft³ (0.36 m³)

Top

Side

Open Cupboard Base - 16"

The company reserves the right to make modifications to the products

without prior notice. All information correct at time of printing.

EMPower

2016.07 .21
