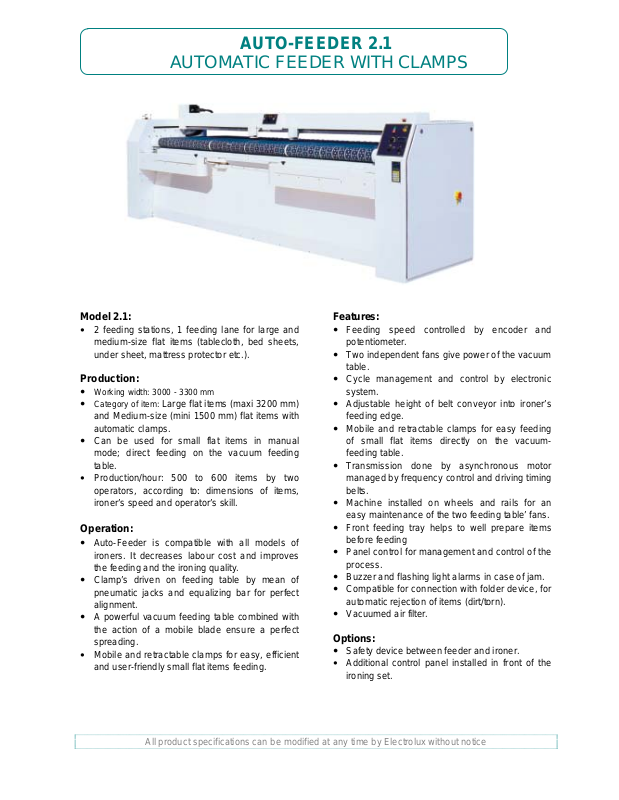

Electrolux AUTO-FEEDER 2.1 DATASHEET

AUTO-FEEDER 2.1

AUTOMATIC FEEDER WITH CLAMPS

Model 2.1:

2 feeding st ations, 1 feeding lan e for large and

medium-size flat items (tablecloth, bed sheets, under sheet, mattress protector etc.).

Production:

Working width: 3000 - 3300 mm

Category of item: Large flat items (maxi 3200 mm)

and Medium-size (mini 1500 mm) flat items with automatic clamps. Can be used for small flat items in manual

mode; direct feeding on the vacuum feeding table.

! Production/hour: 500 to 600 items by two

operators, according to: dimensions of items, ironer’s speed and operator’s skill.

Operation:

! Auto-Feeder is compatible with all models of

ironers. It decreases labour cost and improves the feeding and the ironing quality. Clamp’s driven on feeding table by mean of

pneumatic jacks and equalizing bar for perfect alignment.

! A powerful vac uum feeding t able combine d with

the action of a mobile blade ensure a perfect spreading.

! Mobile and retractable clamps for easy, efficient

and user-friendly small flat items feeding.

All product specifications can be modified at any time by Electrolux without notice

Features:

Feeding speed controlled by encoder and

potentiometer.

! Two independent fans give power of the vacuum

table. Cycle management and control by electronic

system.

! Adjustable height of belt conveyor into ironer’s

feeding edge.

! Mobile and retractable clamps for easy feeding

of small flat items directly on the vacuumfeeding table. Transmission done by asynchronous motor

managed by frequency control and driving timing belts.

! Machine installed on wheels and rails for an

easy maintenance of the two feeding table’ fans. Front feeding tray helps to well prepare items

before feeding

! Panel control for management and control of the

process. Buzzer and flashing light alarms in case of jam.

Compatible for connection with folder device, for

automatic rejection of items (dirt/torn).

! Vacuumed air filter.

Options:

Safety device between feeder and ironer.

Additional control panel installed in front of the

ironing set.

AUTO-FEEDER 2.1

Electrical connection 3000 3300

Voltage:

400V 3N AC 50Hz kW (A) 5.36 (10) 5.36 (10) 230V 3N AC 50Hz kW (A) 5.36 (25) 5.36 (25)

Compressed air connection

Air mm 12 12 Air pressure kPa 800 800 Air consumption NL/min 80-120 80-120

Sound level

Airborne sound level dB(A) < 70 < 70

Shipping data

Weight kg 1990 2020 Static load Kg/cm² 1.5 1.5

Dimensions in mm

Overall width mm 4420 4420 Overall depth with feeding tray Overall height with air collector

AUTOMATIC FEEDER WITH CLAMPS

mm 1250 1250 mm 1870 1870

Large and medium-size flat items :

1 central lane in automatic mode.

Hourly production 500-600 items.

Can be used as multi-lanes for small flat items in manual mode.

All product specifications can be modified at any time by Electrolux without notice
