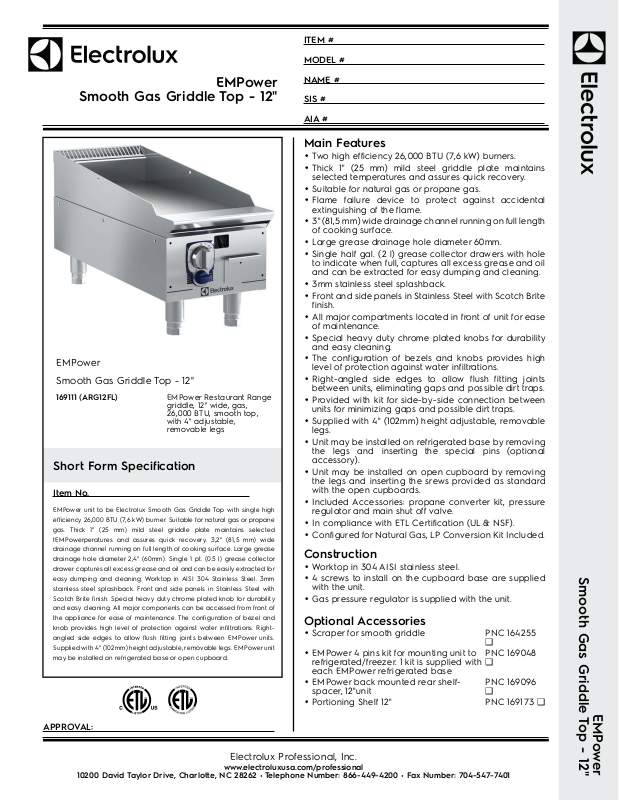

Electrolux ARG12FL User Manual

ITEM #

MODEL #

EMPower

Smooth Gas Griddle Top - 12"

EMPower

Smooth Gas Griddle Top - 12"

169111 (ARG12FL)EMPower Restaurant Range

Short Form Specification

Item No.

EMPower unit to be Electrolux Smooth Gas Griddle Top with single high
efficiency 26,000 BTU (7 ,6 kW) burner. Suitable for natural gas or propane
gas. Thick 1" (25 mm) mild steel griddle plate maintains selected
tEMPowerperatures and assures quick recovery . 3,2" (81,5 mm) wide
drainage channel running on full length of cooking surface. Large grease
drainage hole diameter 2,4" (60mm). Single 1 pt. (0.5 l) grease collector
drawer captures all excess grease and oil and can be easily e xtracted for
easy dumping and cleaning. Worktop in AISI 304 Stainless Steel. 3mm
stainless steel splashback. Front and side panels in Stainless Steel with
Scotch Brite finish. Special heavy duty chrome plated knob for durability
and easy cleaning. All major components can be accessed from front of
the appliance for ease of maintenance. The configuration of bezel and
knob provides high level of protection against water infiltrations. Right­angled side edges to allow flush fitting joints between EMPower units.
Supplied with 4" (102mm) height adjustable, removable legs. EMPower unit
may be installed on refrigerated base or open cupboard.

APPROV AL:

griddle, 12" wide, gas,
26,000 BTU, smooth top,
with 4" adjustable,
removable legs

NAME #

SIS #

AIA #

Main Features

•Two high efficiency 26,000 BTU (7,6 kW) burners.

•Thick 1" (25 mm) mild steel griddle plate maintains

selected temperatures and assures quick recovery .

•Suitable for natural gas or propane gas.

•Flame failure device to protect against accidental

extinguishing of the flame.

•3" (81,5 mm) wide drainage channel running on full length

of cooking surface.

•Large grease drainage hole diameter 60mm.

•Single half gal. (2 l) grease collector drawers with hole

to indicate when full, captures all excess grease and oil
and can be extracted for easy dumping and cleaning.

•3mm stainless steel splashback.

•Front and side panels in Stainless Steel with Scotch Brite

finish.

•All major compartments located in front of unit for ease

of maintenance.

•Special heavy duty chrome plated knobs for durability

and easy cleaning.

•The configuration of bezels and knobs provides high

level of protection against water infiltrations.

•Right-angled side edges to allow flush fitting joints

between units, eliminating gaps and possible dirt traps.

•Provided with kit for side-by-side connection between

units for minimizing gaps and possible dirt traps.

•Supplied with 4" (102mm) height adjustable, removable

legs.

•Unit may be installed on refrigerated base by removing

the legs and inserting the special pins (optional
accessory).

•Unit may be installed on open cupboard by removing

the legs and inserting the srews provided as standard
with the open cupboards.

•Included Accessories: propane converter kit, pressure

regulator and main shut off valve.

•In compliance with ETL Certification (UL & NSF).

•Configured for Natural Gas, LP Conversion Kit Included.

Construction

•Worktop in 304 AISI stainless steel.

•4 screws to install on the cupboard base are supplied

with the unit.

•Gas pressure regulator is supplied with the unit.

Optional Accessories

•Scraper for smooth griddlePNC 164255

•EMPower 4 pins kit for mounting unit to

refrigerated/freezer. 1 kit is supplied with
each EMPower refrigerated base

•EMPower back mounted rear shelf-

spacer, 12"unit

•Portioning Shelf 12" PNC 169173 ❑

❑

PNC 169048

❑

PNC 169096

❑

Smooth Gas Griddle Top - 12"

EMPower

Electrolux Professional, Inc.

10200 David T aylor Drive, Charlotte, NC 28262 • Telephone Number: 866-449-4200 • Fax Number: 704-547-7401

www.electroluxusa.com/professional

EMPower

Smooth Gas Griddle Top - 12"

Front

Gas

Gas Power:

169111 (ARG12FL)26000 Btu/hr (7.6 kW)

Gas Inlet:3/4"

Key Information:

External dimensions, Width:12 1/64" (305 mm)
External dimensions, Depth:31 1/2" (800 mm)
External dimensions, Height:16 1/2" (419 mm)
Net weight:82 lbs (37 kg)
Shipping width:35 7 /16" (900 mm)
Shipping depth:14 " (355 mm)

Top

Shipping height:25 1/2" (648 mm)
Shipping weight:93 lbs (42 kg)
Shipping volume:7.31 ft³ (0.21 m³)

* The rear and side clearances shown on the diagram
indicate the minimum distances reccomeneded from the
appliance to combustible surfaces.

EQ=Equipotential screw

G=Gas connection

Side

Smooth Gas Griddle T op - 12"

The company reserves the right to make modifications to the products

without prior notice. All information correct at time of printing.

EMPower

2016.07 .21
