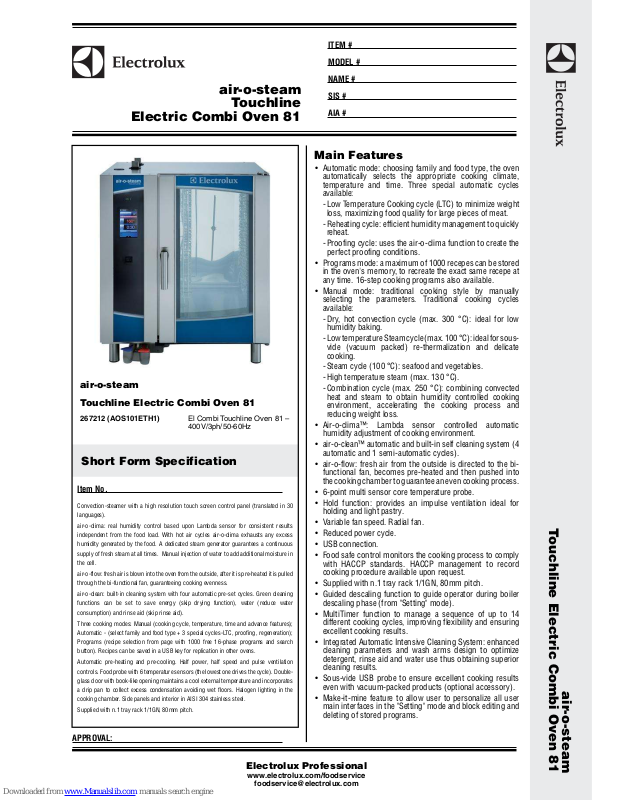

air-o-steam

Touchline Electric Combi Oven 81

air-o-steam
Touchline Electric Combi Oven 81

267212 (AOS101ETH1)El Combi T ouchline Oven 81 –

400V/3ph/50-60Hz

Convection-steamer with a high resolution touch screen control panel (translated in 30
languages).

air-o-clima: real humidity control based upon Lambda sensor for consistent results
independent from the food load. With hot air cycles air-o-clima exhausts any excess
humidity generated by the food. A dedicated steam generator guarantees a continuous
supply of fresh steam at all times. Manual injection of water to add additional moisture in
the cell.

air-o-flow: fresh air is blown into the oven from the outside, after it is pre-heated it is pulled
through the bi-functional fan, guaranteeing cooking evenness.

air-o-clean: built-in cleaning system with four automatic pre-set cycles. Green cleaning
functions can be set to save energy (skip drying function), water (reduce water
consumption) and rinse aid (skip rinse aid).

Three cooking modes: Manual (cooking cycle, temperature, time and advance features);
Automatic - (select family and food type + 3 special cycles-LTC, proofing, regeneration);
Programs (recipe selection from page with 1000 free 16-phase programs and search
button). Recipes can be saved in a USB key for replication in other ovens.

Automatic pre-heating and pre-cooling. Half power, half speed and pulse ventilation
controls. Food probe with 6 temperature sensors (the lowest one drives the cycle). Double­glass door with book-like opening maintains a cool external temperature and incorporates
a drip pan to collect excess condensation avoiding wet floors. Halogen lighting in the
cooking chamber. Side panels and interior in AISI 304 stainless steel.

Supplied with n.1 tray rack 1/1GN, 80mm pitch.

Main Features

•Automatic mode: choosing family and food type, the oven

automatically selects the appropriate cooking climate,
temperature and time. Three special automatic cycles
available:

-Low Temperature Cooking cycle (LTC) to minimize weight
loss, maximizing food quality for large pieces of meat.

-Reheating cycle: efficient humidity management to quickly
reheat.

-Proofing cycle: uses the air-o-clima function to create the
perfect proofing conditions.

•Programs mode: a maximum of 1000 recepes can be stored

in the oven's memory, to recreate the exact same recepe at
any time. 16-step cooking programs also available.

•Manual mode: traditional cooking style by manually

selecting the parameters. Traditional cooking cycles
available:

-Dry, hot convection cycle (max. 300 °C): ideal for low
humidity baking.

-Low temperature Steam cycle (max. 100 °C): ideal for sous­vide (vacuum packed) re-thermalization and delicate
cooking.

-Steam cycle (100 °C): seafood and vegetables.

-High temperature steam (max. 130 °C).

-Combination cycle (max. 250 °C): combining convected
heat and steam to obtain humidity controlled cooking
environment, accelerating the cooking process and
reducing weight loss.

•Air-o-clima™: Lambda sensor controlled automatic

humidity adjustment of cooking environment.

•air-o-clean™ automatic and built-in self cleaning system (4

automatic and 1 semi-automatic cycles).

•air-o-flow: fresh air from the outside is directed to the bi-

functional fan, becomes pre-heated and then pushed into
the cooking chamber to guarantee an even cooking process.

•6-point multi sensor core temperature probe.

•Hold function: provides an impulse ventilation ideal for

holding and light pastry.

•Variable fan speed. Radial fan.

•Reduced power cycle.

•USB connection.

•Food safe control monitors the cooking process to comply

with HACCP standards. HACCP management to record
cooking procedure available upon request.

•Supplied with n.1 tray rack 1/1GN, 80mm pitch.

•Guided descaling function to guide operator during boiler

descaling phase (from "Setting" mode).

•MultiTimer function to manage a sequence of up to 14

different cooking cycles, improving flexibility and ensuring
excellent cooking results.

•Integrated Automatic Intensive Cleaning System: enhanced

cleaning parameters and wash arms design to optimize
detergent, rinse aid and water use thus obtaining superior
cleaning results.

•Sous-vide USB probe to ensure excellent cooking results

even with vacuum-packed products (optional accessory).

•Make-it-mine feature to allow user to personalize all user

main interfaces in the "Setting" mode and block editing and
deleting of stored programs.

air-o-steam

Touchline

Electric Combi Oven 81

air-o-steam

Touchline Electric Combi Oven 81

The company reserves the right to make modifications to the products

without prior notice. All information correct at time of printing.

2012.09.28

Construction

•IPX 5 spray water protection certification for easy cleaning.

•304 AISI stainless steel construction throughout.

•Seamless hygienic cooking chamber with all rounded corners for

easy cleaning.

•Double thermo-glazed door with open frame construction, for cool

outside door panel. Swing hinged easy-release inner glass on door
for easy cleaning.

•Swing hinged front panel for easy service access to main

components.

•Integrated spray hose included.

•Green functions to save energy, water and rinse aid.

air-o-steam

Touchline

Electric Combi Oven 81

air-o-steam

Touchline Electric Combi Oven 81

The company reserves the right to make modifications to the products

without prior notice. All information correct at time of printing.

2012.09.28

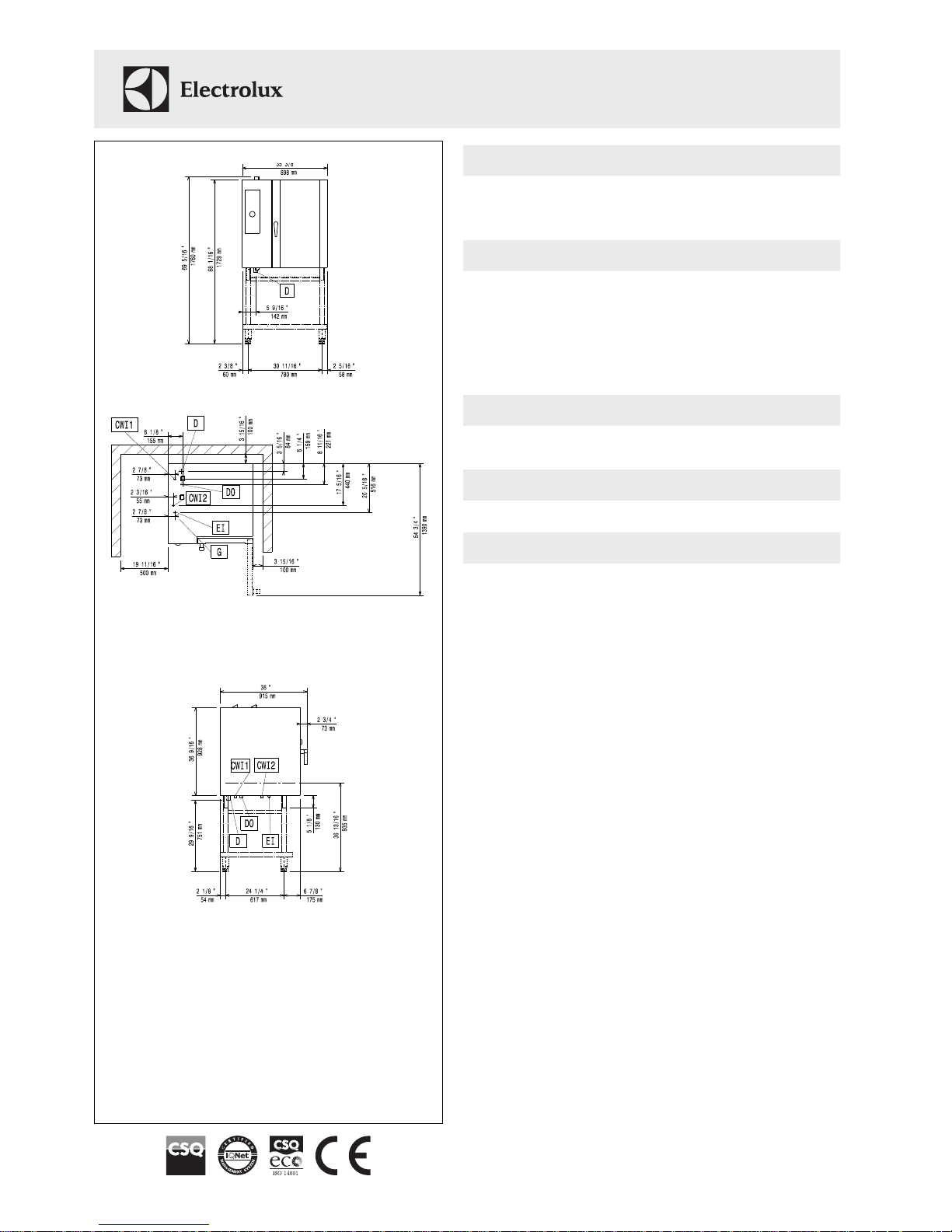

Front

Top

CWI=Cold Water inlet

D=Drain

EI=Electrical connection

Side

Electric

Supply voltage:

267212(AOS101ETH1)400 V/3N ph/50/60 Hz
Connected load:17.5 kW
Circuit breaker required

Water:

Water inlet "CW" connection:3/4"
Water inlet "FCW" connection:3/4"
Total hardness:5-50 ppm
Pressure:1.5-4.5 bar
Drain "D":1"1/4

Electrolux recommends the use of treated water, based on testing of
specific water conditions.

Please refer to user manual for detailed water quality information.

Installation:

Clearance:5 cm rear and right hand sides.
Suggested clearance for service

access:50 cm left hand side.

Capacity:

GN:8 - 1/1 Gastronorm
Max load capacity:50 kg

Key Information:

Net weight:156 kg
Shipping weight:180 kg
Shipping height:1270 mm
Shipping width:960 mm
Shipping depth:1000 mm
Shipping volume:1.22 m³

air-o-steam

Touchline

Electric Combi Oven 81

air-o-steam

Touchline Electric Combi Oven 81

The company reserves the right to make modifications to the products

without prior notice. All information correct at time of printing.

2012.09.28

Optional Accessories

•Exhaust hood without fan for air-o-system

6&10 1/1GN

PNC 640791 ❑

•Exhaust hood with fan for air-o-system 6&10

1/1GN

PNC 640792 ❑

•Odourless hood for air-o-steam/air-o-convect

6GN1/1 and 10GN1/1, electric

PNC 640796 ❑

•Automatic water softener for ovens PNC 921305 ❑

•Resin sanitizer for water softenerPNC 921306 ❑

•Castor kit for base for 6&10x1/1 and 2/1 GN

ovens

PNC 922003 ❑

•Trolley for 6&10x1/1GN ovens and bcfPNC 922004 ❑

•Tray rack with wheels for 10x1/1GN ovens and

bcf, 65mm pitch (std)

PNC 922006 ❑

•Tray rack with wheels for 8x1/1GN ovens and

bcf, 80mm pitch

PNC 922009 ❑

•Kit 4 adjustable feet for 6&10 GNPNC 922012 ❑

•Thermal blanket for 10x1/1GNPNC 922013 ❑

•Rack for 30 plates for 10x1/1GN ovens and bcf,

65mm pitch

PNC 922015 ❑

•Pair of 1/1 GN AISI 304 gridsPNC 922017 ❑

•Tray support for air-o-steam 6&10x1/1GN open

base

PNC 922021 ❑

•Couple of grids for whole chicken 1/1GN (8 per

grid)

PNC 922036 ❑

•Pastry tray rack with wheels, for 10x1/1GN

ovens and bcf, 80mm pitch (8 runners).
Suitable for 400x600mm pastry trays

PNC 922066 ❑

•Rack for 23 plates for 10x1/1GN, 85mm pitch PNC 922071 ❑

•Slide-in rack and handle for 6&10x1/1GNPNC 922074 ❑

•Grid for whole chicken 1/2GN (4 per grid -

1,2kg each)

PNC 922086 ❑

•Non-stick universal pan 1/1GN H=20mmPNC 922090 ❑

•Non-stick universal pan 1/1GN H=40mmPNC 922091 ❑

•Non-stick universal pan 1/1GN H=60mmPNC 922092 ❑

•Reinforced tray rack with wheels, lowest

support dedicated to a grease collection tray,
for 10x1/1GN, 64mm pitch

PNC 922099 ❑

•External connection kit for detergent and rinse

aid

PNC 922169 ❑

•Side external spray unitPNC 922171 ❑

•Fat filter for 10 1/1 and 2/1 GN combi steamers

(gas and electric) and convection ovens
(electric)

PNC 922178 ❑

•Water filter for ovensPNC 922186 ❑

•Baking tray with 5 rows (baguette), perforated

aluminium with silicon coating (400x600x38)

PNC 922189 ❑

•Baking tray with 4 edges, perforated aluminium

(400x600x20)

PNC 922190 ❑

•Baking tray with 4 edges, aluminium

(400x600x20)

PNC 922191 ❑

•Standard open base with tray support for

6&10x1/1GN

PNC 922195 ❑

•Basket for detergent tank - wall mountedPNC 922209 ❑

•Holder for detergent tank, to mount on open

base

PNC 922212 ❑

•Frying griddle GN 1/1 PNC 922215 ❑

•Cupboard base and tray support for

6&10x1/1GN ovens

PNC 922223 ❑

•Hot cupboard base with humidifier for

6&10x1/1GN ovens, with support for 1/1GN
and 600x400mm trays

PNC 922227 ❑

•2 frying baskets for ovensPNC 922239 ❑

•Heat shield for stacked ovens 6x1/1GN on

10x1/1GN

PNC 922245 ❑

•Control panel filter for 6&10xGN1/1 ovens PNC 922246 ❑

•Heat shield for 10x1/1GN PNC 922251 ❑

•Double-click closing catch for doorPNC 922265 ❑

•Grid for whole chicken 1/1GN (8 per grid - 1,2kg

each)

PNC 922266 ❑

•Kit integrated HACCP for ovensPNC 922275 ❑

•USB probe for Sous-Vide cooking - available on air-

o-steam Touchline ovens with updated software
versions 4.10

PNC 922281 ❑

•Drain kit (diam. 50 mm) for 6 & 10 GN 1/1 and 10

GN 2/1 ovens

PNC 922283 ❑

•Frying griddle GN 2/3 for ovensPNC 922284 ❑

•Non-stick universal pan GN 2/3 H=20mmPNC 922285 ❑

•Pastry runners (400x600 mm) for 6 &10 GN1/1

oven bases

PNC 922286 ❑

•Grease collection kit including tray and trolleyPNC 922287 ❑

•Baking tray for baguette 1/1GNPNC 922288 ❑

•Aluminium oven grill GN 1/1PNC 922289 ❑

•Egg fryer for 8 eggs 1/1GNPNC 922290 ❑

•Bakery rack kit for 10 GN1/1 ovensPNC 922292 ❑

•Flat baking tray with 2 edges, GN 1/1PNC 922299 ❑

•Potato baker GN 1/1 for 28 potatoesPNC 922300 ❑

•Non stick universal pan GN 2/3, H=40mmPNC 922302 ❑

•Non stick universal pan GN 2/3, H=60mmPNC 922304 ❑

•Aluminium oven grill GN 2/3PNC 922306 ❑

•Non-stick universal pan GN 1/2, H=20mmPNC 922308 ❑

•Non-stick universal pan GN 1/2, H=40mmPNC 922309 ❑

•Non-stick universal pan GN 1/2, H=60mmPNC 922310 ❑

•Frying griddle GN 1/2 for ovensPNC 922311 ❑

•Alluminium oven grill GN 1/2PNC 922312 ❑

•External reverse osmosis filter for ovensPNC 922316 ❑

•Stacking kit for electric 6x1/1 GN oven placed on

electric 6&10x1/1 GN oven including kit pipes and
external connection of detergent and rinse aid

PNC 922319 ❑
