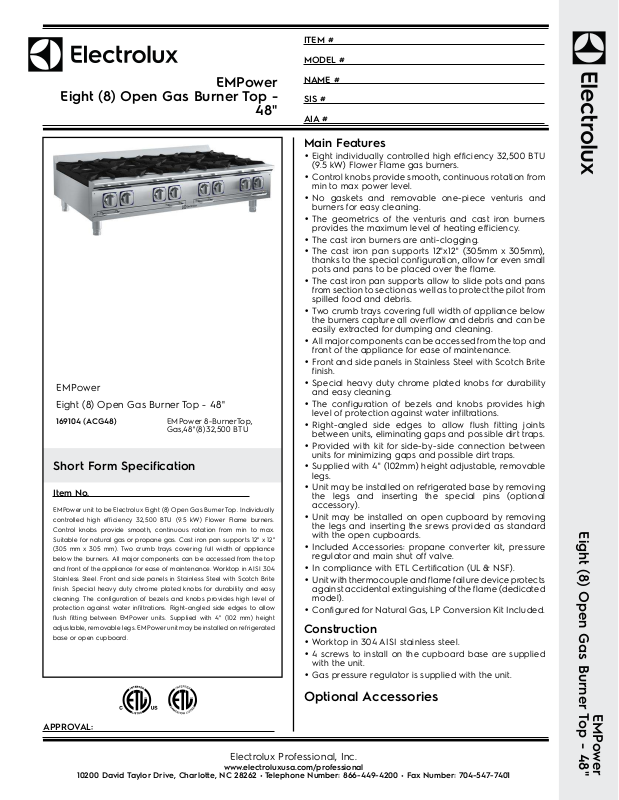

Electrolux ACG48 User Manual
ITEM #
MODEL #
EMPower
Eight (8) Open Gas Burner Top -
48"
EMPower
Eight (8) Open Gas Burner Top - 48"
169104 (ACG48)EMPower 8-BurnerTop,
Short Form Specification
Item No.
EMPower unit to be Electrolux Eight (8) Open Gas Burner Top. Individually
controlled high efficiency 32,500 BTU (9.5 kW) Flower Flame burners.
Control knobs provide smooth, continuous rotation from min to max.
Suitable for natural gas or propane gas. Cast iron pan supports 12" x 12"
(305 mm x 305 mm). Two crumb trays covering full width of appliance
below the burners. All major components can be accessed from the top
and front of the appliance for ease of maintenance. Worktop in AISI 304
Stainless Steel. Front and side panels in Stainless Steel with Scotch Brite
finish. Special heavy duty chrome plated knobs for durability and easy
cleaning. The configuration of bezels and knobs provides high level of
protection against water infiltrations. Right-angled side edges to allow
flush fitting between EMPower units. Supplied with 4" (102 mm) height
adjustable, remo vable legs. EMPower unit may be installed on refrigerated
base or open cupboard.
Gas,48"(8)32,500 BTU
NAME #
SIS #
AIA #
Main Features
•Eight individually controlled high efficiency 32,500 BTU
(9.5 kW) Flower Flame gas burners.
•Control knobs provide smooth, continuous rotation from
min to max power level.
•No gaskets and removable one-piece venturis and
burners for easy cleaning.
•The geometrics of the venturis and cast iron burners
provides the maximum level of heating efficiency.
•The cast iron burners are anti-clogging.
•The cast iron pan supports 12"x12" (305mm x 305mm),
thanks to the special configuration, allow for even small
pots and pans to be placed over the flame.
•The cast iron pan supports allow to slide pots and pans
from section to section as well as to protect the pilot from
spilled food and debris.
•Two crumb trays covering full width of appliance below
the burners capture all overflow and debris and can be
easily extracted for dumping and cleaning.
•All major components can be accessed from the top and
front of the appliance for ease of maintenance.
•Front and side panels in Stainless Steel with Scotch Brite
finish.
•Special heavy duty chrome plated knobs for durability
and easy cleaning.
•The configuration of bezels and knobs provides high
level of protection against water infiltrations.
•Right-angled side edges to allow flush fitting joints
between units, eliminating gaps and possible dirt traps.
•Provided with kit for side-by-side connection between
units for minimizing gaps and possible dirt traps.
•Supplied with 4" (102mm) height adjustable, removable
legs.
•Unit may be installed on refrigerated base by removing
the legs and inserting the special pins (optional
accessory).
•Unit may be installed on open cupboard by removing
the legs and inserting the srews provided as standard
with the open cupboards.
•Included Accessories: propane converter kit, pressure
regulator and main shut off valve.
•In compliance with ETL Certification (UL & NSF).
•Unit with thermocouple and flame failure device protects
against accidental extinguishing of the flame (dedicated
model).
•Configured for Natural Gas, LP Conversion Kit Included.
Construction
•Worktop in 304 AISI stainless steel.
•4 screws to install on the cupboard base are supplied
with the unit.
•Gas pressure regulator is supplied with the unit.
Eight (8) Open Gas Burner Top - 48"
APPROV AL:
Optional Accessories
EMPower
Electrolux Professional, Inc.
www.electroluxusa.com/professional
10200 David T aylor Drive, Charlotte, NC 28262 • Telephone Number: 866-449-4200 • Fax Number: 704-547-7401
Eight (8) Open Gas Burner Top - 48
EMPower
"
Front
Gas
Gas Power:
169104 (ACG48)260000 Btu/hr (76 kW)
Gas Type Option:Propane
Gas Inlet:3/4"
Key Information:
Front Burners Power:
External dimensions, Width:48 1/32" (1220 mm)
Top
External dimensions, Depth:31 1/2" (800 mm)
External dimensions, Height:14 5/8" (372 mm)
Net weight:245 lbs (111 kg)
Shipping width:50 9/16" (1284 mm)
Shipping depth:36 1/16" (916 mm)
Shipping height:27 1/16" (688 mm)
Shipping weight:276 lbs (125 kg)
Shipping volume:28.57 ft³ (0.81 m³)
*The rear and side clearances shown on the diagram
indicate the minimum distances reccomeneded from the
appliance to combustible surfaces.
9.5 - 9.5 kW (32385.5 -
32385.5 Btu/hr)
EQ=Equipotential screw
G=Gas connection
Side
Eight (8) Open Gas Burner T op - 48"
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
EMPower
2016.07 .21
