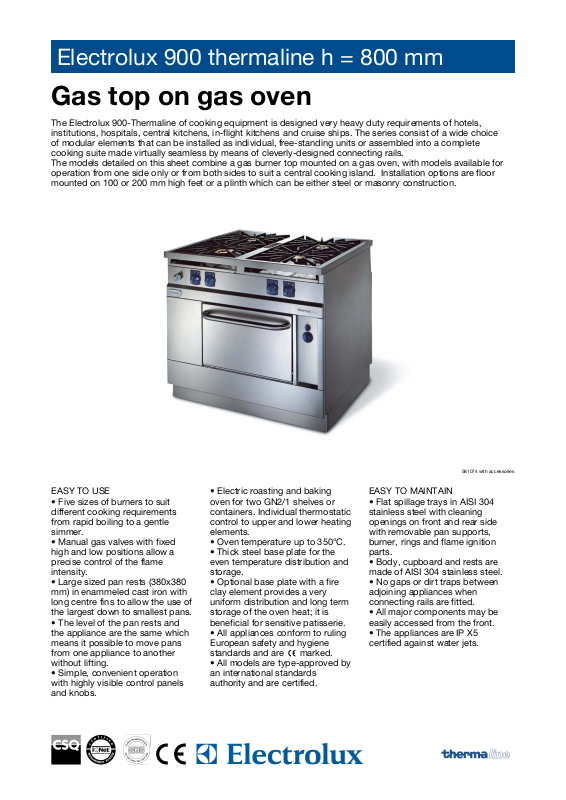

Electrolux 900 thermaline h = 800 mm

Gas top on gas oven

The Electrolux 900-Thermaline of cooking equipment is designed very heavy duty requirements of hotels,
institutions, hospitals, central kitchens, in-flight kitchens and cruise ships. The series consist of a wide choice
of modular elements that can be installed as individual, free-standing units or assembled into a complete
cooking suite made virtually seamless by means of cleverly-designed connecting rails.
The models detailed on this sheet combine a gas burner top mounted on a gas oven, with models available for
operation from one side only or from both sides to suit a central cooking island. Installation options are floor
mounted on 100 or 200 mm high feet or a plinth which can be either steel or masonry construction.

EASY TO USE

• Five sizes of burners to suit
different cooking requirements
from rapid boiling to a gentle
simmer.

• Manual gas valves with fixed
high and low positions allow a
precise control of the flame
intensity.

• Large sized pan rests (380x380
mm) in enammeled cast iron with
long centre fins to allow the use of
the largest down to smallest pans.

• The level of the pan rests and
the appliance are the same which
means it possible to move pans
from one appliance to another
without lifting.

• Simple, convenient operation
with highly visible control panels
and knobs.

• Electric roasting and baking
oven for two GN2/1 shelves or
containers. Individual thermostatic
control to upper and lower heating
elements.

• Oven temperature up to 350°C.

• Thick steel base plate for the
even temperature distribution and
storage.

• Optional base plate with a fire
clay element provides a very
uniform distribution and long term
storage of the oven heat; it is
beneficial for sensitive patisserie.

• All appliances conform to ruling
European safety and hygiene
standards and are H marked.

• All models are type-approved by
an international standards
authority and are certified.

581074 with accessories

EASY TO MAINTAIN

• Flat spillage trays in AISI 304
stainless steel with cleaning
openings on front and rear side
with removable pan supports,
burner, rings and flame ignition
parts.

• Body, cupboard and rests are
made of AISI 304 stainless steel.

• No gaps or dirt traps between
adjoining appliances when
connecting rails are fitted.

• All major components may be
easily accessed from the front.

• The appliances are IP X5
certified against water jets.

EASY ON THE ENVIRONMENT

• Models with ECOFLAM pan
detection system assure energy
saving by limiting unecessary heat
radiation in the kitchen.

• 98% recyclable by weight.

• Packing free of toxic substances.

Electrolux 900 thermaline h = 800 mm

Gas top on gas oven

LG259740E

599358

TECHNICAL DATA

Power supply Gas Gas Gas Gas

Ecoflam ● ●
One-Side Operated ● ●
Both-Sides Operated ● ●

External dimensions - mm
width 1000 1000 1000 1000
depth 900 900 900 900
height 800 800 800 800
Oven cavity - mm
width 550 550 550 550
depth 700 700 700 700
height 270 270 270 270
Oven
heat input - kW 7 7 7 7
temperature min-max - °C 100, 340 100, 340 100, 340 100, 340
Back plate dimensions - mm 420x440,

420x440

Back plates power - kW 6.5, 5 6.5, 5 7, 5 7, 5
Front plates dimension - mm 420x440,

420x440

Front plates power - kW 3.6, 6.5 3.6, 6.5 3.6, 7 3.6, 7
Net weight - kg. 160 160 160 170

INCLUDED ACCESSORIES

BAKING SHEET 2/1GN FOR OVENS 1 1 1 1
GRID, CHROMIUM PLATED, FOR OVENS 2/1 GN 1 1 1 1
PAN REST CAST-IRON-430X380 MM 4 4 4 4

ACCESSORIES

BOTTOM PL+4 FEET 100MM-800&900MM-SPECIAL 911927 911927 911927 911927
BOTTOM STEEL PLATE 2/1 F.FIRE CLAY PLATE 910655 910655 910655 910655
C-BOARD WELDED 1000 MM 911743 911743
FIRE CLAY PLATE 2/1GN FOR OVENS 910656 910656 910656 910656
FLEXIBLE CONNECTION HOSE 3/4'' 910720 910720 910720 910720
FOLDING SHELF 300X900 MM 910803 910803 910803 910803
FOLDING SHELF 400X900 MM 910804 910804 910804 910804
PAN REST STAINLESS STEEL-430X380 MM 910729 910729 910729 910729
ROLLING RACKS COMPL. F.COOKERS,1000-MAR. 910825 910825 910825 910825
S/S PLINTH 1000X900X100MM - AGAINST WALL 911175 911175
S/S PLINTH 1000X900X100MM - FREESTANDING 911154 911154 911154 911154
SIMMERING PLATE-430X380 MM 910716 910716 910716 910716
SOLID TOP PLATE F.OPEN BURNER-360X360MM 910718 910718 910718 910718

LG259739E

599357

420x440,

420x440

420x440,

420x440

LG259739

581074

420x440,

420x440

420x440,

420x440

LG259740

581075

420x440,

420x440

420x440,

420x440

CEAD0102011-06-10Subject to change without notice
