Electrolux 728422, 728420, 728444, 728423, 728424 User Manual

Electrolux HD-Line

Digital refrigerators 1400 lt

The Electrolux HD-Line offers one of the most comprehensive choices of refrigerated storage cabinets
available. Constructed internally and externally in stainless steel, operating over refrigeration or freezer
temperature ranges, with solid or glass doors, and in a choice of either 650 or 1400 liter capacity.
The refrigerator models detailed on this sheet have a capacity of 1400 liters.

EASY TO INSTALL

• Mounted on adjustable stainless
steel feet, with castors as an
option.

• Choice of doors to suit varying
kitchen requirements.

• Refrigerator models have
operating temperatures that can
be adjusted from -2 °C to +10 °C
to suit both meat and dairy
storage requirements.

• Suitable for ambient
temperatures of up to +43 °C in
case of full door or up to +32 °C in
case of glass door models.

728420 728423

EASY TO CLEAN

• Forced air circulation for rapid
cool down and even temperature
uniformity.

• Constructed from the highest
quality AISI 304 stainless steel
with radiused corners to the
interior base, which is pressed
from a single sheet.

• Evaporator unit is inset into the
top of the refrigerated chamber to
provide an obstruction free interior.

• Refrigerators are fitted with
defrost outlet pipe.

EASY TO USE

• Accommodates GN 2/1
containers or shelves on anti-tilt
runners.

• External digital temperature
display.

• Interior light and lockable door.

• Refrigerator with automatic
defrost.

Electrolux HD-Line

Digital refrigerators 1400 lt

EASY TO MAINTAIN

• Heavy-duty construction that
avoids use of any plastic parts.

• Single refrigeration unit
(compressor, condenser and
evaporator) that can be removed
in a single piece from either the
top or back.

• Evaporator cover is easily
removable for maintenance.

EASY ON THE ENVIRONMENT

• 20% reduction in energy
consumption compared to
previous models.

• Cabinet fitted with up to 75 mm
thickness of cyclopentane
insulation for best insulating
performance with 100%
environmental protection.

• Refrigerant type: R134a.

• CFC and HCFC free.

• All models comply with the
standards required by the main
international approval bodies and
are H marked.

RH14RD2F

728420

TECHNICAL DATA

Operating temperature - min/max °C -2/10 -2/10 -2/10 0/10 -2/10
Operating mode Ventilated Ventilated Ventilated Ventilated Ventilated
External material
panels 304 AISI 304 AISI 304 AISI 304 AISI 304 AISI
Gross capacity (D.I.N. 8952) - l. 1400 1400 1400 1400 1400
Cooling unit Built-In Remote Built-In Built-In Built-In
Control type Digital Digital Digital Digital Digital
External dimensions - mm
width 1500 1500 1500 1500 1500
depth/with open doors 810, 1463 810, 1463 810, 1463 810, 1474 810, 1463
height 2050 2050 2050 2050 2050
Min/Max internal humidity - % 75/90 75/90 75/90 65/85 75/90
N° and type of door 2 2 4x1/2 2 2
Door hinges 1 Left+1 Right 1 Left+1 Right 2 Left+2 Right 1 Left+1 Right 1 Left+1 Right
N° and type of grids (included) 8, GN 2/1 8, GN 2/1 8, GN 2/1 8, GN 2/1 8, GN 2/1
Compressor power - HP 3/8 3/8 3/8
N° defrost in 24 hrs. 4/28' 4/28' 4/28' 4/28' 4/28'
Refrigerant type R134a R134a R134a R134a R134a
Refrigerant quantity - g. 360 360 380 360
Refrigeration power - W 512 512 640
Refrigerant power
at evaporation temperature - °C -10 -10 -10 -10 -10
Power - kW
installed-electric 0.513 0.07 0.513 0.538 0.52
Net weight - kg. 248 223 252 266 252

RH14RD2FR

728422

RH14RD4F

728423

RH14RD2G

728424

RH14RD2F6

728444

HAB0402009-10-30Subject to change without notice

Internet: http://www.electrolux.com/foodservice

Electrolux HD-Line

Digital refrigerators 1400 lt

RH14RD2F

728420

RH14RD2FR

728422

RH14RD4F

728423

RH14RD2G

728424

RH14RD2F6

728444

INCLUDED ACCESSORIES

2 S/S RUNNERS FOR 600-650/1300-1400L.REF 8 8 8 8 8
2/1 GN GREY "RILSAN" GRID 8 8 8 8 8

ACCESSORIES

1/1 GN RILSAN STEEL WIRE BASKET H=150

881043 881043 881043 881043 881043

MM
2 S/S RUNNERS FOR 600-650/1300-1400L.REF 881456 881456 881456 881456 881456

2/1 GN AISI 304 S/S GRID 881067 881067 881067 881067 881067
2/1 GN CHROME BASKET+2 RUNNERS H200 881468 881468 881468 881468 881468
2/1 GN GREY "RILSAN" GRID 880720 880720 880720 880720 880720
2/1 GN GREY RILSAN GRID W/ 2 RUNNERS 881454 881454 881454 881454 881454
2/1 GN PVC CONTAINER W/LID AND 2

881462 881462 881462 881462 881462

RUNNERS
3 GREY RILSAN CENTRAL GRIDS FOR 1400 L 881452 881452 881452 881452

304 AISI S/S GRID GN 2/1 WITH 2 RUNNERS 880185
4 SWIVELLING WHEELS (2 W/ BRAKE) 880178 880178 880178 880178 880178
ENERGY FREE ALARM DEVICE 881089 881089 881089 881089 881089
GN 1/1 PLASTIC CONTAINER+FALSE BOTTOM 880705 880705 880705 880705 880705
GN 2/1 WIRE BASKET-H-150 MM+SIDE

881467 881467 881467 881467 881467

RUNNERS
HACCP ADV.CONN.10 UNITS-DIG.REF.(ID9XX) 880119 880119 880119 880119 880119

HACCP ADV.CONN.80 UNITS-DIG.REF.(ID9XX) 880132 880132 880132 880132 880132
HACCP ADV.CONN.PER UNIT-DIG.REF.(ID9XX) 880133 880133 880133 880133 880133
KIT HACCP EKIS 922166 922166 922166 922166
KIT PLINTH TO INSTALL HD REF. 1200/1400 880207 880207 880207 880207 880207
KIT TO FIT 11 PASTRY TRAYS (400X600 MM) 881031 881031 881031 881031 881031
MEAT RAIL FOR 650-1400 L REFRIGERATORS 881451 881451 881451 881451 881451
PEDAL OPENING FOR 1200/1400 L REFRIGER. 881459 881459 881459
PERFORATED SHELF GN 2/1 881042 881042 881042 881042 881042
PRINTER FOR HACCP BASIC VERSION REFRIG. 881457 881457 881457 881457 881457
SET OF 8-1/1 GN PVC CONTAINERS FOR FISH 881461 881461 881461 881461

HAB0402009-10-30Subject to change without notice

Internet: http://www.electrolux.com/foodservice

728420, 728423, 728422

Electrolux HD-Line

Digital refrigerators 1400 lt

RH14RD2F

728420

RH14RD2FR

728422

RH14RD4F

728423

LEGEND

D - Water drain 1/2" 1/2" 1/2"

ED - Remote electrical connection ●

EI - Electrical connection 230 V, 1N, 50 230 V, 1N, 50 230 V, 1N, 50

RI - Remote refrigeration connection ●

HAB0402009-10-30Subject to change without notice

Internet: http://www.electrolux.com/foodservice

728424

Electrolux HD-Line

Digital refrigerators 1400 lt

RH14RD2G

728424

LEGEND

D - Water drain 1/2"
EI - Electrical connection 230 V, 1N, 50

HAB0402009-10-30Subject to change without notice

Internet: http://www.electrolux.com/foodservice

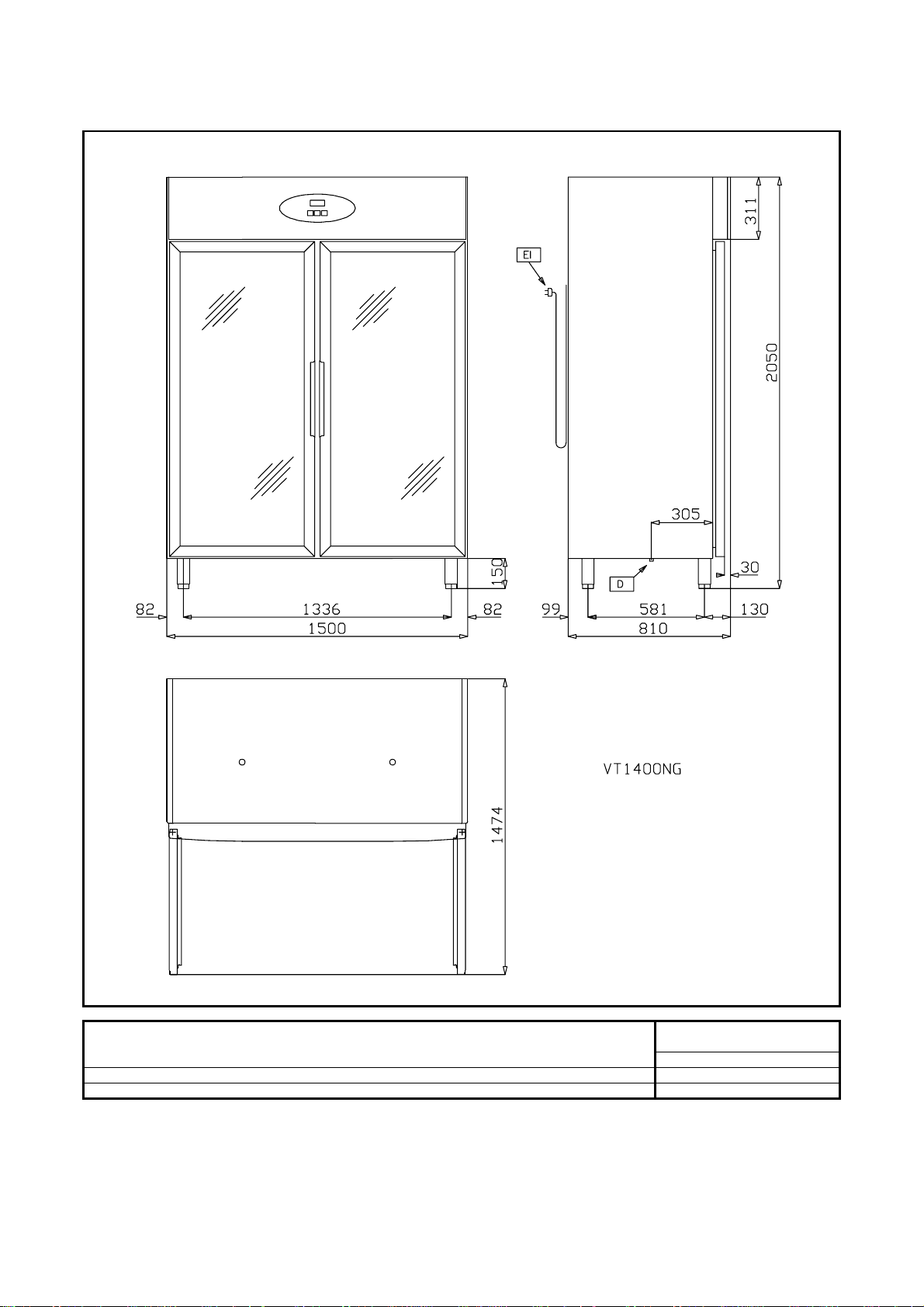

728444

Electrolux HD-Line

Digital refrigerators 1400 lt

RH14RD2F6

728444

LEGEND

D - Water drain 1/2"
EI - Electrical connection 220 V, 1N, 60
