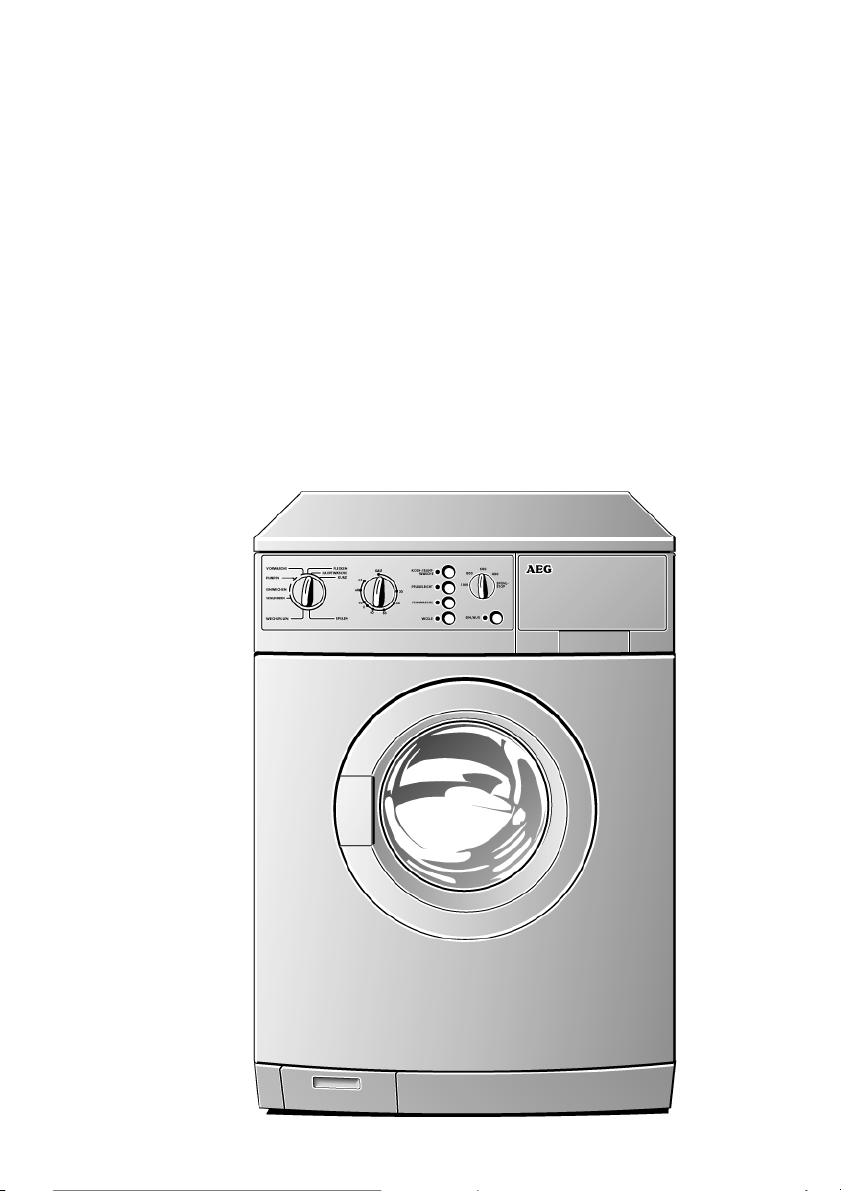

ÖKO-LAVAMAT 61300
The environmentally friendly washing machine
Instruction book
Dear Customer,
g
Please read this instruction book through carefully, before using the
appliance.
Please ensure you fully understand the safety instructions on the first
pages of this instruction book! Retain the instruction book for future
reference, and pass it on to any future owners.
The warning triangle and/or the key words (
1
Important!
safety or the correct functioning of the appliance. It is essential that
this information is observed.
1.
This symbol guides you step by step when operating the appliance.
0
2.
...
This symbol gives you additional information and practical tips on using
3
the appliance.
Tips and information about the economical and environmentally
2
friendly use of the machine are marked with the clover symbol.
If you require assistance or advice on your appliance, please contact
our customer care department by letter or telephone:
), emphasizes information which is important for your
Customer Care Department
AEG Domestic Appliances Limited
P.O. Box 47
Newbury
Berkshire RG 14 5XL
Tel: 01635 572700
Fax: 01635 42970
Warning!, Caution!
,
Printed on environmentally friendly paper.
Whoever thinks ecolo
2
ically also acts ecologically.
CONTENTS
Contents
Operating Instructions
Safety Instructions
Disposal
Environmental Tips
Description of the Appliance
Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Detergent Dispenser Drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Consumption Data and Wash Times
Before Using for the First Time
Preparing a Wash Load
Sorting and preparing a wash load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Washing Types and Care Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Detergents and Conditioners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Using a Water Softening Agent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Program Selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Temperature Selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Type of Washing Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
ON/OFF Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Which Detergent? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
And in which form? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
How much Detergent and Fabric Softener? . . . . . . . . . . . . . . . . . . . . . . 18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Run wash cycle
Brief instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Loading the Washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Adding Detergent/Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Selecting the Washing Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Starting the Washing Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Set the Final Spin Speed or Select RINSE HOLD . . . . . . . . . . . . . . . . . . . . . . 22
During the Washing Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
End of Wash Cycle/Removing the Washing . . . . . . . . . . . . . . . . . . . . . . . . . 23
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
3
Contents
Program Tables
Washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Separate soak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Separate Fabric Softening/Starching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Separate Rinse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Separate Spin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Maintenance and Cleaning
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Detergent Dispenser Drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Washing Machine Drum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
What to do when
Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
If the Washing Results are not Satisfactory . . . . . . . . . . . . . . . . . . . . . . . . . 30
Carrying out an Emergency Emptying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Cleaning the Drain Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Selecting suds cooling or suds cooling and an extra rinse . . . . . . . . . . . . . 33
Service & Spare Parts
Guarantee Conditions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
4
Contents
Installation and Connection Instructions
Installation Safety Precautions
Appliance Dimensions
Front and Side Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Appliance Installation
Appliance Transit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Removing Transit Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Installation-Site Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Levelling the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Electrical Connection
Water Connection
Water Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Inlet Hose Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Hot and Cold Water Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Water Drainage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Technical Data
AEG Service Force
Index
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
. . . . . . . . . . . . . . . . 36
5
Operating Instructions
OPERATING INSTRUCTIONS
1
Safety Instructions
Your safety is of paramount importance, please ensure you read these
warnings before installing or using the appliance. If you are unsure
about any of the meanings of these warnings, contact the Customer
Care Department.
Prior to Initial Start-up
Observe the "
instruction book.
If the appliance is delivered during the winter and temperatures are
below freezing, allow the appliance to stand at room temperature for
24 hours before operation
Installation and Connection Instructions
" in this
Intended Use
Always unplug the appliance and turn off the water supply after use.
Only use the washing machine to wash normal domestic washing. If
the washing machine is used for any other purpose or is incorrectly
used, the manufacturer accepts no liability for any damages which
may result.
It is dangerous to alter the specifications or attempt to modify this
product in any way.
Only use detergents which are suitable for automatic washing
machines, and follow the recommendations of the detergent manufacturer.
Garments which have been in contact with flammable solvents
should not be washed.
Dyes and bleaching agents may only be used if specifically permitted
by the manufacturer of these products. We cannot be held liable for
any damages.
Damage due to frost is not covered by the guarantee! If the washing
machine is located in a room in which below freezing temperatures
might occur, emergency draining must be carried out if danger of
freezing occurs (see "Carrying out an emergency emptying"). In addition, the inlet hose must be disconnected from the tap, drained and
laid on the floor.
6
Operating Instructions
Child Safety
This appliance is designed to be operated by adults. Children should
not be allowed to tamper with the controls or play with the appliance.
Pets and children have been known to climb into washing machines.
Please check the drum before use.
Keep all packaging well away from children.
Keep all detergents in a safe place out of childrens reach.
When disposing of the appliance, cut off the mains cable, and destroy
the plug. Disable the door catch to prevent young children being
trapped inside.
General Safety
Repairs to the washing machine may only be carried out by qualified
personnel. Repairs carried out by inexperienced persons may cause
injury or serious malfunctioning. Contact your local AEG Service
Force Centre.
Never operate the washing machine if the mains cable is damaged or
the control panel, work top or base area are damaged allowing inter-
nal components to be accessible.
Switch off the appliance and isolate from the mains supply before
carrying out any cleaning or maintenance work!
Do not use the mains cable to pull the plug out of the socket.
Adaptors and extension cables must not be used. There is risk of over-
heating!
During high temperature wash programs, the glass of the door may
become hot. Do not touch!
Allow the water to cool down before cleaning the drain pump or car-
rying out emergency emptying.
7
Operating Instructions
2
Disposal
Packaging
Dispose of the packaging material correctly. All packaging materials
are environmentally friendly and can be disposed of without any
danger to the environment.
The external plastic covering and bags inside are made of polyethyl-
ene (marking >PE<).
The padding is made of CFC free expanded polystyrene
(marking >PS<).
Washing Machine
When disposing of the washing machine:
Cut off the mains cable and destroy the plug
Disable the door catch to prevent young children
becoming trapped inside.
Use an authorised disposal site.
2
Environmental Tips
To save water, energy and to help protect the environment, we recommend that you follow these tips:
Do not use a prewash for normally soiled washing.
It is more economical to wash full loads.
When washing small loads reduce the detergent by half to two thirds.
Pre-treat stains, and then wash at a lower temperature.
Use the energy saving program when washing light to normally soiled
garments.
8
Description of the Appliance
Front View
Operating Instructions
Control panel
Door with handle
Flap in front of
drain pump
Detergent Dispenser Drawer
Pre wash detergent/
k
soaking agent or
stain remover
Detergent
dispenser drawer
Rating plate
(behind door)
Height adjustable
feet
Suction cap
(must be firmly
pushed on)
Main wash detergent
l
in powder form and
water softenening
agent if required
Liquid conditioners
w
(fabric softener, starch)
9
Operating Instructions
Control Panel
Final spin speed/
RINSE HOLD selector
EASY-CARES
Button
Program selector
Temperature selector
COTTONS/LINEN
Button
WOOLLENS
Button
DELICATES
Button
ON/ OFF
Button
Program Selector
The program selector determines the
type of the washing cycle.
Important!
only be rotated clockwise!
The different setting positions have
the following effect:
PRE WASH
Cold prewash before the main wash which follows automatically (not
selectable for the WOOLLENS setting).
Program selector may
10
STAIN
To treat heavily soiled or stained washing using stain remover
(extended main wash with stain remover phase, not selectable for
WOOLLENS setting).
Operating Instructions
MAIN WASH
Main wash for normally soiled washing.
QUICK WASH
Shortened main wash cycle for lightly soiled washing.
RINSE
Separate rinse, e.g. for rinsing hand washed fabrics (spin according to
the type of washing or rinse hold).
Rinse hold means: the washing is left in the last rinse water, it is not
3
spun.
CONDITIONER
Conditioner rinse (or starching): liquid conditioner or starch is added
from the À compartment during the rinse, spin according to the type
of washing or rinse hold.
SPIN
Spin after a rinse hold, or separate spinning for hand washed fabrics.
SOAKING
Separate soak (temperature limited to max. 40 °C), the washing remains
in the soaking water at the end of the program (not selectable for
WOOLLENS setting).
After soaking the main washing cycle required must be set, the pro-
3
gram does not continue automatically.
PUMP OUT
Pumping out of the water after a rinse hold (without spin) or after
separate soaking.
11
Operating Instructions
Temperature Selector
Using the temperature selector you can select
a temperature between COLD and 95 °C.
E Position (Energy Saving):
2
Energy saving program at approx. 67 °C for
lightly to normally soiled cotton washing.
Type of Washing Buttons
COTTONS/LINEN
For cottons and linen.
EASY-CARES
For easy care washing (temperature automatically
limited to maximum 60° C.)
DELICATES
For delicates (higher water level and reduced drum
movement, temperature automatically limited to
maximum 40° C).
WOOLLENS
For machine washable woollens and delicate fabrics
(temperature automatically limited to maximum
40° C).
12
ON/OFF Button
This button switches the washing machine on and
starts the program selected or switches the washing
machine off.
Operating Instructions
Consumption Data and Wash Times
The values given in the following table for selected programmes were
calculated under standard conditions. They provide a useful guide for
operation in the home.
Cold fill
Program
Selector
MAIN WASH
1) Figures valid for an inlet water temperature of approx. 60 °C
2) These times are approximate.
3)
Note:
Temper-
ature
Selector
95
60
40
40
30 DELICATES 2,5 52 0.43 83 0.43 82
30 WOOLLENS 1 51 0.32 58 0.32 57
program setting for testing in accordance with EN 60 456
3)
Type of
Washing
Button
COTTONS/
LINEN
COTTONS/
LINEN
COTTONS/
LINEN
EASYCARES
Water
Load
in kg
2,5 50 0.43 93 0.43 92
in
litres
5 54 1.70 143 1.00 120
5 54 1.05 129 0.75 122
5 54 0.63 129 0.63 127
connection
Energy
in kWh
Before Using for the First Time
Time2) in
minutes
Hot and Cold fill
connection
Energy
in kWh
1)
Time2) in
minutes
Pull the detergent dispenser drawer a short distance out of the control
0
1.
panel.
Pour about 1 litre of water through the detergent dispenser drawer
2.
into the washing machine. When this has been done, the ÖKO lock can
function correctly.
Run a washing cycle without washing (MAIN WASH 95, with half the
3.
amount of washing powder).
This removes any residues from the drum which may have been left
during manufacture.
13
Operating Instructions
Preparing a Wash Load
Sorting and preparing a wash load
Sort washing according to care symbol and type (see "Washing types
and care symbols").
Empty all pockets.
Remove metal objects (paper clips, safety pins etc.).
In order to prevent bunching up of washing and damage to washing,
close zippers, button up duvets and pillow cases, and tie up loose
straps such as from aprons.
Turn articles with double layered textiles inside out (sleeping bags,
anoraks etc.).
Coloured, knitted fabrics, as well as wool and textiles with appliqués
should be turned inside out.
Place small and delicate articles (socks, tights, bras, etc.) into a
washing net or a pillow case.
Handle curtains with care. Remove metal strips or plastic hooks.
Do not wash coloured and white washing together. White washing
will otherwise turn grey.
New, coloured washing often contains excessive dye. Wash these
items separately the first time.
Mix small and large articles of washing! This improves washing effi-
ciency, and the washing is more evenly distributed during the spin
cycle.
Shake out washing before placing into the washing machine.
Do not place folded washing into the drum.
Observe tips such as "wash separately" and "wash separately several
times"!
14
Operating Instructions
Washing Types and Care Symbols
Care symbols assist in the selection of the correct washing program.
Washing should be sorted according to type and care symbol. The temperatures indicated in the care symbols are maximum temperatures.
Cottons
Textiles made from cotton and linen with this care symbol will withstand maximum wash actions and high temperatures.
The COTTONS/LINEN program is appropriate for this type of washing.
Linen
Textiles made from cotton and linen with these care symbols will withstand maxiumum wash actions and high temperatures.
The COTTONS/LINEN program is appropriate for this type of washing.
Easy-care washing
Fabrics such as treated cottons, cotton mixtures and synthetics with
this care symbol need a softer washing action.
The EASY-CARES program is suitable for this type of washing.
Delicates
Fabrics such as those with layered fibres, micro-fibres, as well as synthetics and net curtains with this care symbol require particularly careful
handling. The DELICATES program is suitable for this type of washing.
Wool and particularly delicate washing
Textiles such as wool, wool mixtures and silk with these care symbols
require a very gentle wash cycle. The WOOL program is appropriate for
this type of washing.
Important!
Wash!) care symbols must not be washed in the washing machine!
ç
èë
êíî
ì
Fabrics with the the
9ì
(Hand Washing) or
ï
ñ
(Do Not
15
Operating Instructions
Detergents and Conditioners
Only use detergents and fabric softeners suitable for automatic
washing machines. As a general rule follow the instructions of the
detergent manufacturers.
Which Detergent?
To ensure you obtain the best wash results from your appliance, it is
important to use the right detergent in your everyday wash, and only
detergents recommended for use in automatic machines.
To maintain the appearance of your clothes and household textiles and
to make them last longer you should use different types of detergent
for different washes whether for whites, colours or delicates.
Whites
We recommend the Ariel product range
which is biological and designed to provide
excellent cleaning and stain removal even
at lower temperatures.
Non Biological
If you prefer to use a non biological detergent, which does not contain enzymes we
recommend Fairy. Fairy provides good
cleaning and stain removal.
16
Coloureds
For coloured items, you should use a detergent which is designed to clean while maintaining the original colour. Ariel Color does
not contain bleach and therefore helps to
preserve colours.
Delicate Items
When washing delicates, such as wool, you
should use a product which is specially designed
to care for fine fabrics. Dreft Automatic is suitable for woollens and other delicates.
Laundry Bleach
For additional stain removal you may wish
to use a product such as Ace Gentle Bleach,
which is used in addition to your chosen
detergent. Ace is suitable for all washable
fabrics including coloureds.
Operating Instructions
And in which form?
Not only are there different types of detergent, but they are also available in different forms. Whether you choose a powder or liquid in
traditional or compact form, is down to personal choice.
Traditional Powders
Pour the powder directly into the dispenser drawer. Do not sprinkle
powder onto clothes in the machine drum.
Liquids
Measure the detergent into the specially designed dosing device* which
should be placed on top of the laundry, and at the back of the machine
drum.
Compact
Compact detergents (or concentrates as they are also known) are available in liquid or powder form, and generally require a smaller dosage.
Follow the manufacturers instructions to ensure the most economical
usage. Pour the detergent directly into the dispenser drawer, or alternatively measure the detergent into the specially designed dosing device*
which should be placed on top of the laundry, and at the back of the
machine drum.
*If you use a dosing device/ball in a washer dryer, please ensure the
device/ball is removed before carrying out a drying programme.
Fabric Conditioners
These are ideal for improving softness, and also reduce static cling on
synthetics and make ironing easier. They are available in two types:
For example Lenor liquid fabric softener, for
use in the
The liquid fabric softener should be poured
into the compartment marked with the symbol w. Follow the manufacturers dosage
instructions and never exceed the MAX level.
Bounce conditioning sheets for use in a
tumble dryer.
tioning sheets are pinned (using a safety pin)
to an article of laundry and placed in the
tumble dryer.
washing machine/washer dryer
We recommend the condi-
.
17
Operating Instructions
How much Detergent and Fabric Softener?
The amount to be used depends on
the load:
If the detergent manufacturer does not make any specifications for
3
small loads, use a third less for half loads, and for very small loads only
use half of the amount of washing powder recommended for a full
load.
the soiling:
For only lightly soiled washing use less washing powder. Follow the
instructions of the detergent manufacturer.
the water hardness:
The harder the water, the higher the dosage! You will find the quanti-
ties to use according to water hardness on the detergent packet.
Using a Water Softening Agent
In hard water areas, the use of a water softening agent can reduce the
amount of detergent necessary. See manufacturers recommendations.
18
Operating Instructions
Run wash cycle
Brief instructions
To run a wash cycle proceed as follows:
Check whether the water tap is open.
0
1.
Open the door, load the washing.
2.
Shut the door.
3.
Add detergent/conditioner.
4.
Set the correct washing program:
5.
set the program on the program selector;
set the temperature on the temperature selector;
press the desired additional button to select the type of washing.
Press the ON/OFF button.
6.
The washing machine is switched on. The washing program starts.
If applicable change final spin speed/select RINSE HOLD.
7.
You can change this setting and the temperature during the entire
washing cycle.
After the washing program has finished:
Important!
the door carry out a PUMP OUT or SPIN.
Open the door, remove the washing.
8.
Press the ON/OFF button!
9.
Close the water tap.
10.
We recommend you unplug the appliance and turn off the water supply when the wash program has finished.
If the washing cycle ends with rinse hold, before opening
19
Operating Instructions
Loading the Washing
See "Program Tables" for maximum loads.
3
For information about the correct preparation of the washing see
"Washing Types and Care Symbols".
Sort and prepare washing according to type.
1.
0
Open the door: pull the handle on the door.
2.
Load the washing.
3.
Important!
the door! The fabrics and the machine could be
damaged!
Close the door firmly.
4.
Do not trap any washing when closing
Adding Detergent/Conditioner
For instructions concerning detergents and conditioners see
3
"Detergents and Conditioners.
Pull out the detergent dispenser drawer as far as it will go.
1.
0
Add detergent/conditioner.
2.
Pre-wash detergent/soaking agent or
k
stain remover (Only for the PRE WASH,
SOAKING or STAIN programs.)
20
Main wash detergent in powder form
l
and water softening agent if used
(if you use a water softening agent
add the softening agent on top of the
main wash detergent.)
Liquid conditioners
w
(fabric softener, starch)
Important:
concentrated fabric conditioners and starches we recommend you
dilute the concentrate with water to ensure trouble-free dispensing.
If using starch powder dissolve according to manufacturers
instructions.
Push the detergent dispenser drawer right in.
3.
When using Liquid Detergents:
Add liquid detergent with dosing containers provided by the detergent
manufacturer. Observe instructions on detergent package.
Do not fill above the MAX mark. When using thick
Operating Instructions
Selecting the Washing Program
See "Program tables" for suitable program and correct temperature for
3
the respective type of washing.
Set the washing program
Important!
only be rotated clockwise!
Set the program selector to the
1.
0
washing program desired.
Set the temperature selector to the
2.
desired temperature.
Select type of washing.
3.
The display indicator of the type of
washing selected is visible.
To deselect press another button.
Program selector may
Starting the Washing Program
Ensure the water tap is open.
1.
0
Switch on the washing machine: press the ON/OFF
2.
button.
The washing program starts.
As soon as the door is locked the ON/OFF display
lamp lights up (max. 15 seconds after the start)
21
Operating Instructions
Set the Final Spin Speed or Select RINSE HOLD
If necessary change the spin speed for the final spin
0
or select RINSE HOLD: turn the selector knob to the
position required.
If RINSE HOLD is selected, the washing stays in the
final rinse water, it is not spun.
If you do not change the spin speed, the final spin
3
will be automatically adjusted to suit the washing program:
COTTONS/LINEN 1100 revolutions per minute
EASY-CARES 1000 revolutions per minute
DELICATES 1000 revolutions per minute
WOOLLENS 1000 revolutions per minute
The speed for the intermediate spin is dependent on the program
selected and cannot be changed.
During the Washing Program
Programm progress indicator
The program selector serves as a progress indicator by moving clockwise
until the end of the program is reached.
22
For the programs STAIN, MAIN WASH and QUICK WASH immediately
3
after the program has started the program selector moves to a position
directly behind QUICK WASH. Then it displays the program progress as
usual.
Alter settings
You can at any time
alter the setting of the final spin speed,
select RINSE HOLD,
alter the temperature setting.
Other settings cannot be altered.
To interrupt the washing program prematurely:
Press the ON/OFF button.
1.
0
Turn the program selector clockwise to PUMP OUT.
2.
Press the ON/OFF button again.
3.
Water is pumped out.
Operating Instructions
End of Wash Cycle/Removing the Washing
The washing program is completed when the ON/OFF button display
lamp goes out.
After a rinse hold
After a rinse hold the water must first be pumped out or the washing
spun:
Either turn the program selector clockwise to SPIN
0
(washing is spun in accordance with the program which has just run),
or
turn the program selector clockwise to PUMP OUT
(water is pumped out).
After the program has finished
Open the door.
4.
Remove the washing.
5.
Switch off the washing machine by pressing the ON/OFF button.
6.
Close the water tap.
7.
Pull the detergent drawer out a little so that it can dry. Leave the door
8.
ajar for a while. This helps to prevent stagnant smells and helps to preserve the door seal.
Important!
Unplug the appliance and turn off the water supply when the wash
program has finished.
If the washing machine is not to be used for a long period:
23
Operating Instructions
Program Tables
Washing
The following tables list the most commonly used and most helpful
programs.
Type of washing,
care symbol
Cottons
ç
Energy saving program
Cottons
Linen
è ë
Easy-cares
ê í î
Delicates
ì
Woollens
9 ì
ç
2
max. load
(dry weight)
5kg
5kg
5kg
2,5kg
2,5kg
(or 15-20m
curtains)
1kg
Program
1)
MAIN WASH
PRE WASH
STAIN
QUICK WASH
MAIN WASH
PRE WASH
MAIN WASH
PRE WASH
STAIN
QUICK WASH
MAIN WASH
PRE WASH
STAIN
QUICK WASH
MAIN WASH
PRE WASH
2
STAIN
QUICK WASH
MAIN WASH
QUICK WASH
selector
Tempe-
rature
selector
95
E
30 to 60
30 to 60 EASY-CARES
COLD
to 40
COLD
to 40
Additional
buttons
COTTONS/
LINEN
COTTONS/
LINEN
COTTONS/
LINEN
DELICATES
WOOLLENS
24
1) A 10 l bucket contains about 2.5kg of dry washing (cottons).
2) Woollens with the wool mark may only be washed in the machine if they bear
the addition "does not felt" or "suitable for washing machine".
Separate soak
Operating Instructions
Type of
washing
Cottons/Linen 5kg
Easy-cares 2,5kg EASY-CARES
Delicates 2,5kg DELICATES
max. load
(dry weight)
Program
selector
SOAKING COLD to 40
Separate Fabric Softening/ Starching
Type of washing
Cottons/Linen 5kg
Easy-cares 2,5kg EASY-CARES
Delicates 2,5kg DELICATES
Woollens 1kg WOOLLENS
max. load
(dry weight)
Program selector Additional buttons
CONDITIONER
Separate Rinse
Type of washing
Cottons/Linen 5kg
Easy-cares 2,5kg EASY-CARES
Delicates 2,5kg DELICATES
Woollens 1kg WOOLLENS
max. load
(dry weight)
Program selector Additional buttons
RINSE
Temperature
selector
COTTONS/LINEN
COTTONS/LINEN
Additional
buttons
COTTONS/LINEN
Separate Spin
Type of washing
Cottons/Linen 5kg
Easy-cares 2,5kg EASY-CARES
Delicates 2,5kg DELICATES
Woollens 1kg WOOLLENS
max. load
(dry weight)
Program selector Additional buttons
COTTONS/LINEN
SPIN
25
Operating Instructions
Maintenance and Cleaning
Control Panel
Important!
to clean the panel and operating parts.
Wipe over the operating panel with a damp cloth. Use warm water.
0
Do not use household furniture polish or abrasive cleaners
Detergent Dispenser Drawer
The detergent dispenser drawer should be cleaned from time to time.
Pull the detergent dispenser drawer out as far as it will go.
0
1.
Remove the detergent dispenser drawer by pulling sharply.
2.
Remove the suction cap.
3.
Clean the suction cap under running
4.
water.
Clean the separate compartments
5.
with warm water. A bottle brush is
a useful aid.
Push on the suction cap firmly so
6.
that it is sitting tightly.
Clean the entire compartment area
7.
of the washing machine with a brush.
Set the detergent dispenser drawer
8.
into the guide tracks and push in.
Suction cap
Washing Machine Drum
The washing machine drum is made from rust-free stainless steel. Any
objects left in the laundry which are likely to rust can stain the drum.
Important!
containing acids, scouring agents containing chlorine or iron or steel
wool. AEG Service Force Centre has suitable agents available.
(Part no: 849 646 401 5214).
Remove rust stains on the drum with a stainless steel cleaning agent.
0
Do not clean the stainless steel drum with descaling agents
Door
Regularly check if there are deposits or foreign bodies in the rubber
0
seal behind the door and remove them.
26
Operating Instructions
What to do when
The whistling noise when spinning may be different to
3
your prevous washing machine which is due to the
modern drive system.
Trouble Shooting
If you call out an engineer and the fault is listed here, a charge is levied
even if the appliance is in guarantee.
Fault Possible cause Remedy
Washing machine does
not work.
The machine does not
take in water.
Washing machine
vibrates during operation or is unstable.
The mains plug is not
connected.
The fuse of the household
electrical system is faulty.
Appliance is not switched on.
The door is not closed
properly.
The water tap is closed. Open the water tap.
The inlet hose is blocked.
The machine is not level.
There is very little washing in
the machine (e.g. only a bath
robe).
Water could not be completely pumped out before the
spin because there is a kink
in the outlet hose or
the drain pump is blocked.
Plug in the mains plug.
Replace the fuse.
Switch on the appliance (pull
out program selector).
Close the door; you must
hear a click as it locks.
Unscrew the hose from the
tap, remove the filter and
clean it under flowing water.
Adjust the feet according to
the installation and connection instruction.
This does not affect the
functioning of the machine.
Check that the outlet hose is
correctly laid and if applicable eliminate the kink or
clean the drain pump and if
necessary remove any foreign bodies from the pump
housing.
27
Operating Instructions
Fault Possible cause Remedy
Excessive foaming
during the main wash.
Water is leaking out
from under the washing machine.
Fabric softener is not
added, compartment
for fabric softener
À
is filled with water.
Appliance does not
spin, water in the
drum.
Washing has not been
spun sufficiently, there
is water left in the
drum.
Door cannot be
opened.
The rinse water is
cloudy.
It may be necessary to
Probably too much washing
powder was used.
The inlet hose connection is
not tight.
The inlet hose has a leak.
The drain pump cover is not
tight.
Washing is caught in the
door.
Suction cap in the fabric softener compartment is not
correctly fitted or is blocked.
RINSE HOLD selected. Deselect RINSE HOLD.
SOAKING program is terminated.
There is a kink in the outlet
hose.
Drain hose is too high.
Drain pump is blocked.
The water drainage system is
blocked.
The program has not yet
been completed.
Probably caused by a washing powder with a high silicate content.
reduce the amount of
detergent used. Follow the
detergent manufacturer´s
recommendations.
Tighten the inlet hose connection.
Check the inlet hose and if
necessary replace it.
Tighten cover by turning
clockwise.
Stop the program, remove
the washing caught in the
door, start a new program.
Clean the detergent compartment, fit the suction cap
on firmly.
Pump out water and set the
main wash cycle as desired.
Remove the kink.
Check the installation
instructions.
Switch off the machine and
pull the plug out of the
socket, clean the drain pump.
Clean the blockage.
Wait until ON/OFF indicator
goes out.
This does not affect the
rinse results. If necessary use
liquid detergent.
28
Operating Instructions
Fault Possible cause Remedy
Washing powder residues are left in the
detergent dispenser
drawer.
Program selector jumps
past PRE WASH
The program selector
remains on SOAKING.
Stain remover is not
added.
The water tap is not fully
open.
The inlet hose filter is
blocked.
The inlet valve filter is
blocked.
PRE WASH combined with
WOOLLENS.
SOAKING combined with
WOOLLENS.
STAIN combined with
WOOLLENS.
Open the water tap fully.
Clean the filter
Disconnect the inlet hose
from the machine and clean
filter.
PRE WASH cannot be combined with WOOLLENS.
SOAKING cannot be combined with WOOLLENS.
STAIN cannot be combined
with WOOLLENS.
29
Operating Instructions
If the Washing Results are not Satisfactory
If the washing turns greyish and limescale deposits are present in
the drum
Insufficient washing powder has been added.
Incorrect washing powder was used.
Stains were not pretreated.
Program or temperature was not set correctly.
When using modular washing powders the individual components
were not used in the correct ratio.
If there are still grey stains on the washing
Washing soiled with ointments, grease or oils was washed with insuf-
ficient washing powder.
The temperature selected for the wash was too low.
A frequent cause is that fabric softener especially a concentrated one
has come into contact with the washing. Wash out these types of
stains as fast as possible and use the fabric softener carefully.
If after the final rinse foam is still visible
Modern washing powders can still cause foam in the final rinse cycle.
The washing is nevertheless sufficiently rinsed.
30
If there are white residues on the washing
These are insoluble contents of modern washing powders. They are
not the result of an insufficient rinse. Shake out the washing or brush
it off. Turn the washing inside out before washing it. Review your
choice of powder, possibly use liquid detergents.
Operating Instructions
Carrying out an Emergency Emptying
If the washing machine no longer pumps out the water an emergency
emptying must be carried out.
If the washing machine is located in a room in which below freezing
temperatures might occur, emergency emptying must be carried out
if danger of freezing occurs.
Furthermore, the inlet hose must be disconnected from the tap,
drained and laid on the floor.
Warning!
1
prior to emergency draining.
Warning!
can be hot. First allow the water to cool down before emergency emptying!
Have a flat container on hand to catch the water running out.
1.
0
Pull down the flap in the left corner of
2.
the base strip (1) and remove it (2).
Remove the emergency emptying hose
3.
from its holder.
Pull the emergency emptying hose
4.
out a little.
Place the container under the hose.
5.
Undo and remove the plug in the end of
6.
the emergency emptying hose by turning
it anti-clockwise (1) and pull it out (2).
The wash-water runs out. Depending
upon the amount of water, it may be
necessary to empty the container several
times. Temporarily close the emergency
emptying hose with the plug.
Switch the washing machine off and pull the mains plug
The water, which flows out of the emergency emptying hose
31
Operating Instructions
When the Water is Completely Drained:
Push and twist the plug firmly back into the emergency emptying hose.
7.
Push the emergency emptying hose back in a little and let it catch on
8.
to the holder.
Put on the flap and close.
9.
The ÖKO lock does not function when the machine has been fully emp-
3
tied. Therefore add approx. 1 litre of water before the next wash (pour
in through the detergent dispenser drawer).

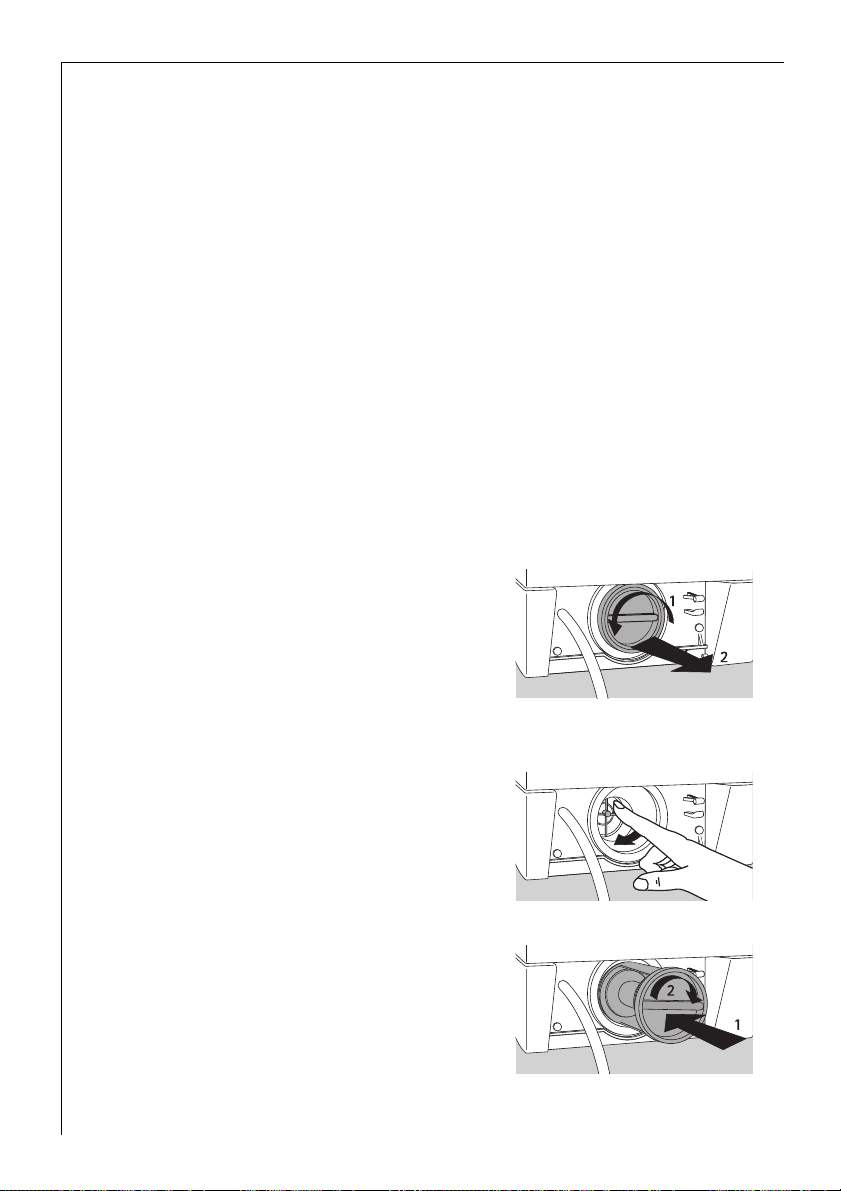

Cleaning the Drain Pump
Warning!
1
before cleaning the drain pump!
First carry out an emergency emptying (see section "Carrying out an
1.
0
emergency emptying").
Place a towel on the floor in front of the cover of the drain pump. Sur-
2.
plus water may flow out.
Unscrew the cover of the drain pump
3.
by twisting it anti-clockwise (1) and
pull it out (2).
Remove any foreign bodies which may
4.
be in the pump housing.
Check whether the impeller of the
5.
pump can be turned. (It is normal for
the pump to turn in steps.) If the
impeller cannot be turned at all please
contact your local AEG Service Force
Centre.
Replace the cover (1) (insert the ridges
6.
on the cover into the guiding slots)
and screw on tightly in a clockwise
direction (2).
Switch off the washing machine and pull the mains plug out
32
Close emergency emptying hose, push
7.
in and fix in place.
Close the flap.
8.
Operating Instructions
Selecting suds cooling or suds cooling and an extra rinse
The washing machine is on a very economical water consumption setting.
For people who suffer from a washing powder allergy, it may be helpful
to rinse with extra water (extra rinse cycle). This can be set with the
extra water switch:
Position 1: Suds cooling
The suds are cooled down before being pumped out at the end of
the main wash (by adding cold water). This reduces thermal shock to
fabrics, helping to prevent creasing. (This setting is only effective for
COTTONS/LINEN at a temperature of above 40 °C.)
Position 2: Suds cooling and extra rinse
The water is cooled down as for position 1, in addition to this (except
for WOOLLENS) an extra rinse cycle is carried out.
On delivery of the machine the extra water switch is in the 0 position.
Due to the process of cooling down the suds or an extra rinse cycle, the
3
water consumption and wash time is increased.
Setting:
Pull the detergent drawer out until the extra
1.
0
water switch on the left of the frame is
accessible.
Set the extra water switch to
2.
1 (suds cooling) or
2 (suds cooling and extra rinse).
33
Service & Spare Parts
SERVICE & SPARE PARTS
If after carrying out the necessary checks there is still a fault with your
appliance please contact your local AEG Service Force Centre.
In guarantee customers should ensure that the suggested checks
have been made as the engineer will make a charge if the fault is
not a mechanical or electrical breakdown.
Please note that proof of purchase is required for in-guarantee service
calls.
Service & Spare Parts
If you require a service engineer or wish to purchase spare parts,
contact your local AEG Service Force Centre, by telephoning:
0870 5 929 929
Help us to help you
Please determine your type of enquiry before telephoning. When you
contact us we need to know.
1. Your name, address and post code.
2. Your telephone number.
3. Clear and concise details of the fault.
What is the fault?
When does the fault occur?
4. The model, production number and product identification number.
5. Date of purchase.
This information can be found on
the rating plate, so you have these
numbers to hand we recommend
you write them below.
......................................................
PNC
......................................................
S-No.
34
Customer Care
For general enquiries regarding your AEG appliance, or further information on AEG products please contact our customer care department.
Customer Care Department
AEG Domestic Appliances Limited
P.O. Box 47, Newbury, Berkshire RG 14 5XL
Tel: 01635 572700, Fax: 01635 42970
Guarantee Conditions
GUARANTEE CONDITIONS
Guarantee Conditions
AEG offer the following guarantee to the first purchaser of this appliance.
The guarantee is valid for 12 months commencing when the appliance is handed over
1.
to the first retail purchaser, which must be verified by purchase invoice or similar documentation.
The guarantee does not cover commercial use.
The guarantee covers all parts or components which fail due to faulty workmanship or
2.
faulty materials. The guarantee does not cover appliances where defects or poor performance are due to misuse, accidental damage, neglect, faulty
installation,unauthorised modification or attempted repair, commercial use or failure
to observe requirements and recommendations set out in the instruction book.
This guarantee does not cover such parts as light bulbs, removable glassware, dust bags
or filters.
Should guarantee repairs be necessary the purchaser must inform the nearest customer
3.
service office (manufacturer´s service or authorised agent). AEG reserves the right to
stipulate the place of the repair (i. e. the customer´s home, place of installation or AEG
workshop).
The guarantee or free replacement includes both labour and materials.
4.
Repairs carried out under guarantee do not extend the guarantee period for the appli-
5.
ance. Parts removed during guarantee repairs become the property of AEG.
The purchaser´s statutory rights are not affected by this guarantee.
6.
European Guarantee
If you should move to another country within Europe then your guarantee moves with
you to your new home subject to the following qualifications:
The guarantee starts from the date you first purchased your product.
The guarantee is for the same period and to the same extent for labour and parts as
exist in the new country of use for this brand or range of products.
This guarantee relates to you and connot be transferred to another user.
Your new home is within the European Community (EC) or European Free Trade Area.
The product is installed and used in accordance with our instructions and is only used
domestically, i. e. a normal household.
The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care Centre, listed below, to
give them details of your new home. They will then ensure that the local Service Organisation is aware of your move and able to look after you and your appliances.
France Senlis +33 (0) 44 62 29 29
Germany Nürnberg +49 (0) 911 323 2600
Italy Pordenone +39 (0) 1678 47053
Sweden Stockholm +46 (0) 8 738 7910
UK Newbury +44 (0) 1635 572700
35
Installation and Connection Instructions
INSTALLATION AND CONNECTION
INSTRUCTIONS
Installation Safety Precautions
This appliance is heavy, care should be taken when moving it.
When moving, do not tip the washing machine onto its front or left
hand side (viewed from the front). This is to prevent the possibility of
electrical components becoming wet.
Before installation inspect the machine for transport damage. Do not
connect the appliance if it is damaged contact your retailer.
Ensure all packaging and transit bolts/bar have been removed, see
Removing of Transit Packaging. Failure to remove packaging and
transit bolt/bar may cause serious damage to the product or property.
Any plumbing work required to install this appliance should be car-
ried out by a qualified plumber or competent person.
Any electrical work required to install this appliance should be carried
out by a qualified electrician or competent person.
Check the electricity supply is the same as that indicated on the rat-
ing plate of the appliance.
Should the appliance mains cable need to be adapted for any reason
this should only be carried out by a qualified/competent person.
In the case of a permanent connection it is necessary that you install
a double pole switch between the appliance and the electricity supply
(mains), with a minimum gap of 3 mm between the switch contacts
and of a type suitable for the required load in compliance with the
electrical regulations.
The switch must not break the yellow and green earth cable at any
point.
Care must be taken to ensure that the appliance does not stand on
the electrical supply cable.
The installation must comply with local water authority and building
regulations requirements.
Appliances designed for cold water connection must not be con-
nected to hot water.
36
Appliance Dimensions
Front and Side Views
Installation and Connection Instructions
Rear View
Hot Water inlet
Cold Water inlet
37
Installation and Connection Instructions
Appliance Installation
The appliance worktop must not be removed to gain a height reduction
3
when installing under a kitchen worktop.
Appliance Transit
To prevent electrical components becoming wet when moving the
appliance, do not tip the washing machine onto its front or the left
hand side (viewed from the front).
Do not transport the appliance without the transit packaging/bolts/
bar in place. Transporting the appliance without the transport pack-
aging/bolts/bar in place may cause damage to the product.
Never lift the appliance by the door.
The appliance is heavy, care must be taken when moving it.
38
Removing Transit Packaging
Installation and Connection Instructions
Important!
Retain transit packaging for future use.
The appliance is supplied with a spanner (H) and plastic caps (E) (2 pcs.)
3
and (G) (1 pc).
Remove the hose holder (A).
1.
0
Remove the 2 screws (B) with the spanner supplied (H).
2.
Remove the 4 screws (C).
3.
Remove the transit bar (D).
4.
Cover the holes left by screws (B) the 2 plastic caps (E).
5.
Important:
rear panel securely.
Replace the 4 screws (C), for safe keeping.
6.
Remove the screw and compression spring (F) with the spanner (H),
7.
cover the hole with plastic cap (G).
Important:
rear panel securely.
Ensure all transit packaging is removed prior to installation.
When fitting the plastic caps, press until they snap into the
When fitting the plastic cap, press until they snap into the
39
Installation and Connection Instructions
Installation-Site Preparation
The installation surface must be clean, dry and level.
Do not install on deep pile carpet.
If the appliance is installed next to heat source (e. g. cooking appli-
ance), a heat insulating pad (85 x 57 cm) must be placed between the
washing machine and the heat source.
Do not install the appliance in locations where the temperature may
fall below freezing.
Please ensure that when the appliance is installed it is easily accessi-
ble for the engineer in the event of a breakdown.
Installation on a Suspended Floor
Suspended wooden floors are particularly susceptible to vibration. To
help prevent vibration we recommend you place a waterproof wood
panel, at least 15 mm thick under the appliance, secured to at least 2
floor beams with screws. If possible install the appliance in one of the
corners of the room, where the floor is more stable.
Levelling the Appliance
Using the four adjustable threaded feet, compensation can be made for
unevenness in the floor and the height of the appliance adjusted. The
height can be adjusted over the range +10... -5 mm.
To adjust the feet use the special spanner supplied for removing the
transport braces.
Slide the special key firmly onto the hexagon head of the threaded foot
1.
0
all the way to the stop.
Adjust the threaded feet so that the appliance is level and stable. The
2.
appliance must not rock across the corners when operating under load.
If necessary, check positioning with a spirit level.
3.
Important!
compensate for any uneveness in the floor. Always use the adjustable
feet.
Never use strips or shims of wood or cardboard etc. to
40
Installation and Connection Instructions
Electrical Connection
Any electrical work required to install this appliance should be carried
out by a qualified electrician or competent person.
WARNING - THIS APPLIANCE MUST BE EARTHED.
1
The manufacturer declines any liability should these safety
measures not be observed.
Before switching on, make sure
the electricity supply voltage is
the same as that indicated on
the appliance rating plate.
The rating plate is located at
the top of the rim of the open
door.
The appliance is supplied with a 13amp plug fitted. In the event of having to change the fuse in the plug supplied, a 13amp ASTA approved
(BS 1362) fuse must be used.
Should the plug need to be replaced
for any reason. The wires in the
mains lead are coloured in accordance with the following code:
Green
& Yellow
Green and Yellow : Earth
Blue : Neutral
Brown : Live
The wire coloured green and yellow must be connected to the termi-
nal marked with the letter E or by the earth symbol or coloured
green and yellow.
The wire coloured blue must be connected to the terminal N or col-
oured black.
The wire coloured brown must be connected to the terminal marked
L or coloured red.
Upon completion there must be no cut, or stray strands of wire
present and the cord clamp must be secure over the outer sheath.
WARNING! A cut off plug inserted into a 13 amp socket is a seri-
1
ous safety (shock) hazard. Ensure that the cut off plug is disposed
of safely.
Blue
Brown
Cord Clamp
41
Installation and Connection Instructions
Permanent Connection
In the case of a permanent connection it is necessary that you install a
double pole switch between the appliance and the electricity supply
(mains), with a minimum gap of 3 mm between the switch contacts
and of a type suitable for the required load in compliance with the current electrical regulations.
The switch must not break the yellow and green earth cable at any
point.
This appliance is in accordance with the following EU Guidelines:
;
Low Voltage Guidelines 73/23 EEC dated 19 February 1973, include
Guideline Change Notice 93/68 EEC
EMC Guideline 89/336 EEC dated 3 May 1989, including Guideline
Change Notice 92/31 EEC.
This appliance complies with the requirements laid out in the EEC
Directive 76/899.
Voltage 240 V AC Fuse rating 13 amps
See rating plate for further information.
This appliance meets VDE requirements.
Particular regulations of local electricity authorities must be observed.
This appliance conforms to EEC Directive No. 82/499/EWG on radio
interference.
WARNING!
1
trained personnel. Improper repairs may lead to serious risks for the
user.
Repairs to electrical appliances must only be carried out by
Water Connection
The washing machine is provided with safety devices preventing back-
3
contamination of the water supply and complies with local water
authority requirements.
This appliance is designed to be permanently plumbed into your homes
water supply.
Before connecting up the machine to new pipework or to pipework
that has not been used for some time, run off a reasonable amount of
water to flush out any debris that may have collected in the pipes.
42
Installation and Connection Instructions
Rubber Washer
Water Pressure
The appliance is designed to operate within the following water
pressure limits:
minimum 1 bar (14.5 p. s. i.)
maximum 10 bar (145 p. s. i.)
IMPORTANT!
At more than 10 bar (145 p. s. i.): Install pressure-reducing valve.
At less than 1 bar (14.5 p. s. i.): Unscrew the inlet hose from the appli-
ance at the inlet solenoid valve and remove the flow regulator (to do
this, remove the sieve with needle-nose pliers and remove rubber
washer behind the sieve). Replace sieve. Retain the washer for future
use.
Inlet Hose Connection
The inlet hose provided is 1.2 or 1.3 metres depending on the model. If
a longer inlet hose is required contact your AEG Service Force Centre.
Under no circumstances should hoses be connected together to provide
a longer length.
The rubber washers are either set into the inlet hose threaded connection or supplied separately in the installation kit. These washers must be
fitted to ensure water tight seals. Do not use any other washer.
Connect the hose to the machine with
1.
0
the right angled connector.
Important!
nuts on the threaded connectors.
Do not overtighten the plastic
2.
Connect the hose end with a straight
connector to the water supply tap with
an 3/4" thread.
Important!
Do not overtighten the
plastic nuts on the inlet hose threaded
connectors.
WARNING!
Open the water taps slowly and check
the connections are watertight before
final positioning of the machine.
Rubber Washer
Fine Filter
43
Installation and Connection Instructions
Hot and Cold Water Connection
Washing machines with hot and cold fill should be connected as
shown below.
Important!
The incoming hot water temperature must not exceed 70 °C.
hot
cold
hot
If only a cold water supply is available, connect the two hoses to the
cold water outlet by means of a Y connection piece.
(A Y piece is available from your AEG Service Force Centre,
part number 645.430.709.)
44
Installation and Connection Instructions
Water Drainage
The appliance drain hose should hook into a standpipe, the hook in the
drain hose is formed using the plastic U-Piece supplied. The standpipe
should have an internal diameter of approximately 38 mm (see diagram) thus ensuring there is an air break between the drain hose and
standpipe.
When discharging into a standpipe ensure that the top of the
curve in the hose end is no more
than 90 cm (35.4) and no less
than 60 cm (23.6) above floor
level.
Max 90 cm (35,4)
Min 60 cm (23,6)
The upright standpipe should
have a minimum, length of
30 cm (12) from the bottom of
the elbow to the top of the pipe
(see diagram). Make sure that it
is designed in such a way that
the end of the drain hose cannot be covered with water.
Longer drain hoses are available in lengths of 2.7 and 4
metres from your AEG Service
Force Centre.
If you intend the drain hose
from the washing machine to
empty into a sink, make sure
that the sink is empty and the
plug hose is not blocked. Use
the plastic U-Piece supplied.
38mm (11/2)
diameter standpipe
Min 30 cm (12)
45
Installation and Connection Instructions
Technical Data
Height x Width x Depth 85x60x 60cm
Depth with open door 95cm
Height adjustment approx. +10/-5mm
Weight when empty approx. 85kg
Load (depending on the program) max. 5kg
Area of use Household
Wash cycle drum speed max. 53min
Spin cycle drum speed see rating plate
Water pressure 1-10bar
(=10100N/cm
2
= 0.1 1.0MPa)
AEG Service Force
If you wish to contact your local AEG Service Force Centre for advice or
spare parts, telephone:
-1
r.p.m.
46
0870 5 929 929
INDEX
Index
C
Conditioner . . . . . . . . . . .11, 16, 17, 20, 25
liquid
. . . . . . . . . . . . . . . . . . . . . . . . . .9, 20
Cottons
Customer care
. . . . . . . . . . . . . . . . . . 12, 15, 24, 25
. . . . . . . . . . . . . . . . . . . . . . . 34
D
Danger of freezing . . . . . . . . . . . . . . . . .6, 31
Delicates
Detergent
Door opening
Drain pump
. . . . . . . . . . . . . . . . . 12, 15, 24, 25
. . . . . . . . . . . . . . 9, 16, 17, 18, 20
liquid
. . . . . . . . . . . . . . . . . . . . . . . . .17, 20
. . . . . . . . . . . . . . . . . . . . . . . . 20
. . . . . . . . . . . . . . . . . . . . . . .9, 32
E
Easy-Cares . . . . . . . . . . . . . . . 12, 15, 24, 25
Energy Saving
Extra water switch
. . . . . . . . . . . . . . . . . . . .12, 24
. . . . . . . . . . . . . . . . . . . 33
F
Fabric softener . . . . . . . . . . . . 9, 17, 18, 20
G
Guarantee . . . . . . . . . . . . . . . . . . . . 6, 27, 35
H
Hot/Cold Water Connection . . . . . 13, 37, 44
L
Limescale . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Linen
. . . . . . . . . . . . . . . . . . . . 12, 15, 24, 25
Liquid detergent
. . . . . . . . . . . . . . . . . .17, 20
M
Main wash . . . . . . . . . . . . . . . . . . . 11, 22, 24
N
Net curtains . . . . . . . . . . . . . . . . . . . . . . . . . 15
O
ÖKO lock . . . . . . . . . . . . . . . . . . . . . . . .13, 32
Open door
. . . . . . . . . . . . . . . . . . . . . . . . . . 20
P
Pre Wash . . . . . . . . . . . . . . . . . . . . 10, 20, 24
Programm progress indicator
Pump out
. . . . . . . . . . . . . . . . . . . . . . . .11, 23
. . . . . . . . . . 22
Q
Quick wash . . . . . . . . . . . . . . . . . . . 11, 22, 24
R
Rating plate . . . . . . . . . . . . . . . 9, 34, 41, 42
Rinse
. . . . . . . . . . . . . . . . . . . . . . . . . . . 11, 25
Rinse hold
. . . . . . . . . . . . . . . . 10, 11, 22, 23
S
Service & Spare Parts . . . . . . . . . . . . . . . . . .34
Silk
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Soaking
Spin
Stain
Stains
Starch
Starching
Stopping the program
. . . . . . . . . . . . . . . . . . . . . . . . . 11, 25
agent
. . . . . . . . . . . . . . . . . . . . . . . . . . 9, 20
. . . . . . . . . . . . . . . . . . . . . . . . 11, 22, 25
. . . . . . . . . . . . . . . . . . . . 10, 20, 22, 24
. . . . . . . . . . . . . . . . . . . . . . . . . .8, 9, 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . 9, 20
. . . . . . . . . . . . . . . . . . . . . . . . . . . .25
. . . . . . . . . . . . . . . . .22
W
Washing
coloured
delicate
easy-care
insufficiently clean
lightly soiled
normally soiled
powder
powder allergy
powder residues
starching
Water
hardness
softening agent
Woollens
. . . . . . . . . . . . . . . . . . . . . . . . . .14
. . . . . . . . . . . . . . . . . . . 13, 14, 15
. . . . . . . . . . . . . . . . . . . . . . . . . .15
. . . . . . . . . . . . . . . . .30
. . . . . . . . . . . . . . . . . . . . . . .18
. . . . . . . . . . . . . . . . . . . . . .8
. . . . . . . . . . . . . . . . . . . . . . . . . . .17
. . . . . . . . . . . . . . . . . . . . .33
. . . . . . . . . . . . . . . . . . . .30
. . . . . . . . . . . . . . . . . . . . . . . . . .25
. . . . . . . . . . . . . . . . . . . . . . . . . .18
. . . . . . . . . . . . . . . . 18, 20
. . . . . . . . . . . . . . . . . 12, 15, 24, 25
47
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
© Copyright by AEG
H 243 286 040 01- 1098
Loading...
