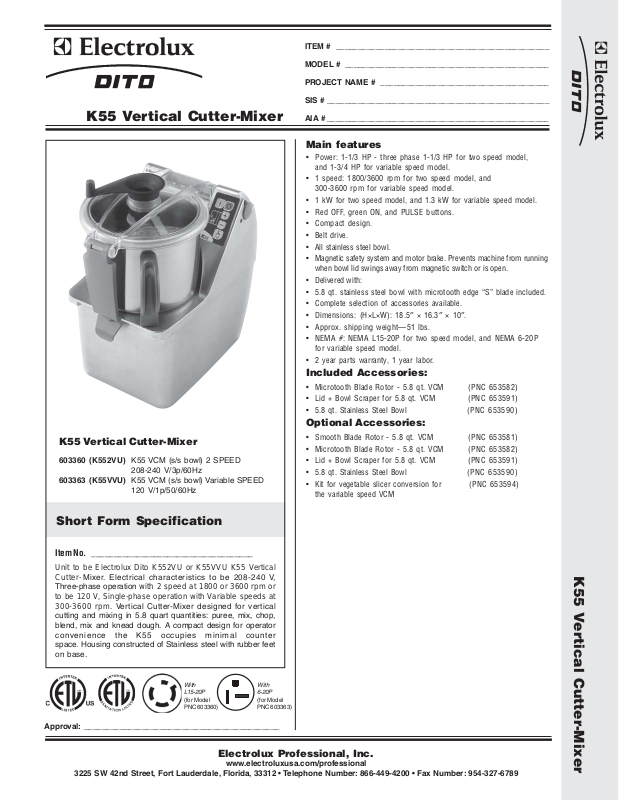

Electrolux 603363, 603360, K55VVU, K552VU User Manual
ITEM # ________________________________________________
MODEL # ______________________________________________
PROJECT NAME # ______________________________________
SIS # __________________________________________________
K55 Vertical Cutter-Mixer
K55 Vertical Cutter-Mixer
603360 (K552VU) K55 VCM (s/s bowl) 2 SPEED
208-240 V/3p/60Hz
603363 (K55VVU) K55 VCM (s/s bowl) Variable SPEED
120 V/1p/50/60Hz
AIA # __________________________________________________
Main features
• Power: 1-1/3 HP - three phase 1-1/3 HP for two speed model,
and 1-3/4 HP for variable speed model.
• 1 speed: 1800/3600 rpm for two speed model, and
300-3600 rpm for variable speed model.
• 1 kW for two speed model, and 1.3 kW for variable speed model.
• Red OFF, green ON, and PULSE buttons.
• Compact design.
• Belt drive.
• All stainless steel bowl.
• Magnetic safety system and motor brake. Prevents machine from running
when bowl lid swings away from magnetic switch or is open.
• Delivered with:
• 5.8 qt. stainless steel bowl with microtooth edge “S” blade included.
• Complete selection of accessories available.
• Dimensions: (H×L×W): 18.5″ × 16.3″ × 10″.
• Approx. shipping weight—51 lbs.
• NEMA #: NEMA L15-20P for two speed model, and NEMA 6-20P
for variable speed model.
• 2 year parts warranty, 1 year labor.
Included Accessories:
• Microtooth Blade Rotor - 5.8 qt. VCM (PNC 653582)
• Lid + Bowl Scraper for 5.8 qt. VCM (PNC 653591)
• 5.8 qt. Stainless Steel Bowl (PNC 653590)
Optional Accessories:
• Smooth Blade Rotor - 5.8 qt. VCM (PNC 653581)
• Microtooth Blade Rotor - 5.8 qt. VCM (PNC 653582)
• Lid + Bowl Scraper for 5.8 qt. VCM (PNC 653591)
• 5.8 qt. Stainless Steel Bowl (PNC 653590)
• Kit for vegetable slicer conversion for (PNC 653594)
the variable speed VCM
Short Form Specification
Item No. ____________________________________
Unit to be Electrolux Dito K552VU or K55VVU K55 Vertical
Cutter-Mixer. Electrical characteristics to be 208-240 V,
Three-phase operation with 2 speed at 1800 or 3600 rpm or
to be 120 V, Single-phase operation with Variable speeds at
300-3600 rpm. Vertical Cutter-Mixer designed for vertical
cutting and mixing in 5.8 quart quantities: puree, mix, chop,
blend, mix and knead dough. A compact design for operator
convenience the K55 occupies minimal counter
space. Housing constructed of Stainless steel with rubber feet
on base.
With
L15-20P
(for Model
PNC 603360)
Approval: ____________________________________________
Electrolux Professional, Inc.
3225 SW 42nd Street, Fort Lauderdale, Florida, 33312 • Telephone Number: 866-449-4200 • Fax Number: 954-327-6789
www.electroluxusa.com/professional
With
6-20P
(for Model
PNC 603363)
K55 Vertical Cutter-Mixer
K55 Vertical Cutter-Mixer
10.08
256 mm
18.50
470 mm
16.34
415 mm
Front View
Side View
Top View
Electric
Supply voltage:
603360 (K552VU) 208-240 V/3p/60Hz – 4.2A
603363 (K55VVU) 120 V/1p/50/60Hz – 6A
Key Information
Uses of Food Processor
MEAT
Rough mincing
Pates
Small sausages
Large sausages
Minced meat
Shellfish
Fine mincing
Stuffing
Mousses
PASTRY
Shortcrust
Cold water paste
Flan
POWDER
Almonds
Hazelnuts
FRUITS AND VEGETABLES
Purees
Mousses
Syrups
CHOPPING
Parsley
Onions
EC
7.95
202 mm
27.0
685 mm
K55 Vertical Cutter-Mixer
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
6-23-09
