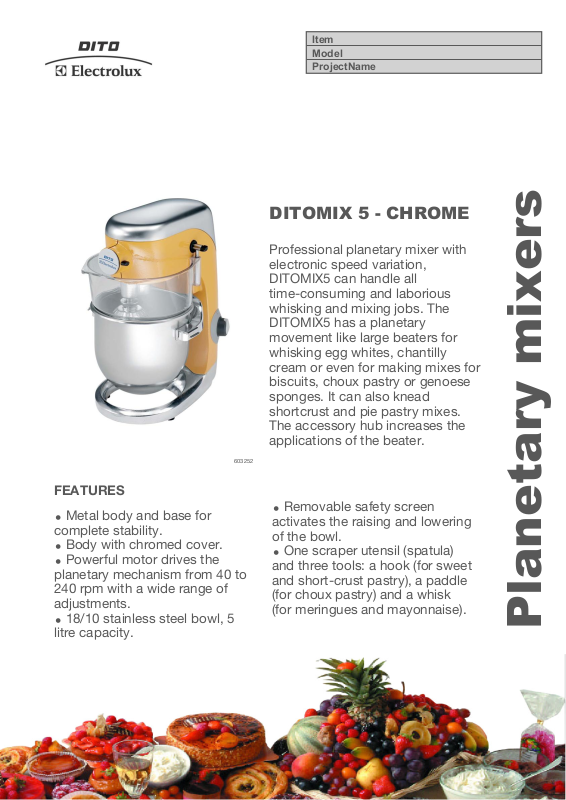

DITOMIX 5 - CHROME
Professional planetary mixer with
electronic speed variation,
DITOMIX5 can handle all
time-consuming and laborious
whisking and mixing jobs. The
DITOMIX5 has a planetary
movement like large beaters for
whisking egg whites, chantilly
cream or even for making mixes for
biscuits, choux pastry or genoese
sponges. It can also knead
shortcrust and pie pastry mixes.
The accessory hub increases the
applications of the beater.
603252
FEATURES
V Metal body and base for
complete stability.
V Body with chromed cover.
V Powerful motor drives the
planetary mechanism from 40 to
240 rpm with a wide range of
adjustments.
V 18/10 stainless steel bowl, 5
litre capacity.
V Removable safety screen
activates the raising and lowering
of the bowl.
V One scraper utensil (spatula)
and three tools: a hook (for sweet
and short-crust pastry), a paddle
(for choux pastry) and a whisk
(for meringues and mayonnaise).
Planetary mixers
Page 2
Specifications
MODEL
Body Grey Yellow Blue Red Black Orange White
External dimensions - mm
width 284 284 284 284 284 284 284
depth 382 382 382 382 382 382 382
height 434 434 434 434 434 434 434
Working capacity - kg of flour
Choux pastry 0.6 0.6 0.6 0.6 0.6 0.6 0.6
Shortcrust pastry 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Cold water paste 0.75 0.75 0.75 0.75 0.75 0.75 0.75
Sweet pastry 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Croissant 0.75 0.75 0.75 0.75 0.75 0.75 0.75
Brioche 0.75 0.75 0.75 0.75 0.75 0.75 0.75
Pizza 0.4 0.4 0.4 0.4 0.4 0.4 0.4
Meat kg 1 1 1 1 1 1 1
Puree - kg of potatoes 2 2 2 2 2 2 2
Power - kW
installed-electric 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Net weight - kg. 11 11 11 11 11 11 11
Supply voltage 208...240 V,
DMIX5C
601514
1N, 50/60
DMIX5CYW
603252
208...240 V,
1N, 50/60
DMIX5CBL
603254
208...240 V,
1N, 50/60
DMIX5CRD
603384
208...240 V,
1N, 50/60
DMIX5CBK
603385
208...240 V,
1N, 50/60
DMIX5COR
603555
208...240 V,
1N, 50/60
DMIX5WHT
603545
208...240 V,
1N, 50/60
Page 3
Included accessories
CODE DESCRIPTION
653286 FLAT DOUGH HOOK FOR 5LT MIXER 1 1 1 1 1 1 1
653252 PADDLE FOR 5LT MIXER 1 1 1 1 1 1 1
653483 SPATULA FOR 5 LT PLANETARY
MIXERS
653508 STAINLESS STEEL BOWL 5LT FOR
MIXER
653250 WHISK FOR 5LT MIXER 1 1 1 1 1 1 1
DMIX5C
601514
DMIX5CYW
603252
1 1 1 1 1 1 1
1 1 1 1 1 1 1
DMIX5CBL
603254
DMIX5CRD
603384
DMIX5CBK
603385
DMIX5COR
603555
DMIX5WHT
603545
Optional accessories
CODE DESCRIPTION
653286 FLAT DOUGH HOOK FOR 5LT MIXER ✓ ✓ ✓ ✓ ✓ ✓ ✓
653427 MEATMINCER 50MM FOR K HUB 3
DISCS
653252 PADDLE FOR 5LT MIXER ✓ ✓ ✓ ✓ ✓ ✓ ✓
653611 PASTA ACCESSORY FOR SPAGHETTI ✓ ✓ ✓ ✓ ✓ ✓ ✓
653610 PASTA
KIT-LASAGNE,TAGLIATELLE,TAGLIOLINI
653483 SPATULA FOR 5 LT PLANETARY
MIXERS
653508 STAINLESS STEEL BOWL 5LT FOR
MIXER
653493 VEGETABLE SLICER-K HUB- 5L
PLAN.MIXER
653250 WHISK FOR 5LT MIXER ✓ ✓ ✓ ✓ ✓ ✓ ✓
DMIX5C
601514
DMIX5CYW
603252
✓ ✓ ✓ ✓ ✓ ✓ ✓
✓ ✓ ✓ ✓ ✓ ✓ ✓
✓ ✓ ✓ ✓ ✓ ✓ ✓
✓ ✓ ✓ ✓ ✓ ✓ ✓
✓ ✓ ✓ ✓ ✓ ✓ ✓
DMIX5CBL
603254
DMIX5CRD
603384
DMIX5CBK
603385
DMIX5COR
603555
DMIX5WHT
603545
Page 4
Installation drawings
XXX
601514, 603545, 603555, 603385, 603384, 603254, 603252
576
434
I
22
284
382
MODEL
I - Electrical connection 208...240 V,
The manufacturer reserves the right to modify and make improvements to the products without
giving prior warning. Dimensions, illustrations, technical data, weights, etc. are given as an
indication only.
DMIX5C
601514
1N, 50/60
DMIX5CYW
603252
208...240 V,
1N, 50/60
DMIX5CBL
603254
208...240 V,
1N, 50/60
www.dito-electrolux.com
DMIX5CRD
603384
208...240 V,
1N, 50/60
DMIX5CBK
603385
208...240 V,
1N, 50/60
DMIX5COR
603555
208...240 V,
1N, 50/60
DMIX5WHT
603545
208...240 V,
1N, 50/60
Planetary mixers
