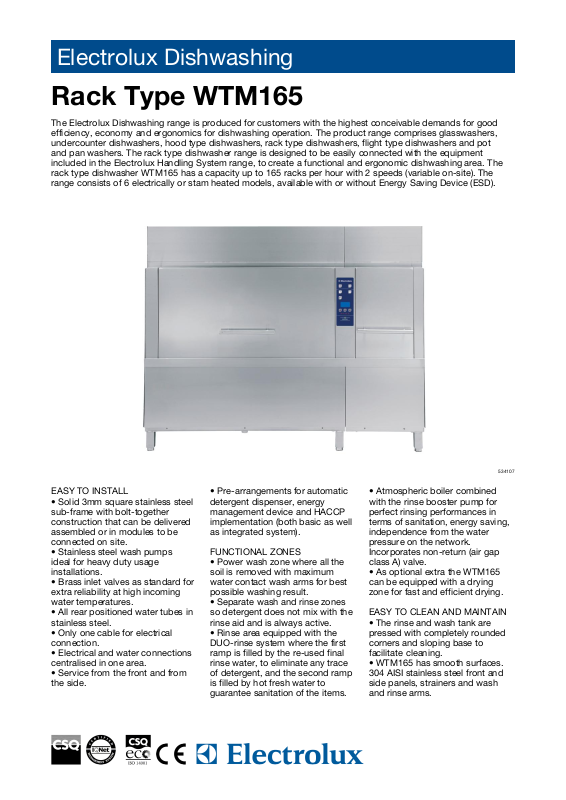

Electrolux Dishwashing

Rack Type WTM165

The Electrolux Dishwashing range is produced for customers with the highest conceivable demands for good
efficiency, economy and ergonomics for dishwashing operation. The product range comprises glasswashers,
undercounter dishwashers, hood type dishwashers, rack type dishwashers, flight type dishwashers and pot
and pan washers. The rack type dishwasher range is designed to be easily connected with the equipment
included in the Electrolux Handling System range, to create a functional and ergonomic dishwashing area. The
rack type dishwasher WTM165 has a capacity up to 165 racks per hour with 2 speeds (variable on-site). The
range consists of 6 electrically or stam heated models, available with or without Energy Saving Device (ESD).

EASY TO INSTALL

• Solid 3mm square stainless steel
sub-frame with bolt-together
construction that can be delivered
assembled or in modules to be
connected on site.

• Stainless steel wash pumps
ideal for heavy duty usage
installations.

• Brass inlet valves as standard for
extra reliability at high incoming
water temperatures.

• All rear positioned water tubes in
stainless steel.

• Only one cable for electrical
connection.

• Electrical and water connections
centralised in one area.

• Service from the front and from
the side.

• Pre-arrangements for automatic
detergent dispenser, energy
management device and HACCP
implementation (both basic as well
as integrated system).

FUNCTIONAL ZONES

• Power wash zone where all the
soil is removed with maximum
water contact wash arms for best
possible washing result.

• Separate wash and rinse zones
so detergent does not mix with the
rinse aid and is always active.

• Rinse area equipped with the
DUO-rinse system where the first
ramp is filled by the re-used final
rinse water, to eliminate any trace
of detergent, and the second ramp
is filled by hot fresh water to
guarantee sanitation of the items.

534107

• Atmospheric boiler combined
with the rinse booster pump for
perfect rinsing performances in
terms of sanitation, energy saving,
independence from the water
pressure on the network.
Incorporates non-return (air gap
class A) valve.

• As optional extra the WTM165
can be equipped with a drying
zone for fast and efficient drying.

EASY TO CLEAN AND MAINTAIN

• The rinse and wash tank are
pressed with completely rounded
corners and sloping base to
facilitate cleaning.

• WTM165 has smooth surfaces.
304 AISI stainless steel front and
side panels, strainers and wash
and rinse arms.

Electrolux Dishwashing

Rack Type WTM165

• Wash arms and double tank filter
(flat and deep box) easy to remove.

• Height adjustable stainless steel
feet.

• All models finished in top quality
materials with double skinned
construction to aid durability and
reduce noise.

• Self-draining wash pumps
provide maximum hygiene.

• Hinged flap for easy access to
the energy saving condenser unit.

• Large balanced inspection doors
for easy access to wash area.

• Self-cleaning cycle in washing
and rinse zones.

EASY TO USE

• Automatic start/stop function.

• Advanced electric control panel
with sound signals and visual
display.

• Counter balanced door with
safety switch and easy to grip
handle.

• Built-in rinse water heater to
increase the temperature of the
final rinse water.

• Electronic control panel with
autodiagnostic check control.

EASY ON THE ENVIRONMENT

• 35mm thickness foam injection
insulated doors to reduce noise
and reduce heat dispersion.

• Available with version equipped
with Energy Saving Device (ESD)
to pre-heat the incoming cold
water and to save up to 12kW of
energy. ESD incorporates a
condenser unit to decrease
temperature and humidity of the
outlet hot steam.

• 98% recyclable by weight.

• CFC free packaging.

• Low noise level <70dBA.

• Developed and produced in ISO
9001 and ISO 14001 certified
factory.

WTM165ERA

TECHNICAL DATA

Model Electronic - A Electronic - A Electronic - B Electronic - B Electronic - A Electronic - A
Power supply Electric Electric Electric Electric Steam & Electric Steam & Electric
Feeding direction from RH to LH from LH to RH from RH to LH from LH to RH from RH to LH from LH to RH
Energy Saving Device incl. cond. unit ● ● ● ●
Water supply
pressure min. , max. - bar 1.5, 7 1.5, 7 1.5, 7 1.5, 7 1.5, 7 1.5, 7
hot water inlet °C 50 50 50 50 50 50
cold water inlet °C 15 15 15 15
Capacity dishes/h 1st/2nd speed 2970, 1620 2970, 1620 2970, 1620 2970, 1620 2970, 1620 2970, 1620
Capacity baskets/h 1st/2nd speed 165, 90 165, 90 165, 90 165, 90 165, 90 165, 90
Air emission - m³/h 180 180 180 180
Insulation ● ● ● ● ● ●
External dimensions - mm
width 2098 2098 2098 2098 2098 2098
depth 884 884 884 884 884 884
height/with open door 1771, 2119 1771, 2119 1771, 2119 1771, 2119 1771, 2119 1771, 2119
1st wash
temperature - °C 55-65 55-65 55-65 55-65 55-65 55-65
tank capacity - lt. 150 150 150 150 150 150
pump power - kW 3.3 3.3 3.3 3.3 3.3 3.3
Duo rinse
temperature - °C 60-70 60-70 60-70 60-70 60-70 60-70
tank capacity - lt. 23 23 23 23 23 23
pump power - kW 0.35 0.35 0.35 0.35 0.35 0.35
Rinsing
temperature - °C 84 84 84 84 84 84
boiler capacity - lt. 12 12 12 12 12 12
boiler power - kW 16.5 16.5 16.5 16.5
water flow - liters/hr 300 300 300 300 300 300
Steam supply
relative dynamic pressure bar - min/max 1.5, 3 1.5, 3
Steam consumption peak - Kg/h 92 92
Total installed power - kW 31.5 31.5 31.5 31.5 7.5 7.5
Net weight - kg. 442 442 400 400 442 442

ACCESSORIES

12 S/S PLUGS FOR WASH.ARMS-MODUL/COMP.RT 864239 864239 864239 864239 864239 864239
BASKET FOR 5 HALF INSULATED TRAYS-RED 867005 867005 867005 867005 867005 867005
DRAIN KIT FOR MODULAR+COMPACT RACK TYPE 864150 864150 864150 864150 864150 864150
EL. DRY. TUNNEL-CORNER-RIGHT-MODULAR RT 864512 864512
EL. DRYING TUNNEL-CORNER-LEFT-MODULAR RT 864513 864513
EL. DRYING TUNNEL-EL.MODULAR RT-L>R-600 864511 864511
EL. DRYING TUNNEL-EL.MODULAR RT-L>R-900 864501 864501
EL. DRYING TUNNEL-EL.MODULAR RT-R>L-600 864510 864510
EL. DRYING TUNNEL-EL.MODULAR RT-R>L-900 864500 864500
KIT 6 BASKETS FOR 1-TANK RACK TYPE DW 867050 867050 867050 867050 867050 867050
KIT 9 BASKETS FOR 1-TANK RACK TYPE DW 867051 867051 867051 867051 867051 867051
KIT SILASTIC CURTAINS FOR RACK TYPE DW 864245 864245 864245 864245 864245 864245
SPLASH HOOD-MODULAR RACK T.-LOADING SIDE 865177 865177 865177 865177 865177 865177
STEAM DRYING TUNNEL-MODULAR RT-L>R-900 864515
STEAM DRYING TUNNEL-MODULAR RT-R>L-900 864514

534104

WTM165ELA

534105

WTM165ERB

534106

WTM165ELB

534107

WTM165SRA

534126

WTM165SLA

534127
