Product No. CPGS3085KF1
39452391M93S1
Series 30" slide-in
Color stainless
Market Canada
Wiring Diagram 318550111
Owner's Guide 318205852
Installation Instructions 318201680
Service Data Sheet 318127064
FPGS3085KF.jpg CFPGS3085KFA.eps BRFPGS3085KFA.eps BCPGS3085KF1.eps
TFPGS3085KFA.eps DFPGS3085KFA.eps 318550111.eps
Electrolux Major Appliances
North & Latin America
5855 TERRY FOX WAY
MISSISSAUGA, ONTARIO, CANADA L5V
3E4
Publication No.
5995545224
09/07/08
(EN/SERVICE/ECL)
377
30-INCH SLIDE-IN GAS
RANGE
Model No.
CPGS3085K
Copyright © 2009 Electrolux Home Products, Inc.
All rights reserved.
Publication No: 5995545224 CPGS3085KF1
BACKGUARD
31
40
23
31
20
19
31
30
23
30
24
CFPGS3085KFA
07/09 2
CPGS3085KF1 Publication No: 5995545224
BACKGUARD
POS. NO PART NO. DESCRIPTION
19 # 318922146 Panel Assembly, control, black/stainless
20 # 316462863 Controller, electronic, ES530
23 318921300 Bracket, control mtg, (2)
24 318913101 Trim, vent, black, upper
30 318928500 Bracket, control panel, rear, (2)
31 316564411 Knob, control, stainless
40 318912907 Panel, service, silver
40* 5303300265 Screw, 8-18 X 1/2, silver, (4)
* # 318224852 Harness, wiring, timer
* 08016432 Screw, truss head, 8-18 x 0.375
* 5304453707 Screw, 8-18 X 1/2
* 5304454881 Screw, #8-18 x 3/8
# Functional Parts
3 07/09
* Non-Illustrated Parts
Publication No: 5995545224 CPGS3085KF1
BURNER
11B
37
44B
47
4
3
10A
4
10B
11B
11
44
37
47
11A
37
44A
25
26
1A
47
72
2B
21
76
1B
2A
12A
11A
77
4
12B
77
2C
1
72
12C
12D
2
76
24
10C
77A
11C
11
12
13
77
10
11C
37
44A
47
44C
44A
15
23
14
21
20
18
26
22
16
17
BRFPGS3085KFA
07/09 4
CPGS3085KF1 Publication No: 5995545224
BURNER
POS. NO PART NO. DESCRIPTION
1 # 318913400 Manifold, right side
1A # 318907200 Manifold, pipe, LH
1B # 318913500 Tube, connection, manifold
2 # 318915700 Valve, top burner, 5K
2A # 318915701 Valve, top burner, 9.5K
2B # 318915703 Valve, top burner, 14K
2C # 316412513 Valve, top burner, 18K
3 # 318232659 Wiring Harness, w/igntr switch
4 5304472956 Screw, hex wash, 6-32 x .485
10 # 316438200 Burner, sealed, 5K
10A# 316558300 Burner, sealed, 9.5K
10B# 316438600 Burner, sealed, 14K
10C# 318567000 Burner Assembly, twin
11 # 316540800 Ignitor/orifice assy., top burner, 5K, w/holder
11A# 316540700 Ignitor/orifice assy., top burner, 9.5K, w/holder
11B# 316543206 Ignitor/orifice assy., top burner, 14K, w/holder
11C# 316440100 Ignitor/orifice assy., top burner, twin, 17K, w/holder
12 # 318916800 Tube, burner supply, RH rear
12A# 318916500 Tube, burner supply, LH front
12B# 318916600 Tube, burner supply, LH rear
12C# 318928100 Tube, twin burner, inside
12D# 318928200 Tube, twin burner, outside
13 # 318913600 Tube, rgltr to manf
14 # 316416705 Regulator, pressure
* 5303311306 Screw, 8-18 x 0.375, (6)
15 318262810 Bracket, regulator
16 # 318289500 Tube, regulator valve
17 # 316404901 Valve, safety
17*# 318268600 Harness, wiring, valve
18 # 318292200 Burner, oven, 18000
20 318290400 Baffle, bake burner
21 3201885 Nut, Keps, 10-24
22 # 318305203 Tube, broil supply
23 # 318292300 Burner, broil, 14000
24 # 316 409703 Elbow, mixer
* 5304463705 Screw, 8-18 X 1/2, (4)
25 316401301 Baffle, broil burner
26 # 318 177710 Ignitor, oven burner
* 5303300195 Screw, 10-32 x 0.375, (2)
37 316240600 Screw, assy mtg, (8), ignitor/orifice
44 # 316527504 Orifice, top burner, 5K
44A# 316527500 Orifice, top burner, 9.5K
44B# 316527513 Orifice, top burner, 14K
44C# 316527514 Orifice, top burner, simmer
47 # 318565406 Conversion Kit, LP
72 316215600 Screw, valve mtg., 1/4 - 20
76 318906702 Bracket, manifold, (2)
77 318920300 Bracket, burner mtg, (4)
77A 318384103 Bracket, burner, dual
* # 318199776 Wiring Harness, ignitor
* 5303211311 Screw, 8 x 0.500
* 5303323277 Screw, 8-18 X 13/32
* 5303325980 Screw, 10-32 x 0.437
* 5304454881 Screw, #8-18 x 3/8
# Functional Parts
5 07/09
* Non-Illustrated Parts
Publication No: 5995545224 CPGS3085KF1

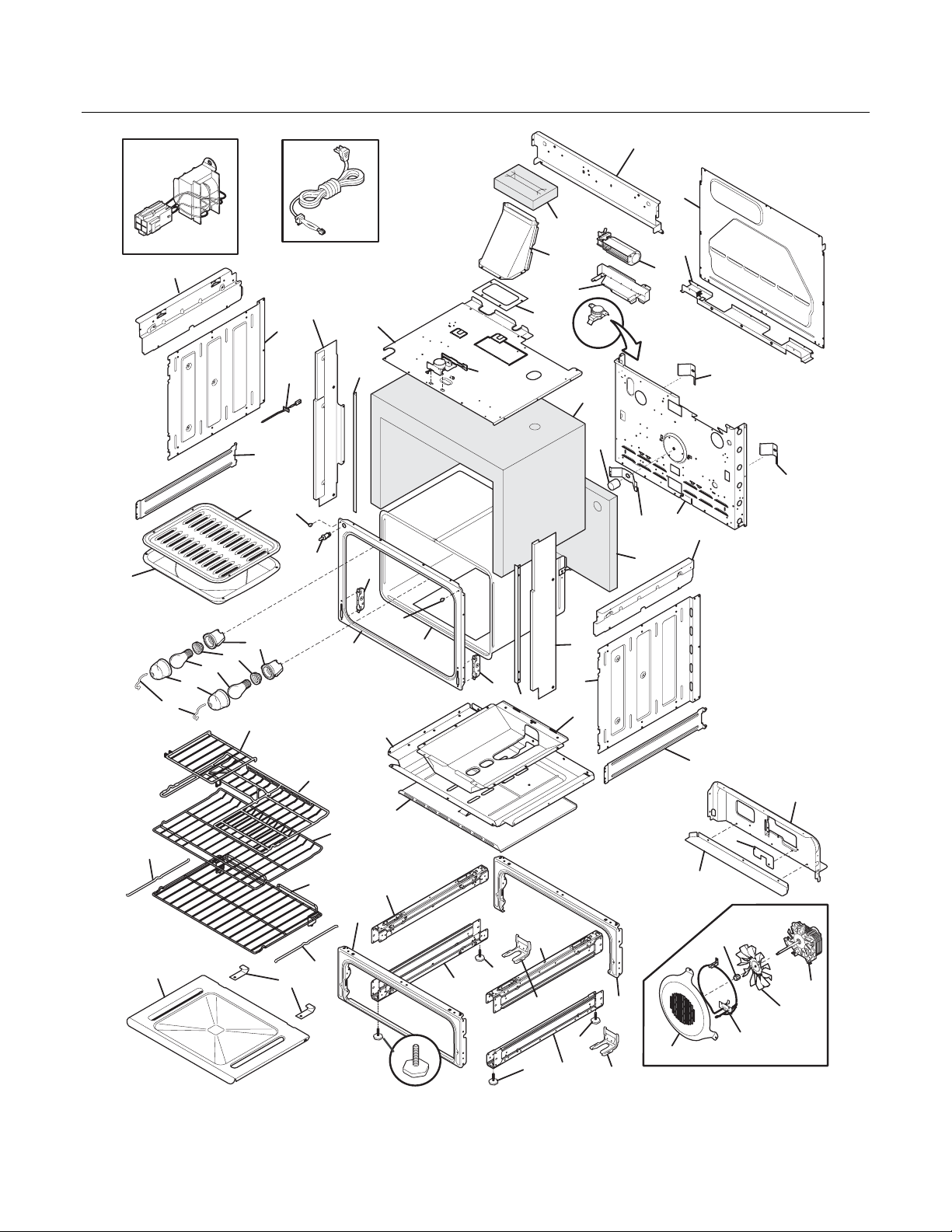

BODY
284
3A
90A
70
39
2
35
58C
36
108A
1A
71
87
108
219
6B
4
86
29
76
6
83
42
25
166
37
102
10
29
12
9
18
14
15
16
17
6C
6A
7
89
86
81
58A
272
81
1
80
58B
90
70
4
40
3
102
33
57
34
200
166
8
8A
7
166A
5
5
170
5
166A
201
5
170
107
111
125
109
161
BCPGS3085KF1
07/09 6
CPGS3085KF1 Publication No: 5995545224
BODY
POS. NO PART NO. DESCRIPTION
1 318259220 Back, main
1A 318225110 Panel, main back, upper
* 5303324184 Screw, 8-18 x 5/16, black, (4)
2 318258902 Shield, insulation, upper
3 318225210 Panel, bodyside, upper RH
3A 318225211 Panel, bodyside, upper LH
4 318920200 Support, deflector
5 318175508 Screw, leveling
6 318922301 Rack, oven
6A 318926803 Rack, half, oven
6B 318921600 Rack, oven, auto
6C 318929702 Insert, half rack
7 318927600 Support, auto rack, (2)
8 318290501 Panel, oven, bottom
8A 318367401 Bracket, retainer, (2)
9 316081900 Pan, broiler, OPTIONAL ACCESS0RY
10 316082000 Insert, broiler pan, OPTIONAL ACCESS0RY
12 316445501 Switch, oven light, door frame
14 318224000 Receptacle, oven light
15 5303013071 Bulb/Lamp, light
16 318406100 Lens, oven light, glass
17 5304400195 Retainer, light cover
18 318222400 Housing, oven light
25 318291900 Bracket, shield, lower
29 316517600 Spacer, oven door
33 318287800 Panel, valve mtg.
34 318289400 Panel, valve filler
35 318291300 Seal, flue cavity
36 318288801 Box, flue assy.
37 # 316217002 Probe, oven temp
39 # 318144008 Cord, service
* 5303323136 Screw ground
40 318291800 Box, oven burner
42 318288701 Bracket, body, middle
57 318268300 Cover, burner opening
* 5303307980 Screw, 8-32 x 0.437, (8)
58A 318285084 Insulation, oven wrapper
58B 318285085 Insulation, oven back
58C 318285097 Insulation, flue
70 318259 10 5 Shield, insulation, sides, (2)
71 318260007 Panel, rear box
76 318056292 Front, oven
80 5303320846 Plate, oven mtg
81 318192400 Spring, oven
* 5303323129 Screw, 8 X 0.750
83 318327030 Liner, oven
86 318561100 Receptacle, hinge, (2)
* 5304461333 Screw, 10-32 x 17/32
* 3051050 Screw, shoulder
87 318260624 Bracket, cable mtg.
89 # 318261215 Motor, latch assy
# Functional Parts
7 07/09
* Non-Illustrated Parts
Publication No: 5995545224 CPGS3085KF1
BODY
284
3A
90A
70
39
2
35
58C
36
108A
1A
71
87
108
219
6B
4
86
29
76
6
83
42
25
166
37
102
10
29
12
9
18
14
15
16
17
6C
6A
7
89
86
81
58A
272
81
1
80
58B
90
70
4
40
3
102
33
57
34
200
166
8
8A
7
166A
5
5
170
5
166A
201
5
170
107
111
125
109
161
BCPGS3085KF1
07/09 8
CPGS3085KF1 Publication No: 5995545224
BODY
POS. NO PART NO. DESCRIPTION
90 318296904 Panel, filler, black, RH
90A 318296905 Panel, filler, black, LH
102 318327500 Panel, reinforcement
107 318219405 Cover, fan
108# 318073028 Motor, blower
* 318165800 Spacer
108A 318251300 Bracket, fan support
109 318398300 Fan Blade
111 318399800 Nut, fan retainer
125# 318398201 Motor, fan
125* 318142100 Washer, motor, convection
161# 318255504 Element, convection, 350 W
166 318298410 Bracket, base support, (2)
166A 318298403 Bracket, base support, lower, (2)
170 318335500 Anti-tip & accessories
200 318298226 Frame, drawer, front
201 318298230 Frame, drawer, black
* 318531701 Spacer, (2)
* 5303323139 Screw, 10-24 x 0.906
219# 318003633 Thermostat, safety
272 318249409 Tube, protector
284 316536100 Transformer
* # 318306638 Harness, wiring, main
* 5304400192 Retainer, wiring
* 5303211311 Screw, 8 x 0.500
* 5303323277 Screw, 8-18 X 13/32
* 5303325980 Screw, 10-32 x 0.437
* 5304415832 Screw, 8-18 x 0.406
* 5304436875 Screw, 8-18 X 1/2, black
# Functional Parts
9 07/09
* Non-Illustrated Parts
Publication No: 5995545224 CPGS3085KF1

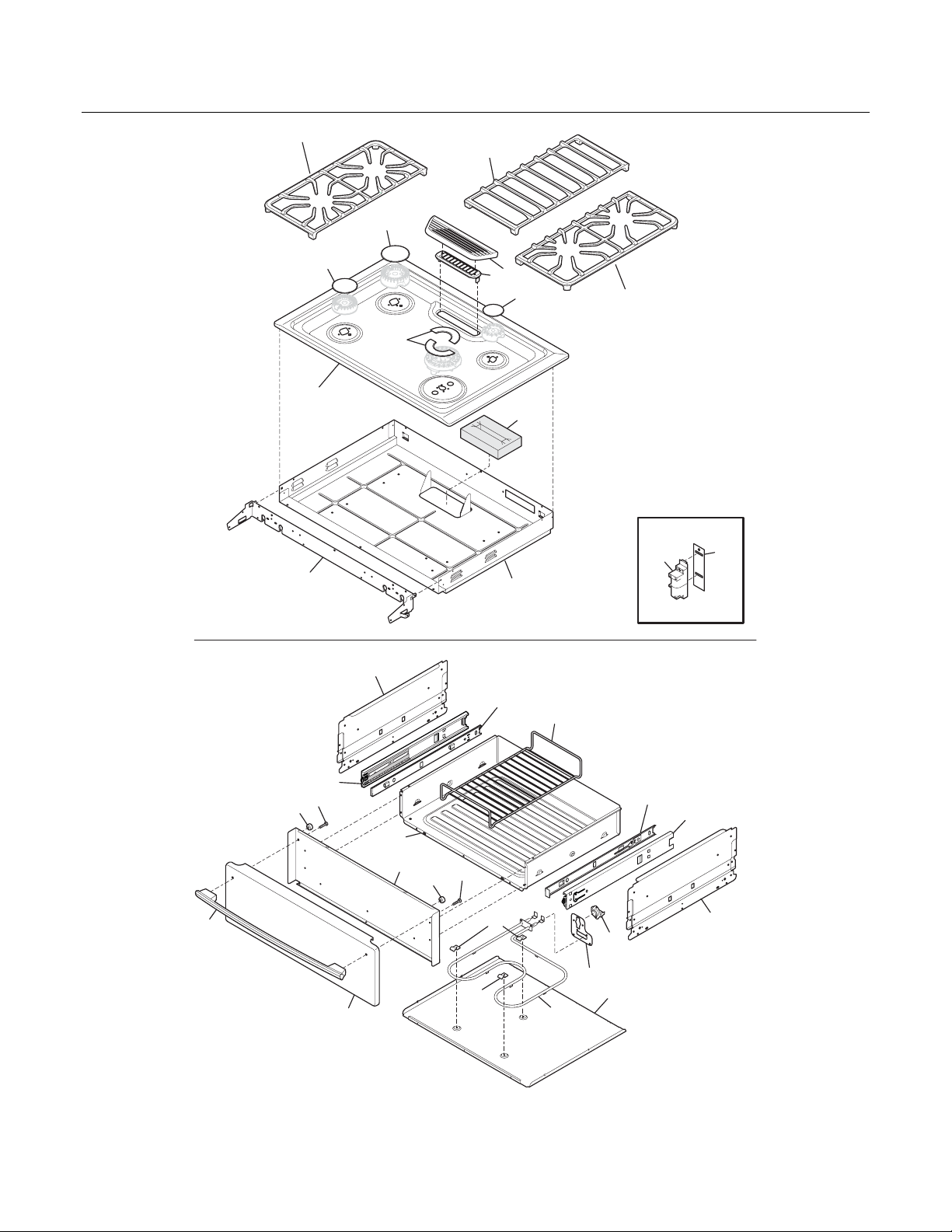

TOP
20
20A
22B
165
16
22A
1A
22C
53
13A
52
46
22
58C
85
20
8
57
124
60
29
1
2
39
4
29
60
86
82
86
81
13
84
87
TFPGS3085KFA
124
1A
07/09 10
CPGS3085KF1 Publication No: 5995545224
TOP
POS. NO PART NO. DESCRIPTION
1 318304401 Drawer, body assembly
1A 318300003 Panel, warmer drawer, side, (2)
2 318303901 Panel, drawer, black, inner
4 318298825 Panel, drawer, stainless, front
8 # 316135702 Module, spark
13 318259507 Glide, warmer, inner RH
13A 318259506 Glide, warmer, inner LH
16 318287568 Cook Top Assy, black
20 318560130 Grate, burner, black, (2)
20A 318560340 Grate, burner, black, center
22 316438304 Cap, 5K burner, black
22A 316527704 Cap, 9.5K burner, black, medium, (2)
22B 316438704 Cap, 14K burner, black
22C 316441204 Cap, 17K twin burner, black, (2)
29 318147430 Bumper, (2)
39 316551500 Handle, door/drawer, stainless
46 318921401 Box, burner
52 318291102 Cover, flue, black, outer
53 318308303 Cover, flue, black
57 318295611 Panel, service
58C 318285099 Insulation, flue
60 5304472906 Screw, handle mtg, #10-24 x 1.5, (2)
* 3201909 Washer, flat, (2)
81 # 318255301 Element, warmer drawer
82 318304500 Bracket, element, warmer drawer
* 3051050 Screw, shoulder
84 # 318005108 Thermostat
85 318345601 Rack, warmer drawer
86 316095800 Clip, hold down, warmer element
87 318300102 Panel, warmer drawer, lower
124 316 105 50 1 Glide, outer/RH & LH, (2)
165 318913300 Deflector, box, front
* 318199748 Wiring Harness, drawer
* 5303300265 Screw, 8-18 X 1/2, silver, (4)
* 5303307980 Screw, 8-32 x 0.437, (8)
* 5304440988 Screw, 10-16 x 3/4
# Functional Parts
11 07/09
* Non-Illustrated Parts
Publication No: 5995545224 CPGS3085KF1

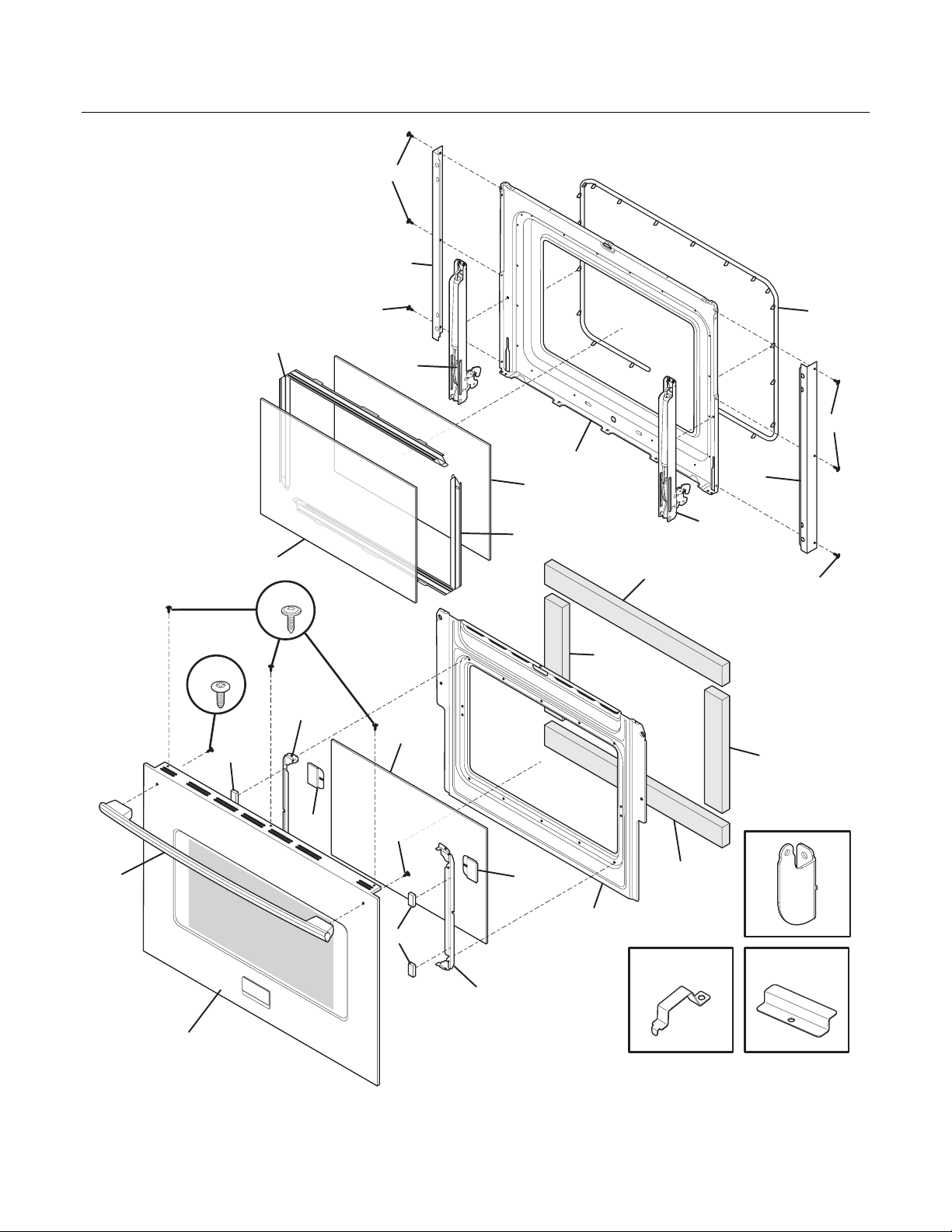

DOOR
56
3A
10
64
17
8
56
40
56
23
8
17
16
12
56
9
3A
23
7A
56
7
7
3B
10
18
39
3B
7A
6
64
40
13
DFPGS3085KFA
07/09 12
4142
CPGS3085KF1 Publication No: 5995545224
DOOR
POS. NO PART NO. DESCRIPTION
3A 318260401 Trim, oven door, side, (2)
3B 318262111 Cover, rear door, black, (2)
6 318260522 Baffle, door
7 318372000 Insulation, door, (2)
7A 318372002 Insulation, door, (2)
8 316117500 Glass, oven door, heat barrier
9 318411610 Liner, oven door
10 5304472906 Screw, handle mtg, #10-24 x 1.5, (2)
12 318053132 Gasket, oven door seal
13 318927801 Door Assembly, outer, steel/glass, stainless, w/badge
16 318212210 Glass, oven door, heat barrier, lower door
17 318264710 Spacer, glass, lower, (2)
18 316547900 Link, door, (2), auto rack
* 08016432 Screw, truss head, 8-18 x 0.375
23 318567100 Hinge, upper, oven door, (2)
* 5304461333 Screw, 10-32 x 17/32
39 316551500 Handle, door/drawer, stainless
40 318242702 Bracket, glass holder, door, (2)
41 318370600 Bracket, glass retainer, (2)
42 318382301 Bracket, glass retainer, (4)
56 5304436875 Screw, 8-18 X 1/2, black
64 318165800 Spacer
* 316221002 Label, anti-tip
* 5303300265 Screw, 8-18 X 1/2, silver, (4)
# Functional Parts
13 07/09
* Non-Illustrated Parts
Publication No: 5995545224 CPGS3085KF1
WIRING DIAGRAM
07/09 14
Loading...
