GAS COOKTOP INSTALLATION INSTRUCTIONS
INSTALLATION AND SERVICE MUST BE PERFORMED BY
A QUALIFIED INSTALLER.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
If the information in this manual is not followed exactly, a fire or explosion may result causing
property damage, personal injury or death.
FOR YOUR SAFETY:
— Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
— WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
— Installation and service must be performed by a qualified installer, service agency or the gas supplier.
For Standard
Installation:
Gas Cooktop Dimensions
Gas Cooktop Cutout
Dimensions
2"(5.1 cm) Dia.
Opening to route
power cable
G
3"(7.6 cm)
21/2"
(6.4 cm)
H
A
2"(5.1 cm)
1" (2.5 cm)
30"(76.2 cm)
Min.*
B
C
4" X 4" (10.2 cm x 10.2
cm) opening to route gas
supply.
J
E
D
F
Figure 1
**Note: D & E are critical to the proper
installation of the cooktop. D reflects the
finished dimension. Due to the variation in
countertop materials, it is recommended to first
undercut this dimension, and then adjust it
upon installation of the cooktop.
* 30" (76.2 cm) min. for
unprotected cabinet and
24" (61 cm) min. for cabinet
with protected bottom surface.
"
4
71/
(18.4 cm)
CUTOUT DIMENSIONS J. DEPTH BELOW
MODEL A. LENGTH B. WIDTH C. DEPTH LENGTH WIDTH COOKTOP
D** E** F G H
36 (91.4) 357/8 (91.1) 25 (63.5) 7¾ (19.7) 3515/16 (91.3) 353/16 (89.4) 351/8 (89.2) 22 (55.9) 11/8 (2.9) Max. 71/2 (19.1)
30 (76.2) 29
All dimensions are stated in inches and (cm).
NOTE: Wiring diagrams for this cooktop are enclosed in this booklet
7
/8 (75.9) 25 (63.5) 7¾ (19.7) 2915/16 (76) 293/16 (74.1) 291/8 (74) 22 (55.9) 11/8 (2.9) Max. 71/2 (19.1)
318201475 (0710) Rev. D
English - pages 1-8
1
Español - páginas 9-16
Français - pages 17-23
Wiring Diagram page - 24
GAS COOKTOP INSTALLATION INSTRUCTIONS

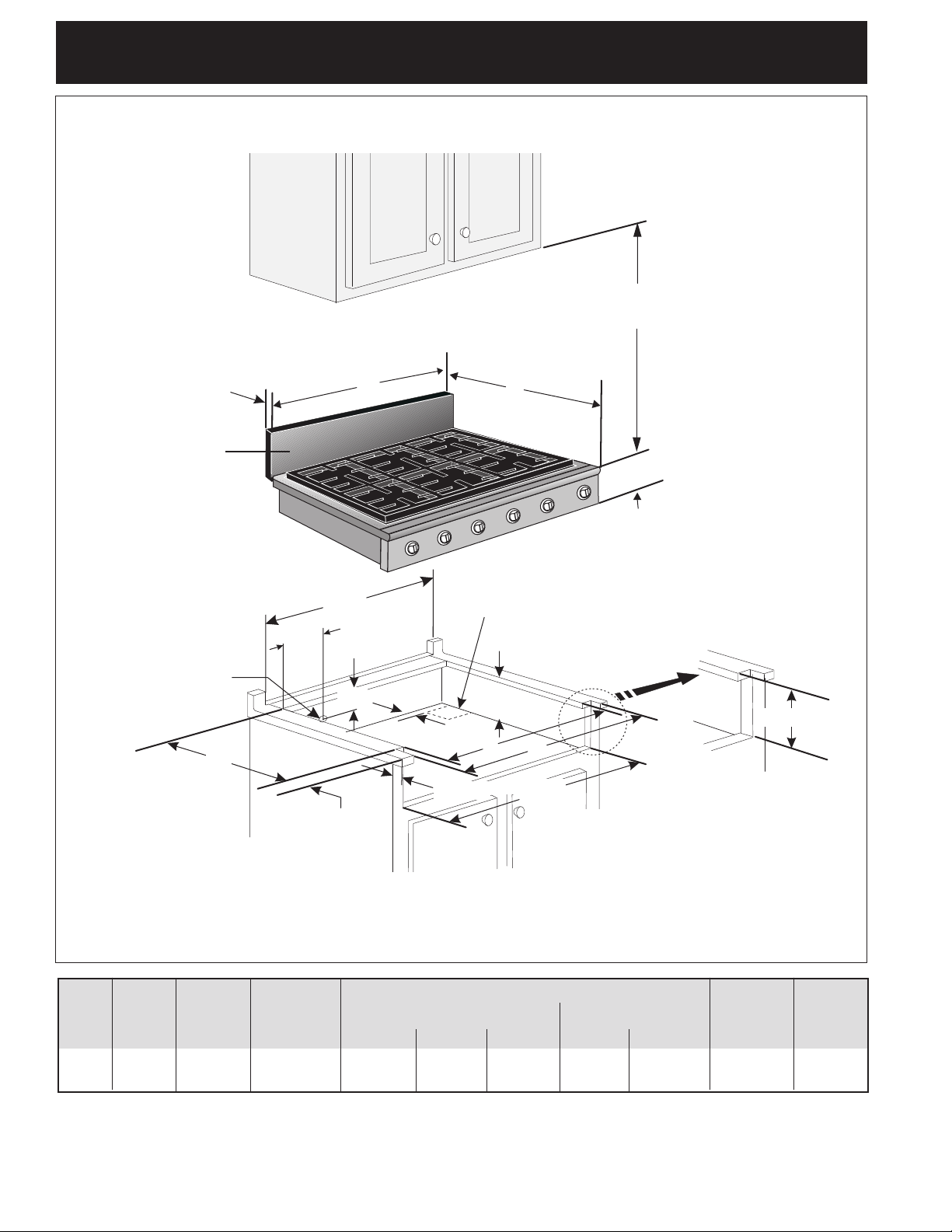

For Installation with the optional Stainless Steel Backsplash.
Gas Cooktop Dimensions
2"(5.1 cm)
9" (22.9 cm)
Optional
Stainless Steel
Backsplash
***Note: Applies only in case
of countertop backwall.
2" (5.1 cm) Dia.
opening to route
power cable.
K***
3"(7.6 cm)
21/2"
(6.4 cm)
A
2"(5.1 cm)
G
* 30" (76.2 cm) min. for
unprotected cabinet and
24" (61 cm) min. for cabinet
with protected bottom surface.
30"(76.2 cm)
Min.*
B
C
4"X 4" (10.2 cm x 10.2 cm)
opening to route gas supply.
J
E
D
7¼" (18.4 cm)
1" (2.5 cm)
F
H
Gas Cooktop Cutout Dimensions
**Note: D & E are critical to the proper
installation of the cooktop. D reflects the
Do not slide unit into cabinet cutout.
Protruding screws on the bottom of unit
may damage the bottom front finish.
MODEL A. LENGTH B. WIDTH C. DEPTH LENGTH WIDTH BELOW BACKWALL
D** E** F G H COOKTOP CUTOUT
36 (91.4) 357/8 (91.1) 25 (63.5) 7¾ (19.7) 3515/16 (91.3) 353/16 (89.4) 351/8 (89.2) 22 (55.9) 11/8 (2.9) Max. 7½ (19.1) 3515/16 (91.3)
30 (76.2) 297/8 (75.9) 25 (63.5) 7¾ (19.7) 2915/16 (76) 293/16 (74.1) 291/8 (74) 22 (55.9) 11/8 (2.9) Max. 7½ (19.1) 2915/16 (76)
All dimensions are stated in inches and (cm).
Figure 2
CUTOUT DIMENSIONS J. DEPTH K. COUNTERTOP
2
finished dimension. Due to the variation in
countertop materials, it is recommended to first
undercut this dimension, and then adjust it
upon installation of the cooktop.
GAS COOKTOP INSTALLATION INSTRUCTIONS
Important Notes to the Installer
1. Read all instructions contained in these installation
instructions before installing the cooktop.
2. Remove all packing material before connecting the
electrical supply to the cooktop.
3. Observe all governing codes and ordinances.
4. Be sure to leave these instructions with the consumer.
5. Note: For operation at 2000 ft. elevations above see
level, appliance rating shall be reduced by 4 percent
for each additional 1000 ft.
Important Note to the Consumer
Keep these instructions with your Use and Care Guide for
future reference.
Depth Adjustment Filler Kit
This cooktop is designed to replace existing unit. If the
depth of your countertop opening is bigger than 7¼" (18.4
cm) and less than 8½" (21.6 cm) you can order a free filler
kit by calling Service Center at 1-877-4ELECTROLUX (1877-435-3287).
For 36" model : #903051-9010
For 30" model : #903051-9100
Optional Items Available:
• A 9" (22.9 cm) Stainless Steel Backsplash Kit
#903048-9010 for 36" model or #903048-9100 for 30"
model.
• A Black Knobs Kit #903049-9120 for 36" model or
#903049-9110 for 30" model.
Those kits can be order through the Service Center at
1-877-4ELECTROLUX (1-877-435-3287). However all cost
related to those kits will be at customer charges.
IMPORTANT SAFETY
INSTRUCTIONS
Installation of this cooktop must conform with local codes
or, in the absence of local codes, with the National Fuel
Gas Code ANSI Z223.1/NFPA54—latest edition in the
United States, or in Canada, with the Canadian Fuel Gas
Code, CAN/CGA B149 and CAN/CGA B149.2.
This cooktop has been design certified by CSA
International. As with any appliance using gas and
generating heat, there are certain safety precautions you
should follow. You will find them in the Use and Care
Guide, read it carefully.
• Be sure your cooktop is installed and grounded
properly by a qualified installer or service
technician.
• This cooktop must be electrically grounded in
accordance with local codes or, in their absence,
with the National Electrical Code ANSI/NFPA No.
70—latest edition in the United States, or in
Canada, with the Canadian Electrical Code, CSA
C22.1 Part 1.
• The burners can be lit manually during an
electrical power outage. To light a burner, hold a
lit match to the burner head, then slowly turn the
Surface Control knob to LITE. Use caution when
lighting burners manually.
• Do not store items of interest to children in
cabinets above the cooktop. Children could be
seriously burned climbing on the cooktop to reach
items.
• To eliminate the need to reach over the surface
burners, cabinet storage space above the burners
should be avoided.
• Adjust surface burner flame size so it does not
extend beyond the edge of the cooking utensil.
Excessive flame is hazardous.
• Never use your cooktop for warming or heating
the room. Prolonged use of the cooktop without
adequate ventilation can be hazardous.
• Do not store or use gasoline or other flammable
vapors and liquids near this or any other
appliance. Explosions or fires could result.
The electrical power to the cooktop
must be shut off while gas line connections are
being made. Failure to do so could result in serious
injury or death.
• When installed in a manufactured (mobile) home
installation must conform with the Manufactured Home
Construction and Safety Standard, title 24 CFR, part
3280 [Formerly the Federal Standard for Mobile Home
Construction and Safety, title 24, HUD (part 280)] or,
when such standard is not applicable, the Standard for
Manufactured Home Installation, ANSI/NCSBCS A225.1
or with local codes where applicable.
3
GAS COOKTOP INSTALLATION INSTRUCTIONS
13" (33 cm) max. depth
for cabinet installed above
cooktop
30" (76.2 cm) Min.
Clearance Between the
Top of the Cooking
Platform and the Bottom
of an Unprotected Wood
or Metal Cabinet
24" (61 cm) Min.
when Bottom of Wood
or Metal Cabinet is
Protected by Not Less
Than 1/8" Flame
Retardant Millboard
Covered With Not Less
Than No. 28 MGS
Sheet Steel, 0.015"
(0.4 mm) Stainless
Steel, 0.024" (0.6 mm)
Aluminum or 0.020"
(0.5 mm) Copper
18" (45.7 cm)
Min.
A
2" (5.1 cm) min. distance
between rear edge of
cutout and nearest
combustible surface
above countertop
B
30" (76.2 cm) min.
clearance between
the top of the
cooking platform and
the bottom of an
unprotected wood or
metal cabinet.
C
24" (61 cm)
To eliminate the risk of
burns or fire from reaching over heated
surfaces, cabinet storage space located
above the cooktop should be avoided. If
cabinet storage is provided, risk can be
reduced by installing a range hood that
projects horizontally a minimum of 7"
(17.8 cm) beyond the bottom of the
cabinets.
It is not recommended to use
drawer underneath cooktop.
MODEL A B. Minimum C. Minimum
Clearance from Clearance from
Left Side Right Side
36" (91.4 cm) 36" (91.4 cm) 9" (22.9 cm) 9" (22.9 cm)
30" (76.2 cm) 30" (76.2 cm) 5" (12.7 cm) 5" (12.7 cm)
Figure 3 – CABINET DESIGN
4
GAS COOKTOP INSTALLATION INSTRUCTIONS
Flare
Union
Flare
Union
GAS FLOW
Manual
Shutoff
Valve
Pressure
Regulator
On
Off
Flexible
Connector
Access
Cap
Nipple Nipple
Wall Outlet Location
(10.2 cm)
Recommended
area for 120V
grounded
outlet on rear
wall.
NOTE: If an
outlet is not
available, have
one installed by
a qualified
technician.
4"
CENTRE
LINE
OF UNIT
5"
(12.7 cm)
16"
(40.6 cm)
The conversion must be performed by a qualified service
technician in accordance with the kit instructions and all
local codes and requirements. Failure to follow
instructions could result in serious injury or property
damage. The qualified agency performing this work
assumes responsibility for the conversion.
Failure to make the appropriate
conversion can result in serious personal injury and
property damage.
Important: Remove all packing material and
literature from cooktop before connecting gas and
electrical supply to cooktop.
Install Pressure Regulator
Install the pressure regulator with the arrow on the
regulator pointing up toward the unit in a position where
you can reach the access cap.
Do not make the connection too tight.
The regulator is die cast. Overtightening may crack the
regulator resulting in a gas leak and possible fire or
explosion.
CENTRE
LINE
Figure 4
OF UNIT
Provide an Adequate Gas Supply
This cooktop is designed to operate on natural gas at 4"
(10.2 cm) of manifold pressure only.
A pressure regulator is connected in series with the
manifold on the cooktop and must remain in series with
the supply line.
For proper operation, the maximum inlet pressure to
the regulator must be no more than 14" (35.6 cm) of
water column (W.C.) pressure.
For checking the regulator, the inlet pressure must be at
least 1"(2.5 cm) (or 2.5 kPa) greater than the regulator
manifold pressure setting. The regulator is set for 4"
(10.2 cm) of manifold pressure, the inlet pressure must
be at least 5" (12.7 cm).
The gas supply line to the range should be 1/2" (1.3 cm)
or 3/4" (1.9 cm) pipe.
LP/Propane Gas Conversion
This appliance can be used with Natural gas or LP/
Propane gas. It is shipped from the factory for use with
natural gas.
A kit for converting to LP gas is supplied with your
cooktop. The kit is marked "FOR LP/PROPANE GAS
CONVERSION".
All connections must be wrench-tightened
Figure 5
Assemble the flexible connector from the gas supply pipe
to the pressure regulator in the following order:
1. manual shutoff valve
2. 1/2" (1.3 cm) nipple
3. 1/2" (1.3 cm) flare union adapter
4. flexible connector
5. 1/2" (1.3 cm) flare union adapter
6. 1/2" (1.3 cm) nipple
7. pressure regulator
Use pipe-joint compound made for use with Natural and
LP/Propane gas to seal all gas connections. If flexible
connectors are used, be certain connectors are not
kinked.
5
GAS COOKTOP INSTALLATION INSTRUCTIONS
The supply line should be equipped with an approved
shutoff valve. This valve should be located in the same
room as the cooktop and should be in a location that
allows ease of opening and closing. Do not block access
to the shutoff valve. The valve is for turning on or
shutting off gas to the appliance.
Figure 6
Once the regulator is in place, open the shutoff valve in
the gas supply line. Wait a few minutes for gas to move
through the gas line.
Check for leaks. After connecting the cooktop to the
gas supply, check the system for leaks with a
manometer. If a manometer is not available, turn on the
gas supply and use a liquid leak detector (or soap and
water) at all joints and connections to check for leaks.
Do not use a flame to check for leaks
from gas connections. Checking for leaks with a flame
may result in a fire or explosion.
Tighten all connections if necessary to prevent gas
leakage in the cooktop or supply line.
Check alignment of control knob valves after
connecting the cooktop to the gas supply to be sure the
cooktop manifold pipe has not moved. A misalignment
could cause the valve stems to rub on the control panel,
resulting in a gas leak at the valve.
Disconnect this cooktop and its individual shutoff
valve from the gas supply piping system during any
pressure testing of that system at test pressures greater
than 1/2 psig (3.5 kPa or 14" (35.6 cm) water column).
Isolate the cooktop from the gas supply piping
system by closing its individual manual shutoff valve
during any pressure testing of the gas supply piping
system at test pressures equal to or less than 1/2 psig
(3.5 kPa or 14" (35.6 cm) water column).
Electrical Requirements
120 volt, 60 Hertz, properly grounded branch circuit
protected by a 15 amp circuit breaker or time delay fuse.
Do not use an extension cord with this cooktop.
Grounding Instructions
IMPORTANT Please read carefully.
For personal safety, this appliance must be properly
grounded.
The power cord of this appliance is equipped with a 3prong (grounding) plug which mates with a standard 3prong grounding wall receptacle (see Figure 7) to
minimize the possibility of electric shock hazard from the
appliance.
The wall receptacle and circuit should be checked by a
qualified electrician to make sure the receptacle is
properly grounded.
Preferred Method
Grounding type
wall receptacle
Where a standard 2-prong wall receptacle is installed, it
is the personal responsibility and obligation of the
consumer to have it replaced by a properly grounded 3prong wall receptacle.
Do not, under any circumstances, cut or remove the
third (ground) prong from the power cord.
Disconnect electrical supply cord from
wall receptacle before servicing cooktop.
Do not, under
any circumstances,
cut, remove,
or bypass the
grounding prong.
Power supply
cord with 3-prong
grounding plug.
Figure 7
Cooktop Installation
1. Visually inspect the cooktop for damage.
2. If you are installing the optional Stainless Steel
backsplash, first fix it at the back of the cooktop using
the screws supplied with the kit and follow the
instructions attached.
3. Set the cooktop into the countertop cutout.
NOTE: Do not use caulking compound; cooktop should
be removable for service when needed.
6
GAS COOKTOP INSTALLATION INSTRUCTIONS
Check Operation
Refer to the Use and Care Guide packaged with the
cooktop for operating instructions and for care and
cleaning of your cooktop.
Do not touch the burners. They may be
hot enough to cause burns.
1. Burner Bases and Burner Caps
This range is equipped with sealed burners as shown
(Figure 8). All pieces are at their place. Take note where
they are. Remove all packaging material located
under the Dual Surface burner head. Make sure the
burner is properly aligned and leveled.
NOTE: There are no burner adjustments necessary on
this range.
30” Model
Burner Cap
Burner Cap
Burner Base
36” model
Fixed Burner Ring
Fixed Burner Ring
and Burner Base
4. Adjust the "LOW" Setting of Regular Burner (see
figure 8) on the Surface Burner Valves (Figure 9):
a. Push in and turn control to LITE until burner ignites.
b. Quickly turn knob to LOWEST POSITION.
c. If burner goes out, reset control to OFF.
d. Remove the surface burner control knob and
decorative ring.
e. Insert a thin-bladed screwdriver into the hollow valve
stem and engage the slotted screw inside. Flame size
can be increased or decreased by turning the screw.
Turn counterclockwise to increase flame size. Turn
clockwise to decrease flame size. Adjust flame until
you can quickly turn knob from LITE to LOWEST
POSITION without extinguishing the flame. Flame
should be as small as possible without going out.
Note: Air mixture adjustment is not required on surface
burners.
Dual Surface
Burner
Regular Burner
Figure 8
2. Turn on Electrical Power and Open Main Shutoff
Gas Valve
3. Check the Igniters
Operation of electric igniters should be checked after
range and supply line connectors have been carefully
checked for leaks and range has been connected to
electric power. To check for proper lighting:
a.Push in and turn a surface burner knob to the LITE
position. All electronic surface ignitors will spark at the
same time. However, only the burner you are turning
on will ignite.
b.The surface burner should light once the flow of gas
reached the surface burner. Each burner should light
within four (4) seconds in normal operation after air
has been purged from supply lines. Visually check that
burner has lit.
c. Once the burner lights, the control knob should be
rotated out of the LITE position.
There are separate ignition devices for each burner. Try each
knob separately until all burner valves have been checked.
Figure 9
7
GAS COOKTOP INSTALLATION INSTRUCTIONS
5. Adjust the "LOW" Setting of the Dual Burner (see
Figure 8) on the Surface Burner Valve (Figure 10):
Note: On the dual valve the low setting of each portion
(rear portion of bridge burner and the center portion of
bridge burner) should be adjusted individually.
a. Push in and turn control to LITE until the rear portion
of the bridge burner ignites only.
b. Quickly turn knob to LOWEST POSITION.
c. If burner goes out, reset control to OFF.
d. Remove the surface burner control knob.
e. The inner portion of the dual burner flame size can be
increased or decreased by turning screw A (see Figure
19). Use screw B to adjust the flame size of the outer
portion of the dual burner. Turn counterclockwise the
screw to increase flame size. Turn clockwise the
screw to decrease flame size. Adjust flame until you
can quickly turn knob from LITE to LOWEST POSITION
without extinguishing the flame. Flame should be as
small as possible without going out.
Note: Air mixture adjustment is not required on surface
burners.
When All Hookups are Complete
Make sure all controls are left in the OFF position.
Before You Call for Service
Read the Before You Call for Service Checklist and
operating instructions in your Use and Care Guide. It
may save you time and expense. The list includes
common occurrences that are not the result of defective
workmanship or materials in this appliance.
Refer to your Use and Care Guide for Electrolux Service
phone numbers, or call 1-877-4ELECTROLUX (1-877-
435-3287).
A
Figure 10
B
8
Loading...
