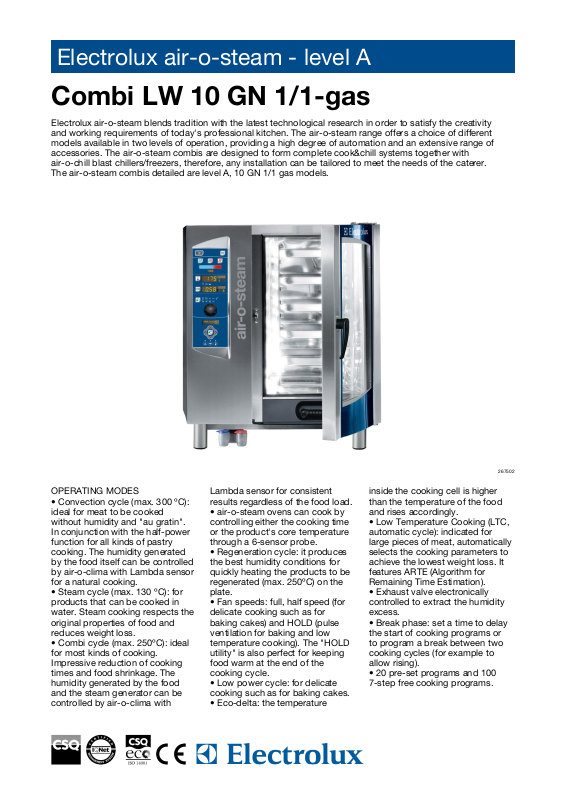

Electrolux air-o-steam - level A
Combi LW 10 GN 1/1-gas
Electrolux air-o-steam blends tradition with the latest technological research in order to satisfy the creativity
and working requirements of today's professional kitchen. The air-o-steam range offers a choice of different
models available in two levels of operation, providing a high degree of automation and an extensive range of
accessories. The air-o-steam combis are designed to form complete cook&chill systems together with
air-o-chill blast chillers/freezers, therefore, any installation can be tailored to meet the needs of the caterer.
The air-o-steam combis detailed are level A, 10 GN 1/1 gas models.
OPERATING MODES
• Convection cycle (max. 300 ºC):
ideal for meat to be cooked
without humidity and "au gratin".
In conjunction with the half-power
function for all kinds of pastry
cooking. The humidity generated
by the food itself can be controlled
by air-o-clima with Lambda sensor
for a natural cooking.
• Steam cycle (max. 130 ºC): for
products that can be cooked in
water. Steam cooking respects the
original properties of food and
reduces weight loss.
• Combi cycle (max. 250ºC): ideal
for most kinds of cooking.
Impressive reduction of cooking
times and food shrinkage. The
humidity generated by the food
and the steam generator can be
controlled by air-o-clima with
Lambda sensor for consistent
results regardless of the food load.
• air-o-steam ovens can cook by
controlling either the cooking time
or the product's core temperature
through a 6-sensor probe.
• Regeneration cycle: it produces
the best humidity conditions for
quickly heating the products to be
regenerated (max. 250ºC) on the
plate.
• Fan speeds: full, half speed (for
delicate cooking such as for
baking cakes) and HOLD (pulse
ventilation for baking and low
temperature cooking). The "HOLD
utility" is also perfect for keeping
food warm at the end of the
cooking cycle.
• Low power cycle: for delicate
cooking such as for baking cakes.
• Eco-delta: the temperature
267502
inside the cooking cell is higher
than the temperature of the food
and rises accordingly.
• Low Temperature Cooking (LTC,
automatic cycle): indicated for
large pieces of meat, automatically
selects the cooking parameters to
achieve the lowest weight loss. It
features ARTE (Algorithm for
Remaining Time Estimation).
• Exhaust valve electronically
controlled to extract the humidity
excess.
• Break phase: set a time to delay
the start of cooking programs or
to program a break between two
cooking cycles (for example to
allow rising).
• 20 pre-set programs and 100
7-step free cooking programs.
Page 2
Electrolux air-o-steam - level A
Combi LW 10 GN 1/1-gas
• air-o-clean: 4 different pre-set
cycles to clean the cooking cell,
according to the actual
requirements. The cleaning
system is built-in (no need for
add-ons).
• Quick cooling: useful when
passing to a type of cooking that
requires a lower temperature than
the previous one. It works
automatically and manually.
• Manual injection of water in the
cell.
• Built-in retractable hand shower
for countertop models.
• Automatic steam generator
water draining with an automatic
scale diagnosis system.
• HACCP management as
standard: it allows the recording of
the cooking programme according
to H.A.C.C.P. standard (Hazard
Analysis and Critical Control
Points).
PERFORMANCE
• air-o-clima: controls and
displays the exact (single degree
of accuracy) humidity degree of
the oven atmosphere in hot air,
combi and regeneration cycles.
Air-o-clima measures physically
the real humidity level inside the
cooking cell and acts
consequently according to the set
value. With hot air cycles,
air-o-clima also manages to
exhaust the excess humidity
generated by the food.
• air-o-flow: blows fresh air from
outside through the bi-functional
fan, which pulls the air in from the
backside of the oven after it is
pre-heated, thus guaranteeing an
even cooking process.
• Multi-sensor food probe: 6
sensors, ½ ºC accuracy.
• NXT cell and steam generator
gas burners: GASTEC certification
on high efficiency and low
emissions. High efficiency cell and
steam generator heat exchangers.
CONSTRUCTION
• Stainless steel 304 throughout,
with seamless joints in the cooking
cell.
• Height adjustable legs.
• Double thermo-glazed door
equipped with drip pans to catch
condensate and prevent slippery
floor for maximum security and
four holding positions allowing
easier loading and unloading.
• Halogen lighting in the cooking
cell.
• Access to main components
from the front panel.
• Automatic scale diagnosis
system in the steam generator to
detect the presence of scale
build-up.
• IPX5 water protection.
• air-o-steam ovens meet
GASTEC safety requirements.
AOS101GAG1
TECHNICAL DATA
Power supply Gas Gas
Gas Natural Gas LPG
Number of grids 10 10
Runners pitch - mm 65 65
Cooking cycles - °C
air-convection 300 300
steam 130 130
combi 250 250
Convection ● ●
Steaming ● ●
Convection/steaming ● ●
Humidity control ● ●
Cook&hold ● ●
Regeneration ● ●
Low temp steaming ● ●
Two-speed fan ● ●
Multi Point Probe ● ●
Automatic cleaning system ● ●
N° of programs 100 100
External dimensions - mm
width 898 898
depth 915 915
height 1058 1058
Internal dimensions - mm
width 460 460
depth 715 715
height 736 736
Power - kW
boiler 20 20
auxiliary 0.3 0.3
cooking chamber 20 20
electric 0.3 0.3
gas 35 35
Net weight - kg. 160 160
Supply voltage 230 V, 1N, 50/60 230 V, 1N, 50/60
267502
AOS101GAD1
267512
ECBA0202009-09-21Subject to change without notice
Internet: http://www.electrolux.com/foodservice
Page 3
Electrolux air-o-steam - level A
Combi LW 10 GN 1/1-gas
AOS101GAG1
267502
ACCESSORIES
1 GRID GN1/1 FOR 8 WHOLE CHICKENS(1.2KG) 922266 922266
2 FRYING BASKETS FOR OVENS 922239 922239
2 GRIDS GN 1/1 FOR CHICKENS (8 PER GRID) 922036 922036
AUTOMATIC WATER SOFTENER FOR OVENS 921305 921305
BAKING TRAY(400X600X20)4 EDGES-ALUMINIUM 922191 922191
BAKING TRAY(400X600X20)4 EDGES-PERF.ALUM 922190 922190
BANQUET RACK-23PLATES-85MM PITCH-10GN1/1 922071 922071
BANQUET RACK-30PLATES-65MM PITCH-10GN1/1 922015 922015
BASKET F. DETERGENT TANK ON SUPPORT 10GN 922212 922212
CONTROL PANEL FILTER-6&10 GN1/1 OVENS-LW 922228 922228
CUPB. BASE+TRAY SUPP-6&10 GN1/1 OVENS LW 922196 922196
DOUBLE-CLICK CLOSING CATCH FOR OVEN DOOR 922265 922265
DRAIN KIT (D=50MM) OVENS 6&10 GN 1/1-2/1 922283 922283
EXHAUST HOOD WITH FAN FOR 6&10 GN1/1-LW 640792 640792
EXHAUST HOOD WITHOUT FAN F. 6&10GN1/1-LW 640791 640791
EXTERNAL SIDE SPRAY UNIT 922171 922171
FAT FILTER FOR OVENS 10X1/1-2/1 922178 922178
FLUE CONDENSER FOR GAS OVENS-LW 922235 922235
FRYING GRIDDLE GN 1/1 FOR OVENS 922215 922215
FRYING GRIDDLE GN 2/3 FOR OVENS 922284 922284
GREASE COLLECTION KIT (TRAY+TROLLEY) 922287 922287
HEAT SHIELD FOR 10 GN 1/1 OVENS 922251 922251
HEAT SHIELD FOR STACKED OVEN 6GN ON 10GN 922245 922245
HOT CUPB.BASE+TRAY SUPP-6&10 GN 1/1 LW 922197 922197
KIT 4 ADJUSTABLE FEET 922012 922012
KIT HACCP EKIS 922166 922166
KIT INTEGRATED HACCP FOR OVENS 922275 922275
KIT TO CONVERT FROM LPG TO NATURAL GAS 922278
KIT TO CONVERT FROM NATURAL GAS TO LPG 922277
NON-STICK U-PAN GN 1/1 H=20 MM 922090 922090
NON-STICK U-PAN GN 1/1 H=40 MM 922091 922091
NON-STICK U-PAN GN 1/1 H=65 MM 922092 922092
NON-STICK U-PAN GN 2/3 H=20 MM 922285 922285
OPEN BASE+TRAY SUPPORT 6&10X1/1GN LW 922195 922195
OVEN GRILL (ALUMINIUM) GN 1/1 922093 922093
PAIR OF 1/1GN AISI 304 S/S GRIDS 922017 922017
PASTRY RUNNERS (400X600) FOR OVEN BASES 922286 922286
PASTRY(400X600)RACK+WHEELS-80MM,10 1/1LW 922066 922066
RESIN SANITIZER FOR WATER SOFTENER 921306 921306
SLIDE-IN RACK+HANDLE FOR 6&10 GN1/1-LW 922074 922074
SOFTWARE+CABLE TO UPLOAD/DOWNLOAD PROGRM 922165 922165
STACKING KIT-GAS 6X1/1 ON GAS 6&10X1/1 922216 922216
THERMAL COVER FOR 10X1/1GN 922013 922013
TRAY RACK 10 GN1/1 LW+REINF.,64MM PITCH 922099 922099
TRAY RACK+WHEELS 10X1/1GN, 65MM PITCH 922006 922006
TRAY RACK+WHEELS 8X1/1GN, 80MM PITCH 922009 922009
TRAY SUPPORT FOR 6&10 GN1/1 OVEN BASES 922021 922021
TRAY(400X600X38)5 ROWS-PERF.ALUM/SILICON 922189 922189
TROLLEY FOR SLIDE-IN RACK 6&10X1/1GN 922004 922004
WATER FILTER FOR OVENS 0.8 L/MIN. 922186 922186
WHEEL KIT FOR BASE OF 6&10X1/1 LW 922003 922003
AOS101GAD1
267512
ECBA0202009-09-21Subject to change without notice
Internet: http://www.electrolux.com/foodservice
Page 4
267502, 267512
Electrolux air-o-steam - level A
Combi LW 10 GN 1/1-gas
AOS101GAG1
LEGEND
CWI - Cold water inlet 3/4" 3/4"
D - Water drain 1"1/4 1"1/4
DO - Overflow drain pipe ● ●
EI - Electrical connection 230 V, 1N, 50/60 230 V, 1N, 50/60
G - Gas connection 1/2" 1/2"
WIC - Cooling water inlet 3/4" 3/4"
267502
AOS101GAD1
267512
