Electrolux 154671201 User Manual

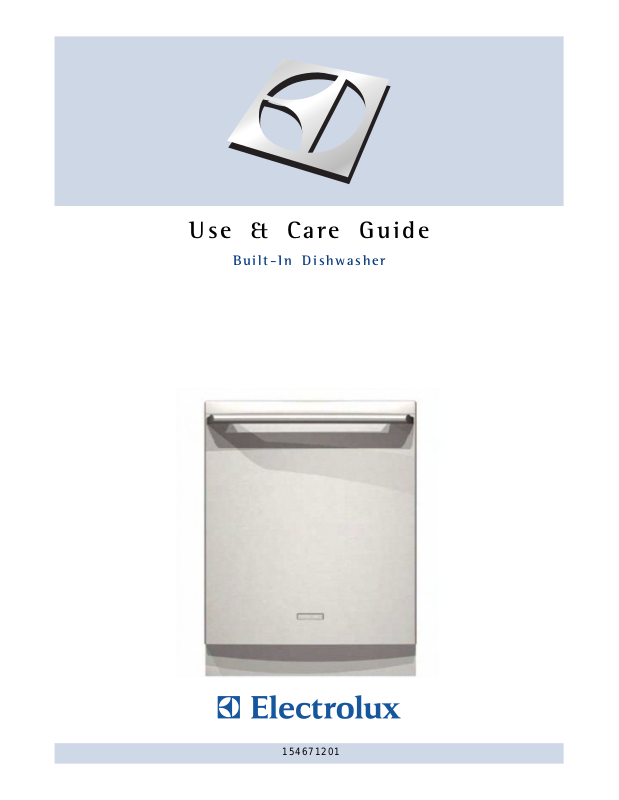

Use & Care Guide
Built-In Dishwasher
Guia de Uso y Cuidado
Lavavajillas Empotrado
Guide d’utilisation et d’entretien
Lave-vaisselle encastré
154671201
2
Table of Contents
Finding Information .................................... 2
Make a Record for Future use ............................. 2
Questions? .......................................................... 2
Internet ............................................................... 2
Table of Contents ................................................ 2
Safety ..................................................... 3
Important Safety Instructions .............................. 3
Feature Overview ....................................... 4
How your Dishwasher Cleans ............................. 4
Operating Instructions ................................. 5
Getting Started .................................................... 5
Normal Operating Sounds .................................. 5
Wash Cycle Selections ........................................ 6
Cycle Selections .................................................. 6
Energy Option Selections .................................... 7
Operation Selections ........................................... 7
Status Window ................................................... 8
Preparing & Loading Dishes .......................... 9
Dish Preparation ................................................. 9
Loading the Top Rack ......................................... 9
Loading the Bottom Rack .................................. 10
Adjusting Rack Height ...................................... 10
Loading the Silverware Basket .......................... 11
Adding a dish ................................................... 11
Dishwasher Dispenser & Detergents .............. 12
Filling the Detergent Dispenser ......................... 12
How much Detergent to use .............................. 12
Detergent Usage Guide ...................................... 13
Rinse Aid .......................................................... 14
Factors Affecting Performance ..................... 15
Water Pressure ................................................. 15
Water Temperature ............................................ 15
Care & Cleaning ...................................... 16
Outside ............................................................. 16
Inside ................................................................ 16
Winterizing ....................................................... 17
Solutions to Common Problems ................... 18
Food Soils Left on Dishes ................................. 18
Dishes Not Dry .................................................. 19
Glassware/Flatware Spotted or Cloudy .............. 18
Dishware Chipped ............................................. 18
Dishware Stained or Discolored ....................... 19
Etching ............................................................. 19
Detergent Left in Cups ...................................... 19
Dishwasher Leaks ............................................. 20
Normal Sounds You Will Hear .......................... 20
Water in Bottom of Tub ..................................... 20
Dishwasher Won’t Run ..................................... 20
Dishwasher Does Not Drain
Properly ............................................................ 20
Cycle Takes a Long Time ................................... 21
Dishwasher Won’t Fill ....................................... 21
Dishwasher Has an Odor ................................... 21
Removing Spots and Film ................................. 21
Warranty Information ................................ 22
Spanish Version ...................................... 23
French Version ........................................ 40
Please read and save this guide
Thank you for choosing Electrolux, the new premium brand in home appliances. This Use & Care Guide is part of our commitment to customer satisfaction and product quality throughout the service life of your new appliance.
We view your purchase as the beginning of a relationship. To ensure our ability to continue serving you, please use this page to record important product information.
Keep a record for quick refer­ence
Purchase date
Electrolux model number
Electrolux serial number
NOTE
Registering your product with Electrolux enhances our ability to serve you. You can register online at www.electroluxusa.com or by dropping your Product Registration Card in the mail.
Questions?
For toll-free telephone support in the U.S. and Canada:
1-877-4ELECTROLUX (1-877-435-3287)
For online support and Internet production information visit http://www.electroluxusa.com
©2007 Electrolux Home Products, Inc.
All rights reserved. Printed in the USA
Important Safety Instructions
Please read all safety instructions before using your new Electrolux dishwasher.
• Read all instructions before using your dishwasher.
• Use your dishwasher only as instructed in this Use and Care Manual.
• This manual does not cover every possible condition and situation that may occur. Use common sense and caution when installing, operating and maintaining any appliance.
• National Sanitation Foundation (NSF) certified residential dishwashers are not intended for licensed food establishments. Such establishments require a higher dishwasher water temperature to meet commercial sanitization requirements.
• DISHWASHER MUST BE ELECTRICALLY GROUNDED. Read the Installation Instructions for details.
• This dishwasher is designed to operate on regular house current (120 V, 60 Hz). Use a circuit equipped with a 15 ampere fuse or circuit breaker. Use a 20 ampere fuse if dishwasher is connected with a food waste disposer.
• Do not operate dishwasher unless all enclosure panels are in their proper place as explained in the Installation Instructions provided with your dishwasher.
• To avoid entrapment and/or suffocation, remove the door to the washing compartment when removing an old dishwasher from service or discarding it.
• Keep young children and infants a safe distance away from the dishwasher when it is in operation.
• Use only detergents and rinse agents recommended for use in a dishwasher.
• Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
• Store dishwasher detergent and rinse agents out of the reach of children.
Safety
• Do not wash plastic items unless marked
“dishwasher safe” or the equivalent. Check with manufacturer for recommendations, if not marked. Items that are not dishwasher safe may melt and create a potential fire hazard.
• If the dishwasher drains into a food disposal, make sure disposal is completely empty before running dishwasher.
• Disconnect electrical power to dishwasher before servicing.
• Repairs should be done by a qualified Electrolux professional.
• Do not tamper with controls.
• Use care unloading the dishware when the SANITIZE option has been selected. Contents may be hot to the touch immediately after the end of cycle.
• When loading items to be washed:
• Locate sharp items and knives so that they are not likely to damage the tub or door seal; and
• Load sharp items and knives with the handles up to reduce the risk of cut-type injuries. Alternatively, place sharp items and knives in the utensil shelf located in the upper rack.
• Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If hot water system has not been used for such a period, before using dishwasher, turn on all hot water faucets and let water flow from each for several minutes. This will release any accumulated hydrogen gas. HYDROGEN GAS IS FLAMMABLE. Do not smoke or use an open flame during this time.
• Do not store or use combustible materials, gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
3
NOTE
Save these important safety instructions for future
reference.
4
Feature Overview
HOW YOUR DISHWASHER CLEANS
Your dishwasher cleans by spraying a mixture of hot water and detergent through the spray arms against soiled surfaces. Each cycle begins with a pre-drain.
Upper Spray Arm
Cup Shelf
Middle Spray
Arm
Lower Spray
Arm
Utility Tray
(in some models)
Champagne Glass Holder
(in some models)
Bottom Rack
Rinse Aid
Dispenser
Next, the dishwasher fills with water covering the filter area. Water is then pumped through the filter and spray arms. Soil particles go down the drain as the water is pumped out and replaced with clean water. The number of water fills will vary with the cycle being used.
Versa Tray
(in some models)
T op Rack
Adjustable Rack Assembly
Cabinet Seal
Side Kit
Serial Label
Silverware Basket (Lids may vary in some models)
Detergent
Dispenser
GETTING STARTED
Operating Instructions
Appearance may vary from your model
5
To run your dishwasher, follow these basic steps:
1 Load dishwasher. (See Preparing and Loading
Dishes, pages 9-11.)
2 Add detergent. (See Dishwasher Dispenser &
Detergents, pages 12-14.)
3 Add rinse aid, if needed. (See Rinse Aid,
page 14.)
4 Select desired CYCLE. (See Cycle Selections,
pages 6 -7.)
The Symbols are illuminated when selected.
5 Select desired OPTIONS. (See Energy
Options Selections, page 7.) The light surrounding the pad will glow when selected.
6 To start, press START/CANCEL pad and
close door. (See Start/Cancel)
NORMAL OPERATING SOUNDS
Your dishwasher uses energy efficient motors for the wash and drain portions of the cycle you select. Each cycle has a series of water fills and drains for washing and rinsing dishes. As each cycle begins, you may–or may not–hear the drain motor. You may also hear the splashing water as it enters the tub and the spray arms as they rotate and circulate water. The wash motor often pulsates throughout the cycle, which varies water pressure and optimizies performance.
6
Operating Instructions
WASH CYCLE SELECTIONS
Cycle times are approximate and vary by options selected. Hot water is necessary to activate dishwasher detergent and melt fatty food soils.
An automatic sensor checks the incoming water temperature for the main wash of each cycle. When HI-TEMP WASH is selected, the sensor checks for an even higher temperature. Run hot water faucet nearest dishwasher unitl water is hot before
starting.
CYCLE SELECTIONS
The Smart Sensor checks the soil level on your dishes in the Auto, Heavy, Normal and Eco cycles. Depending on soil level, the sensor will determine if additional water fills are needed to clean the dishes or if water fills can be deleted. Cycle time and water usage will vary based on the amount of soil on the dishes. Cycle time will also vary based on the options selected and the incoming water temperature.
Heavy
For pots, pans, casserole dishes and dinnerware with dried-on or baked-on soils. Water usage is 9.8 gallons. Wash time is approximately 134 mins.
Auto
When a partial load of lightly soiled dishes is placed in the unit, a wash cycle similar to a short wash will automatically be performed. When a full load of heavily soiled dishes is placed in the unit, a heavy wash cycle will automatically be performed. The dishwasher's Smart Sensor technology will determine the type of cycle required to clean the dishes and will clean more efficiently every time. Water usage ranges from 5.9 to 10.0 gallons. Wash time ranges between 89 and 136 mins.
Normal
For regularly soiled dishes and silverware. Water usage ranges from 4.6 to 8.6 gallons. Wash time ranges between 87 and 113 mins.
Favorite
This cycle allows you to program your preferred cycle and options into one button. To program the Favorite Cycle: press and hold the Favorite key for 3 seconds. The Favorite key starts to blink, select the Favorite cycles and options (Favorite key will remain blinking). Prest start to save the Favorite cycles and options that you have chosen. The Favorite key remains solid which indicates the settings are saved, all the settings that were chosen are illuminated. Once, programmed, simply press the Favorite button followed by Start/Cancel
to have your programmed Favorite Cycle begin.
Eco
For lightly soiled and pre-rinsed dishes and silverware. Water usage ranges from 4.5 to 5.6 gallon. Wash time ranges between 59 and 82 mins.
Quick
For lightly soiled and pre-rinsed dishes and silverware. Water usage is 5.8 gallons. Wash time is approximately 45 mins.
Operating Instructions
7
Stemware
For lightly soiled China and Crystal. Water usage is
7.2 gallons. Wash time is approximately 87 mins.
Rinse
For rinsing dishes that will be washed later. Water usage is 2.8 gallons. Cycle time is approximately 20 minutes.
ENERGY OPTION SELECTIONS
Hi-Temp Wash
When HI-TEMP WASH option is selected, the dishwasher heats water in the main wash to approximately 140°F (60°C).
This increase in water temperature helps dishwasher detergent remove food, grease and soil from dishes more effectively and aids in drying. HI-TEMP WASH option can be used with all cycles except RINSE.
Sanitize
To sanitize your dishes and glassware, select the SANITIZE option. When selected, the light surrounding the pad will remain lit until the START/ CANCEL pad is pressed or the door is closed. This option heats the water temperature in the final rinse to 155°F (68°C) and maintains that temperature for 9 minutes. SANITIZE is available in Auto, Heavy, Stemware and Normal cycles. Only these sanitization cycles have been designed to meet NSF requirements.
The cycle time will be extended until the proper water temperature is reached. Washing action will
continue during the water heating delay. For best results, the incoming water temperature should be at least 120°F (49°C).
The light surrounding the pad will not illuminate at the end of the cycle if the NSF requirements for sanitization are not reached. The sanitization criteria may not be satisfied if there is an interruption of the cycle, a power failure occurs, or if the incoming water temperature is below 120°F (49°C).
To turn off the SANITIZE option, press the pad a second time. The light surrouding the pad will turn off.
When HI-TEMP WASH option is selected, the Icon wil ligh up and remain on until end of cycle.
To turn off the HI-TEMP WASH option, press the pad a second time. The light surrounding the pad will turn off.
OPERATION SELECTIONS
Delay Start
The DELAY START option allows you to automatically delay starting your dishwasher from 1 to 24 hours which varies by model.
Press the DELAY START pad until the desired delay time shows in the STATUS window. A light will come on indicating the delay start hours and will remain on until cycle starts.
To cancel the DELAY START option and begin the cycle before the delay period is over, press the
START/CANCEL pad.
