Thank you for your purchase of this Electrohome® product. Please read this instruction manual carefully before
using product to ensure proper use. Keep this manual in a safe place for future reference.
www.electrohome.com
WINSTON™ RETRO TURNTABLE
STEREO SYSTEM
INSTRUCTION MANUAL
- 2 -
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET
UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers)
that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or
the third prong is provided for your safety. If the provided plug does not t into you outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and point
where they exit from the apparatus.
11. Only use attachments / accessories specied by the manufacturer.
12. Unplug this apparatus during lightning storms or when unused for long periods of time.
13. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
14. This appliance shall not be exposed to dripping or splashing water and no object lled with liquids such as vases shall
be placed on the apparatus.
15. Do not overload wall outlet. Use only power source as indicated.
16. Use replacement parts as specied by the manufacturer.
17. The product may be mounted to a wall only if recommended by the manufacturer.
18. Upon completion of any service or repairs to this product, ask the service technician to perform safety checks.
The lightning ash with arrowhead
symbol within an equilateral triangle
is intended to alert the user to the
presence of uninsulated dangerous
voltage within the product’s enclosure
that may be of sucient magnitude
to constitute a risk of electric shock to
persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing) instructions
in the literature accompanying the
appliance.
WARNING:TO REDUCE THE RISK OF
ELECTRIC SHOCK DO NOT REMOVE
COVER (OR BACK), NO USER
SERVICEABLE PARTS INSIDE REFER
SERVICING TO QUALIFIED SERVICE
PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
- 3 -
CLASS 1
LASER PRODUCT
APPAREIL À LASER DE CLASSE 1
PRODUCTO LASER DE CLASE 1
CAUTION
INVISIBLE LASER RADIATION
WHEN OPEN AND INTERLOCKS DEFEATED.
AVOID EXPOSURE TO BEAM
• Avoid installing this unit in places exposed to direct sunlight or close to heat radiating appliances such as electric
heaters, on top of other stereo equipment that radiates too much heat, places lacking ventilation or dusty areas,
places subject to constant vibration and/or humid or moist areas.
• Do not attempt to clean this unit with chemical solvents as this might damage the nish. Use a clean dry cloth.
• Operate controls and switches as described in the manual. Before turning on the power, make certain that power
cord is properly installed.
• Store your CDs in a cool area to avoid damage from heat.
• When moving the set, be sure to rst disconnect the power cord.
FCC INFORMATION:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Re-orient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
IMPORTANT
Since digital circuitry may cause interference to other radio or television tuners nearby, switch this unit o when not in
use or move it away from the aected radio/television tuner.
NOTE: This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set
out in the Radio Interference Regulations of Industry Canada. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television operation (which can be determined by turning the
equipment o), the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
IMPORTANT SAFETY INSTRUCTIONS
- 4 -
Important Safety Instructions .......................................................................................................................................2
What’s Included .............................................................................................................................................................4
Features .........................................................................................................................................................................4
Buttons and Connections ...............................................................................................................................................5
Preparation for Use ........................................................................................................................................................7
Unpacking and Setup ............................................................................................................................................7
Power Source .........................................................................................................................................................7
Raising and Lowering the Lid ................................................................................................................................8
Protect Your Furniture............................................................................................................................................8
Headphones ..........................................................................................................................................................8
Operation .......................................................................................................................................................................8
Listening to the Radio ...........................................................................................................................................8
AUX IN Operation ...................................................................................................................................................9
Inserting and Playing a CD ....................................................................................................................................9
Random Playback ..................................................................................................................................................9
Repeat Playback ................................................................................................................................................. 10
Programmed Playback ....................................................................................................................................... 10
Playing Records .................................................................................................................................................. 11
Changing the Stylus ........................................................................................................................................... 11
Care and Maintenance................................................................................................................................................. 13
Tone Arm Adjustment ................................................................................................................................................. 14
Electrohome Warranty ................................................................................................................................................ 15
WHAT’S INCLUDED
• Winston™ Retro Turntable Stereo System
• Instruction Manual
• 1 Year Warranty
• Live Customer Support
TABLE OF CONTENTS
FEATURES
• Plays Vinyl Records, CDs & MP3s via AUX Input
• High Performance Dynamic Speakers
• Full Size 3-Speed Record Player
• Elegant Real Wood Finish
• Vintage Rotary Tuning Dial for AM/FM Radio
- 5 -

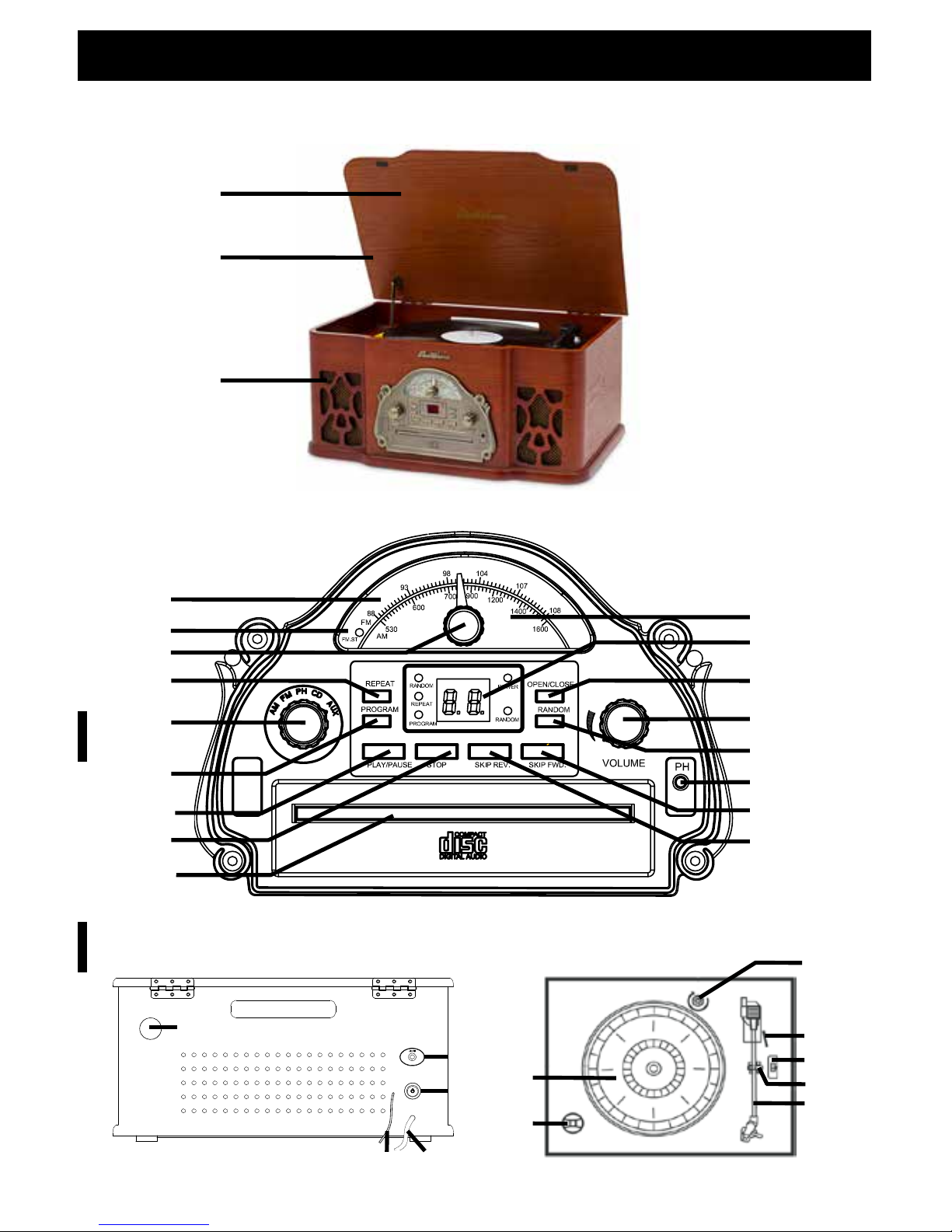

Main Unit
Control Panel
Back of Unit Turntable
1
2
3
26
27
29
243025
31
32
28
BUTTONS AND CONNECTIONS
4
5
6
7
12
8
11
9
10
13
14
15
16
17
20
18
19
22
23
21
- 6 -
1. Phonograph Lid
Lift to reveal turntable
2. Phonograph Lid Support Stand
Lift and clip into place to hold
up lid
3. Speakers
Plays sounds from radio, cd,
or record
4. FM Dial Scale
Indicates the FM channels
5. FM Stereo Indicator
Indicates FM stereo is ON
6. Tuning Control
Indicates which station is
being played
7. Repeat Button
Repeat 1 or all songs on a CD
8. AM-FM-PH-CD-AUX Function Switch
Changes the player function
9. Program Button
Program a set of songs to play
10. Play/Pause Button
Plays/Pauses playback
11. Stop Button
Stops playback
12. CD Disc Tray
Holds the CD in the unit
13. AM Dial Scale
Shows the AM stations
14. CD Track Display
Displays the track currently being played
15. Open/Close Button
Opens and closes the CD tray
16. Volume Control
Control the volume of playback
17. Random Button
Shue and play songs randomly
18. Headphone Jack
Plug your headphones in here
19. Skip Forward Button
Skip to next track
20. Skip Reverse Button
Skip back one track
21. Service Sticker
Allows access to adjustment screw
22. AUX IN Input
Connect your MP3 player
or smartphone to play to music
23. ON/OFF Switch
Turns power ON and OFF
24. FM Antenna Wire
Improves FM reception
25. AC Power Cord
Plug AC power cord into any wall outlet
26. Turntable
Place vinyl record here
27. 45 RPM Adapter
Place in centre of turntable to accomodate
45 RPM records
28. Transit Screw
Tighten during transportation
29. Cue Lever
Raise or lower tone arm
30. Speed Selector (33/45/78 RPM)
Select speed record should be played at
31. Tone Arm Lock
Locks stylus arm
32. Tone Arm with Stylus
Plays records
BUTTONS AND CONNECTIONS PREPARATION FOR USE
- 7 -

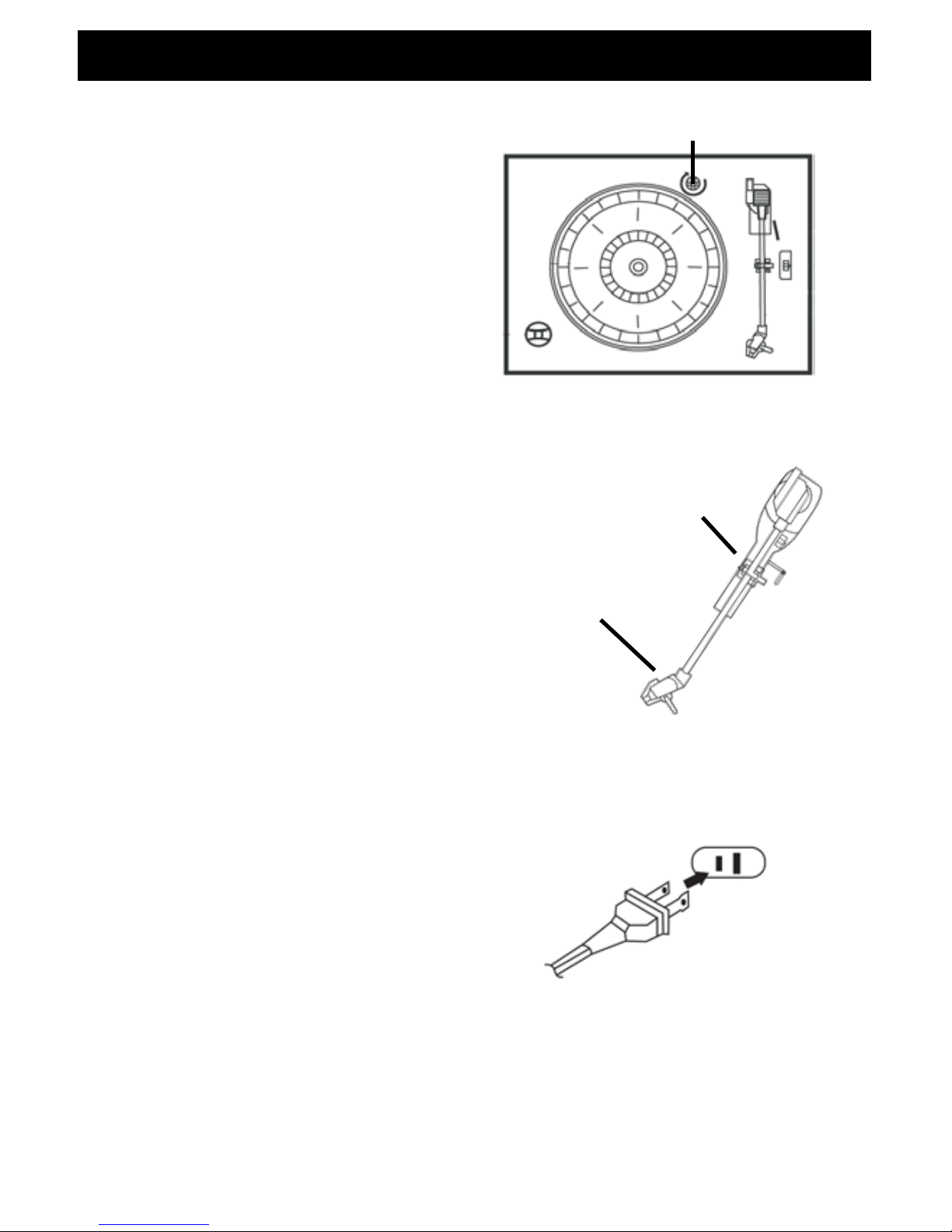

Transit Screw
UNPACKING AND SETUP
• Carefully remove the unit from the display carton
and remove all packing material from the unit
• Unwind the AC power cord and extend it to its full
length
• Unwind the FM Antenna wire and extend it to its
full length
• Place the unit on a stable, level surface, close to
an AC outlet, out of direct sunlight, and away from
sources of excess heat, dust, moisture, humidity, or
strong magnetic elds
• Raise the lid to expose the phonograph. The phonograph has been secured for shipment with a transit
screw. Use a coin or screwdriver to TURN THE TRANSIT SCREW CLOCKWISE. This will allow the turntable
to “oat” and turn freely.
• Remove the opaque white plastic stylus cover from the
phonograph stylus by sliding it in the direction of the
arrow.
• Discard the stylus cover.
• Remove the twist-tie that was used to secure the tone
arm during shipment.
• Release the tone arm lock lever.
• Connect the plug to your AC outlet, as shown below.
POWER SOURCE
This system is designed to operate on normal 120V
60Hz AC only. Attempting to operate this system
from any other power source may cause damage to
the system, and such damage is not covered by your
warranty.
Note: This system is equipped with a polarized AC power plug having one blade wider than the other.
This is a safety feature. If this plug does not t into your existing AC outlet, do not try to defeat this safety
feature by altering the wide blade to make it t into your outlet. If this plug will not t into your outlet,
you probably have an outdated non-polarized AC outlet. Have the obsolete outlet changed by a qualied
licensed electrician.
PREPARATION FOR USE
Tone Arm
Lock Lever
Stylus Cover
- 8 -
RAISING AND LOWERING THE LID IMPORTANT:
To open the lid, raise it as far as it will go until the lid support bracket ‘locks’ in the open position. To close the
lid, lift it upward slightly until the lid support bracket ‘unlocks’ , and then gently lower the lid.
TO AVOID DAMAGING THE CABINET OR THE LID, NEVER FORCE THE LID CLOSED. ALWAYS RAISE
THE LID TO RELEASE THE LID SUPPORT BRACKET.
PROTECT YOUR FURNITURE
This model is equipped with non-skid rubber ‘feet’ to prevent the product from moving when you operate
the controls. These ‘feet’ are made from non-migrating rubber material specially formulated to avoid
leaving any marks or stains on your furniture. However, certain types of oil based furniture polishes, wood
preservatives, or cleaning sprays may cause the rubber ‘feet’ to soften, and leave marks or a rubber residue
on the furniture. To prevent any damage to your furniture we strongly recommend that you purchase small
self-adhesive felt pads, available at hardware stores and home improvement centers everywhere, and
apply these pads to the bottom of the rubber ‘feet’ before you place the product on ne wooden furniture.
HEADPHONES
For private listening, plug headphones (not included) into the headphone jack on the front panel of the
player. The speakers will be disconnected when headphones are plugged in.
LISTENING TO THE RADIO
1. Flip the ON/OFF switch to the “–” position to turn the unit on. The LED power
indicator will light.
2. Rotate the AM-FM-PH-CD-AUX switch to the AM or FM position as desired.
The backlight behind the AM/FM dial will light.
3. Rotate the tuning control to select a station. If tuned to a strong FM station,
the FM Stereo indicator will light and the sound will be in stereo.
4. Rotate the VOLUME control to set the volume as desired.
5. To turn the unit OFF, ip the switch to the “o” position.
AM Note:
The AM antenna is inside the cabinet. If reception is unsatisfactory try repositioning the cabinet
slightly for the strongest signal.
FM Note:
The wire antenna is located on the back cabinet. If necessary adjust the position and direction of this
antenna for the best reception.
PREPARATION FOR USE
ON - OFF
OPERATION
- 9 -
OPERATION

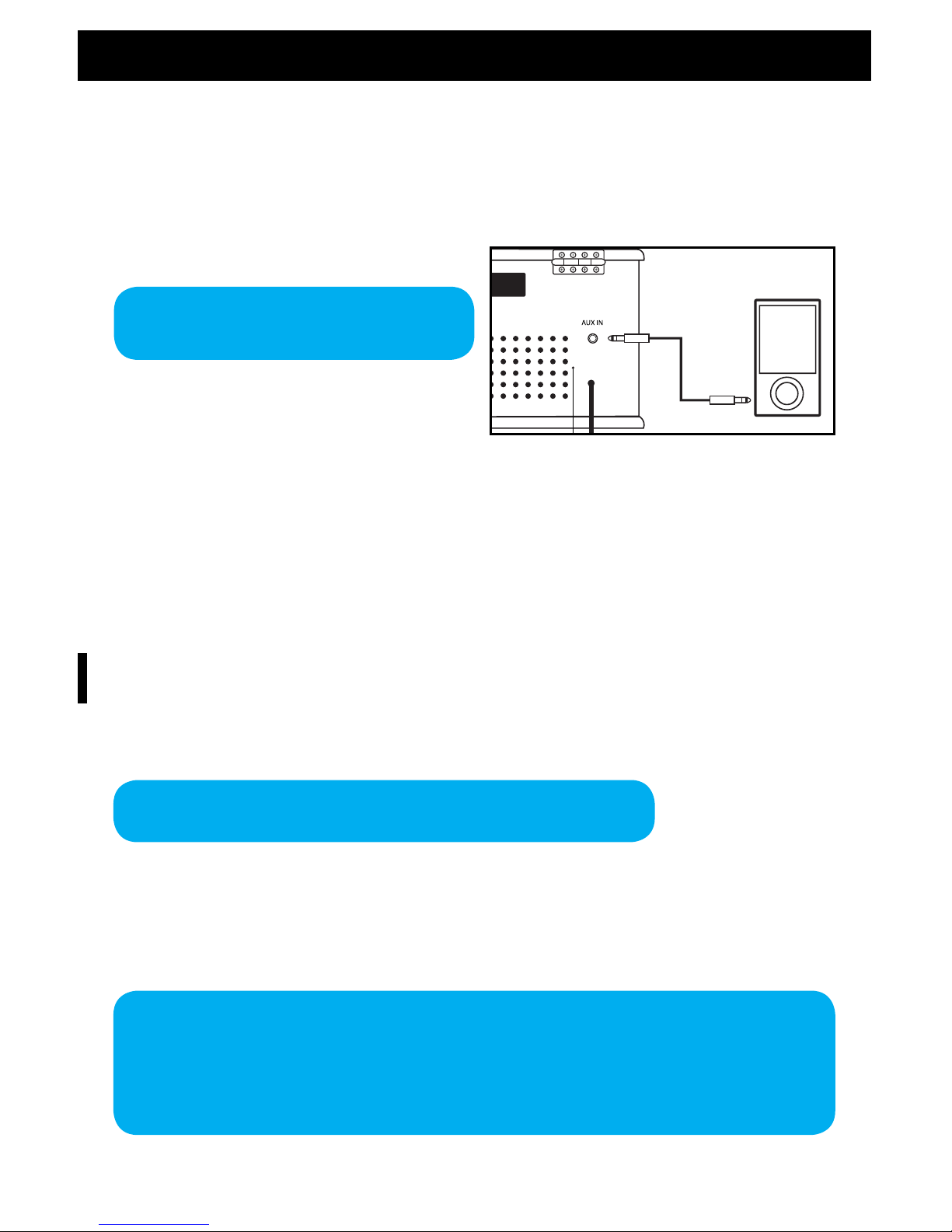

AUX IN OPERATION
Listen to music via the AUX IN input by connecting your MP3 player or smartphone. Rotate the AM-FM-PHCD-AUX switch to AUX mode. Insert the 3.5mm Aux cable (not included) into the corresponding AUX IN Input
at the back of your system. Connect the other end of the cable to your device (item A). Adjust the volume
using the VOLUME CONTROL knob on the system’s control panel.
Navigate your music les using your device.
Disconnect your device when not in use.
INSERTING AND PLAYING A CD
1. Flip the ON/OFF switch to the “–” position to
turn the unit on. The LED power indicator will light..
2. Rotate the AM-FM-PH-CD-AUX switch to the CD position. ‘- -’ will appear in the display.
3. Press the OPEN/CLOSE button to open the CD tray. Place a CD in the tray, with the printed label facing up.
Press the OPEN/CLOSE button again to close the CD tray.
4. The disc will spin for a few seconds while the player is reading the disc and the total track number will
appear in the display. Press the PLAY/PAUSE button to start playing the rst track of the disc. Adjust the
VOLUME control to set the volume as desired.
5. To skip forward or backward through the tracks on the disc, press the SKIP REV or SKIP FWD buttons. To
search forward or backward through the tracks, press and hold the SKIP REV or SKIP FWD button.
6. Press the PLAY/PAUSE button to pause playback. The PLAY/PAUSE indicator will blink in the display. Press
again to resume playback. When the disc is through playing, it will stop rotating.
7. To stop playback entirely, press the STOP button.
• As each track is played, the track number is shown in the display.
• The PLAY/PAUSE indicator will appear in the display when CD is playing.
RANDOM PLAYBACK
During CD-R/RW stop mode, press the RANDOM button once; the random indicator will light and the unit will
then play the tracks in a random order. Press the STOP button to cancel the random setting and the random
indicator will turn o.
• During RANDOM playback, press the REPEAT button once to activate repeat 1 playback. The REPEAT
LED indicator will blink and the RANDOM LED indicator will light solid.
• The player will play your selected track repeatedly until you cancel the REPEAT function by pressing
the REPEAT button twice, the repeat LED indicator will go out.
• RANDOM function cannot be used during repeat 1 mode.
- 10 -
REPEAT PLAYBACK
1. To repeat a single track, press the REPEAT button once, the repeat LED indicator will blink, press the
SKIP REV button or SKIP FWD button to select the desired track, press the PLAY/PAUSE button to begin
repeat playback of the selected track.
2. To repeat all of the tracks on a disc continuously, press the REPEAT button twice, the repeat LED
indicator will light solid. Press the PLAY/PAUSE button to begin repeat playback of the entire disc.
3. To cancel repeat playback, press the REPEAT button until the repeat LED indicator turns o.
4. Repeat playback is also canceled by pressing the STOP button, or setting the AM-FM-PH-CD-AUX switch
the to the AM, FM or PH position.
PROGRAMMED PLAYBACK
The CD player in this unit has a 20 - track programmable memory that allows you to program the disc to
playback songs in any desired order.
1. While in STOP mode of CD playback, press the PROGRAM button; “0” will appear in the display and the
program LED indicator will blink.
2. Select the rst track to be programmed using the SKIP REV or SKIP FWD button.
3. Press the PROGRAM button again to conrm it, when the desired track appears in the display. Repeats
steps 2 and 3 to program up to 20 tracks. You may program the same track more than once.
4. Press the PLAY/PAUSE button to begin programmed playback; the program LED indicator will blink.
Player will begin with the rst track you programmed and will continue until the last programmed
track has played.
5. Press the SKIP REV or SKIP FW button to select a specic track in the programmed tracks. After the last
track has played, the player will stop. However, the program sequence remains in the memory. The
program indicator will turn o.
6. To repeat the programmed sequence, press the PROGRAM button and then press the PLAY/PAUSE
button. The programmed sequence may be cancelled by pressing the STOP button while in stop mode.
• Programming is the ability to pre-select the order in which a series of tracks will be played
• The CD player will stop after all programmed tracks have been played or the STOP button is pressed
• “--“ and the program indicator will blink when you have programmed 20 tracks
• During PROGRAMMED playback, press REPEAT button twice to activate repeat all feature.
The REPEAT inidcator will light and all tracks in your programmed sequence will be repeated
continuously. To cancel programmed repeat playback press the STOP button until both the program
and repeat LED indicator go out
OPERATION OPERATION
Loading...
