INSTALLATION INSTRUCTIONS
(1)
ELEFUJ42-SML
Static Wall Mount
With Lateral Shift
Prior to assembly, unpack carton completely
and verify contents. If you are missing any of
the following components, please contact
Technical Support at 1-800-776-5768.

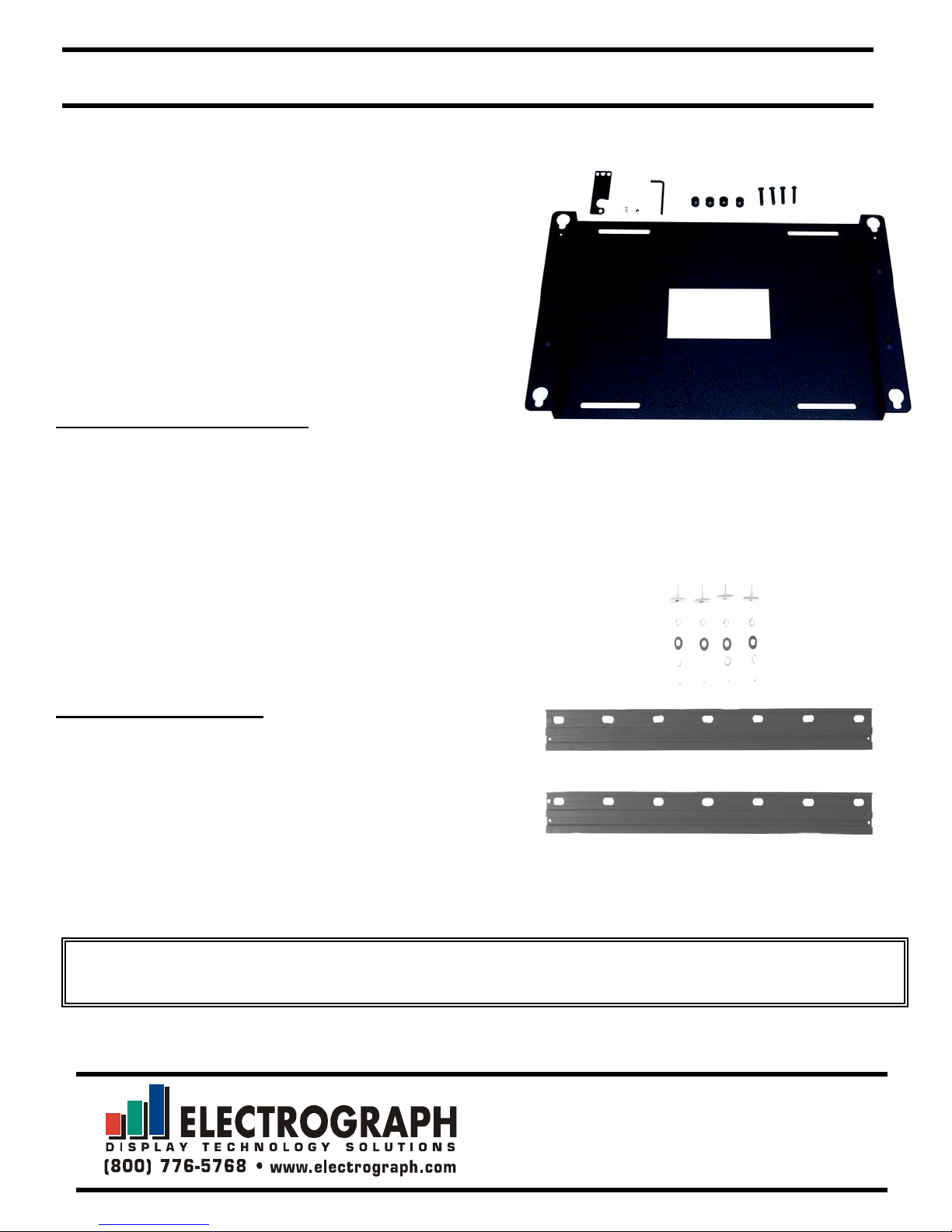

Static Wall Mount Components
(1) PLASMA STATIC WALL MOUNT
(2) LATCH, SAFETY
(2) 10-24 X .5 FH UNDERCUT SCREW
(2) WASHER, NYLON
(2) NUT, NYLOCK, 10-24
(4) M8 X 25MM BUTTON HEAD CAP SCREWS
(4) MOUNTING BUTTONS-BLACK
WRENCH, ALLEN, M5
Lateral Shift Components
(2) LATERAL SHIFT EXTRUSIONS
(4) STUDS, 5/16-18 Threaded
(4) NUTS, T-slot 5/16-18
(4) WASHERS, Lock 5/16
(4) WASHERS, Flat 5/16
(4) SCREWS, Panhead Self Tapping
8 x .25
(4) NUTS, Hex 5/16-18
Static Wall Mount
Components
Lateral Shift
Components
WARNING: IMPROPER INSTALLATION MAY RESULT IN SERIOUS PERSONAL INJURY!
CAUTION: PLASMA DISPLAYS ARE EXTREMELY FRAGILE!
PART NO. ELEFUJ420-SML
©2003
Printed in USA 05-03
INSTALLATION INSTRUCTIONS
READ COMPLETELY BEFORE PROCEEDING
Assemble Lateral Shift
SELF TAPPING
SCREW
1. Install the four threaded studs into the four T-slot nuts.
2. Insert two T-slot nut assemblies into each of the lateral shift extrusions (Figure 1).
3. Insert one self-tapping screw into each end of the extrusions to trap T-slot nut assemblies in the tracks (Figure 1).
4. Connect lateral shift extrusions to the plasma static wall mount by inserting the T-slot studs into holes and secure using four flat
washers, four lock washers, and four hex nuts (Figure 2).
T-SLOT NUT ASSEMBLIES
SELF TAPPING
Figure 1
SCREW
Figure 2
Mount Lateral Shift
READ INSTALLATION INSTRUCTIONS COMPLETELY BEFORE PROCEEDING
Figure 2
Figure 3
Figure 4
1. Attach latching flags to mount using the 10-24 Phillips head screws, Nylon washers, and Nylock nuts
(see Figure 2). Tighten until friction will hold the flags in place.
2. Attach mounting buttons to plasma using four M8 x 25 cap screws provided (see Figure 3 & Figure 4).
ALL COMPONENTS MUST BE SECURELY FASTENED TO A
STRUCTURAL MEMBER CAPABLE OF SUPPORTING 4 TIMES THE
COMBINED WEIGHT OF ALL COMPONENTS PLUS THE EQUIPMENT
WARNING
3. Securely anchor the plasma static mount to wall studs or supporting framework (see WARNING).
4. Make sure the flag is lowered to the side before attempting to place the plasma on the mount.
5. With the aid of another person, lift the plasma display up to the mount, align the mounting buttons on the
plasma with the teardrop slots in the mount, and set the plasma into place (see Figure 5).
BEING MOUNTED. IF IT CANNOT SUPPORT THIS WEIGHT, THE
STRUCTURE MUST BE REINFORCED.
THE MAXIMUM WEIGHT TO BE INSTALLED ON THE MOUNT IS 150
POUNDS (68.04 KG).
CAUTION

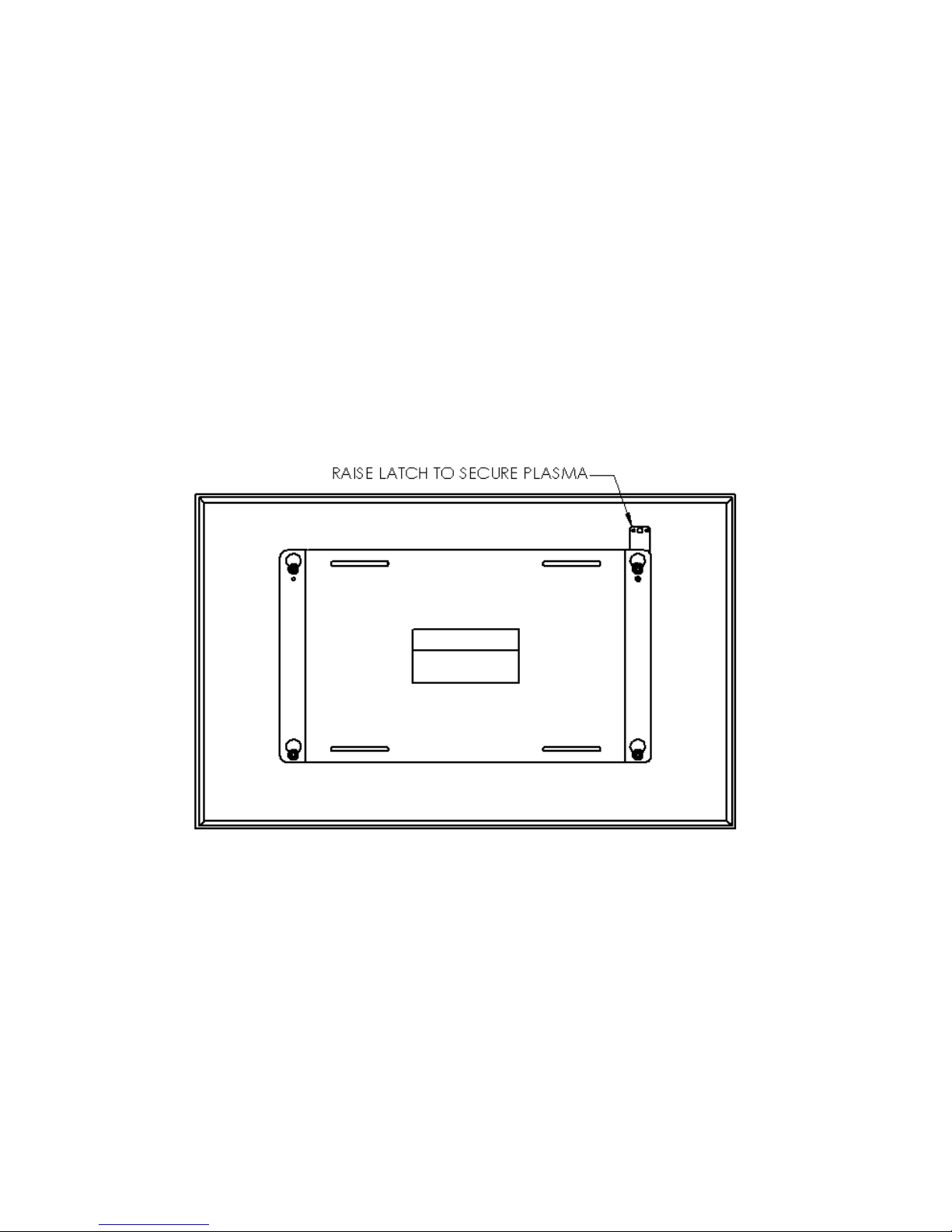

6. Position (raise) the flags to secure the plasma.
If the latches will not travel to the full upright position, remove and reseat the display.
Figure 5
