electriQ SILENT16 User Manual
USER MANUAL
SILENT1
PORTABLE AIR CONDITIONER
Thank you for choosing electriQ
Please read this user manual before using this innovative Air Conditioner and keep it
safe for future reference.
Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals
CONTENTS
SAFETY INSTRUCTIONS ...................................................... 3
OPERATION ........................................................................... 8
REMOTE CONTROL .............................................................. 8
EMPTYING THE INTERNAL WATER TANK ........................ 10
MANUAL DRAINAGE: ......................................................... 10
MAINTENANCE ................................................................... 11

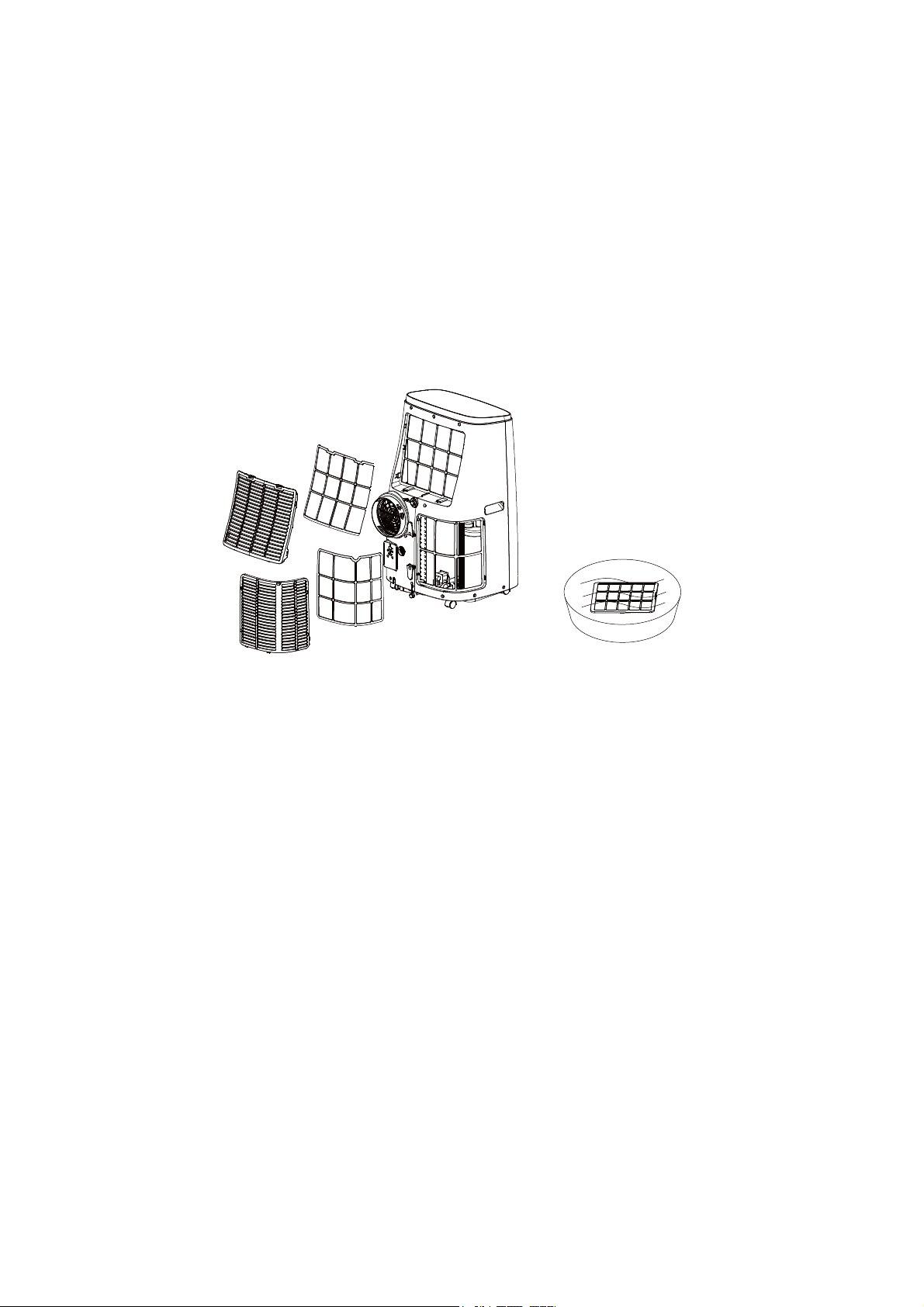

CLEANING ........................................................................... 11
END OF SEASON MAINTENANCE ..................................... 11
TROUBLESHOOTING. ........................................................ 12
APPENDIX ........................................................................... 13
TECHNICAL DATA ............................................................... 13
Page 2 of 14
SAFETY INSTRUCTIONS
Important!
• Carefully read the instructions before operating the unit
• This appliance is for indoor use only.
• Rating: This unit must be only connected to a 220-240 V /
50 Hz earthed outlet.
• Installation must be in accordance with regulations of the country where the
unit is used.
• If you are in any doubt about the suitability of your electrical supply have it
checked and, if necessary, modified by a qualified electrician.
• This air conditioner has been tested and is safe to use. However, as with any
electrical appliance - use it with care.
• Disconnect the power from the appliance before dismantling, assembling or
cleaning.
• Avoid touching any moving parts of the appliance.
• Never insert fingers, pencils or any other objects though the guard
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities. It is also not intended for
use by those with a lack of experience and knowledge, unless they have
been given supervision or instruction concerning the use of the appliance by
a person responsible for their safety.
• Do not leave children unsupervised with this appliance.
• Do not clean the unit by spraying it or immersing it in water.
• Never connect the unit to an electrical outlet using an extension cord. If an
outlet is not available, one should be installed by a qualified electrician.
• Never operate this appliance if the cord or plug is damaged. Ensure the
power cord is not stretched or exposed to sharp objects/edges.
• A damaged supply cord should be replaced by the manufacturer or a
qualified electrician in order to avoid a hazard.
• Any service other than regular cleaning or filter replacement should be
performed by an authorised service representative. Failure to comply could
result in a voided warranty.
• Do not use the appliance for any other purposes than its intended use.
• The air conditioner unit must always be stored and transported upright,
otherwise irreparable damage may be caused to the compressor; if in
doubt we suggest waiting at least 24 hours before starting the unit.
• Avoid restarting the air conditioning unit unless 3 minutes have passed since
being turned off. This prevents damage to the compressor.
• Never use the mains plug as a switch to start and turn off the air conditioning
unit. Use the provided ON/OFF switch located on the control panel.
• Always place the unit on a dry and stable surface.
• The appliance should not be installed in laundry or wet rooms.
• The appliance must be placed in a room without sources of ignition (for example:
open flames, an operating gas appliance or an operating electric heater).
Page 3 of 14
• R290 refrigerant gas complies with European
environmental directives.
• R290 has a low GWP (Global Warming
Potential) of 3.
• The air conditioner contains about 20 g of
R290 refrigerant gas.
• Do not use or store in an unventilated space
with an area smaller than 1m
2
per unit. The
room must be such as to prevent stagnation of
possible leaks of refrigerant gas as there could
be a danger of fire or explosion hazard should
the refrigerant come into contact with electric
heaters, stoves or other sources of ignition.
• If the appliance is installed, used or stored in an unventilated room, the room
must be such as to prevent stagnation of possible leaks of refrigerant gas as
there could be a danger of fire or explosion should the refrigerant come into
contact with electric heaters, stoves or other sources of ignition.
• Refrigerant gas may be odourless.
• Do not use the product and contact the retailer for advice, if damage has
occurred to the unit which may have compromised the refrigerant system.
•
Any repairs or maintenance must only be carried out on the unit by a suitably
qualified engineer. Before opening and servicing the unit the authorized engineer
must be in possession of a copy of the manufacturer’s service manual and must
follow the safety information contained within it to ensure all hazards are
minimized.
• The refrigerant system should not be perforated or punctured.
Energy Saving and Unit Safety Protection Tips
• Do not cover or restrict the airflow from the outlet or inlet grills.
• For maximum performance the m
inimum distance from a wall or objects
should be 50cm.
• Keep the filters clean. Under normal conditions, filters should only need
cleaning once every three weeks (approximately). Since the filters remove
airborne particles, more frequent cleaning maybe necessary, depending on
the air quality.
• For the initial start up set the fan speed to maximum and the thermostat to 45 degrees lower than the current temperature. After, set the fan switch to low
and set the thermostat to your desired setting.
• To protect the unit we recommend not using the c
o
ambient temperature is higher than 35
C.
ooling function when the
Page 4 of 14
FEATURES AND PARTS LIST
FEATURES
Self-evaporative system - no external water tank needed
z
Designer inspired luxury model
z
Bright LED screen, indicates temperature and operation mode
z
On/Off timer function – allows you to choose when the unit operates
z
Compressor protection technology
z
PARTS LIST
Control panel
Top cover
Front housing
Louvers
Rear housing
Castors
Filter housing
Rear housing
Exhaust outlet
Power plug holder
Drainage hole
Power cord
Handle
Continuous drainage hole
Air inlet grille
Extendable
Exhaust Hose
Slide Bar
Power cord plug
Page 5 of 14
