ElectrIQ DESD9L User Manual
USER MANUAL
DESD9L PREMIUM DESICCANT DEHUMIDIFIER
Thank you for choosing electriQ
Please read this user manual before using this innovative Dehumidifier and
keep it safe for future reference
2
CONTENTS
SAFETY INSTRUCTIONS
3
FEATURES 6
INSTALLATION
6
PARTS 7
ACCESSORIES 8
CONTROL PANEL
9
QUICK REFERENCE GUIDE
12
LAUNDRY MODE 13
OTHER FEATURES AND INDICATORS 14
POSITIONING THE DEHUMIDIFIER
14
WATER DRAINAGE
15
CARE AND MAINTENANCE
17
FREQUENTLY ASKED QUESTIONS
18
TROUBLESHOOTING
19
electriQ UK SUPPORT 20
TECHNICAL DATA
21
3
SAFETY INSTRUCTIONS
IMPORTANT
Carefully read the instructions before operating the unit.
This appliance only intended for use in an indoor domestic
environment. Any other use is not recommended by the
manufacturer and may cause fire, electrical shock or other injury to
person or damage to property.
Rating: This unit must only be connected to an AC 220-240V / 50 Hz
earthed outlet. Installation must be in accordance with regulations of
the country where the unit is used.
If you are in any doubt about the suitability of your electrical supply
have it checked and, if necessary, modified by a qualified
electrician.
This dehumidifier has been tested and is safe to use. However, as
with any electrical appliance – care must be taken during use.
Disconnect the power from the appliance before dismantling,
assembling or cleaning.
Avoid touching any moving parts of the appliance.
Never insert fingers, pencils or any other objects through the guard.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities. It is
also not intended for use by those with a lack of experience and
knowledge, unless they have been given supervision or instruction
concerning the use of the appliance by a person responsible for
their safety.
Do not leave children unsupervised with this appliance.
Do not clean the unit by spraying it or immersing it in water.
Never connect the unit to an electrical outlet using an extension
cord. If a power outlet is not available, one should be installed by a
qualified electrician.
Never operate this appliance if the cord, power adapter or plug is
damaged. Ensure the power cord is not stretched or exposed to
sharp object/edges.
4
A damaged power supply cord should be replaced by the
manufacturer or a qualified electrician in order to avoid a hazard.
Any service other than regular cleaning or filter replacement should
be performed by an authorized service representative. Failure to
comply could result in a voided warranty.
Do not use the appliance for purpose other than its intended use.
Do not tilt the unit while in use. The unit is designed to work only in a
vertical position. This dehumidifier must always be stored upright,
otherwise irreparable damage may be caused.
This unit will still operate for approximatively 3-4 minute after
pressing the power button to turn off. This is normal and ensures the
desiccant wheel is drained of water. Avoid restarting the
dehumidifier until 5 minutes have passed after being turned off.
Never use the mains plug as a switch to start or turn off the
dehumidifier. Use the provided power button located on the control
panel.
Always place the unit on a dry and stable surface.
The appliance should not be installed in a laundry or wet room
where the humidity is higher than 85% RH. This unit should be
operated at an ambient temperature between 1°C and 32°C.
Do not dry laundry directly above the unit. To prevent water entering
the dehumidifier, laundry should be placed at least 40 cm away from
your dehumidifier.
Do not place the unit next to heat sources (e.g. electrical fires,
fireplaces, etc.)
Desiccant dehumidifiers tend to absorb odours from the surrounding
environment like cigarettes, cooking, cosmetics, new furniture etc.
This smell is described as a burning or sour smell. This is released
during operation as the zeolite disc is heated. This is not sign of a
fault and the smell will fade after usage.
Do not store or use gasoline, petrol, paint, solvents or other
flammable vapours and liquids in the vicinity of this dehumidifier or
any other appliance. Do not use dehumidifiers where flammable
gases or VOC can be released or accumulate.
5
ENERGY SAVING AND UNIT SAFETY PROTECTION TIPS
Do not cover or restrict the airflow from the outlet or inlet grills.
For maximum performance the unit should be operated at least 20 cm away
from walls and 50 cm from other objects within the room.
Keep the filters and grills of the appliance clean. Under normal conditions,
filters and grills should only need cleaning once every three weeks
(approximately). Do not use the unit without the mesh air filter as this will
allow dirt to gather inside the dehumidifier which could invalidate the
warranty.
A dirty filter will restrict the air flow into the machine which will increase the
resistance on the fan and could result in damage and might invalidate the
warranty.
Since the filters remove airborne particles, more frequent cleaning may be
necessary depending on the air quality. Vacuum and wash the mesh filters
with hot soapy water and dry them before placing them back in the unit.
QUICK VISUAL SAFETY GUIDE ON WHERE OR WHEN NOT TO USE YOUR
DEHUMIDIFIER
Exposed to the
weather outdoors
Near water
If the power cable wires
are frayed or cut
Where small children
may be left unattended
If an extension lead may
become overloaded
Where the power cable
may be damaged
On a slope or uneven
surface
Where there is a risk of
interference by foreign
objects
Where it may be
damaged by chemicals
This product is not for
DIY repair
Where there is a risk of
fire, or close to a naked
flame
Where there is a risk
of water falling on the
unit
6
FEATURES:
Your DESD9L is a top of the range desiccant dehumidifier with features not found in other
units.
1. Efficient, easy to use and quiet.
2. Intelligent CPU controlled digital humidistat with 4 modes (SMART, Heater, Dehumidifier
and Air purifier),
3. Relative humidity adjustable between 35-80% with room humidity display.
Above 70%: Too humid
70% ≥ RH ≥ 60%: Above recommended humidity.
60% ≥ RH ≥ 50%: Ideal humidity level.
Below 50%: Too dry
4. Turbo and Sleep modes enables the right balance to be chosen between quiet operation
and maximum dehumidification / heating.
5. Easy to use control panel with led indicators.

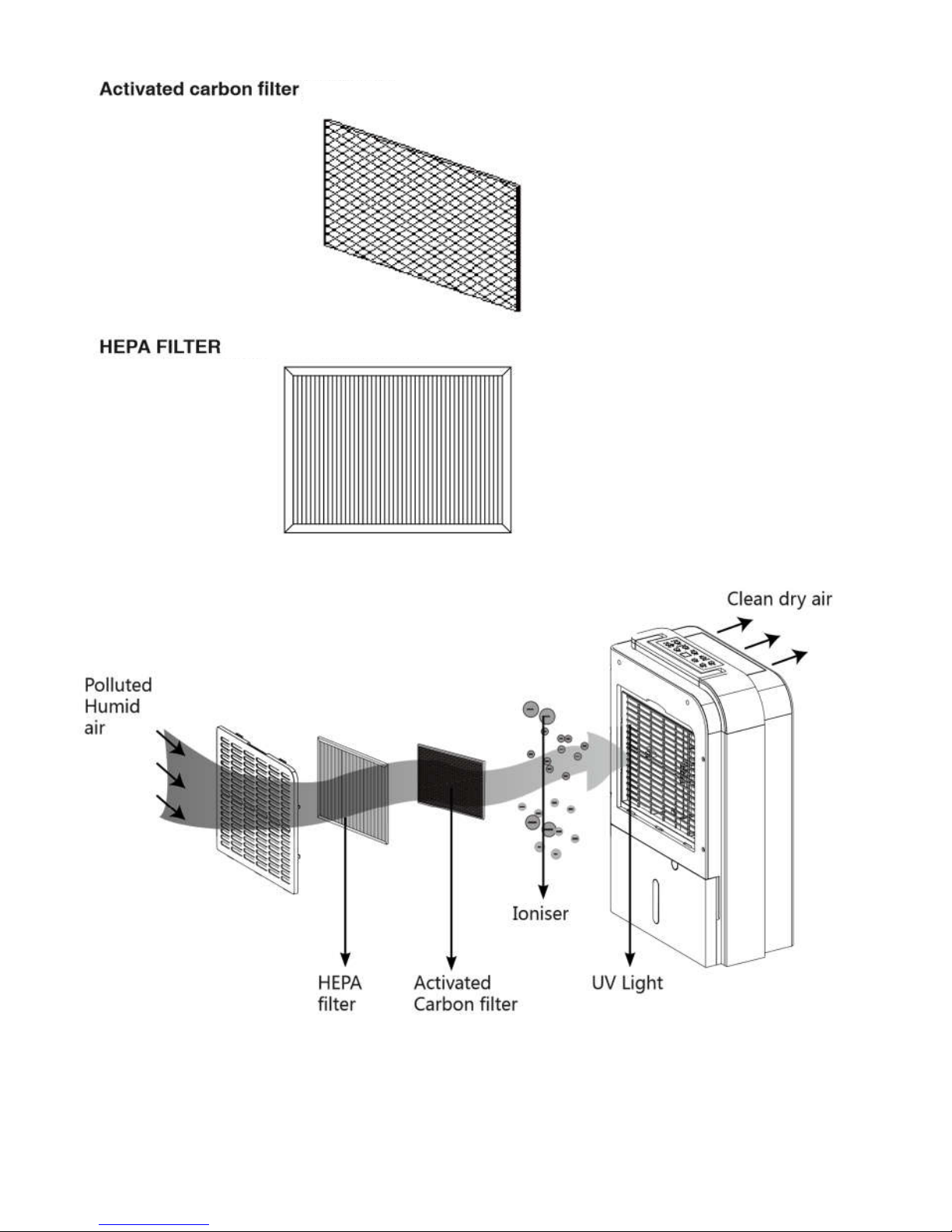

6. 6 stage air purifier, with nano-silver coated filter, active carbon filter, HEPA filter, Ionizer
and UV light
7. Works very well at low temperatures compared with classic compressor dehumidifiers.
8. Standalone heater providing two levels of heat output with thermostatic control.
9. Laundry mode for aiding the drying of clothes.
10. Heats the air passing through by between 5-10°C, making the air dry and warm reducing
heating bills.
11. Tank full alarm & auto-stop function.
12. Recessed carry handle for portability
DESD9L desiccant dehumidifiers uses compressor free desiccant technology to extract water
from the environment. Desiccant dehumidifiers are ideal both at standard and low temperatures
working in an ambient temperature range of between 1-32°C. The DESD9L is light and easy
to move, as it does not contain a heavy compressor. It also works intelligently as it is designed
to extract unwanted humidity while saving money due to its advanced power saving logic.
It features an intelligent digital humidistat with variable humidity settings between 35-80% RH
ensuring your room is not dried too much and power is not wasted. The DESD9L also features
a powerful laundry mode and a sleep mode giving the user the ability to select maximum
dehumidification, or quieter operation.
INSTALLATION
Remove any water from the water tank before starting the unit. In order to save energy, do not
open windows or doors while the unit is running. Place the unit on a hard / flat surface. We
would advise the unit is left to run continuously for 24hrs on its first use.
To reduce noise levels:
Place a piece of carpet or a rubber mat under the unit to reduce any vibrations while the unit is
running. For minimum noise run the unit in sleep mode.
7
PARTS
Top Display
