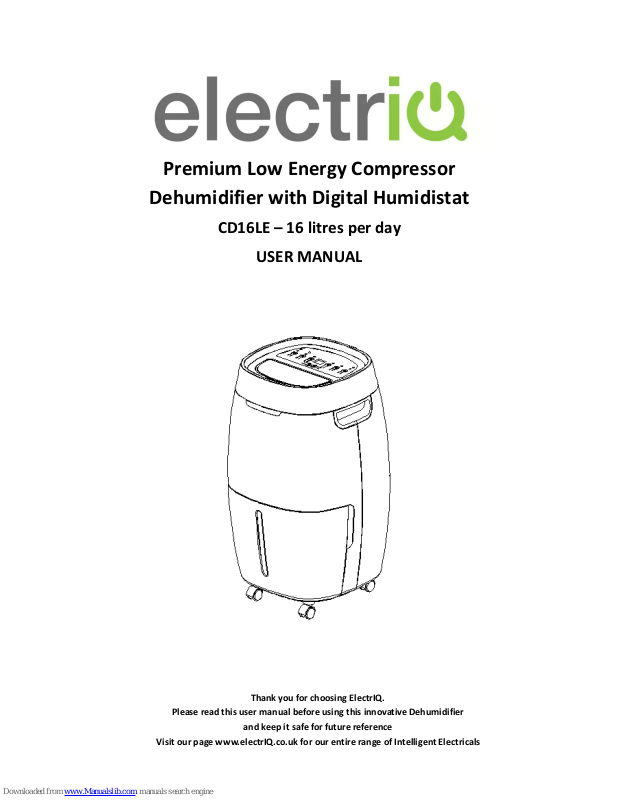

ElectrIQ CD16LE User Manual

Premium Low Energy Compressor

Dehumidifier with Digital Humidistat

CD16LE – 16 litres per day

USER MANUAL

Thank you for choosing ElectrIQ.

Please read this user manual before using this innovative Dehumidifier

and keep it safe for future reference

Visit our page www.electrIQ.co.uk for our entire range of Intelligent Electricals

1

Contents

Safety Instructions ………………..……………….. 2

Installation ………………..……………….. 4

Parts ………………..……………….. 5

Control Panel ………………..……………….. 6

Quick reference guide ………………..……………….. 7

Positioning ………………..……………….. 8

Water Drainage ………………..……………….. 9

Care and Maintenance ………………..……………….. 10

Troubleshooting ………………..……………….. 12

Technical Data ………………..……………….. 13

2

SAFETY INSTRUCTIONS

Important

• Carefully read the instructions before operating the unit

• This appliance is for indoor use only and intended for use in a domestic environment only.

Any other use is not recommended by the manufacturer and may cause fire, electrical shocks

or other injury to user or property.

• Rating: This unit must be only connected to a 220-240 V / 50 Hz earthed outlet.

• Installation must be in accordance with regulations of the country where the unit is used.

• If you are in any doubt about the suitability of your electrical supply have it checked and, if

necessary, modified by a qualified electrician.

• This dehumidifier has been tested and is safe to use. However, as with any electrical

appliances - use it with care.

• Disconnect the power plug from socket before dismantling, assembling or cleaning.

• Avoid touching any moving parts of the appliance.

• Never insert fingers, pencils or any other objects though the guard

• This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities. It is also not intended for use by those with a lack of

experience and knowledge, unless they have been given supervision or instruction concerning

the use of the appliance by a person responsible for their safety.

• Do not leave children unsupervised with this appliance.

• Do not clean the unit by spraying it or immersing it in water.

• Never connect the unit to an electrical outlet using an extension cord. If a power outlet is

not available, one should be installed by a qualified electrician.

• Never operate this appliance if the cord, power adapter or plug is damaged. Ensure the

power cord is not stretched or exposed to sharp object/edges.

• A damaged power supply cord should be replaced by the manufacturer or a qualified

electrician in order to avoid a hazard.

• Any service other than regular cleaning or filter replacement should be performed by an

authorized service representative. Failure to comply could result in a voided warranty.

• Do not use the appliance for any other purposes than its intended use.

• Do not tilt the unit while in use. The unit is design to work only in vertical position.

• This dehumidifier must always be stored and transported upright, otherwise irreparable

damage may be caused to the compressor; if in doubt we suggest waiting at least 24 hours

before starting the unit.

• Avoid restarting the dehumidifier unit unless 5 minutes have passed since being turned off.

This prevents damage to the compressor.

• Never use the mains plug as a switch to start and turn off the dehumidifier. Use the provided

ON/OFF switch located on the control panel.

• Always place the unit on a dry and stable surface.

• The appliance should not be installed in laundry or wet rooms where the humidity is higher

than 85% RH

• Do not dry laundry above the unit to prevent water entering the dehumidifier. Place the

laundry at least 1 meter away from your dehumidifier.

• Do not place the unit next to heat sources (e.g. electrical fires, fireplaces, etc.)

3

• Avoid mishandling the dehumidifier. Dropping, throwing the unit can cause damage to its

internals and increases the risks of operating it.

• Do not store or use gasoline, petrol, paint, solvents or other flammable vapours or liquids in

the vicinity of this dehumidifier or any other appliance.

• This dehumidifier must not be used in spaces where there is a high concentration of gases,

solvent or other volatile organic compounds; in very dusty environments; in any domestic,

commercial or industrial environment where air composition is flammable.

Energy Saving and Unit Safety Protection Tips

• Do not cover or restrict the airflow from the outlet or inlet grills. Do not operate and follow

troubleshoot procedure if the self-opening louvers do not open on power on.

• For maximum performance the minimum distance from a wall or objects should be 20 cm

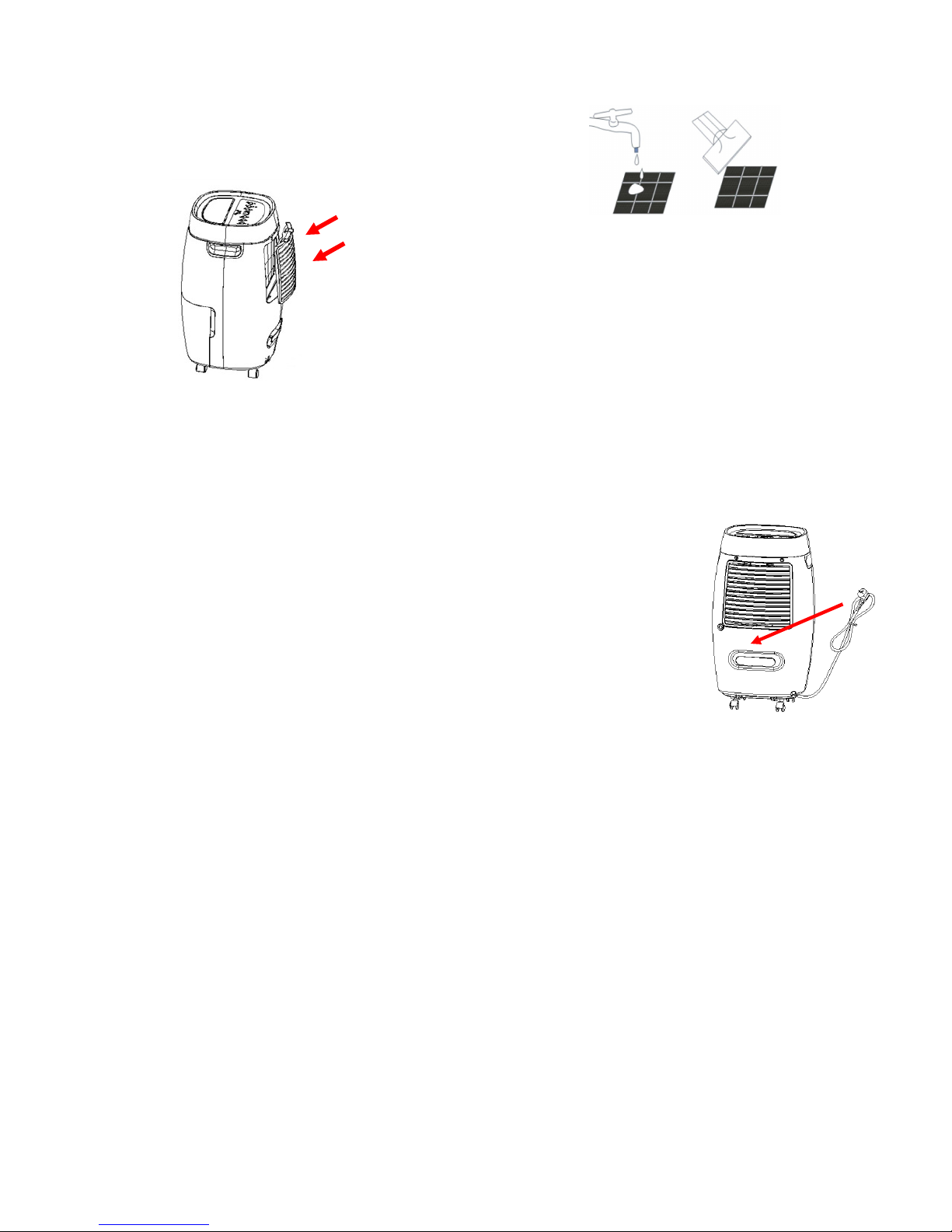

• Keep the filters or grills of the unit clean. Under normal conditions, filters or grills should

only need cleaning once every three weeks (approximately).

Since the filters remove airborne particles, more frequent cleaning maybe necessary,

depending on the air quality. Vacuum and wash the mesh filters with hot soapy water and dry

them before placing them back in the unit.

Quick visual safety guide on where or when not to use your dehumidifier

4

Installation

Remove any water from the water tank before starting the unit. In order to save energy, do

not open windows or doors while the unit is running. Place the unit on a hard / flat surface.

On first use run the unit continuously for 24 hrs.

To reduce noise levels:

Place a piece of carpet or a rubber mat under the unit to reduce any vibrations while the unit

is running.

CD16LE dehumidifier uses compressor technology to extract water from the

environment. The compressor dehumidifiers are ideal for normal domestic or office

environment which heated during the winter months with temperatures above 12-15⁰C.

CD16LE is easy to move around on castors and is an intelligent dehumidifier which will

extract unwanted humidity while saving money due to their humidistat and power saving

logic. CD16LE features an intelligent humidistat which is adjustable in increments of 5%

from 40-80% RH insuring your room is not dried too much and power is not wasted.

Features

Your dehumidifier belongs to the ElectrIQ low energy premium dehumidifiers featuring low power

consumption, power saving logic and air purification option.

1. Easy to use to use controls

2. Low energy only uses a fraction of the electricity of similar dehumidifiers

3. Great for up to 4 bed houses

4. Cost effective way to combat mould, condensation and damp

5. Dries laundry more efficiently than a tumble dryer

6. Designed to complement any modern space

7. Quiet and turbo fan speed selection for best balance between running quiet and maximum

water extraction

8. Castors and recessed handles for improved mobility

9. Intelligent CPU controlled digital humidistat with 40-80% RH and room humidity display

10. Quiet vs turbo fan operation ensures the right balance between quiet operation and

maximum dehumidification

11. 24 hours start / stop timer

12. Tank operation or permanent drainage option

13. Tank full alarm & auto-stop function

14. Air purifier function with the optional 3M filter
