Page 1
! ! DANGER ! !
Page 2
! ! DANGER ! !
TO PREVENT SERIOUS BODILY INJURY
AND AVOID DANGER FROM ROTATING
CABLES AND EQUIPMENT:
General Safety
*Relieve all tension build-up before attempting to handle cable.
WARNING!
DO NOT HANDLE ROTATING CABLE
2
Page 3
READ ALL SAFETY INFORMATION
THOROUGHLY BEFORE OPERATING
OR MAINTAINING THIS EQUIPMENT!
3

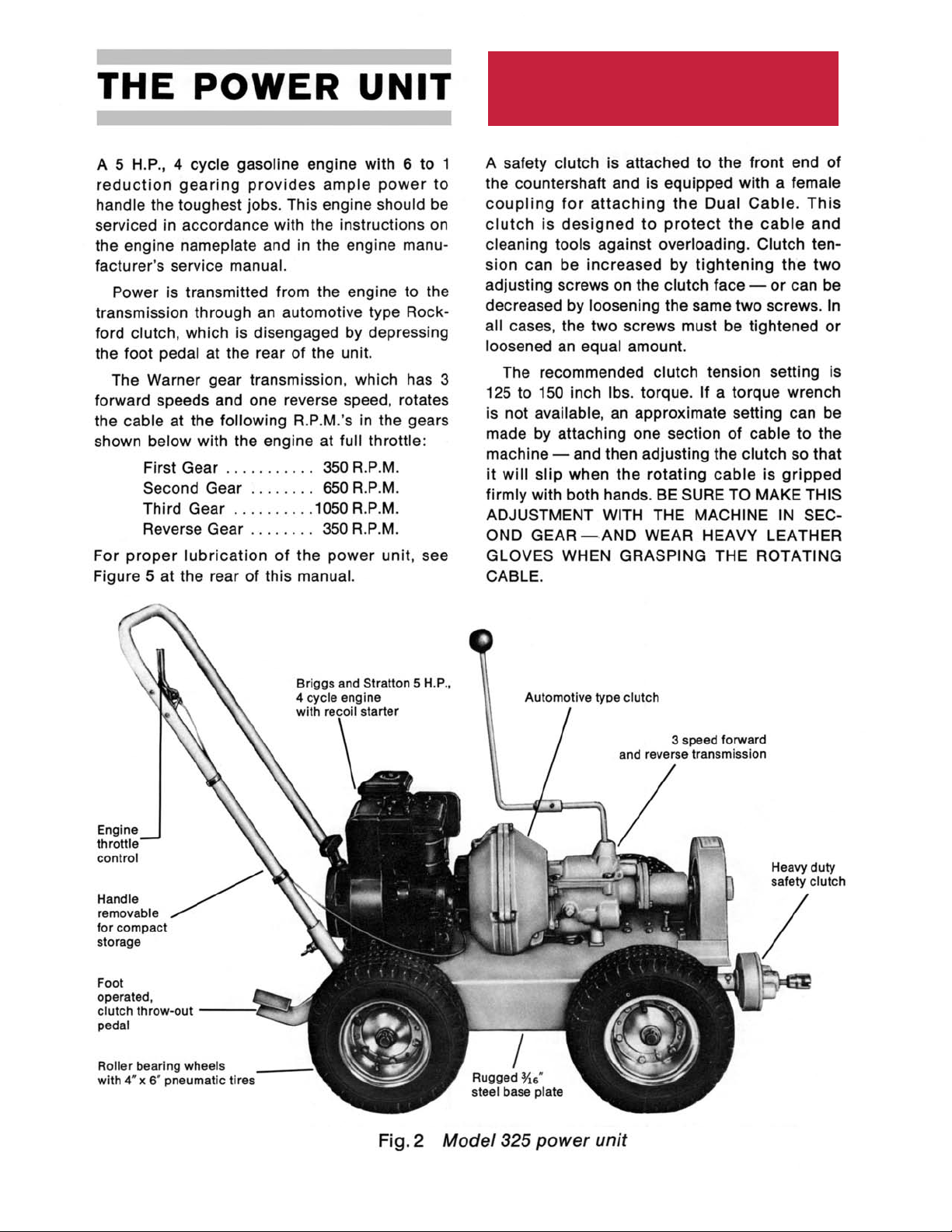

Page 4
READ ALL SAFETY INFORMATION
THOROUGHLY BEFORE OPERATING
OR MAINTAINING THIS EQUIPMENT!
OPERATOR MUST BE THOROUGHLY FAMILIAR
WITH ALL SAFETY INSTRUCTIONS BEFORE
OPERATING THIS EQUIPMENT
4

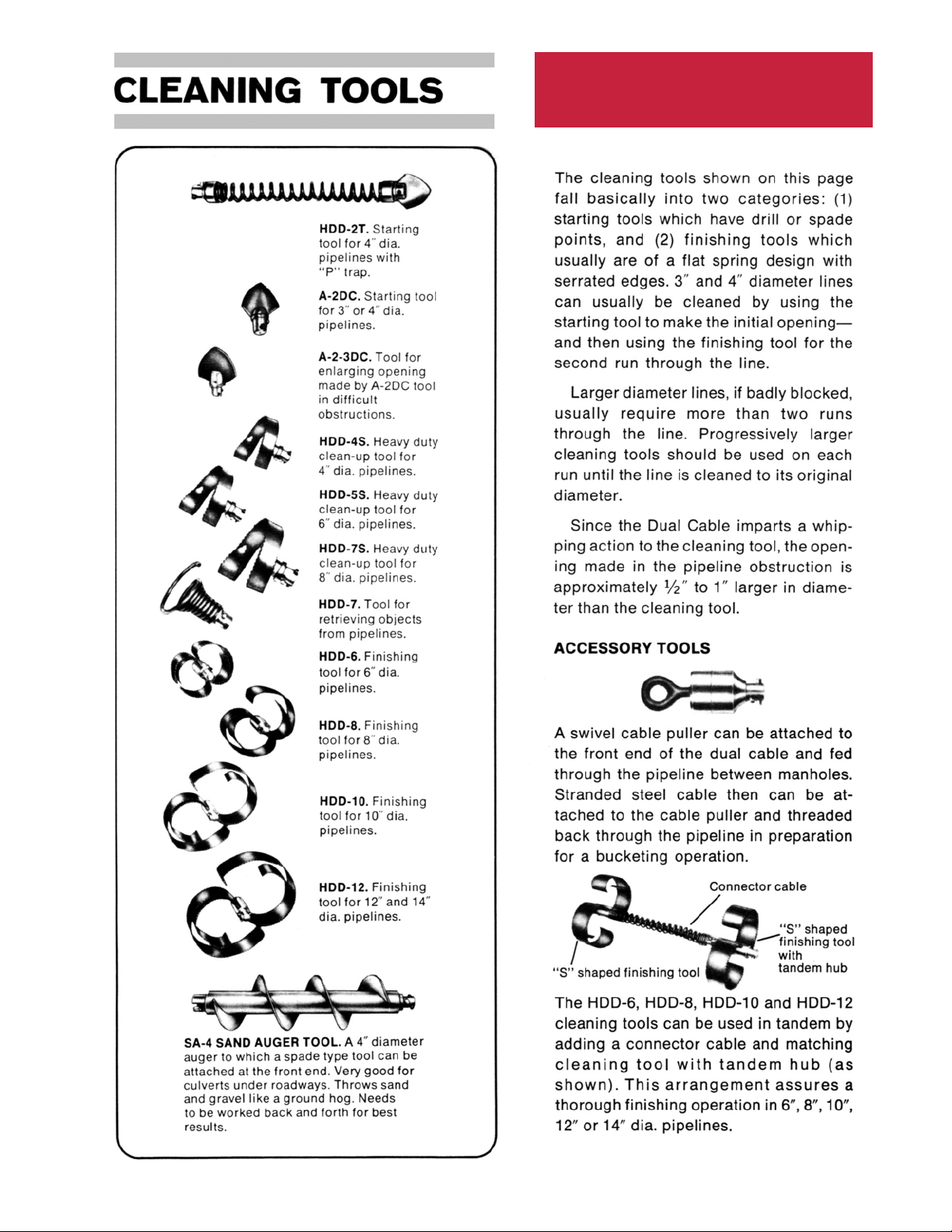

Page 5
READ ALL SAFETY INFORMATION
THOROUGHLY BEFORE OPERATING
OR MAINTAINING THIS EQUIPMENT!
5

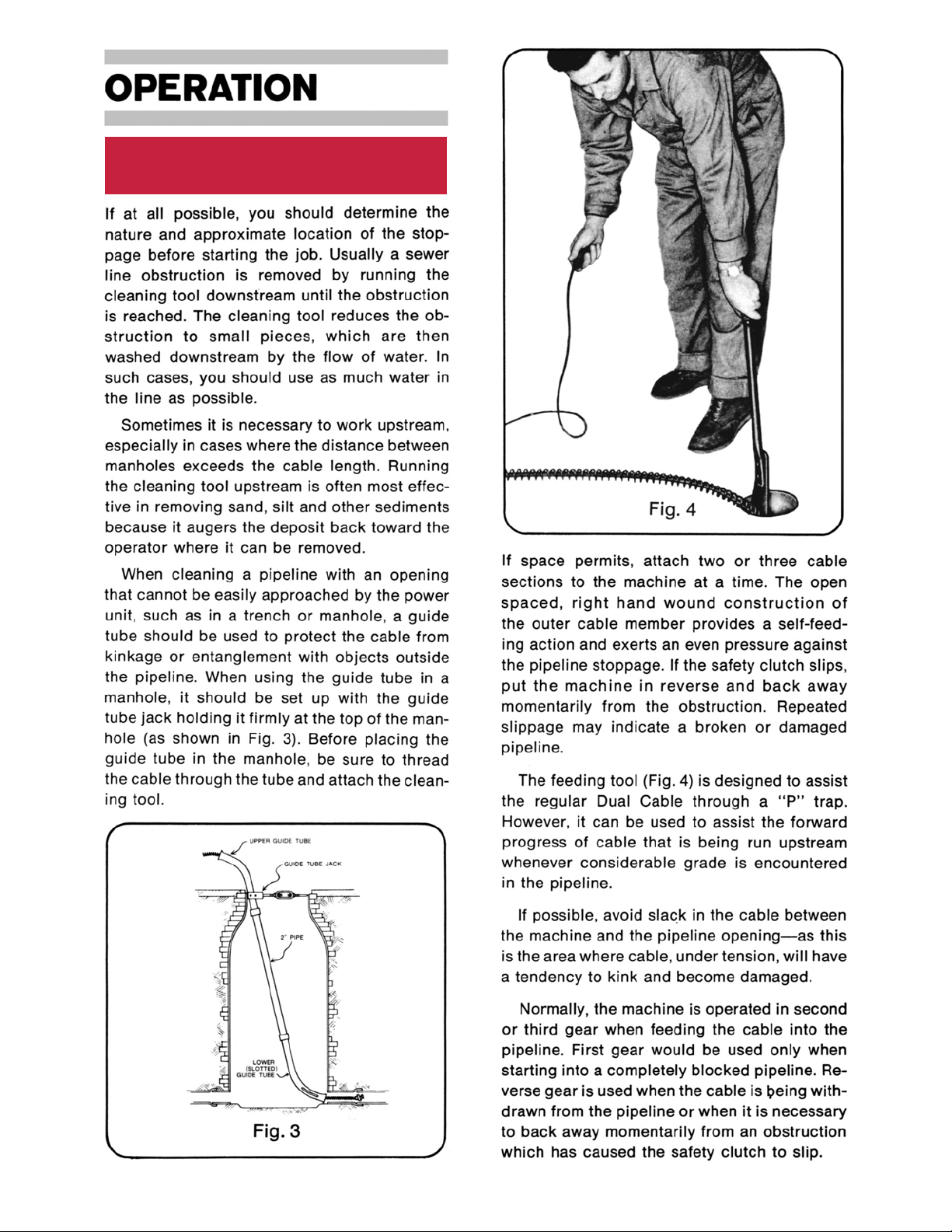

Page 6
WARNING!
DO NOT HANDLE ROTATING CABLE
6
Page 7

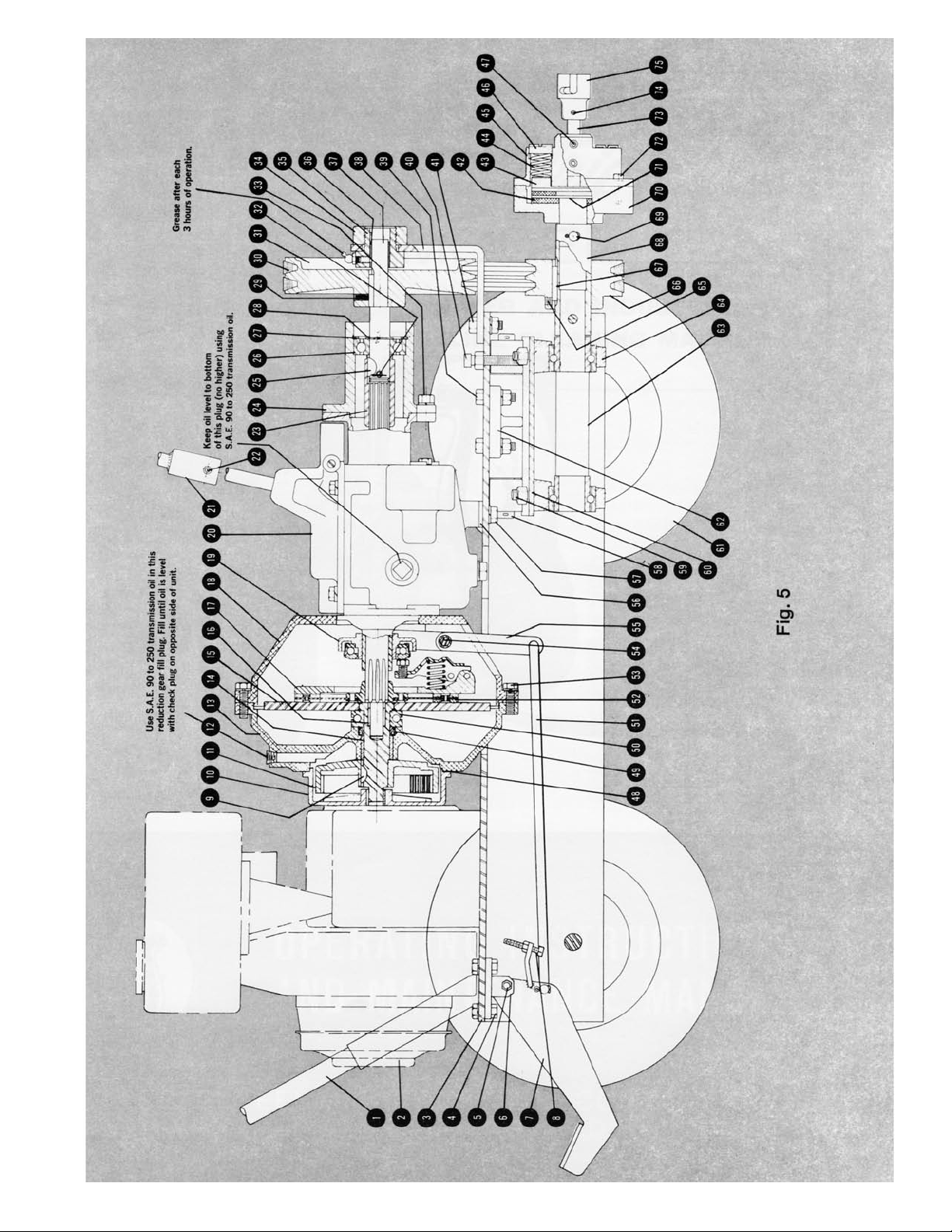

NOTE: Parts List Illustration Fig.5
with Item Numbers on Back Page
READ ALL SAFETY INFORMATION
THOROUGHLY BEFORE OPERATING
OR MAINTAINING THIS EQUIPMENT!
1
1
1
.................... 1
Drive Clutch Assembly Consists of:
Items 42, 43, 44, 45, 46, 70, 71 & 72
#4 x 3/8 Drive Screw ....................... 4
Items 60, 63, 64, 68 & 69
Items 34, 35 & 36
63 GE-16* Counter Shaft
64 325-PB* Pillow Blocks ................... 2
65 SS5161838 5/16-18 x 3/8” Set Screw .... 1
66 GE-20 Sm Pulley .......................... 1
67 K3161 3/16 x 3/16 x 1” Key ............... 2
68 GE-16-1 Counter Shaft Adapter ........... 1
69 F-10* Pin ................................ 2
70 GE-30*** Clutch Body .................... 1
71 GE-32*** Drive Member .................. 1
72 MS142058FLH*** Screw ................. 6
73 SC-14 Cable Drive Shaft .................. 1
74 RP316118 3/16 x 1 1/8” Spirol Pin ....... 1
75 SC-10 Cable Drive Fitting ................. 1
325-GSK Gear Shift Knob ................. 1
325-TC Throttle Cable ..................... 1
DL-4 Thumb Screw for Handle 2
GE-16A* Counter Shaft Assembly Consists of: 1
GE-17A** Front Bearing Assembly Consists of: 1
GE-22 Belt Guard ........................ 1
Item
No. Part No. / Description Amt
GE-30A***
Items 23, 25, 26, 27 & 37
GE-4A**** Extension Shaft Assy Consists of: 1
Extension Housing Assy Consists of:
Cable Drive Shaft Assembly Consists of:
GE-4A and Item 24
Items 73, 74 & 75
GE-5-4 Throw-Out Folk Fingers ........... 2
SC-14A
GE-8A*****
....... 9
5/16-18 x 3/4” Cap Screw Hex Head
3/8-16 x 2 3/4” Sq Head Set Screw ........ 2
3/8-18 x 1” Cap Screw Hex Head........... 8
5/16 x 1” Cap Screw Hex Head............. 6
35 GE-17** Front Bearing Retainer ........... 1
36 OBSS202616** Olite Bushing ............. 1
37 GE-9**** Extension Shaft ................. 1
38 GE-18**** Bearing Bracket ............... 1
39 CSHH51618114 5/16-18 x 1 1/4” Cap Screw 6
40 SS3816234SH
41 CSHH51618114 5/16-18 x 1 1/4” Cap Screw 6
42 E-2*** Clutch Friction Disc ............... 2
43 GE-33*** Pressure Plate ................. 1
44 E-4*** Clutch Spring ..................... 2
45 GE-31*** Clutch Body Cover ............. 1
46 E-7*** Clutch Adjusting Screw ........... 2
47 SS5161834 5/16-18 x 3/4” Set Screw ..... 6
48 325-RGCG Gasket ........................ 1
49 10515CR Oil Seal ......................... 1
50 GT10 Thrust Bearing ..................... 1
51 GE-12 Clutch Rod ........................ 1
52 325-CFDA Clutch Friction Disc Assembly... 1
53 CSHH38161
54 GE-6 Hinge Pin ............................. 1
55 GE-5 Clutch Throw Out Fork (Includes GE-5-4) 1
57 CSHH516181
58 GE-15 Counter Shaft Pin .................. 1
59 CB3816112 3/8-16 x 1 1/2” Carriage Bolt 4
60 GE-11* Counter Shaft Plate ............... 1
61 325-WP4106 Wheel & Hub Assembly...... 4
Item
No. Part No. / Description Amt
33 CSHH5161834
34 NU11412J** 1 1/4 x 12 Jam Nut .......... 1
................................. 1
5/16-18 x 3/4” Cap Screw Hex Head....... 9
1/4-20 x 1 1/4” Cap Screw Hex Head ....... 2
Item
No. Part No. / Description Amt
1 L-2 Handle
2 325E-61/2 6 1/2 HP Engine ............... 1
3 GE-1A Welded Base Assembly ............ 1
4 CSHH5161834
5 CSHH1420114
6 GE-2 Clutch Pedal Bracket ................. 1
3/8-16 x 2 3/4” Sq Head Set Screw ........ 2
7 GE-3 Clutch Pedal .......................... 1
8 SS3816234SH
9 WK9 #9 Woodruff Key .................... 2
11 325-RGBS Ring Gear ...................... 1
12 PP18 1/8” Pipe Plug ....................... 2
13 R-2 Clutch Housing (Rear) ................ 1
14 OBSS116131678 Olite Bushing ........... 1
15 GE-7 Clutch Flywheel ..................... 1
16 OBSS162210 Olite Bushing ............... 1
17 325-CPP Clutch Pressure Plate ........... 1
18 R-1 Clutch Housing (Front) ............... 1
19 325-CTOB Clutch Throw Out Bearing ...... 1
20 BT-92 Transmission ....................... 1
21 GE-19A Gear Shift Extension (Includes Item 22) 1
22 SS51618516 5/16-18 x 5/16” Set Screw... 1
23 GE-4**** Extension Shaft Coupling........ 1
24 GE-8***** Extension Housing ............. 1
25 WK9**** #9 Woodruff Key ................ 2
26 6304ZZ**** Ball Bearing .................. 1
27 RR206**** Retaining Ring ................ 1
29 SS5161834 5/16-18 x 3/4” Set Screw ..... 6
30 4L320 V-Belts ............................ 2
62 GE-10 Counter Shaft Assembly Bracket ... 1
31 GE-21 Large Pulley ....................... 1
32 RP141 1/4 x 1” Spirol Pin for GE4A ....... 1
7
Page 8
12/14 I-5
