Electrex NET D6, EXA RJ45, PFNE6-11519-110, PFNE6-11509-110, PFNE6-11W09-110 Installation Manual

...

EXA RJ45 and NET D6

INSTALLATION GUIDE

Electrex is a trademark of Akse S.r.l. All rights reserved. It is forbidden to duplicate, adapt, transcript this document without Akse written authorization, except when regulated accordingly by the Copyright Laws.

WARRANTY

This product is covered by a warranty against material and manufacturing defects for a 24 months period from the manufacturing date. The warranty does not cover the defects that are due to:

• Negligent and improper use

• Failures caused by atmospheric hazards

• Acts of vandalism

• Wear out of materials

• Firmware upgrades Akse reserves the right, at its discretion, to repair or substitute the faulty products The warranty is not applicable to the products that will result defective in consequence of a negligent and improper use or an operating procedure not contemplated in this manual.

RETURN AND REPAIR FORMALITIES

Akse accepts the return of instruments for repair only when authorized in advance. The transport costs are at customer charge.

RE-SHIPPING OF REPAIRED PRODUCT

The terms for re-shipment of repaired products are ex-works, i.e. the transport costs are at customer charge. Products returned as detective but found to be perfectly working by our laboratories, will be charged a ﬂ at fee to account for checking and testing time irrespective of the warranty terms.

SAFETY

This instrument was manufactured and tested in compliance with IEC 61010-1 CAT III 300V class 2 standards for operating voltages up to 300 VAC rms phase to neutral. In order to maintain this condition and to ensure safe operation, the user must comply with the indications and markings contained in the following instructions:

• When the instrument is received, before starting its installation, check that it is intact and no damage occurred during transport.

• Before mounting, ensure that the instrument operating voltages and the mains voltage are compatible then proceed with the installation.

• The instrument power supply needs no earth connection.

• The instrument is not equipped with a power supply fuse; a suitable external protection fuse must be foreseen by the contractor.

• Maintenance and/or repair must be carried out only by qualiﬁ ed, authorized personnel

• If there is ever the suspicion that safe operation is no longer possible, the instrument must be taken out of service and precautions taken against its accidental use.

• Operation is no longer safe when:

1) There is clearly visible damaged.

2) The instrument no longer functions.

3) After lengthy storage in unfavorable conditions.

4) After serious damage occurred during transport

The instruments must be installed in respect of all the local regulations.

OPERATOR SAFETY

Warning: Failure to observe the following instructions may lead to a serious danger of

death.

• During normal operation dangerous voltages can occur on instrument terminals and on voltage and current transformers. Energized voltage and current transformers may generate lethal voltages. Follow carefully the standard safety precautions while carrying out any installation or service operation.

• The terminals of the instrument must not be accessible by the user after the installation. The user should only be allowed to access the instrument front panel where the display is located.

• Do not use the digital outputs for protection functions nor for power limitation functions. The instrument is suitable only for secondary protection functions.

• The instrument must be protected by a breaking device capable of interrupting both the power supply and the measurement terminals. It must be easily reachable by the operator and well identiﬁ ed as instrument cut-off device.

• The instrument and its connections must be carefully protected against short-circuit.

Precautions: Failure to respect the following instructions may irreversibly damage to the instrument.

• The outputs and the options operate at low voltage level; they cannot be powered by any unspeciﬁ ed external voltage.

• The application of currents not compatible with the current inputs levels will damage to the instrument.

Further documentation may be downloaded from our web site www.electrex.it.

This document is owned by company AKSE that reserves all rights.

DECLARATION OF CONFORMITY

Akse hereby declares that its range of products complies with the following directives EMC 89/336/EEC 73/23CE 93/68 CE and complies with the following product’s standard CEI EN 61326 – IEC 61326 CEI EN 61010 – IEC 61010. The product has been tested in the typical wiring conﬁ guration and with peripherals conforming to the EMC directive and the LV directive.

READINGS

Exa Net

ELECTREX

EXA NET D6

VER X.XX-XXXX

SN XXXXXX

ADDR 247

MEASURE LIST TABLE (The parameters available vary according to instrument conﬁ guration)

Short keypress

P P Avg Imp P Avg Exp P MD Imp P MD Exp

Q Q Avg Imp Q Avg Exp Q MD Imp Q MD Exp

S S Avg Imp S Avg Exp S MD Imp S MD Exp

Long keypress

Short keypress

U L-N / f U THD L-N U L-N Min U L-N Max

U L-L / f U THD L-L U L-L Min U L-L Max

Short keypress

In I I THD I Max I AVG I MD

Short keypress

Ea Imp ∑ Ea Imp P Ea Exp ∑ Ea Exp P

Er Ind Imp ∑ Er Ind Imp P Er Ind Exp ∑ Er Ind Exp P

Er Cap Imp ∑ Er Cap Imp P Er Cap Exp ∑ Er Cap Exp P

Es Imp ∑ Es Imp P Es Exp ∑ Es Exp P

C1 Pulse ∑ C1 Pulse P

LEGEND OF PARAMETERS AND SYMBOLS

L-N Phase Neutral U Voltage

L-L Phase Phase I Current

THD Total Harmonic Distortion In Neutral current

Avg Average (rolling) value P Active Power

MD Maximum Demand Q Reactive Power

Imp Import value S Apparent Power

Exp Export value PF Power Factor

Ind Inductive Ea Active Energy

Cap Capacitive Er Reactive Energy

Min Minimum values (10 cycles time base) Es Apparent Energy

Max Maximum values (10 cycles time base) f Frequency

CNT ∑ Pulse count (total)

CNT P Pulse count (partial)

MECHANICAL CHARACTERISTICS

Case Self-extinguishing plastic material class V0 Protection degree IP40 on front panel, IP20 terminals side Size 105 x 90 x 58 mm (6 DIN modules)

VOLTAGE INPUT

Direct insertion Up to 300 Vrms phase-neutral or 520 Vrms phase to phase With external VT: Primary: programmable (max. 400 kV)

Secondary: programmable (max. 300 V)

Overload: 900 Vrms phase to phase for 1 sec Aux. power supply 85/265Vac +/- 10% 50/60Hz Self consumption: < 2 watt

MODELS

PFNE6-11519-110 EXA NET D6 WEB 85÷265V 1DI 2DO

ENERGY ANALYZER & WEB DATA MANAGER PFNE6-11509-110 EXA NET D6 WEB 85÷265V

ENERGY ANALYZER & WEB DATA MANAGER PFNE6-11W09-110 EXA NET WI-FI D6 WEB 85÷265

ENERGY ANALYZER & WEB DATA MANAGER PFNE6-11A09-110 EXA NET WI-FI EDA D6 WEB 85÷265

ENERGY ANALYZER & WEB DATA MANAGER PFNE6-11709-0M0 EXA RJ45 D6 85÷265V

ENERGY ANALYZER & DATA MANAGER PFNE6-11A09-0M0 EXA RJ45 WI-FI EDA D6 WEB 85÷265V

ENERGY ANALYZER & WEB DATA MANAGER

Keep pressed for 2 seconds to display:

- Type of instrument

- Firmware version

- Serial number

- RS485 address

Ea Imp ∑

Fase

Er Ind Imp ∑

Fase

DESCRIPTION OF KEYS

Short keypress Long keypress

Conﬁ rm parameter Setup conﬁ rmation

Modify parameter

Go to previous value Go to previous page

Go to next value Go to next page

Exit without saving the conﬁ guration

MEASURES

On “MEAS” page are displayed the main measures of the device (voltage, current, power, energy, etc.).

ELECTREX

EXA NET D6

VER X.XX-XXXX

SN XXXXXX

ADDR 247

SET

RESET

MEAS

HARM PAGE

HARMONICS

On “HARM” page are displayed the harmonics (from 2

ELECTREX

EXA NET D6

VER X.XX-XXXX

SN XXXXXX

ADDR 247

Select measure (U1N, U2N, U3N, I1, I2, I3)

Select harmonic (from H2 to H32 - value in %)

Exit without saving the conﬁ guration

RESET

MEAS

HARM

PAGE STAT

to the 32nd) for voltage and current.

0.0 %

PAGE

In development

ELECTREX

EXA NET D6

VER X.XX-XXXX

SN XXXXXX

ADDR 247

MEAS HARM

PAGE

STAT

SET

STAT

The “STAT” page shows the assigned IP address of the LAN and WI-FI port (if present)

ELECTREX

EXA NET D6

VER X.XX-XXXX

SN XXXXXX

ADDR 247

HARM PAGE

STAT

SET

RESET

ETH

192.168.027.001

WIFI

192.168.026.001

RESET

The “RESET” page allows to reset the total (TOT) and partial (PAR) energy counters, the minimum and maximum values (MAX) and the historical maximum values (MD).

RESET

ELECTREX

EXA NET D6

VER X.XX-XXXX

SN XXXXXX

ADDR 247

PASSWORD REQUEST 0000 ... 9999 0000 COUNTERS

CHANGE PWD

TOT N, Y PAR N, Y MAX N, Y MD N, Y

COUNTERS

TOT

PAR

MAX

PWD 0000...9999 0000

STAT

SET

RESET

MEAS HARM

DEVICE SETUP

ELECTREX

EXA NET D6

VER X.XX-XXXX

SN XXXXXX

ADDR 247

SETUP SEQUENCE

PAGE PARAMETERS VALUES AVAILABLE DEFAULT

PASSWORD REQUEST 0000 ... 9999 0000

NET Note n.4

ETH Note n.5

WIFI Note n.5

LCD Note n.3

CHANGE PWD

MEAS1 Note n.1

MEAS2 Note n.2

RS485-1

RS485-2

DEF ETH, WIFI ETH ETH N, Y Y WIFI N, Y Y

NET

DEF

ETH

WIFI

DHCP N, Y N IP xxx.xxx.xxx.xxx 192.168.027.001 NETM xxx.xxx.xxx.xxx 255.255.255.000 GWAY xxx.xxx.xxx.xxx 127.000.000.001

ETH

DHCP

192.168.027.001

NETM

255.255.255.000

GWAY

127.000.000.001

DHCP N, Y N IP xxx.xxx.xxx.xxx 192.168.026.001 NETM xxx.xxx.xxx.xxx 255.255.255.000 GWAY xxx.xxx.xxx.xxx 127.000.000.001

WIFI

DHCP

192.168.026.001

NETM

255.255.255.000

GWAY

127.000.000.001

DIM DISABLE, ENABLE DISABLE TIME 1...90 (sec) 3 LIGHT 300...1000 500 PULSE DISABLE, ENABLE ENABLE

LCD

DIM

DISABLE

TIME

LIGHT

0500

PULSE

ENABLE

PWD 0000...9999 0000

NET 3PH-4W, 2PH-2W, 1PH-2W, 3PH-3W-2C 3P-4W

CT 1...10000 / 1...5 5/5 VT 1...400000 / 1...300 1/1

I AVG 1...60 (MINUTES) 8 P AVG 1...60 (MINUTES) 15

MODE SLAVE, MASTER SLAVE TOUT 100...10000 (ms) 1000 RETR 0...9 2

ADDR 1 ... 247 27 Swap None, B = byte, W = word, D = doubleword NONE COM1 2400, 4800, 9600, 19200, 38400 38400 Data Bit 5...8 8 Parity N = none, E = even, O = odd N Stop Bit 1 or 2 2 ST (Silent Time) 0...5000 (ms) 100

IMP / EXP EXP

MEAS1

NET

3P-4W / EXP

00005 / 5

000001 / 001

MEAS2

AVG

AVG815

RS485-1

MODE

SLAVE

TOUT

01000

RETR

RS485-2

ADDR

247 /

COM1

38400 / 8

COM2

N / 2

0100

PAGE

STAT

SET

RESET

MEAS

NOTE n.1

NET 3PH-3W-2CT

CT Primary / Secondary of the current transformer (CT) VT Primary / Secondary of the voltage transformer (VT)

NOTE n.2

P AVG Integration time of the average value (AVG) and peak value (MD) for

I AVG Integration time of the average value (AVG) and peak value (MD) for

NOTE n.3

DIM Enable / Disable dimming of the display TIME Time in seconds after which the display luminosity is reduced. (With DIM

LIGHT Luminosity level of the display PULSE

NOTE n.4

DEF Selects the default network interface to be used for the communication ETH Enable / Disable the Ethernet (LAN) port WIFI Enable / Disable the WIFI port

NOTE n.5

DHCP Enable / Disable the search for a DHCP server in the network IP IP address of the network interface NETM Subnet mask: deﬁ nes the belonging range of a host within an IP

GWAY IP address of the gateway

3PH-4W 3 phases 4 wires, Star 2PH-2W 2 phases 2 wires, biphase 1PH-2W 1 phase 2 wires, monophase

power (from 1 to 60 minutes)

current (from 1 to 60 minutes)

enabled)

Enable / Disable the ﬂ ashing of the sine wave symbol Electrex logo.

subnetwork

2 phases 3 wires, triangle

light near the

DIP-SWITCH CONFIGURATION

DIP FUNCTION SLAVE MASTER *

1 Line termination resistance (120 Ohm) OFF ON 2 Fail safe resistance B (-) OFF ON 3 Fail safe resistance A (+) OFF ON 4 Not used OFF OFF

* with RS-485 Master PUK activated

LAN 10/100 ETHERNET PORT

ETHERNETEXPBUS

The instrument is equipped with a Ethernet Lan 10/100 Auto-MDI/MDIX port. For the connection can be used a data cable straight or crossover.

Note: the port is not a PoE (Power over Ethernet = device power supply via the Lan port) type. The connection of the device to a PoE port is anyway accepted. The power supply anyway must be always provided by an external power supplier.

EXPBUS PORT

During the set up operation a “CFG ERROR” message could appear. This means that

MESSAGE “CFG ERROR”

some wrong parameters are inserted.

CFG ERROR

Vcc

The ExpBus port, conﬁ gurable via Ethernet port on web pages:

- uses a multicast communication rated at 250kb/sec with collision management

- max cable length : 10 meters

- manages up to 16 modules (but technically can manage up to 126)

- uses the UTP cable, 4 wires used: 2 for the power supply at 9 Vdc 2 for the bidirectional communication The modules will also power supply the ExpBus port The cable must be connected in in-out modality (multidrop) as per the RS485 Bus.

Gnd

Voltage connection: Use cables with max cross-section of 2,5 mm2 if stranded 4 mm2 if rigid and connect them to the clamps marked VOLTAGE INPUT on the instrument according to

Made

in Italy

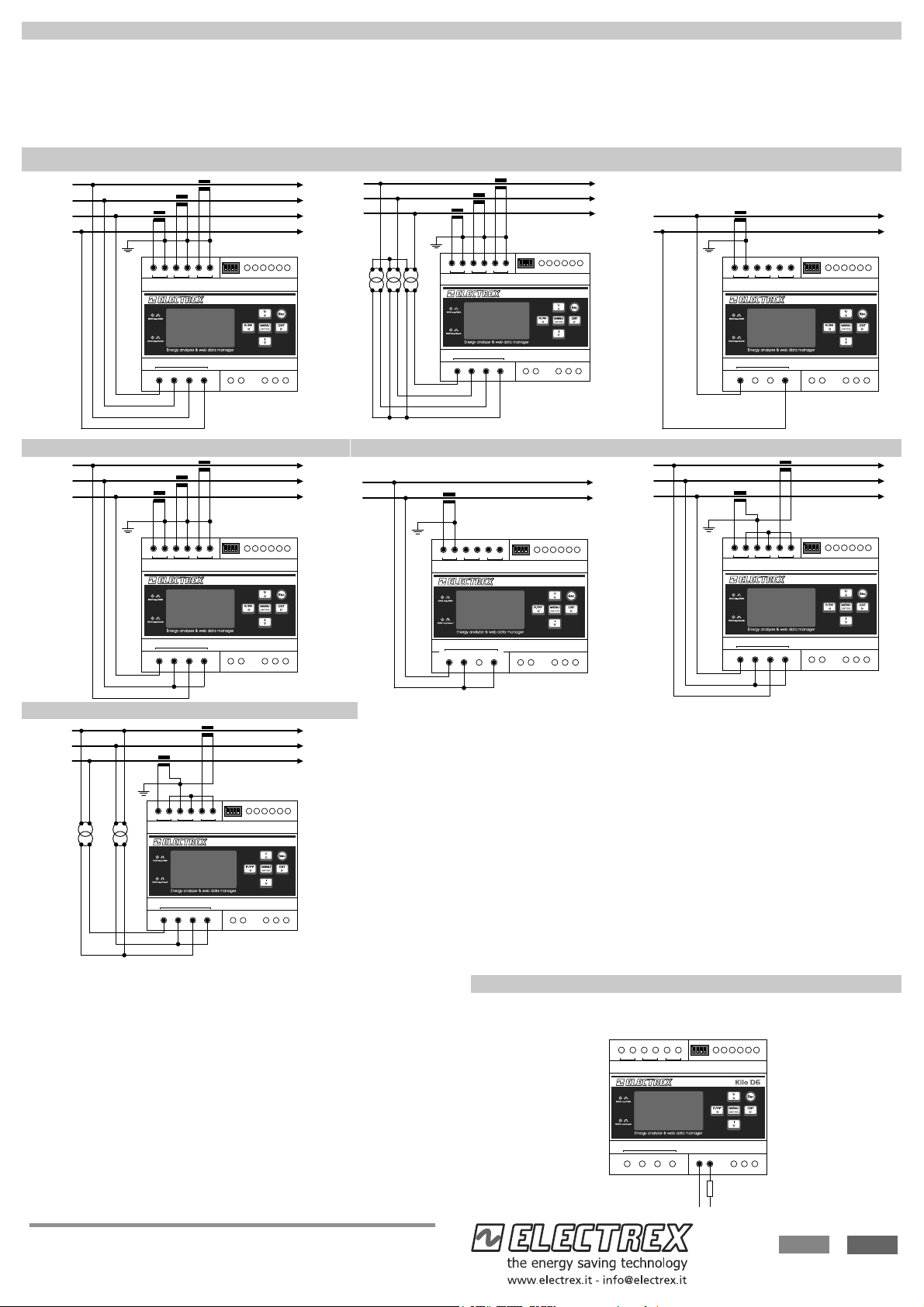

VOLTAGE AND CURRENT CONNECTION

the applicable diagrams that follow. Current connection: It is necessary to use external CTs with a primary rating adequate to the load to be measured and with a 5A or 1A secondary rating. Connect the CT output(s) to the terminals marked I1, I2, I3 (CURRENT INPUT) of the instrument according to the applicable diagrams that follow. Use cables with cross-section adequate to the VA rating of the CT and to the distance to be covered. The max cross-section for the terminals is 2,5 mm2 if stranded and 4 mm2 if rigid. Note: The CT secondary must always be in short circuit when not connected to the instrument in order to avoid damages and risks for the operator. Scrupulously respect the matching of phase between the voltage signals and current signals (RTD) and the direction of insertion of CT (P1-P2 and S1-S2). Failure to comply with this correspondence and connection diagrams gives rise to measurement errors. (*) The grounding of S2 must be close to the CT and not near the instrument.

STAR 4W (4 WIRES) 3PH-4W LV

P1 P2

S1 S2 P1 P2

S1 S2

P1 P2

S1 S2

S1 S2 S1 S2 S1 S2

I1 I2 I3

CURRENT INPUTS

B A 10 11 12

RS-485

Exa Net

AUX

IN/OUT

STAR 4W (4 WIRES) 3PH-4W MV

P1 P2

S1 S2

P1 P2

S1 S2

S1 S2 S1 S2 S1 S2

I1 I2 I3

CURRENT INPUTS

P1 P2

S1 S2

BA101112

RS-485

Exa Net

AUX

IN/OUT

SINGLE PHASE (2 WIRES) 1PH-2W

P1 P2

S1 S2

S1 S2 S1 S2 S1 S2

I1 I2 I3

CURRENT INPUTS

B A 10 11 12

RS-485

Exa Net

AUX

IN/OUT

VOLTAGE INPUTS POWER

TRIANGLE 3W (3 WIRES) 3PH-3W TRIANGLE 2CT (3 WIRES) 3PH-3W

P1 P2

S1 S2

P1 P2

S1 S2

P1 P2

S1 S2

S1 S2 S1 S2 S1 S2

I1 I2 I3

CURRENT INPUTS

SUPPLY

B A 10 11 12

RS-485

AUX

IN/OUT

2017 18V1 V2 V3

IN/OUT

BI-PHASE (2 WIRES) 2PH-2W

AUX

Exa Net

VOLTAGE INPUTS POWER

SUPPLY

AUX

IN/OUT

2017 18V1 V2 V3

VOLTAGE INPUTS POWER

P1 P2

S1 S2

S1 S2 S1 S2 S1 S2

I1 I2 I3

CURRENT INPUTS

VOLTAGE INPUTS POWER

SUPPLY

B A 10 11 12

RS-485

Exa Net

IN/OUT

AUX

2017 18V1 V2 V3

AUX

2017 18V1 V2 V3

AUX

IN/OUT

VOLTAGE INPUTS POWER

P1 P2

S1 S2

P1 P2

S1 S2

S1 S2 S1 S2 S1 S2

I1 I2 I3

CURRENT INPUTS

VOLTAGE INPUTS POWER

TRIANGLE 2CT(3 WIRES) 3PH-3W MV

P1 P2

S1 S2

S1 S2 S1 S2 S1 S2

I1 I2 I3

CURRENT INPUTS

P1 P2

S1 S2

B A 10 11 12

RS-485

IN/OUT

Exa Net

AUX

SUPPLY

B A 10 11 12

RS-485

Exa

AUX

IN/OUT

2017 18V1 V2 V3

AUX

IN/OUT

2017 18V1 V2 V3

AUX

IN/OUT

Net

VOLTAGE INPUTS POWER

SUPPLY

AUX

IN/OUT

2017 18V1 V2 V3

akse srl Via Aldo Moro, 39 42124 Reggio Emilia Italy Tel. +39 0522 924 244 Fax +39 0522 924 245 info@akse.it www.akse.it

P.I. 01544980350 R.E.A. 194296 Cap. Soc. Euro 85.800,00 i.v.

The instrument is ﬁ tted with a separate power supply. The power supply terminals are

POWER SUPPLY

numbered (17 e 18). Use cables with max cross-section of 2,5 mm2 if stranded, 4 mm2 if rigid.

SUPPLY

B A 10 11 12

AUX

RS-485

IN/OUT

AUX

IN/OUT

2017 18V1 V2 V3

FUSE T 500mA

Engineered and manufactured in Italy

Pensato, progettato e prodotto in Italia

Subject to modiﬁ cation without notice.

Eidition 2015 04 24 ENG0091

S1 S2 S1 S2 S1 S2

I1 I2 I3

CURRENT INPUTS

VOLTAGE INPUTS POWER

85-265VAC 100-375VDC

Electrex NET D6, EXA RJ45, PFNE6-11519-110, PFNE6-11509-110, PFNE6-11W09-110 Installation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
