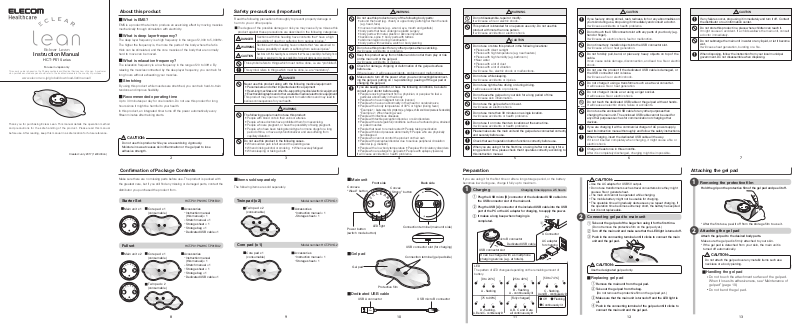

Eclear Lean
Instruction Manual
HCT-P01 Series
For use in Japan only
This user's guide is based on the Pharmaceuticals and Medical Devices Law of Japan. A customer
who purchases outside Japan should refer to the localized manuals in the country of purchase.
www.elecom.co.jp/global/download-list/manual/
Thank you for purchasing Eclear Lean. This manual details the operation method
and precautions for the safe handling of the product. Please read this manual
before use. After reading, keep this manual in a safe location for future reference.
Created: July 2017 (1st Edition)
What is EMS?
EMS is a product that aims to produce an exercising effect by moving muscles
mechanically through stimulation with electricity.
What is deep layer frequency?
The deep layer frequency is a high frequency in the range of 2,000 to 5,000Hz.
The higher the frequency is, the more the parts of the body where the fat is
thick can be stimulated, and the core muscles of the body that are normally
hard to move can be moved.
What is relaxation frequency?
The relaxation frequency is a low frequency in the range of 20 to 30Hz. By
relaxing the muscles contracted by the deep layer frequency, you can train for
long hours without exhausting your muscles.
Stretching
By using this product while muscles are stretched, you can train hard-to-train
tendons and improve flexibility.
Recommended operating time
Up to 30 minutes per day for one location. Do not use this product for long
hours since it might be harmful to your health.
In this product, an integrated timer turns off the power automatically every
fifteen minutes after training starts.
CAUTION:
Do not use this product while you are exercising vigorously.
Moisture in sweat causes skin inflammation or the gel pad to lose
adhesive strength.
2 3 4 5 7
Safety precautions (Important)About this product
Read the following precautions thoroughly to prevent property damage or
harm to you or other people.
The degree of the possible damage or risk you may cause if you misuse this
product against these precautions are described in the following categories:
DANGER
WARNING
CAUTION
This symbol refers to things which must not be done, i.e. are “prohibited”.
This symbol refers to things which must be done, i.e. are “mandatory”.
Never use this product along with the following medical equipment:
• Pacemakers and other implanted electric equipment
•
• Electrocardiographs and other wearable medical electronic equipment
This product may open such equipment to malfunctions and may lead to
serious consequences for your health.
The following people must not use this product:
• People with blood cots in their veins or arteries.
• People whose doctors have prohibited them from exercising.
• People who are pregnant, or have the possibility of being pregnant.
• People who have been taking steroid type hormone drugs for a long
Do not use this product in the following cases.
• When sudden pain is felt around the padding area
• When drinking alcohol or smoking • When severely fatigued
• When sleeping or taking a bath
Sections with this heading have contents that “have a high
possibility of death or suffering from serious injuries.”
Sections with this heading have contents that “are assumed to
have a possibility of death or suffering from serious injuries.”
Sections with this heading have contents that “have a possibility of suffering from
injuries or assumed to have a possibility of property damage only occurring.”
DANGER
Heart-lung machines and other life-supporting medical electronic equipment
WARNING
period of time, or have a dysfunctional liver and are suffering from
capillary dilatation
WARNING
Do not use this product on any of the following body parts:
• around the heart (e.g. chest), or upper body parts higher than the neck
(e.g. head, face)
• mucous membrane (e.g. wound, eye, mouth and genitals)
• body parts that have undergone plastic surgery
• body parts with metal, plastic or silicone implanted
• backbone, spine • body parts with tattoos
• abdomen region during menstruation
• body parts with necklace, watch or body piercing
Do not use this product for any other purpose than exercising.
It will cause accidents or problems.
Keep this product away from children and do not let them play or ride
on the main unit or the gel pad.
It will cause accidents or injuries.
Check for damage, chipping or deformation of the gel pad surface
before use.
If there is any, it will cause accidents, problems and malfunctions.
Make sure to turn off the power when you are connecting/disconnecting the gel pad, putting on / re-positioning / peeling off the gel pad or
changing the gel pad.
If you are seeing a doctor, or have the following conditions, be sure to
consult your doctor before using.
• People receiving treatment from a physician, or people who feel a
particular abnormality in their body
• People who have malignant tumors (cancer)
• People who have an abnormality in their heart or cerebral nerve
• People with a body temperature of 38ºC or higher (during fever)
*Example 1:
*Example 2: When feeling weak
• People with infectious diseases
• People with tactile perception disorder, or skin disorders
• People with acute (painful) conditions such as a fractured spine, strained
or pulled muscles
• People that need to remain rested • People taking medication
• People with blood pressure abnormality • People who are physically
handicapped
• People who cannot control the product on their own
• People with perceptual disorder due to serious peripheral circulation
disorder (e.g. diabetic)
• People with a low body temperature • People with circulatory disorders
• People who are allergic to gel pads • People with epilepsy (seizure)
It will cause accidents or health problems.
Acute onset of symptoms (e.g. fatigue, chills and blood pressure fluctuation)
WARNING
Do not disassemble, repair or modify.
Do not
It will cause a fire or electric shock.
disassemble
This product is intended for one person use only. Do not use this
product with more than one person.
It will cause accidents or electric shock.
CAUTION
Do not use or store this product in the following locations:
• Places with direct sunlight
• Places with high temperature (e.g. near heaters)
• Places with high humidity (e.g. bathroom)
• Near water
• Places with a lot of dust
• Places with a lot of vibration
It will cause fire, electric shock or malfunctions.
Do not use while sleeping.
It will cause accidents or injuries.
Do not use right before driving or during driving.
t will cause accidents or problems.
Do not leave the gel pad on your skin for a long period of time
It will cause skin inflammation.
Do not use the gel pad when it is wet.
It will cause an electric shock.
Do not use more than 30 minutes on a single location.
It will cause accidents or health problems.
Do not use it on more than two locations at the same time.
It will cause accidents or health problems.
Please make sure the main unit and the gel pad are connected correctly
and securely before use.
Check that each operation button functions correctly before use.
When you are using it for the first time or using it after not using it for a
long period of time, please check that it operates correctly according to
this instruction manual.
CAUTION
If you feel any strong stimuli, rash, redness, itch or any abnormalities on
your skin during use, stop using it immediately and consult a doctor.
It will cause accidents or health problems.
Do not touch the USB connector slot with any parts of your body (e.g.
hand or finger).
It will cause an electric shock, fault or malfunction.
Do not insert any metallic objects into the USB connector slot.
It will cause a fire or heat generation.
Do not forcibly pull, bend, or place any heavy objects on top of the
cable.
It can cause cable damage, disconnection, and lead to a fire or electric
shock.
Do not use the product if the dedicated USB cable is damaged, or
the USB connector slot is loose.
It will cause a fire or electric shock.
Do not charge it using a transformer such as a travel converter.
It will cause a fire or heat generation.
Do not charge it inside a car using a cigar socket.
It will cause a fire or electric shock.
Do not touch the dedicated USB cable or the gel pad with wet hands.
It will cause an electric shock, failure or accidents.
No wet hands
Do not use the enclosed USB cable for any other purposes than
charging the main unit. The enclosed USB cable cannot be used for
any other purposes such as for communication or charging other
devices.
If you are charging it with a commercial charger of AC power supply,
read its instruction manual thoroughly and follow the safety instructions.
When charging, insert the dedicated USB cable all the way.
If it is not inserted completely when charging, it might cause a fire or
electric shock.
Charge at least once in three months.
After it is completely discharged, charging might be impossible.
6
CAUTION
If any failures occur, stop using it immediately and turn it off. Contact
the distributor or our information center.
Do not store this product in a place where children can reach it.
It might cause an accident. If a child swallows the main unit, consult
a doctor immediately.
Do not submerge the main unit in water or any liquid, or let it become
wet.
It will cause heat generation, bursting or a fire.
When disposing, follow the instruction from your local municipal
government. Do not disassemble when disposing.
Confirmation of Package Contents
Make sure there are no missing parts before use. The product is packed with
the greatest care, but if you still find any missing or damaged parts, contact the
distributor you purchased the product from.
Starter Set
Main unit x 1 Accessories
Core pad x 1
(consumable)
Full set
Main unit x 2 Core pad x 1
(consumable)
Twin pad x 2
(consumable)
8 9 10 11
HCT-P01PN1/HCT-P01BU1 Model number: HCT-P01G1
Instruction manual
(this manual) × 1
Stretch manual × 1
Storage sheet × 1
Storage bag × 1
Dedicated USB cable × 1
HCT-P01PN2/HCT-P01BU2
Accessories
Instruction manual
(this manual) × 1
Stretch manual × 1
Storage sheet × 1
Storage bag × 1
Dedicated USB cable × 1
Items sold separately
The following items are sold separately.
Twin pad (x 2)
Twin pad x 2
(consumable)
Core pad (x 1)
Core pad x 1
(consumable)
Accessories
Instruction manual × 1
Storage sheet × 1
Model number: HCT-P01G2
Accessories
Instruction manual × 1
Storage sheet × 1
Main unit
Concave
“Weak” button
Power button
(switch mode button)
Front side Back side
Convex
“Strong” button
LED light
Connection terminal (main unit side)
USB connector slot (for charging)
Gel pad
Connection terminal (gel pad side)
Gel pad
Protective film
Dedicated USB cable
USB A connector USB micro B connector
If you are using it for the first time or after a long storage period, or the battery
becomes low during use, charge it fully up to maximum.
Charging
1
Plug the USB micro [B] connector of the dedicated USB cable into
the USB connector slot of the main unit.
Plug the USB [A] connector of the included USB cable into the USB
port of the PC or the AC adapter for charging, to supply the power.
It makes a long beep when charging is
completed.
micro B connector
Dedicated USB cable
USB connector slot
It can be charged with a smartphone
charging service (e.g. at hotels).
LED
The pattern of LED changes depending on the remaining amount of
battery.
[0 to 24%] [25 to 49%]
A - flashing
[75 to 99%] [Fully charged]
D - flashing,
A, B and C - continuously lit
A - continuously lit
Charging time: Approx. 2.5 hours
B - flashing,
A and B - continuously lit
A, B, C and D are
all continuously lit
PC
A Connector
AC adapter
for charging
[50 to 74%]
C - flashing,
Flashing
Off
Continuously lit
CAUTION:
Use the AC adapter for USB 5V output.
Do not use transformers such as travel converters since they might
cause a fire or generate heat.
The main unit cannot be operated while charging.
The mobile battery might not be usable for charging.
The operable time will gradually decrease as you repeat charging. If
the operation time becomes extremely short, the battery has expired
but it is not replaceable.
Connecting gel pad to main unit
2
Take out the gel pad of the bag when using it for the first time.
(Do not remove the protective film on the gel pad yet.)
Turn off the main unit and make sure that the LED light is turned off.
Push in the connecting terminal until it clicks to connect the main
unit and the gel pad.
CAUTION:
Use the designated gel pad only.
Replacing gel pad
Remove the main unit from the gel pad.
Take out the gel pad from the bag.
(Do not remove the protective film on the gel pad yet.)
Make sure that the main unit is turned off and the LED light is
off.
Push in the connecting terminal of the gel pad until it clicks to
connect the main unit and the gel pad.
Attaching the gel padPreparation
Removing the protective film
1
Hold the grip on the protective film of the gel pad and peel it off.
* After the first use, peel it off from the storage film to use it.
Attaching the gel pad
2
Attach the gel pad to the desired body parts.
Make sure the gel pad is firmly attached to your skin.
* If the gel pad is detached from your skin, the main unit is
turned off automatically.
CAUTION:
Do not attach the gel pad over any metallic items such as a
necklace or a body piercing.
Handling the gel pad
Do not touch the attachment surface of the gel pad.
When it loses its adhesiveness, see “Maintenance of
gel pad” (page 19).
Do not bend the gel pad.
12 13
How to use
Examples of attaching gel pad
After use
Maintenance
Turning the power on
1
Press the power button for two seconds with the gel pad attached to
your skin. The main unit beeps and turns on, and the training starts.
The LED light turns on.
Concave “Weak” button
Convex “Strong” button
Power button
Switching mode
2
You can switch between the modes by pressing the power button
during operation.
* The operation always starts in mode A.
It beeps every time you press the power button and the mode
changes. It makes a long beep sound when it goes back to mode A.
Adjusting training level
3
You can choose your desired strength from fifteen levels.
* The strength level when the main unit is first turned on, or when the
mode is changed, is “1.”
If you press the convex “Strong” button, it beeps and the
strength goes up by 1 level.
If you press the concave “Weak” button, it makes two short
beeping sounds and the strength goes down by 1 level.
If you press the convex “Strong” button at level 15, or the
concave “Weak” button at level 1, it makes three short beeping
sounds and the level stays the same.
14
Setting the operation sound
4
You can turn on/off the operation sound.
Press the concave “Weak” button and the power button at the
same time for one second. It makes one short and one long
beeping sound and the operation sound is turned off.
Press the convex “Strong” button and the power button at the
same time for one second. It makes one short and one long
beeping sound and the operation sound is turned on.
* The operation sound is not turned off for some operations for the
safety reasons. Please note that it is by design, not a malfunction.
* If you turn off the operation sound by mistake, press the convex
“Strong” button and the power button simultaneously.
Beeping sound ON Beeping sound OFF
Convex
“Strong” button
Press them together for
one second or more
Press them together for
one second or more
Power button Power button
Turning off
5
It makes a long beeping sound and the power is turned off
automatically every fifteen minutes after training starts.
* To turn off the power during training, press one of either the power
button, the convex “Strong” button or the concave “Weak” button
for more than two seconds.
* It is also turned off when the gel pad is detached from your skin or
disconnected from the main unit.
Concave
“Weak” button
15 16 17 18 20
This product has 4 modes. There are suitable training modes and attachment
methods for the respective body parts and thickness of the fat layer.
How to measure thickness of fat under the skin
Arm Abdomen Buttocks
Half of the thickness
when you pinch the arm
with your elbow bent by
Half of the thickness when
you pinch your abdomen
with it tightened.
Half of the thickness when
you pinch the butt with it
tightened
90 degrees
Mode
Your body type
Thickness of
Mode
fat under the
Overweight Normal Thin
skin (mm)
A More than 25 Abdomen, buttocks Abdomen
B More than 20 Arm, back Buttocks Abdomen
C More than 10 Thigh Arm, back Buttocks
D More than 0 Calf Calf, thigh Arm, back, thigh, calf
CAUTION:
Do not use it on more than two locations at the same time.
Front Back
* Attach the gel pad directly to your skin.
Rectus abdominis / core pad
Abdominal oblique / twin pad
Adductor muscles / twin pad
Gluteus medius / core pad
Quadriceps femoris / core pad
Tibialis anterior / twin pad
Core pad
Twin pad
Triceps brachii / twin pad
Latissimus dorsi / core pad
Gluteus maximus / core pad
Biceps femoris / core pad
Triceps surae / twin pad
Core pad
Twin pad
Storing
1
Make sure the power is turned
off and peel off the gel pad from
your skin.
Pinch the grip of the gel pad and
peel it off being careful not to
touch the adhesive surface.
Do not disconnect the gel pad from the main unit and attach it to
the storage sheet.
* For the paired gel pad, attach one core pad on one side of the storage
sheet and attach two twin pads
on the other side.
Store it in the enclosed storage
bag.
CAUTION:
Store the gel pad in a place free from direct sunlight, high humidity
and high temperature.
19
Grip
Storage
sheet
To care for the gel pad, disconnect it from the main unit.
Care of the gel pad
The gel pad needs to be cared for in the following situations:
Gel pad has lost adhesiveness
When stimulation during use has weakened
When stimulation during use feels strengthened
When the gel pad is dirty
When the gel pad is not sticky enough to remain
attached to the storage sheet
Replace the gel pad if you feel there is not enough/too much stimulus during use
even after caring for the gel pad.
Run a small amount of water on the surface and rub it gently with your
fingertips for several seconds.
* Do not pour too much water. It will cause loss of adhesive strength or
damage to the
adhesive surface.
Hold it by the grip and shake it enough to remove
the excess water and let it air dry.
* If it is not completely dry, it loses adhesive strength.
* Never wipe the adhesive surface with tissue paper or
a cloth.
* Avoid direct sunlight.
How to care for the main unit
When the main unit is dirty, wipe it with a dry soft cloth.
CAUTION:
Prevent the water from getting inside the USB connector slot or the main
unit.
How to store
Store this product in an environment meeting the following conditions:
Storage temperature: -10ºC to 60ºC
Storage humidity: 20 to 85% RHºC
Caution when Maintaining and Storing
Do not use benzine or paint thinner when caring for the
product.
Do not store this product in any of the following places:
– A place with direct sunlight
– A place exposed to high temperature,
high humidity, water or excess dust
– A place with high vibration
– A place where chemicals are stored or an environment with corrosive gas
Keep this product away from children.
If you are not using it for a long period of time, store at room temperature (10
to 30ºC) in its fully charged condition.
Charge it at least once in three months. If it is completely discharged,
recharging might be impossible.
Loving Check
Have you
notice any
of the
following?
Check your long used Eclear Lean!
Abnormal sound or vibration
during charging or operation
Main unit becomes extremely
hot
Main unit is deformed or
releases a burning smell
Stopping
use
21
Benzine
Paint
thinner
To prevent accidents,
turn off the power or pull
out the dedicated USB
cable and contact the
distributor for a check up.
Alcohol
Nail polish
remover
Disposing
Recycling lithium ion batteries
A lithium ion battery is included in this product. It is a recyclable,
valuable resource, so please recycle. When disposing, follow the
instructions from your local municipal government.
Do not disassemble the battery when disposing.
Do not dispose this product as household waste. The destroyed lithium ion
battery inside a garbage truck causes a short-circuit and may lead to a fire or
heat generation.
How to take out a lithium ion battery
Do not disassemble this product unless you are disposing of it.
The following procedure is for disposing, not for repairing. If you
WARNING
Fully discharge the battery.
Disassemble the product in the following manner with
a screw driver.
On the removed battery, place a piece of tape on the
terminals to isolate them, paying attention not to
shirt-circuit the “+” and “-” terminals.
disassemble this product on your own, the functions will not be
maintained and may cause failures or accidents.
Open the cover by inserting a minus screw
driver into the groove right below the power
button on the main unit.connector slot of
the main unit.
Unscrew the screw fastening the base plate.
Cut off the power cord using a nipper from
the black cord on the back of the base plate.
Remove the battery.
Battery
22 23 24 25
Groove
Troubleshooting
Trouble
Does not turn on
Power goes off immediately
after being turned on
Power goes off during use
Cannot charge the battery Battery has discharged after a long period of storage
Gel pad does not stay
on the skin
Gel pad adhesive surface peels off
or slides out of position
No / weak stimulus felt
Skin becomes red /
skin feels prickly
No sound
Battery is not charged fully or there is no power left in battery
During charging
Gel pad is not attached to skin
Battery is not charged fully or there is no power left in battery
Main unit and gel pad are not connected correctly to each other
Gel pad is not attached to skin correctly
Transparent protective film is not removed from the adhesive surface of the gel pad
Adhesive surface of the gel pad is dirty
Using immediately after rinsing with water
Adhesive surface of the gel pad is damaged
Excess amount of sweat or water on adhesive surface of gel pad
Gel pad is not attached to skin firmly
Gel pad is overlapping with another gel pad
Adhesive surface of the gel pad is dirty
Gel pad is not connected correctly
Level is set to “Weak”
It is not charged enough or the battery is out of power
Adhesive surface of the gel pad is dirty or damaged
Used for too long
Gel pad is not attached to skin firmly
Adhesive surface of the gel pad is dirty or dry
Adhesive surface of the gel pad is damaged
Muted by mistake
Cause How to troubleshoot
Turn off the power and charge the battery. P.11
Pull out the dedicated USB cable after charging is completed.
Turn on the power after attaching the gel pad to your skin correctly.
Turn off the power and charge the battery. P.11
Turn off the power and reconnect the main unit and the gel pad. P.12· P.13·
Turn off the power then attach the gel pad to your skin correctly. P.13
Cannot be used. Charge every three months to prevent it from being discharged completely. P.21
Remove the transparent protective film from the adhesive surface of the gel pad. P.13
Run a small amount of water on the surface and rub it with your fingertips for several seconds.
Shake off the excess water and air dry the adhesive surface.
The gel pad is a consumable. Stop using it when the adhesive surface is damaged and purchase another gel pad. P. 9
The gel pad is a consumable. Stop using it when the adhesive surface is damaged and purchase another gel pad. P. 9
Attach the gel pad to your skin firmly.
Attach it being careful not to overlap with another gel pad.
Run a small amount of water on the surface and rub it with your fingertips for several seconds.
Connect it correctly by pushing in until it clicks.
Adjust the level.
Charge the battery.
The gel pad is a consumable. Stop using it when the adhesive surface is damaged and purchase another gel pad. P. 9
Limit the workout time on one location up to 30 minutes and peel off the gel pad after use.
Attach the gel pad to your skin firmly.
Run a small amount of water on the surface and rub it with your fingertips for several seconds.
The gel pad is a consumable. Stop using it when the adhesive surface is damaged and purchase another gel pad. P. 9
Muting can be canceled by pressing both of the “Strong” button and the power button simultaneously. P.15
P.15
P.11
P.13
P.13
P.12
P.13
P.20
P.11
P.13
P.20
P.20
P.15
P.20
Product specifications
Product name Eclear Lean
Series model number HCT-P01
Power source voltage DC 5.0V ± 5% (Lithium ion battery)
Internal battery 75mAh *1 *2
Number of times charging
can be repeated
Charging time Approx. 2.5 hours *3
Operating time More than 90 minutes (when fully charged) *4
Rated output voltage Approx. 42 V
Deep layer frequency Approx. 2000 to 5000Hz
Relaxation frequency Approx. 20 to 30Hz
Timer Approx. 15 minutes
Main unit dimensions Approx.
Main unit mass Approx. 20 g
Cable length Approx. 0.2 m
Operating temperature /
humidity
Storage temperature /
humidity
Made in China
*1 According to JIS C 8711
*2 With protection function for over-charging, over-discharging and over-voltage
*3 Standard when charging fully discharged battery to full power
*4 Depends on operation and environment
Approx. 500 times *1
48mm × D16mm
0°C to 40°C, 20 to 85% RH
-10°C to 60°C, 20 to 85% RH
A customer who purchases outside Japan should contact the local retailer in the
country of purchasefor enquiries. In “ELECOM CO., LTD. (Japan)” , no customer
support is available forenquiries about purchases or usage in/from any countries
other than Japan. Also, no foreign language other than Japanese is available.
Replacements willbe made under stipulation of the Elecom warranty, but arenot
available from outside of Japan.
Eclear Lean
EMS HCT-P01 Series
Instruction Manual
July 2017 (1st Edition)
ELECOM CO.,LTD.
ELECOM CO., LTD. owns the copyright of this manual.
Copying/reprinting any part, or the whole of this manual without written permission
from ELECOM is prohibited.
The specification or appearance of this product might be changed without prior notice
to improve the product quality.
ELECOM is not responsible for any damages to, or failure of other devices caused by
using this product.
To export the part of this product applicable to strategic goods or services, export or
service trading permission according to foreign currency laws is necessary.
All products and company names on the product and the package are trademarks or
registered trademarks of their respective holders.
©2017 ELECOM Co., Ltd. All Rights Reserved.
26 27
MSC-HCT-P01_JP_eng_ver.1
Loading...
