Elecbrakes ELBC2000 Remote User Manual

TM

Remote User Guide

TM

ELBC2000 Electric Brake Controller
Remote Control Interface

The Elecbrakes remote control has been engineered to provide the user with a
simple user friendly in car controller. When connected to the ELBC 2000 devices,
the remote will provide the user with an interface to operate manual override,
change the brake response settings and brake programs. When connected to the
ELBC devices the remote is a secure connection and doesn’t allow for a second
device to pair. All settings are stored in the device on the trailer and will remain
until changed by the user.

Elecbrakes Pty Ltd

PO Box 3593
Wamberal NSW 2260

1300 516 248

[e-mail]

The Elecbrakes logo is a registered
trade mark of Elecbrakes Pty Ltd.

Contents

01. Active Display Screen 6

02. Charging the Remote 8

03. Shut Down Mode 8

04. Sleep Mode 9

05. Activating Remote from Sleep Mode 9

06. Selecting Program 10

07. Changing Program 11

08. Display/Change Forward Brake Responses 12

09, Display/Change Minimum Brake Responses 13

10. Display/Change Reverse Brake Responses 13

11. Manual Override 14

Remote Interface Pg. 5

Warranty 17

Remote guide4

Remote Interface

1. Battery Indicator

2. Display Screen

3. Increase Button

4. Decrease Button

5. Menu Button

6. Manual Override

1

2

3

4

5

6

5elecbrakes.com

01. Active Display Screen

The remote display screen allows
the user to identify the active state
of the remote.

The battery display highlights the
battery charge state.

1. When powered up the screen
displays the Elecbrakes logo.

2. Once completing its start up the
remote will automatically start to
search for a device. The screen
will display as searching.

6 Remote Guide

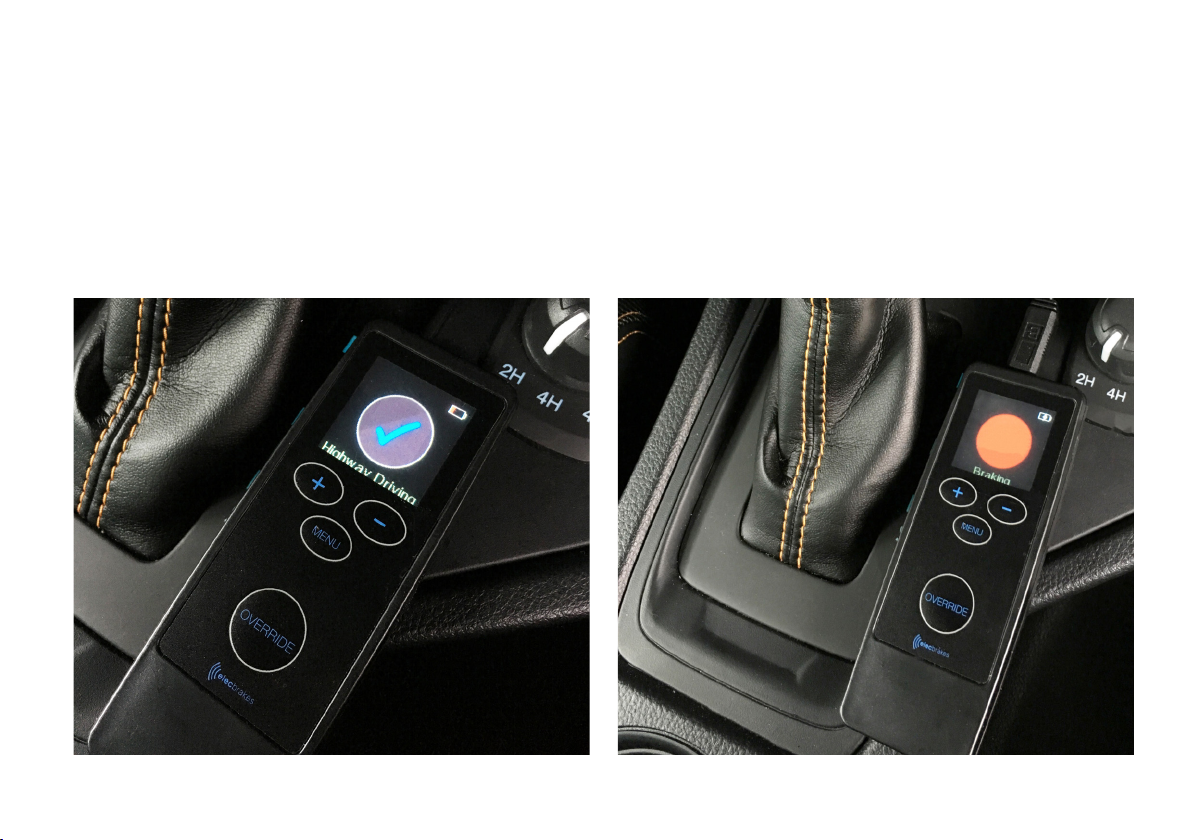

3. When connected to an ELBC 2000 the screen will
display a tick and active program will be displayed.

4. When braking in the vehicle the remote will indicate
red that the trailer is performing a brake response.

7elecbrakes.com

02. Charging the Remote 03. Shut Down Mode

• The remote comes with a USB charging
cable and a 12v socket plug.

• Connect the cable to the charging port
on the top edge of the unit.

• The remote can be charged via the cars
12v socket or a USB charging plug.

• The battery indicator displays in the top
right corner of the screen.

• Charged displays full cell and green.

• Charging displays with lightning bolt.

• Low Battery Life displays as red.

• The remote can be shut down by depressing the
increase and decrease buttons simultaneously.

• If connected to an ELBC 2000 device and the
shutdown feature is activated the remote will
disconnect from the device.

• To turn the device back on simply push any button.

• The device will search for and connect to the
nearest ELBC 2000 device.

8 Remote Guide

04. Sleep Mode 05. Activating Remote from Sleep Mode

• The ELBC 2000 remote has a sleep mode
function. Designed to preserve battery
life the sleep mode will activate when the
unit is not used for 1 minute. The screen
will turn off.

• When connected to an ELBC 2000 the remote
will not go into sleep mode.

• To wake the remote, press the menu or the
increase decrease buttons to open active display.

9elecbrakes.com

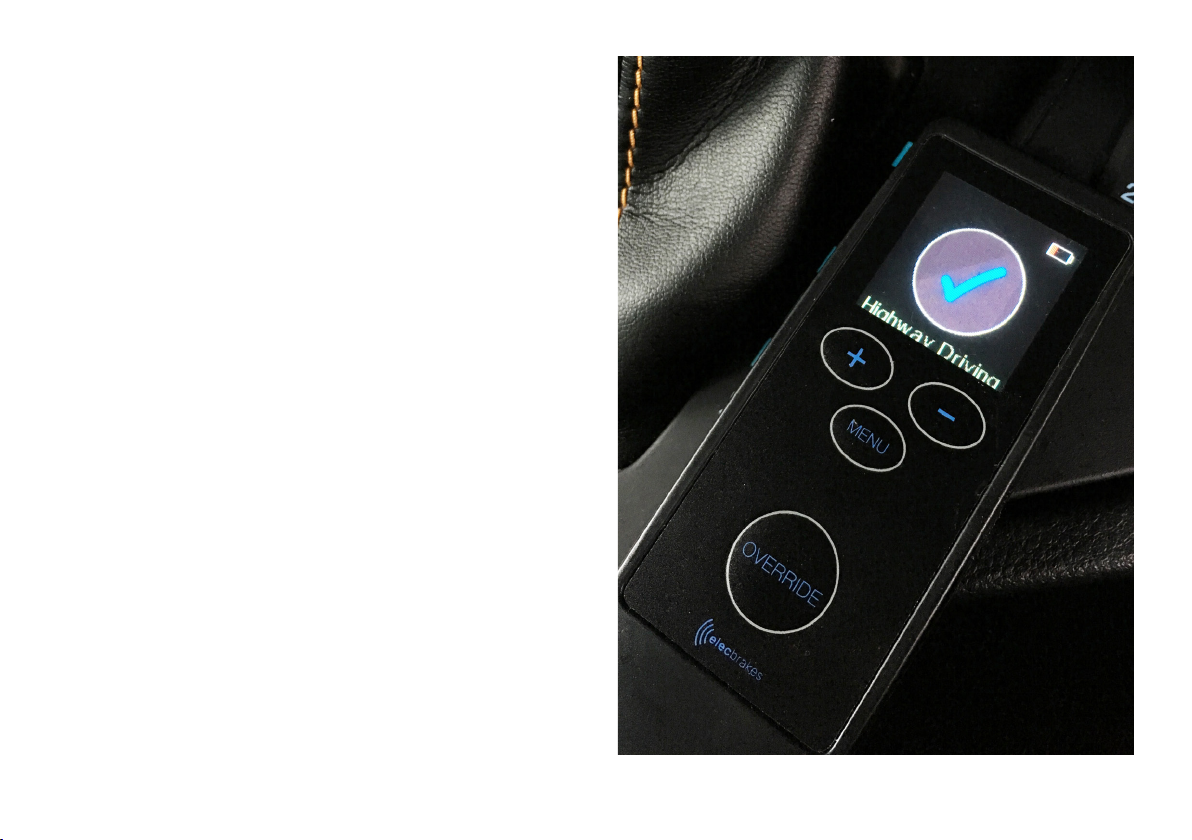

06. Selecting Program

• Press Menu Button once to display active program.

• Active program number displayed (1 – 5) in the
on-screen display.

• Program name displayed at top of screen.

10 Remote Guide

07. Change Program

• From the active screen press the menu button.

• Active program displayed.

• Use increase or decrease buttons to scroll
through programs.

11elecbrakes.com

08. Display/Change Forward
Brake Responses

• Push menu button twice

• Forward response displayed

• Use Increase(+) and Decrease(-) buttons to
change brake response

Note: Forward Response should be ne tuned when
doing >50km/h and moderately pressing brake pedal.

12 Remote Guide

09. Display/Change Minimum Response

• Press Menu button 3 times

• Minimum Response displayed

• Use Increase(+) and Decrease(-) buttons to
change brake response

Note: Minimum Response should be ne tuned
when doing 25kmh and lightly pressing brake pedal

10. Display/Change Reverse Response

• Press Menu button 4 times

• Reverse Response displayed

• Use Increase(+) and Decrease(-) buttons to change
brake response

13elecbrakes.com

11. Manual Override Button

Manual Override allows the driver to apply brake
response on the trailer’s brakes only.

The Remote has a pressure sensitive button, the
harder you press the stronger the brake response.

14 Remote Guide

When you take your nger off the manual override
button the brakes will release.

The screen will display as connected.

15elecbrakes.com

Remote guide16

Elecbrakes Product Warranty

Our goods come with guarantees that cannot be
excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure
and compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure.

In addition to your rights and remedies at law, all
Elecbrakes products are covered by the Elecbrakes
Product Warranty. This Product Warranty is provided by:

Elecbrakes Pty Ltd
PO Box 3593
Wamberal NSW 2260

Tel: [phone]

Email: [e-mail]

17elecbrakes.com.au

What this Product Warranty covers

Elecbrakes warrants that products will be free from defects in materials and workmanship under normal use (as set
out in our product documentation) for a period of 12 months from the original date of purchase (‘Warranty Period’).

This Product Warranty applies only to products purchased from Elecbrakes or our authorised resellers. This Product
Warranty is for the benet of end consumers only and does not apply if you have purchased a product for resale.

What this Product Warranty does not cover

This Product Warranty applies only to hardware components (and not software components) of products and does not cover
defects or damage caused by: (a) normal wear and tear; (b) accidents; (c) neglect; (d) misuse; (e) alterations; (f) incorrect
installation, operation or maintenance (including failure to follow product documentation); (g) disassembly or unauthorised
repairs; or (h) external forces such as water damage, excessive force; extreme heat, cold or environmental conditions. This
Product Warranty does not guarantee that the operation of products will be uninterrupted or error-free.

How to make claim under this Product Warranty

To make a claim under this Product Warranty, you must:

1. contact us by sending an email to <[e-mail]> during the Warranty Period and within 1 month of
becoming aware of the defect;

2. provide: (a) your name and contact information; (b) proof of purchase, showing the date and place of purchase from
Elecbrakes or our authorised reseller; (c) description of the defect; and (d) any other information we require; and

3. return the product (including all components and accessories) to us by sending it to our nominated address.

Unless we agree otherwise, you are responsible for all costs associated with returning a product to us. We will be
responsible for the costs associated with sending you the repaired or replacement product. Products will be at
your risk while they are in transit to and from our nominated address.

Elecbrakes may reject claims under this Product Warranty that are not made in accordance with these terms.
Nothing in this Product Warranty limits or otherwise affects your statutory rights.

18 Remote Guide

What we will do under this Product Warranty

If we assess that a product returned during the Warranty Period has a defect covered by this Product Warranty, we will
at our cost and option: (a) repair the defective product; (b) replace the defective product; or (c) give you a refund of
the original purchase price of the defective product.

Defective products may be replaced with equivalent refurbished products. Refurbished parts may be used to repair
defective products. Repaired or replaced products will be covered under this Product Warranty for the remainder of
the original Warranty Period (replacement or repair does not extend the original Warranty Period). Returned products
and parts that have been replaced will become our exclusive property.

If we determine that a returned product is in satisfactory working order, we may require you to: (a) reimburse our
reasonable costs of inspecting and testing the product; and (b) pay the costs of returning the product to you.

Additional terms

The provisions of this Product Warranty cannot be modied or extended by Elecbrakes’ employees, agents, distributors
or resellers or any other person.

If any provision of this Product Warranty is invalid or unenforceable, it must be read down to the point of severance
(if necessary) and does not affect the remaining provisions.

To the maximum extent permitted by law, Elecbrakes will not be liable for any failure or delay in meeting its obligations
under this Product Warranty to the extent that this is due to circumstances beyond its reasonable control.

The benets given to you by this Product Warranty are in addition to other rights and remedies you have under law in
relation to products to which this Product Warranty relates.

19elecbrakes.com
