Owner’s Manual
Please read this manual carefully before
operating your set.
Retain it for future reference.
Record model number and serial number
o
f the set.
See the label attached on the
set
and
quote this information to your dealer
when you require service.

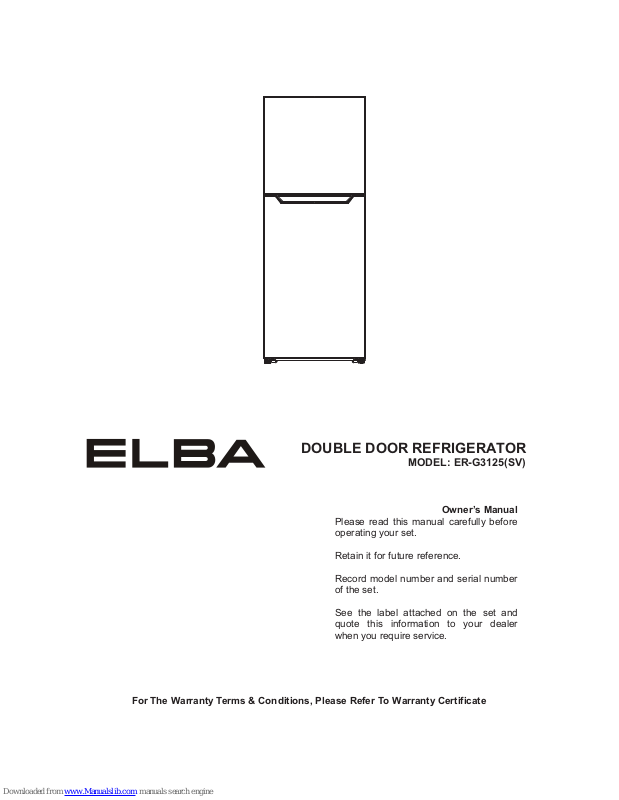

DOUBLE DOOR REFRIGERATOR
MODEL: ER-G3125(SV)
Page 2
Page 3
CONTENTS
1
. SAFETY PRECAUTIONS……………………………………………………………………………….1
2. INSTALLATION…………………..……………………………………………………………………….2-3
3. PRODUCT DESCRIPTION…………………………………………………………………………………4
3.1 OVERVIEW………………………………………………………………………………………………4
3.2 CONTROL PANEL……………………………………………………………………………………5
3.3 COMPARTMENTS OVERVIEW……………………………………………………………………6-7
4. DAILY TIPS…………………………………………………………………………………………………8
4.1 FREEZING FRESH FOOD……………………………………………………………………………8
4.2 RECOMMENDATIONS FOR PRESERVATION OF FROZEN FOOD……………………………8
4.3 DEFROSTING…………………………………………………………………………………………8
5. CLEANING AND MAINTENANCE……………………………………………………………………….9
6. TROUBLESHOOTING…………………………………………………………………………………….10
7. MAIN SPECIFICATION…….…………………………………………………………………………….10
Page 4
REMOVE ALL PACKING MAT
ERIALS FROM THIS APPLIANCE BEFORE USING IT. THIS
APPLIANCE MUST BE INSTALLED ON A FLAT SURFACE. PLEASE ENSURE THE ELECTRICITY
SUPPLY TO THIS APPLIANCE IS DISCONNECTED BEFORE INSTALLING.
Please read this instruction carefully. It is advisable to keep this instruction manual in a safe place for
future reference.
1.
SAFETY PRECAUTIONS
x Keep this appli
ance out of reach from children. Do not let them to operate the appliance
without supervision.
x Check the current rating on the rating plate and make sure the current supplied is matched
with the appliance before using.
x This appliance must be stationed at least 10cm away from the surrounding objects. There
should not be anything to be placed on top of the appliance.
x This appliance is for household and indoor use only.
x This appliance is not intended for use by person (including children) with reduced physical,
sensory or mental capabilities unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
x If the power cord or plug is damaged, it must be replaced by the service centre or a qualified
service technician to avoid hazard.
x This appliance should not be placed near possible heating resources or under direct sunlight
to avoid decreasing the efficiency of refrigeration.
x This appliance should be placed in a cool dry place where there is no vicinity of water
splashing or high humidity.
WARNING - to reduce the risk of fire, electrical shock or injury to persons or property, please read
and f
ollow below instructions carefully:
x Alw
ays operate the appliance from a power source of the same voltage, frequency and rating
as indicated on the appliance identification marking.
x Do not operate this appliance if it has malfunctioned, damaged cord or plug or appears
damaged in any way. Return the complete product to the place of purchase for inspection,
repair or replacement.
x This appliance should not be used in the immediate vicinity of water, such as bathtub,
washbowls, swimming pool etc. where the likelihood of splashing could occur.
x Always switch off and unplug the plug from outlet when not in use and before cleaning.
x When the appliance is operating, the condenser and compressor will be hot.
x This appliance must be grounded and the ground wire should not be connected to any heating
pipe and gas pipe.
x Do not place carbonated or fizzy drinks into the freezer.
x Do not attempt to touch the freezer when your hand is damp or wet as this could cause skin
abrasions or frost burns.
x This appliance is designed to operate in ambient temperatures (surrounding air temperature)
between 16ºC and 32ºC.
x This appliance will create frost in the door seal if the appliance door seal is not in good
condition or door is opened frequently.
1
Page 5
2.
INSTALLATION
1.

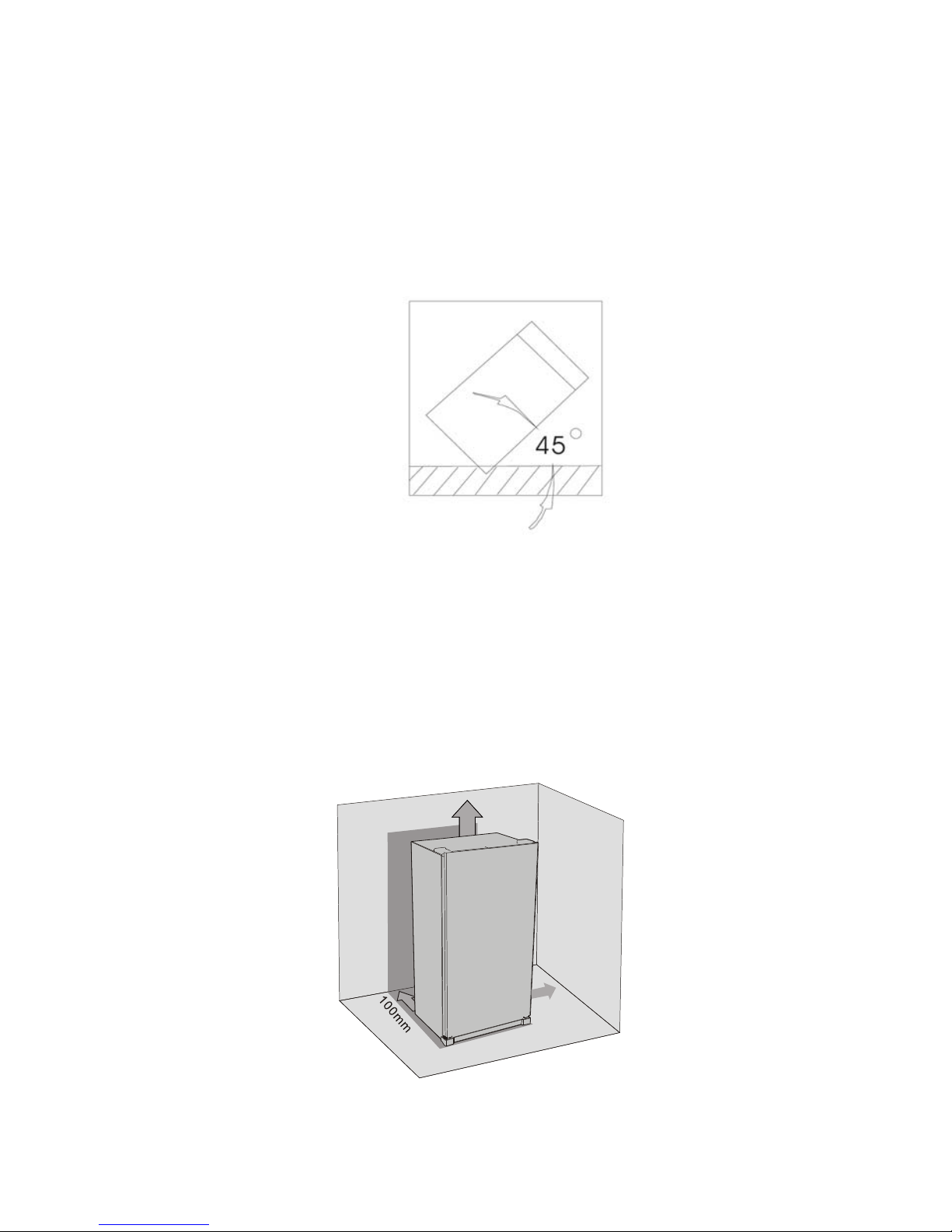

This appliance is heavy. Care should be taken when moving it.
2. When you transport the appliance, the angle between the compartment body and the ground
should not be less than 45º.
WARNING: Never put the appliance upside down.
3.
Once the appliance has landed properly on a flat and stable surface, remove all the packing
material including any plastic packaging material in the appliance.
4. Keep your refrigerator away from heat sources, humid places and direct sunlight. Please avoid
your refrigerator away from heat sources such as hobs, ovens, central heater and stoves.
5. There must be appropriate air ventilation around your refrigerator in order to achieve an efficient
operation. The back of the appliance should be keep at least 100mm distance to a wall for
ventilation purpose. Do not place your product on the materials such as rug or carpet.
50mm
2
Page 6
6.

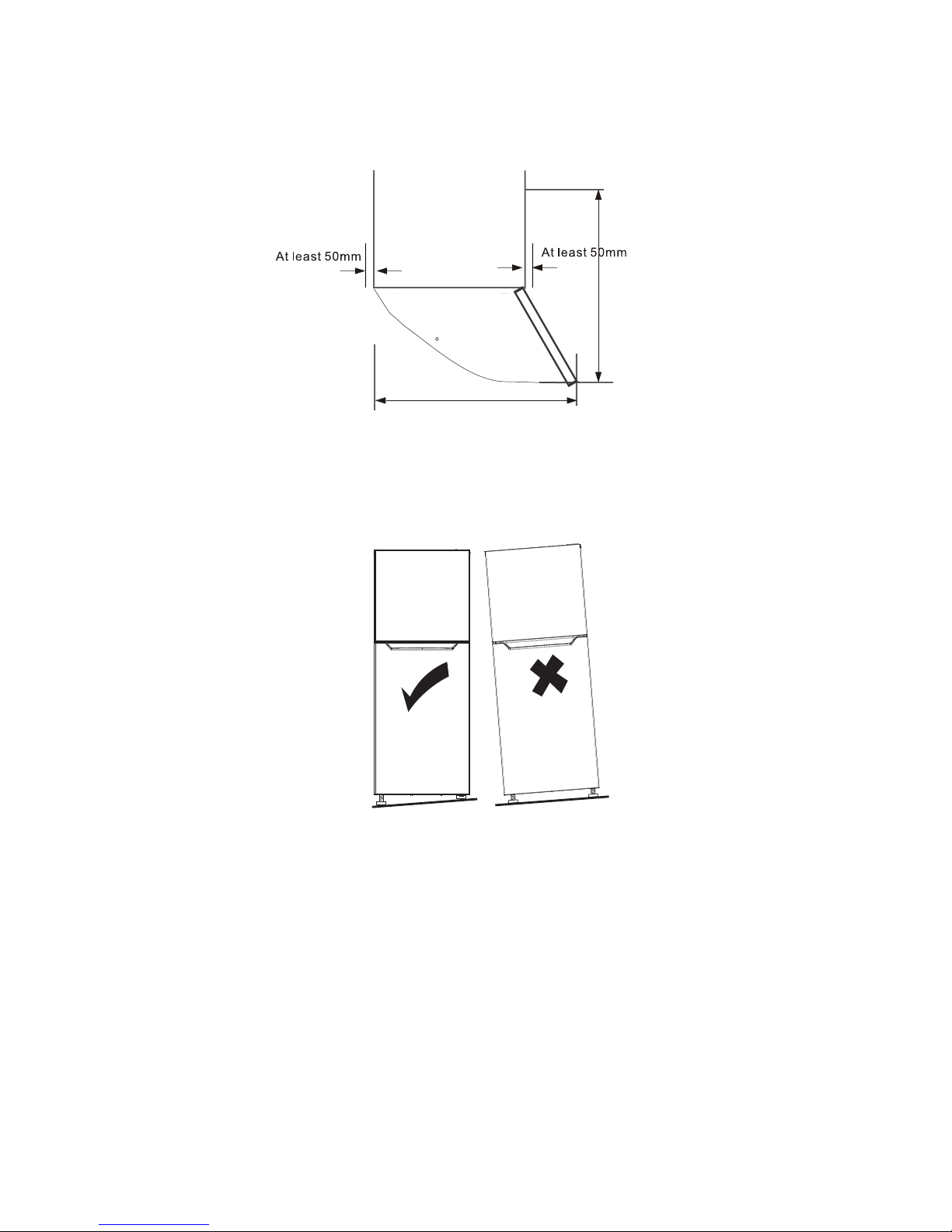

Allow the side of the appliance keep at least 50mm distance when installing and allow the door
be open 135e
7. Please make sure the appliance levelling feet according to the installation condition, please
adjust the feet to the suitable level. If the appliance not level, the doors and magnetic seal
alignments will not be covered properly.
8. Wash the inside of the appliance with lukewarm water with a little bicarbonate of soda added
(5ml to 0.5 litre of water). Do not use soap, detergent or any abrasive cleaner to wash. Dry the
appliance thoroughly after cleaning.
9. Open the fridge door for ventilation of internal compartments. Idle for 4 hours before connecting
the electrical mains to ensure the refrigerant in the compressor has settled well.
10. Connect the electrical mains and switch on the power for 4 hours initially before adding any
goods. Make sure the ground is solid and will not vibrate when the appliance is operating.
11. If these temperatures are exceeded i.e., colder or warmer, the appliance will not operate
correctly. Should the ambient temperatures be exceeded for long periods, the temperature in the
freezer section will rise above ≤ -18ºC and food spoilage may occur.
135
980mm
910mm
3
Page 7
3.
PRODUCT DESCRIPTION

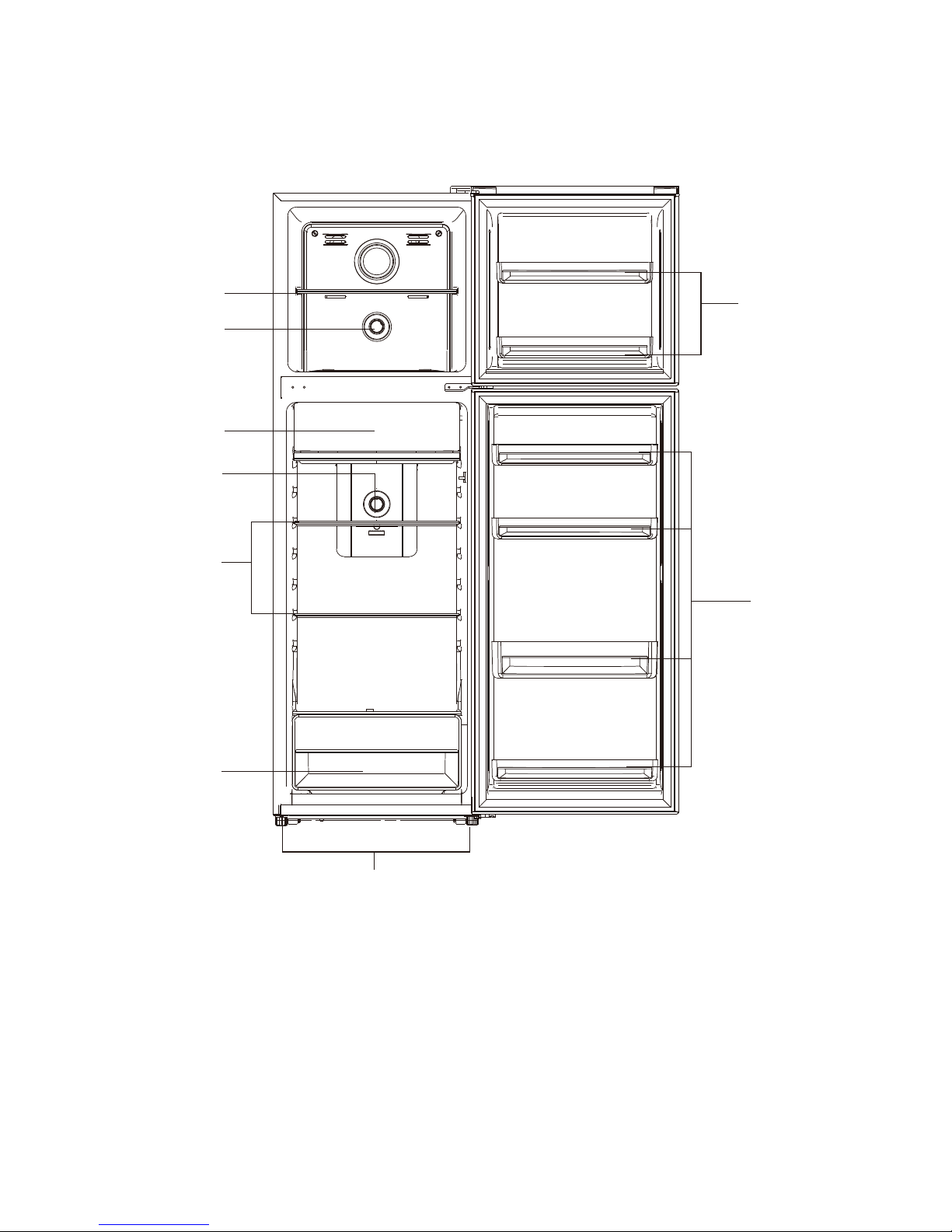

3.1 Ov
erview
1. Tempered glass shelves
2. Freezer temperature control
3. Chilled room
4. Fridge temperature control
5. Tempered glass shelves
6. Moist fresh zone
7. Level feet
8. Balcony / Rack
9. Balcony / Rack
*
The above image is for reference purpose only. The actual appliance maybe slightly different.
1
2
3
4
5
6
7
8
9
4
Page 8
3.
2 Control Panel
3.2.1
Freezer Control Panel

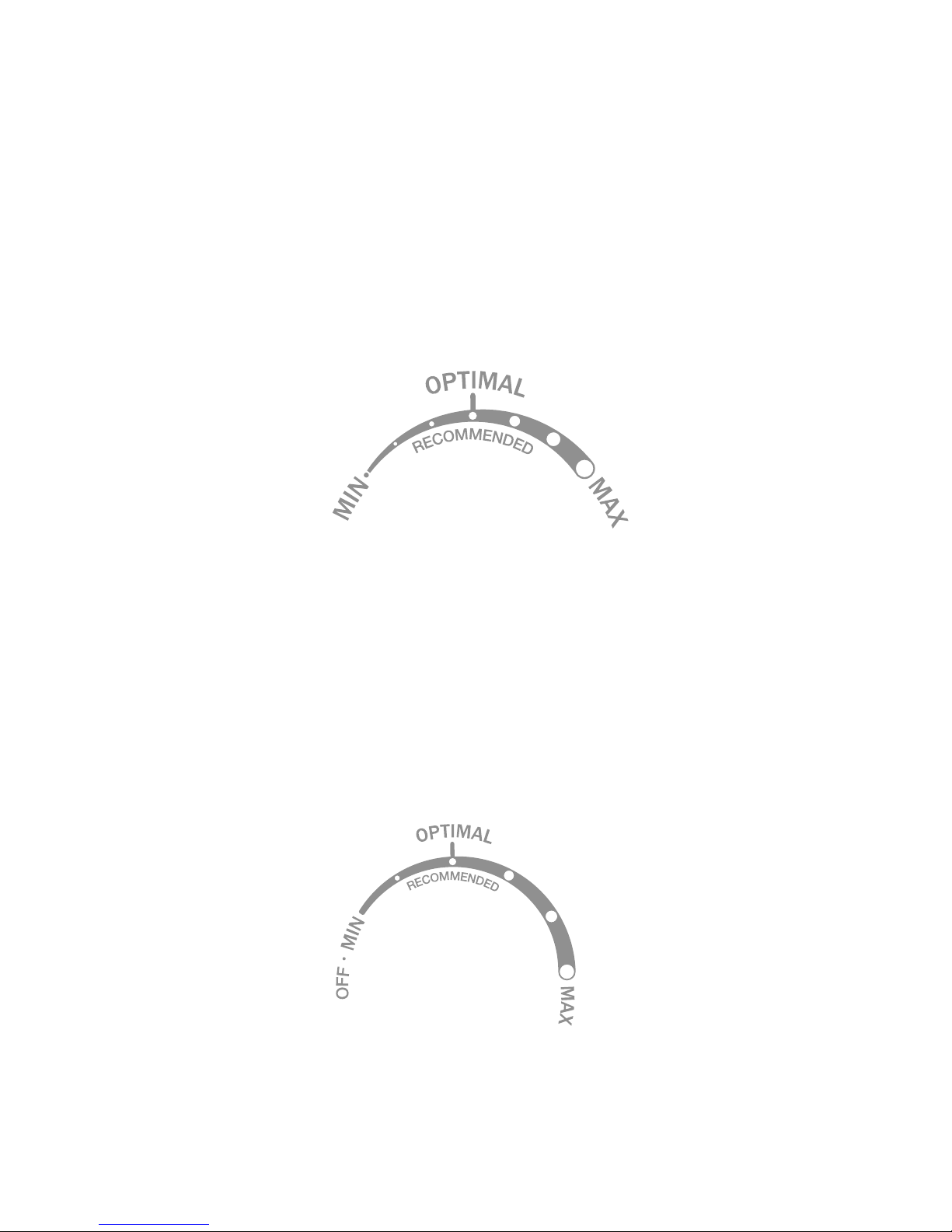

The freezer thermostat control situated in the appliance regulates the temperature setting. The
internal temperature is controlled by a sensor. There are 3 settings which is MIN, OPTIMAL and
MAX. MIN is the warmest setting and MAX is the coldest setting. The coldest temperature is
approximately ≤ -18°C. It’s advisable to use the OPTIMAL setting to avoid the freezer in coldest
temperature and it will reduce the life span of the compressor.
3.2.2 Fridge Control Panel
The fridge thermostat control situated in the appliance regulates the temperature setting. The internal
temperature is controlled by a sensor. There are 4 settings which is OFF, MIN, OPTIMAL and MAX.
MIN is the warmest setting and MAX is the coldest setting. Temperature is approximately between
8°C….to ≤1.5°C according to each temperature setting. The appliance will be turn off completely if
turn to “OFF”. It’s advisable to use the OPTIMAL setting to ensure the foods maintain at the best
quality.
* T
he internal temperature will have a variance if the door open too often as warm air will enter into
fridge and it’s advisable to use the recommended setting to maintain the life span of the compressor.
5
Page 9
3.3 Compartments Ov
erview
Moist Fresh Zone
Moist f
resh zone is designed specially to keep the vegetables fresh without losing their humidity and
maintain the freshness. For this purpose, cool air circulation is intensified around the moist fresh
zone in general. This compartment is the coolest place in the fridge to store the fruits and vegetables.
Humidity Ideal goods
Low
Pears, app
les, g
rapes, mushrooms, peppers, berries and etc.
Hig
h
Carrots, leaf
y greens, spinach, arugula, basil, broccoli and etc.

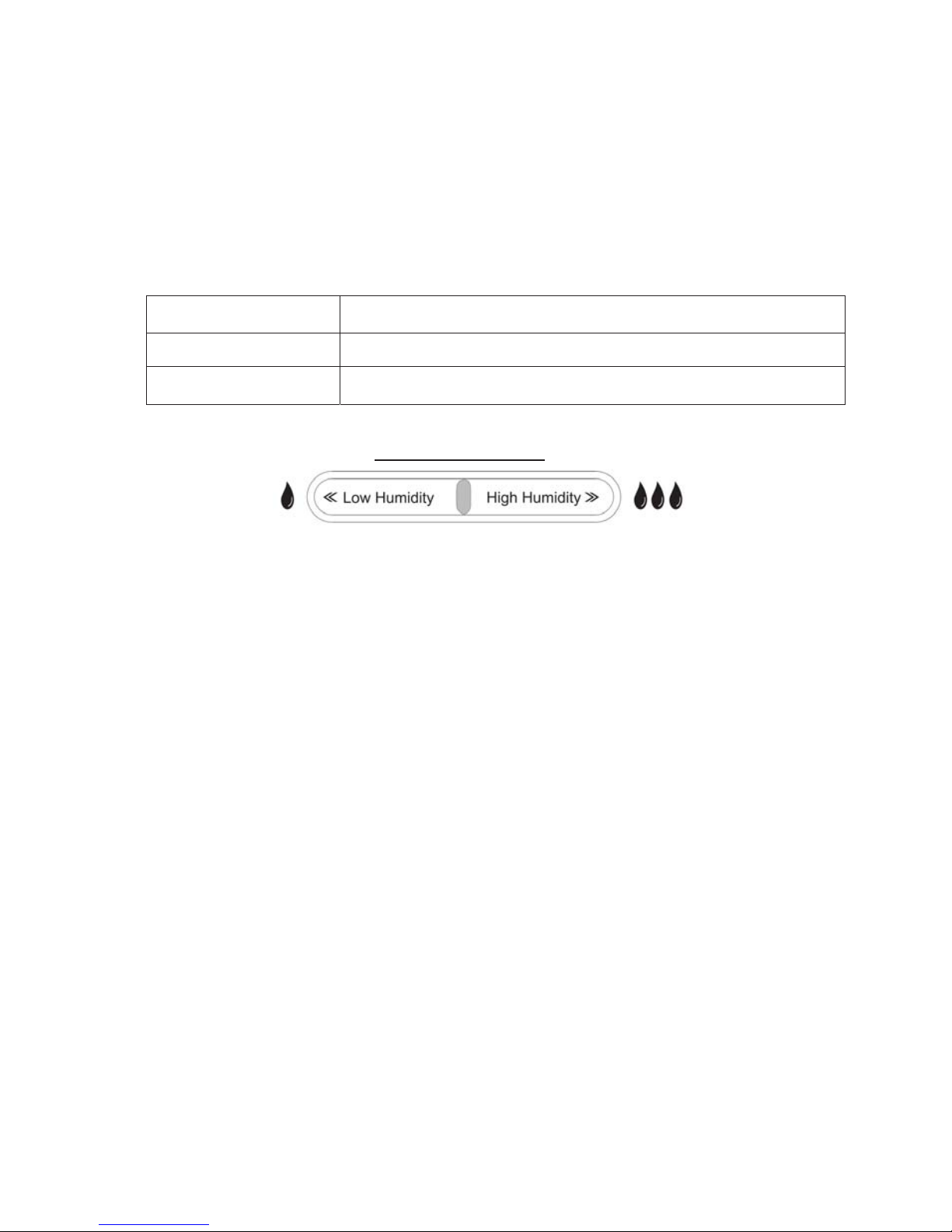

Hum
idity Control Panel
Low Humidity (Fruits): T
urn the humidity level to left and let more cool air enter into fresh zone.
High Humidity (Vegetables): Turn the humidity level to right and let less cool air enter into fresh
zone.
Chilled Room
Use this com
partment to store dairy products that shall be stored in a lower temperature that you will
consume in a short time. This compartment is the slightly warmer than the moist fresh zone where
you can keep dairy products under ideal storage conditions. Fruits and vegetables should not be
stored in this compartment.
Tw
ist Ice Maker
Rem
ove the ice container from the freezer compartment. Then fill the ice container with water. Place
the ice container in the freezer compartment. About two hours later, the ice is ready to serve.
Remove the ice container from the freezer compartment and bend it over the ice storage plate. Ice
cubes will easily fall down to the ice storage plate.
6
Page 10
Other Compartment
The below
chart is the suggested foods to be stored in each compartment.
Compartment Suggested Foods to place
Fr
eezer Compartment
Shelves
Vari
ous frozen food such as meat, fish, ice cream, prawn
and etc.
Eg
g Tray Egg
Fridge Com
partment
Shelves
Food in pans, cov
ered plates and closed containers
Fridge Com
partment
Balcony / Rack
Small
and packaged food or drinks (such as milk, fruit
juice, jam and etc.)
Moist Fresh Zone Veg
etables and fruits
Chilled Room
Dairy
products (cheese, butter and etc.)
7
Page 11
4. DA
ILY TIPS
4.1
Freezing fresh food
x It is recommended to wrap or cover the food before placing them in the refrigerator.
x Hot food must cool down to the room temperature before putting them in the
refrigerator.
x The food that you want to freeze must be fresh and in good quality.
x Food must be divided into portions according to the family’s daily or meal based
consumption needs.
x The food must be packaged in an airtight manner to prevent them from drying even if
they are going to be kept for a short time.
x To minimize moisture loss, fruit and vegetables should be loosely enclosed in a plastic
material. Example: wrap or bags without sealing and place in the moist fresh zone.
x Please observe the following instructions to obtain the best results.
1. Do not freeze too large quantities of food at one time. The quality of the food is
best preserved when it is frozen right through to the core as quickly as possible.
2. Placing warm food into the freezer compartment causes the cooling system to
operate continuously until the food is frozen solid.
3. Do not block the outlet and inlet of the cool air circulating, otherwise the foods will
not be evenly cooled throughout the refrigerator.
4. Take special care not to mix already frozen food and fresh food.
5. Keep the door securely closed.
4.2 Recommendations for preservation of frozen food
x Frozen food must be used immediately after they are thawed and they should never be
re-frozen.
x To ensure that the high quality achieved by the frozen food manufacturer and the food
retailer is maintained, the following should be remembered:
1. Put packages in the freezer as quickly as possible after purchase.
2. Ensure that contents are labelled and dated.
3. Do not exceed "Best Before", "Use By" dates on the product packaging date.
4.3 Defrosting
The freezer compartment defrosts automatically
NOT
E: If there is an electricity cut-off, please wait 10 minutes before operating the appliance again to avoid
damage to the compressor.
8
Page 12
5.
CLEANING AND MAINTENANCE
1.
Always ensure that the electrical main is turned off and unplugged before cleaning the
appliance.

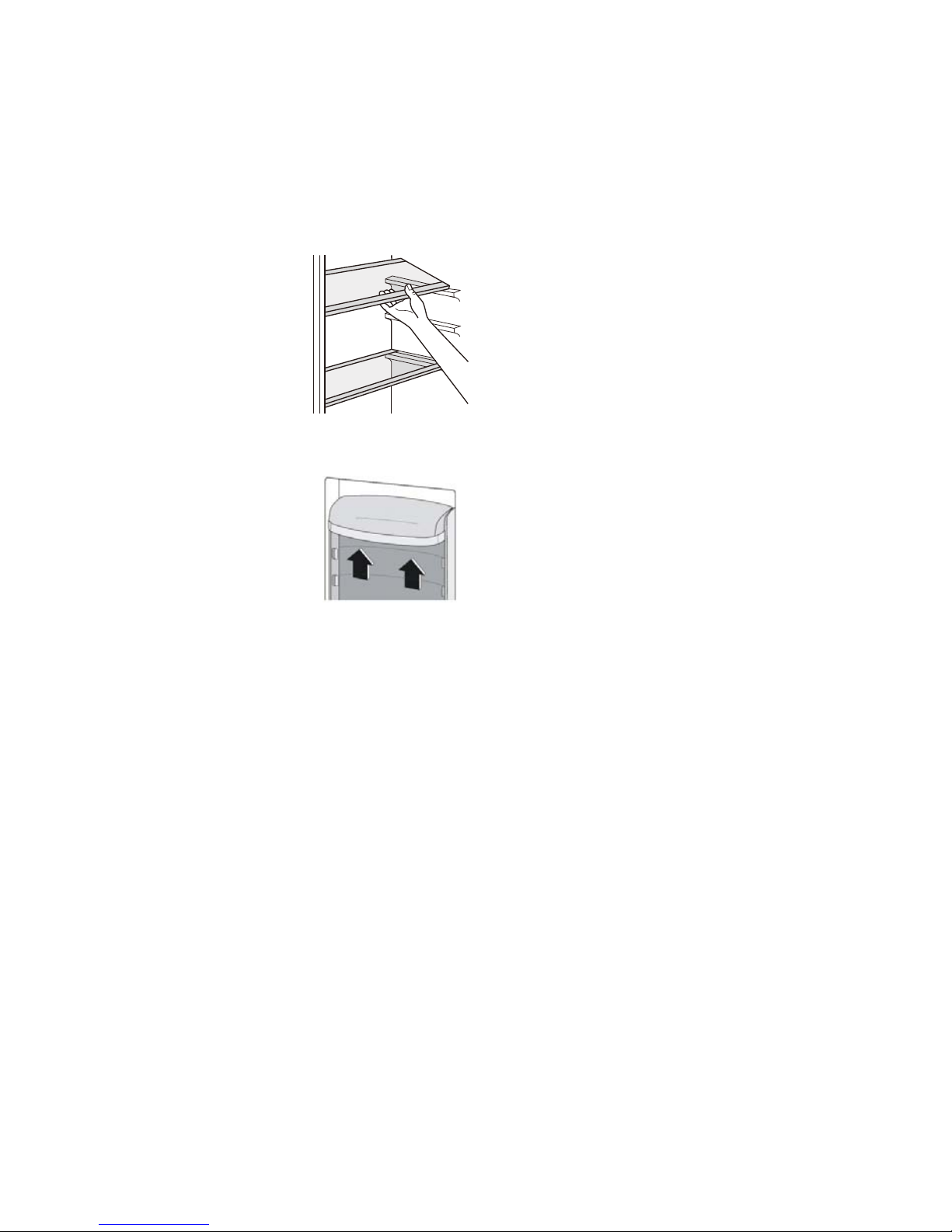

2. Remove the tempered glass shelf by lifting up and pull out slowly.
3. Remove each balcony / rack by lifting up and pull out slowly.
4. Wrap the food and keep them in a cool place.
5.
Do not use chemical, steel, wooden or abrasive cleaners to clean the appliance.
6. Never use sharp instruments to scrape off frost or ice.
7. After cleaning, wipe the appliance until it is completely dry.
8. Use warm water to clean the oil and stains on the gasket in order to keep its elasticity.
9. This appliance should be serviced by an authorised service technician. Please contact
the service centre if you required service on the appliance.
10. Under no circumstances should you attempt to repair the appliance by yourself.
11. Repairs carried out by inexperienced persons may cause injury or serious
malfunctioning.
9
Page 13
6.
TROUBLESHOOTING
7.0 MAIN SPECIFICATION
M
odel No : ER-G3125(SV)
Gross Capacity : 310 Litres
Net Capacity : 251 Litres
Climatic Type : T
Insulation Class : CLASS I
Total Input Power : 130 W
Rated Voltage : 220-240V / 50Hz
Rated Current : 1.2 A
Refrigerant : R600a (52g)
Product Dimension (mm): 545 (W) x 595 (D) x 1665 (H)
NO
TICE
This appliance must not be disposed together with domestic waste. It has to be disposed at an authorized
place for recycling of electrical and electronic appliances. By collecting and recycling waste, you help to
save natural resources and make sure the appliance is disposed in an environmental friendly and healthy
way.
Failure Failure Reason P
ossible Solution
Appli
ance does not work
The plug is not plugged or is
loose.
Plug in and turn on the power.
The f
use on the plug has blown. Change the fuse.
Appli
ance freezes or too
cold
Temperature is set too cold.
Turn the temperature regulator
to a warmer setting.
The f
ood is not frozen
enough
Temperature is not properly set.
Please refer to control panel
pag
e to set the corr
ect
tem
perature.
Door is opening
too regular.
Reduce the frequency to open
the door.
Larg
e quantity of warm food was
placed in the fridge within last 4
hours.
Turn the temperature to a
colder setting for a temporary
cool down.
Di
rectly under sunlight or too
close to heat resources.
Do not install the appliance
under direct sunlight.
Heav
y build up of frost on
the door seal
Door seal is not tight.
Please contact technician to
replace a new door seal if
necessary.
Unusual noises Appli
ance is not level. Readjust the feet.
10
Page 14
Page 15
Page 16
&.(%$7
Loading...
