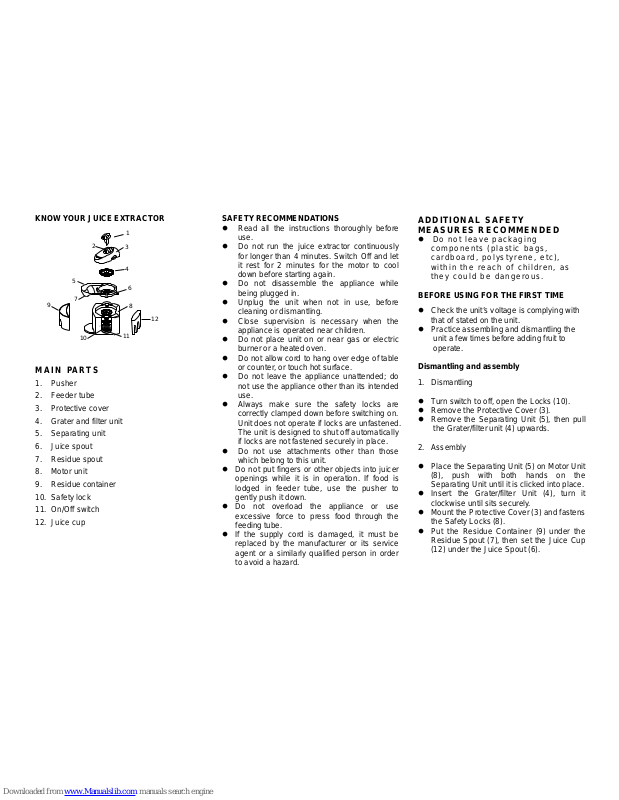

Page 1
KNOW YOUR JUICE EXTRACTOR
MAIN PARTS
1. Pusher
2. Feeder tube
3. Protective cover
4. Grater and filter unit
5. Separating unit
6. Juice spout
7. Residue spout
8. Motor unit
9. Residue container
10. Safety lock
11. On/Off switch
12. Juice cup
SAFETY RECOMMENDATIONS
Read all the instructions thoroughly before
use.
Do not run the juice extractor continuously
for longer than 4 minutes. Switch Off and let
it rest for 2 minutes for the motor to cool
down before starting again.
Do not disassemble the appliance while
being plugged in.
Unplug the unit when not in use, before
cleaning or dismantling.
Close supervision is necessary when the
appliance is operated near children.
Do not place unit on or near gas or electric
burner or a heated oven.
Do not allow cord to hang over edge of table
or counter, or touch hot surface.
Do not leave the appliance unattended; do
not use the appliance other than its intended
use.
Always make sure the safety locks are
correctly clamped down before switching on.
Unit does not operate if locks are unfastened.
The unit is designed to shut off automatically
if locks are not fastened securely in place.
Do not use attachments other than those
which belong to this unit.
Do not put fingers or other objects into juicer
openings while it is in operation. If food is
lodged in feeder tube, use the pusher to
gently push it down.
Do not overload the appliance or use
excessive force to press food through the
feeding tube.
If the supply cord is damaged, it must be
replaced by the manufacturer or its service
agent or a similarly qualified person in order
to avoid a hazard.
ADDITIONAL SAFETY
MEASURES RECOMMENDED
Do not leave packaging
components (plastic bags,
cardboard, polystyrene, etc),
within the reach of children, as
they could be dangerous.
BEFORE USING FOR THE FIRST TIME
Check the unit’s voltage is complying with
that of stated on the unit.
Practice assembling and dismantling the
unit a few times before adding fruit to
operate.
Dismantling and assembly
1. Dismantling
Turn switch to off, open the Locks (10).
Remove the Protective Cover (3).
Remove the Separating Unit (5), then pull
the Grater/filter unit (4) upwards.
2. Assembly
Place the Separating Unit (5) on Motor Unit
(8), push with both hands on the
Separating Unit until it is clicked into place.
Insert the Grater/filter Unit (4), turn it
clockwise until sits securely.
Mount the Protective Cover (3) and fastens
the Safety Locks (8).
Put the Residue Container (9) under the
Residue Spout (7), then set the Juice Cup
(12) under the Juice Spout (6).
OFF
ON
1
2
3
4
5
7
6
8
11
10
9
12
Page 2
OPERATION
This appliance is designed with a safety
system. If the cover is not placed correctly
or if the safety locks (10) are not securely
fastened, the appliance will not function.
Before plugging in, make sure the On/Off
switch (11) is off and the Safety Locks are
fastened correctly.
Cut fruits into small pieces so as to be fitted
into the feeder tube (2).
Remove the seed or peel from fruits such as
apples, preaches, prunes, cherries etc.
Switch on and feed the sliced fruits and
vegetables into the feeder tube and press
down gently with the Pusher (1).
Fruits can be fed in continually until the
residue container & pulp reservoirs are full.
Before emptying the pulp reservoir, switch
off the appliance.
CLEAN & CARE
SW ITCH OFF THE APPLIANCE AND UNPLUG.
1. Remove the cover and the separator unit as
well as grater/filter unit.
2. Remove the pulp from the reservoir &
protective cover and wash both parts.
3. Wash the grater/filter unit in water with soft
brush only; never use bleach or scouring pad.
4. Only wipe the outside body of the motor unit
with a dry cloth.
5. The motor unit must not be immersed in water.
Caution
Grater/ filter unit has sharp blade, always
apply pusher into the feeder tube during
operation.
Unplug the unit before cleaning or
disassembling.
Do not immerse the unit in any liquid
Do not use melon for juice extraction.
For household use only
JUICER EXTRACTOR
MODEL NO.: EJE-1302
Specification
Voltage
220-
240V
~50Hz
Wattage
300W Jar capacity
350 ml
