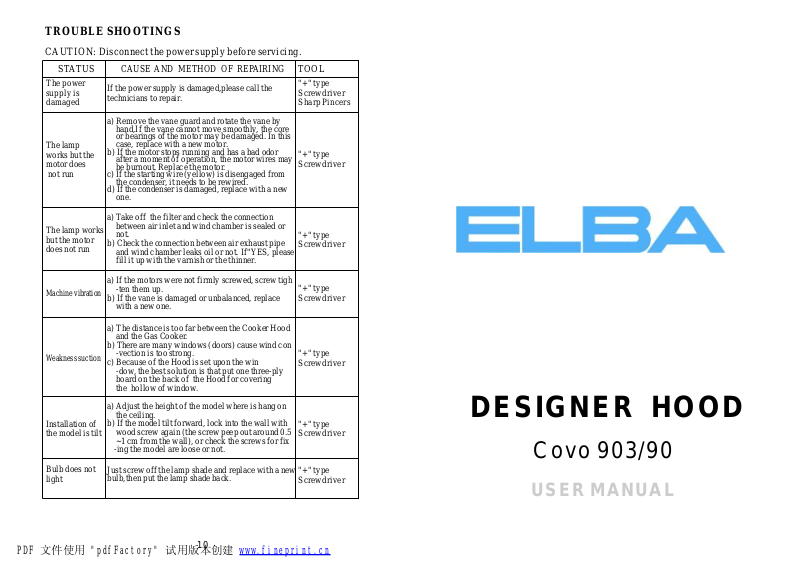

TROUBLE SHOOTINGS
10
CAUTION: Disconnect the power supply before servicing.
STATUS
The power
supply is
damaged
The lamp
works but the
motor does
not run
The lamp works
but the motor
does not run
Machine vibration
Weakness suction
CAUSE AND METHOD OF REPAIRING
If the power supply is damaged,please call the
technicians to repair.
a) Remove the vane guard and rotate the vane by
hand,If the vane cannot move smoothly, the core
or bearings of the motor may be damaged. In this
case, replace with a new motor.
b) If the motor stops running and has a bad odor
after a moment of operation, the motor wires may
be burnout. Replace the motor.
c) If the starting wire (yellow) is disengaged from
the condenser, it needs to be rewired.
d) If the condenser is damaged, replace with a new
one.
a) Take off the filter and check the connection
between air inlet and wind chamber is sealed or
not.
b) Check the connection between air exhaust pipe
and wind chamber leaks oil or not. If"YES, please
fill it up with the varnish or the thinner.
a) If the motors were not firmly screwed, screw tigh
-ten them up.
b) If the vane is damaged or unbalanced, replace
with a new one.
a) The distance is too far between the Cooker Hood
and the Gas Cooker.
b) There are many windows (doors) cause wind con
-vection is too strong.
c) Because of the Hood is set upon the win
-dow, the best solution is that put one three-ply
board on the back of the Hood for covering
the hollow of window.
TOOL
"+" type
Screwdriver
Sharp Pincers
"+" type
Screwdriver
"+" type
Screwdriver
"+" type
Screwdriver
"+" type
Screwdriver
a) Adjust the height of the model where is hang on
the ceiling.
Installation of
the model is tilt
Bulb does not
light
b) If the model tilt forward, lock into the wall with
wood screw again (the screw peep out around 0.5
~1 cm from the wall), or check the screws for fix
-ing the model are loose or not.
Just screw off the lamp shade and replace with a new
bulb,then put the lamp shade back.
PDF 文件使用 "pdfFactory" 试用版本创建 www.fineprint.cn
DESIGNER HOOD
"+" type
Screwdriver
Covo 903/90
"+" type
Screwdriver
USER MANUAL
Page 2
READ AND SAVE THESE INSTRUCTIONS MANUAL
CONTENTS
TECHNICAL CHARACTERISTICS ...................................... 1
Glove
Dress the protective
glove before you start to
clean the hood. Remove the
components gently during
carrying out the
clearance.
BODY SIZE ....................................................................................1
MAIN PARTS NAME .......................................................................2
INSTALLATION REQUIREMENT......................................2
INSTALLATION PROCEDURES.......................................3
OPERATING INSTRUCTION..............................................6
MAINTENANCE.........................................................................7
TO REPLACE LIGHT BULB...............................................7
IMPORTANT SAFETY INSTRUCTIONS...........................9
TROUBLE SHOOTINGS.................................................................11
Please note that this product is marked with this symbol:
According to Waste of Electrical and Electronic Equipment
(WEEE) directive, WEEE should be separately collected and
treated. If at any time in future you need to dispose of this
product, Please do NOT dispose of this product with house hold
waste. Please send this product to WEEE collecting points where
available.
Never wash the
control switch with water
or other kind of liquid to avoid
the liquid might cause
electrical problem to
the hood.
To clean the motor
fan should be undertaken
by a qualified person, pay top
attention to avoid any distortion
of the fan during carrying
out the clearance.
Never pull the plug
out of the power supply by
wet hand to avoid the
possibility of electric
shock.
Disconnect the
cooker hood from the
power supply if this appliance
will not be used for
a long time.
PDF 文件使用 "pdfFactory" 试用版本创建 www.fineprint.cn
9
Page 3
IMPORTANT SAFETY INSTRUCTIONS:
Do not connect the air
outlet to chimney flues or
combustion gas ducts.
Do not leave naked
flames under this hood
In case of any
damage to power cable,
replace the broken cable with
a new one by qualified person.
Dear consumer,
Thanks for your purchase of our cooker hood and we hope we can fully
satisfy all of your needs. Please read entire instructions carefully before
proceeding to obtain the best results of using the cooker hood.
TECHNICAL CHARACTERISTICS
Model No.:
Total power: 254W
Speed motor: 250W
L
ights: 22W LED lights ×
Voltage: 220V240V
Frequency: 50Hz
Filter: 6-Layer filter
Control: Small LCD switch
Covo 903/90
～

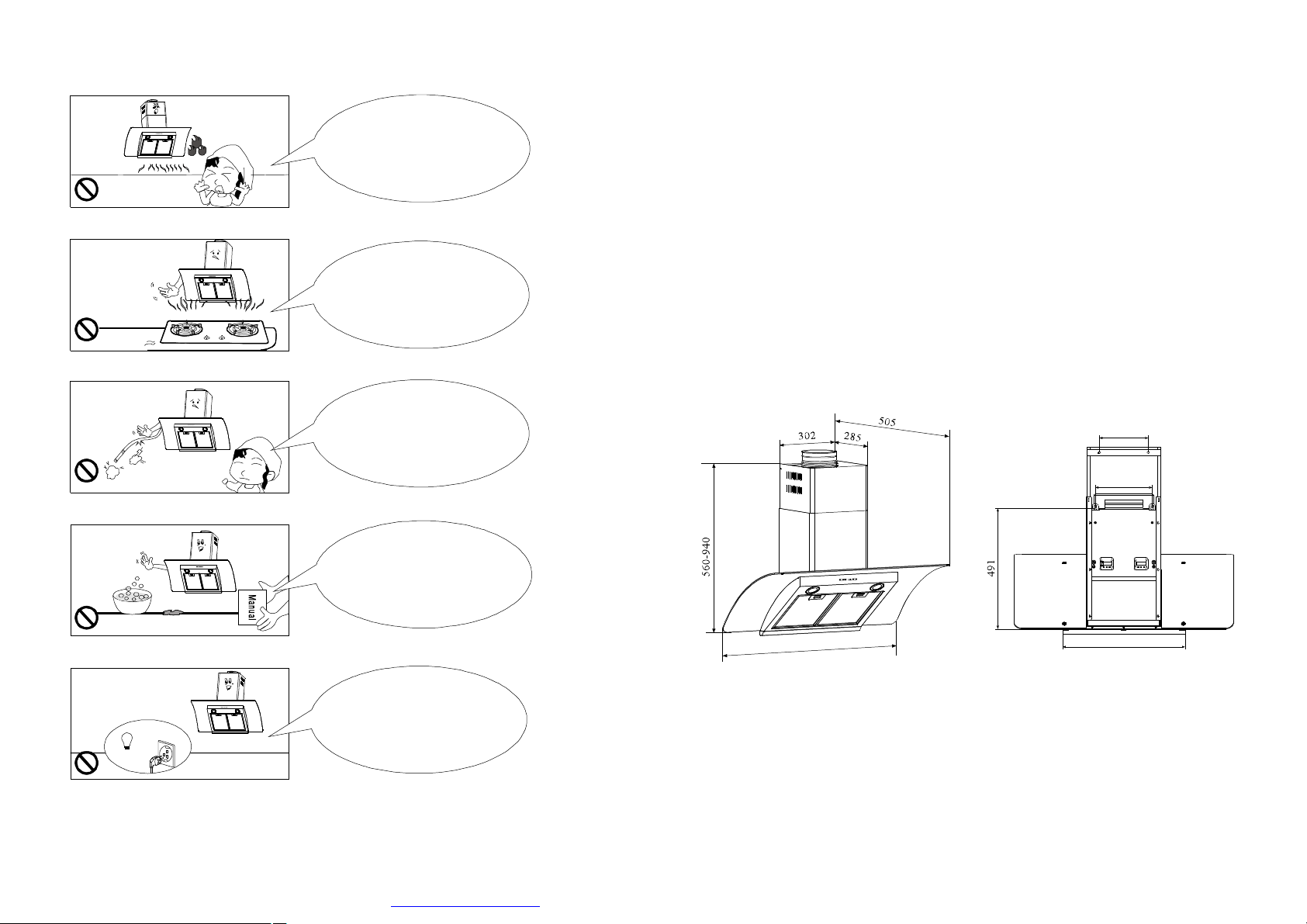

BODY SIZE
200
232
Do clean the hood
correctly in accordance
with instruction stated or it
might cause the possibility
of fire accident
To replace the bulb
should be undertaken by a
qualified electrician or a
competent person. Always
use the bulb no more
than rating.
8
PDF 文件使用 "pdfFactory" 试用版本创建 www.fineprint.cn
895
500
1
Page 4

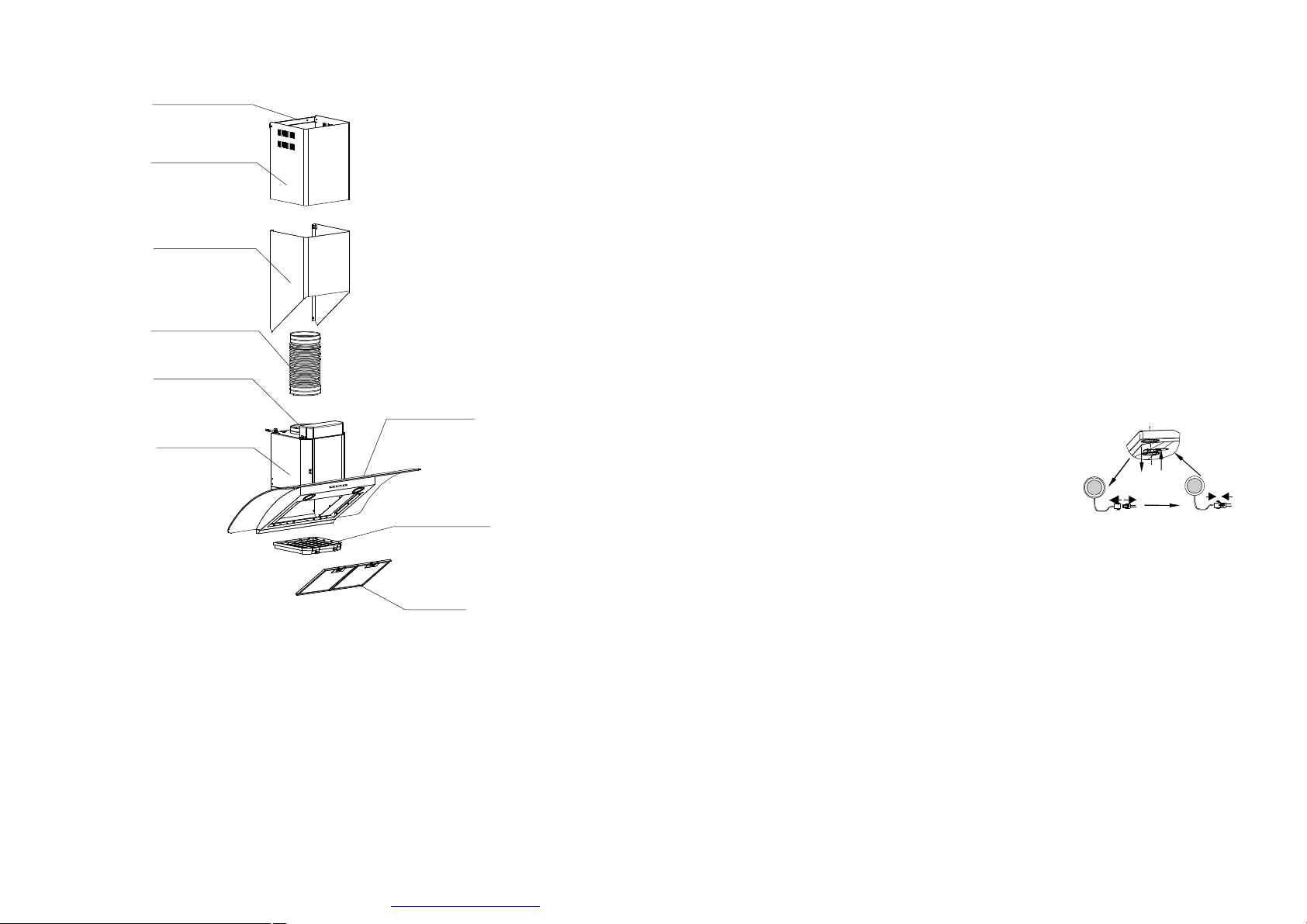

MAIN PARTS NAME
Duct bracket
Inner duct cover
Outer duct cover
Exhaust pipe
Air outlet
Blower box
Tempered
glass canopy
Charcoal filter
Filter
MAINTENANCE
CAUTION: NEVER PUT YOUR HAND INTO THE AREA HOUSING WHILE THE FAN IS
OPERATING. FOR THE OPTIMAL LEVEL OF OPERATION,CLEAN THE COOKER HOOD
SURFACE, FAN, AND ALUMINIUM FILTER REGULARLY.
1. Use only mild soap pr detergent solutions to clean the cooker hood surface.
Dry surface using soft cloth.
2. Using a stainless steel cleaner to bring the glow back into a stainless steel finish.
3. Clean the aluminium filter once a week or according to use status. Press the
buckle of the aluminium filter slightly, take off the aluminium filter and put it into
warm soap water using mild detergent, wipe the aluminium filter with soft brush.
Replace the filter after it is dry.
4. Clean the motor fan and other inside parts once half year or according to use by
QUALIFIED PERSON.
5. DO NOT cleaning motor with water or other liquid.
TO REPLACE LIGHT BULB
To replace led lamp(pic1)
Caution: LED lamp can not replace a new bulb, just can replace a new LED Lamp.
Make sure all the control switches are off, and the cooker
hood is unplugged! Please follow below instructions:
1.Take out the filters, and cut off the wire connection of the lamp.
2.Press the spring according to the arrow direction, then
you can take off the lamp unit.
3.You can replace a new LED lamp unit no more then rating!
4. Then put the lamp unit to the hood in reverse direction. Connect the wire of the lamp.
5. Fit on the filters.
Pic.1
INSTALLATION REQUIREMENT

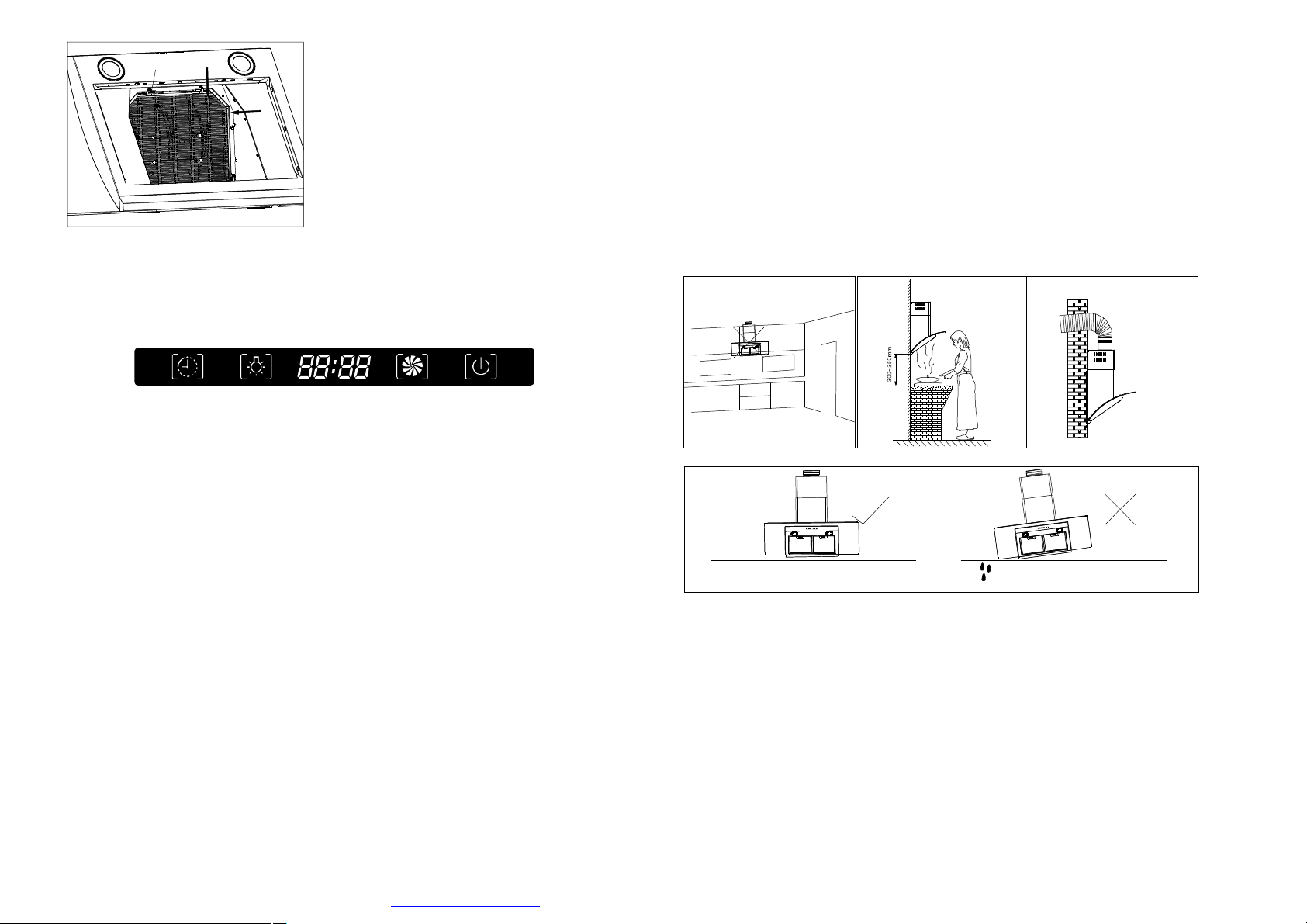

1. Do not install the cooker hood where there are many doors or windows
in order to avoid to effecting the exhaust efficiency of the hood caused
by air convection. (Fig. 1)
2. Install the cooker hood right above the hob.The recommended distance
between the hob and the lower edge of the cooker hood is minimum
300mm and maximum 350mm. (Fig. 2)
2
PDF 文件使用 "pdfFactory" 试用版本创建 www.fineprint.cn
7
Page 5
Clip
Step 9:
②
①
Charcoal Filer
Install: First step, take out the flat filter,
put the charcoal filter near the blower box,
press charcoal filter clip to ward the direc
-tion of arrow. then make the charcoal
①
filter connect blower box tightly.
Remove: Take out the flat filter, press
charcoal filter clip and pull out toward
the direction of arrow.
②
3. In order to get the optimum performance, do not elongate the exhaust
pipe too long, and try to make the bend of exhaust pipe less and biggest,
ensure the connection is airproof.(Fig. 3)
4. After hanging the unit on the wall, ensure the hood is level and vertical.
(Fig. 4)
5. The air outlet must not be connected to chimney flues or combustion gas
ducts. The air outlet must under no circumstances be connected to venti lation ducts for room in which fuel-burning appliances are installed.
OPERATION INSTRUCTION
A
A: Timer: 1.When the hood is working, touch this button one time, the hood will
work for 1 minute, after 1 minute, it will turn off automatically, touch
each one more time can add 1 minute, the longest time you can set is 60
minutes.
2.When the hood is non-working, touch this button 3 seconds, you can
use "Lighting" and "Speed" button to set time like a clock, "Lighting"
can set hour, "Speed" can set minute.
B: Lighting: Touch this button one time, the lamp will be lighted; Touch again, the
lamp will extinguish.
C:Speed: Touch this button, the motor works in high speed, touch this button again,
the middle speed runs; touch the button thrice, the low speed runs; the
motor stops after touching it quartic.
D: On/Off: This general On/Off button, touch this button first before you touch
other buttons; touch this button when the hood is working, the motor
stops running, lights turn off.
B C D
Fig.1 Fig.2 Fig.3
LEVEL
LEAN
INSTALLATION PROCEDURES
SAFETY WARNING
HOOD MAY HAVE VERY SHARP EDGES;PLEASE WEAR
PROTECTIVE GLOVES IF IT IS NECESSARY TO REMOVE ANY
PARTS FOR INSTALLING, CLEANING OR SERVICING.
Fig.4
6
PDF 文件使用 "pdfFactory" 试用版本创建 www.fineprint.cn
3
Page 6
Outer duct cover

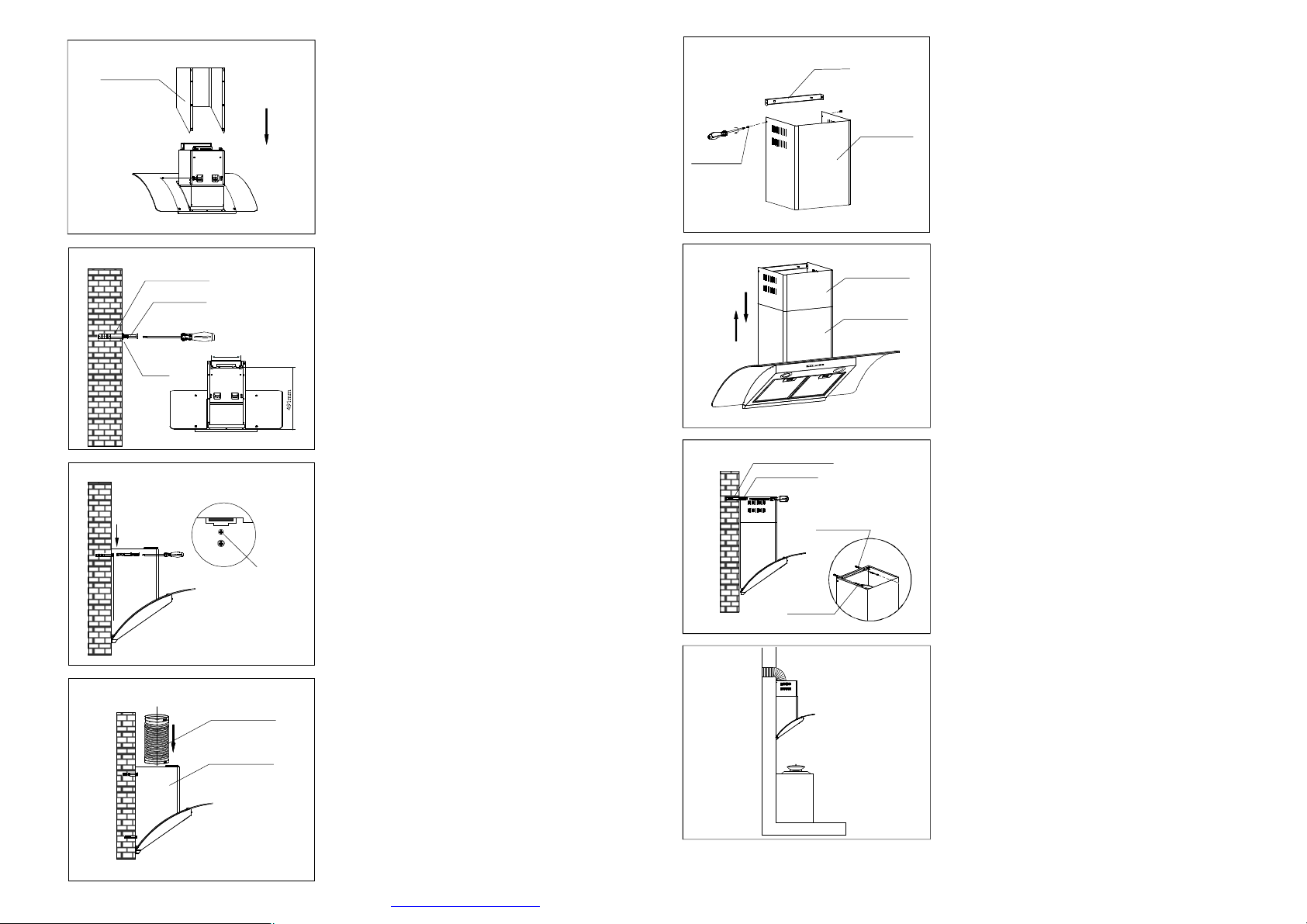

Step 1:
