Elation WW Tone User Manual

WW TONE

Elation Professional
6122 S Eastern Ave

Los Angeles, Ca 90040

www.elationlighting.com

Thank you for your patronage. We are confident that our excellent products and service can
satisfy you. For your own safety, please read this user manual carefully before installing the
device.
In order to install , operate, and maintain the lighting safety and correctly. We suggest that the
installation and operation should be done by the verified technician and follow the instruction
strictly.

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow carefully the instructions of this manual

INTRODUCTION:

Thank you for having chosen this professional LED moving head.
You will see you have acquired a powerful and versatile device.

Unpack the device. Inside the box you should find:

1. One XLR connection cable

2. A power cable

3. One safety rope

4. Manual

5. Barn-door

6. Frost filter

Please check carefully that there is no damage caused by transportation. Should there be any,
consult your dealer and don’t install this device.

Features

·LED type: BXRA-W3000

·Channel mode: 2 channels

·Strobe effect with 1-13 flashes per second and pulse effect

·4 digit LED display

·Display: Can be changed 180° reverse to fit for different installation position.

·Software-upload by optional accessory via DMX line

- - XM605-V1.0-NR

１

Overview

SAFETY INSTRUCTIONS

This device has left the factory in perfect condition. In order to maintain this condition and to
ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and
warning notes written in this user manual.

Important:
Damages caused by the disregard of this user manual are not subject to warranty. The
dealer will not accept liability for any resulting defects or problems.

If the device has been exposed to temperature changes due to environmental changes, do not
switch it on immediately. The arising condensation could damage the device. Leave the device
switched off until it has reached room temperature.

This device falls under protection-class I. Therefore it is essential that the device be earthed.

The electric connection must carry out by qualified person.

Make sure that the available voltage is not higher than stated at the end of this manual.

1) Display

2) Mode/Esc-button

3) Up-button

4) Down-button

5) Enter-button

6) Safety eyelet

7) Power output

8) Power inpot/Fuse

9) 3-Pin DMX in

10) 3-Pin DMX out

11) Fixation screw

12) Floor-stand

- - XM605-V1.0-NR

２

Make sure the power cord is never crimped or damaged by sharp edges. If this would be the case,
replacement of the cable must be done by an authorized dealer.

Always disconnect from the mains, when the device is not in use or before cleaning it. Only
handle the power cord by the plug. Never pull out the plug by tugging the power cord.

During initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective, it should decrease gradually.

Please don't project the beam onto combustible substances.

If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced
by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.

Please be aware that damages caused by manual modifications to the device are not subject
to warranty. Keep away from children and non-professionals.

GENERAL GUIDELINES

This device is a lighting effect for professional use on stages, in discotheques, theatres, etc., the
device was designed for indoor use only.

This fixture is only allowed to be operated with the max alternating current which stated in the
technical specifications in the last page of this manual.

Lighting effects are not designed for permanent operation. Consistent operation breaks may
ensure that the device will serve you for a long time without defects.

Do not shake the device.Avoid brute force when installing or operating the device.

While choosing the installation-spot, please make sure that the device is not exposed to extreme
heat, moisture or dust. Please don't project the beam onto combustible substances.The minimum
distance between light-output from the projector and the illuminated surface must be more than
0,1 meter.

If you use the quick lock cam in hanging up the fixture, please make sure the quick lock fasteners
turned in the quick lock holes correctly.

Operate the device only after having familiarized with its functions. Do not permit operation by
persons not qualified for operating the device. Most damages are the result of unprofessional
operation.

- - XM605-V1.0-NR

３

Please use the original packaging if the device is to be transported.

For safety reasons, please be aware that all modifications on the device are forbidden.

If this device will be operated in any way different to the one described in this manual, the
product may suffer damages and the guarantee becomes void. Furthermore, any other operation
may lead to short-circuit, burns, electric shock, lamp explosion, crash, etc.

INSTALLATION INSTRUCTIONS

a) Mounting the device

The applicable temperature for the lighting is between -25°C to 45°C. Do not use the lighting
under or above the temperature.

The installation of the effect has to be built and constructed in a way that it can hold 10 times the
weight for 1 hour without any harming deformation.

The installation must always be secured with a secondary safety attachment, e.g. an appropriate
safety rope.

Never stand directly below the device when mounting, removing or servicing the fixture.

The operator has to make sure the safety relating and machine technical installations are approved
by an expert before taking the device into operation for the first time.

These installations have to be approved by a skilled person once a year.

Overhead mounting requires extensive experience, including amongst others calculating
working load limits, installation material being used, and periodic safety inspection of all
installation material and the device. If you lack these qualifications, do not attempt the
installation yourself. Improper installation can result in bodily injury.

T h e$el ec tr i c $ c o n n e c ti o n $m u s t$onl y $ b e$c a r ri ed $o u t$ b y $a $qu a l i f i e d $ el ec tri c i an.$

Before mounting make sure that the installation area can hold a minimum point load of 10 times
the device’s weight.
Connect the fixture to the mains with the power plug.

- - XM605-V1.0-NR

４

Installation via the Omega holders

a) Fixed the clamp on the bracket by tighten up the M12 screw on the bracket to the Ф13 hole in

the middle of the bracket.

b) Insert the quick-lock fasteners of the first Omega holder into the respective holes on the

bottom of the device. Tighten the quick-lock fasteners fully clockwise.

c) Install the second Omega holder.
d) Pull the safety-rope through the holes on the bottom of the base and over the trussing system

or a safe fixation spot. Insert the end in the carabine and tighten the safety screw.

Notice: this step is quite important to ensure that the fixture will not drop out by the
damage of the clamp.

DMX-512 control connection

Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other
side to the male 3-pin XLR input of the moving head. You can chain multiple
Moving head together through serial linking. The cable needed should be two core, screened

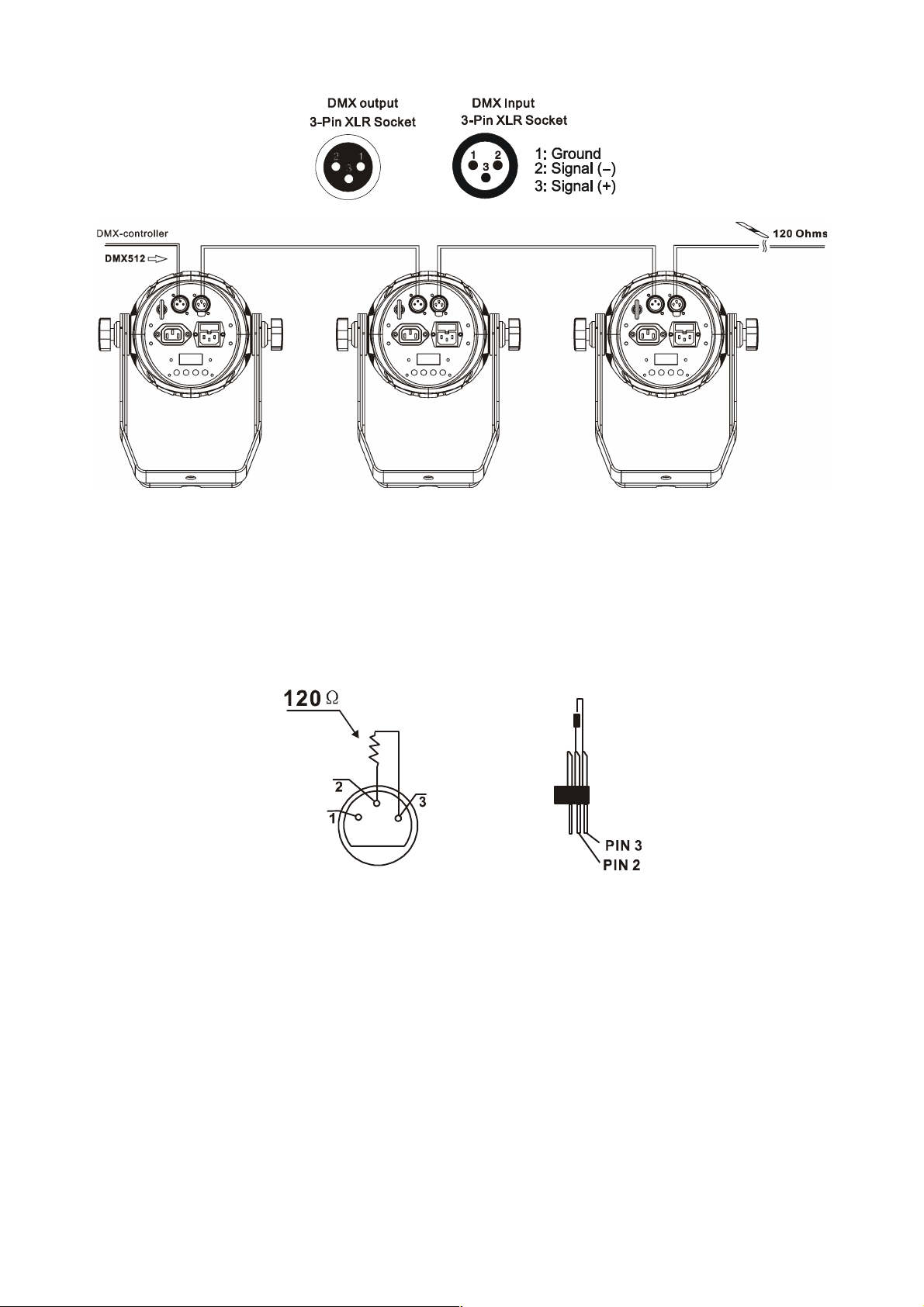

cable with XLR input and output connectors. Please refer to the diagram below.
