Elation SNIPER PRO User Manual

ELATION

|

SNIPER PRO™

user manual 

SNIPER PRO

™

user manual

www.elationlighting.com

©2016 ELATION PROFESSIONAL all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ELATION PROFESSIONAL logo and identifying product names and numbers herein are trademarks of ELATION PROFESSIONAL. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted. Product names used in this document may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. All non-ELATION brands and product names are trademarks or registered trademarks of their respective companies.

ELATION PROFESSIONAL and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic loss associated with the use or reliance of any information contained within this document, and/or as a result of the improper, unsafe, insufficient and negligent assembly, installation, rigging, and operation of this product.

Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040

323-582-3322 | 323-832-9142 fax | www.elationlighting.com | [email protected]

Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands

+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | [email protected]

DOCUMENT VERSION

Please check www.elationlighting.com for the latest revision/update of this manual.

Date

7/6/16 2

Document

Version

Software

Version ≥

A: 1.0 | Ab:1.0 B: 1.0 | Bb:1.0 C: 1.0 | Cb:1.0 D: 1.0 | Db:1.0

DMX

Channel

Modes

25 / 27

Notes

Added 27CH mode.

A: 1.0 | Ab:1.1

12/20/16 3

B: 1.0 | Bb:1.1 C: 1.0 | Cb:1.1 D: 1.0 | Db:1.1

2 SNIPER PRO™ User Manual

25 / 27

Updated DMX traits.

CONTENTS

General Information

4

Warranty

6

Safety Instructions and Guidelines

7

Discharge Lamp Warning

9

Fixture Overview

10

Lamp Installation Instructions

11

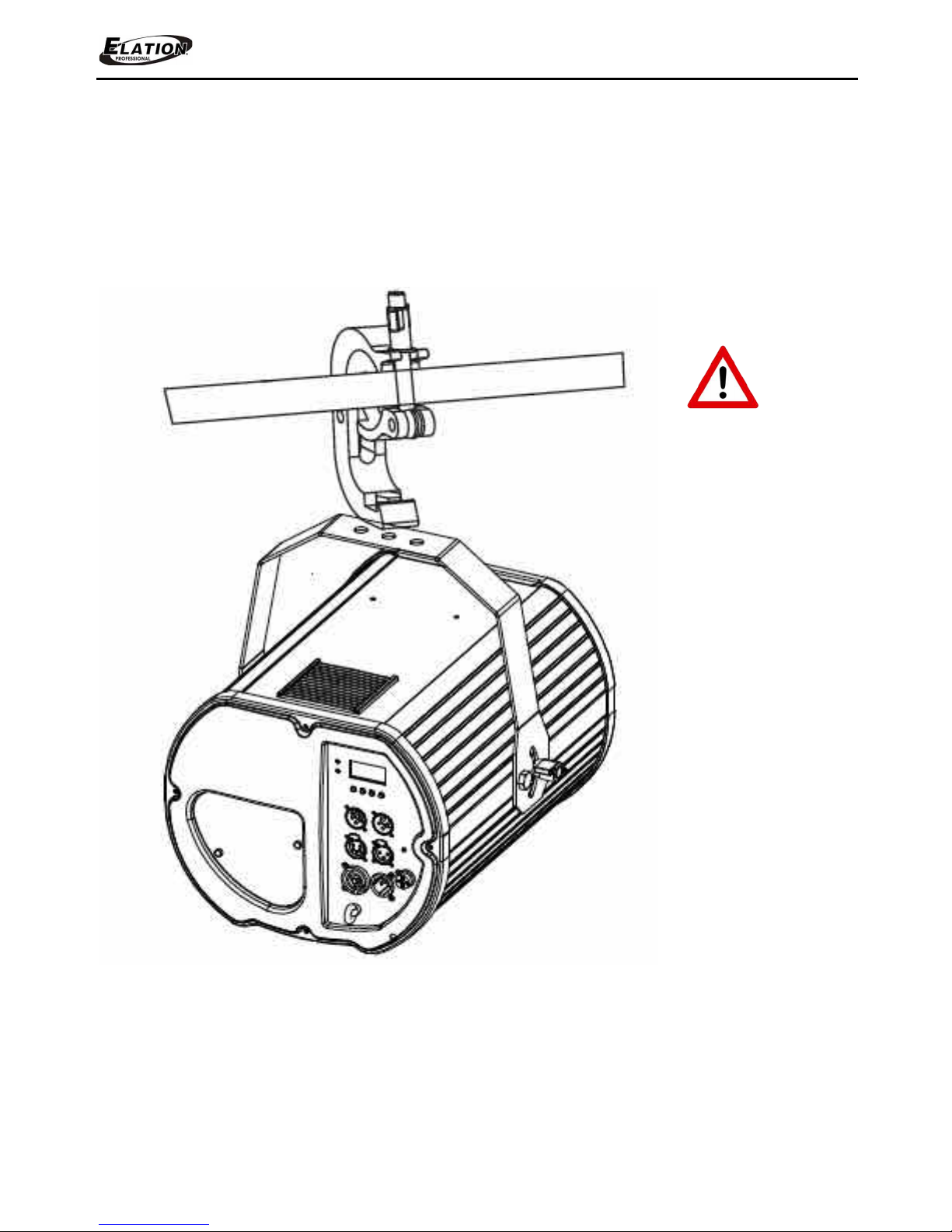

Fixture Installation

19

Fixture Menu

22

DMX Channel Functions And Values

25

Cleaning and Maintenance

31

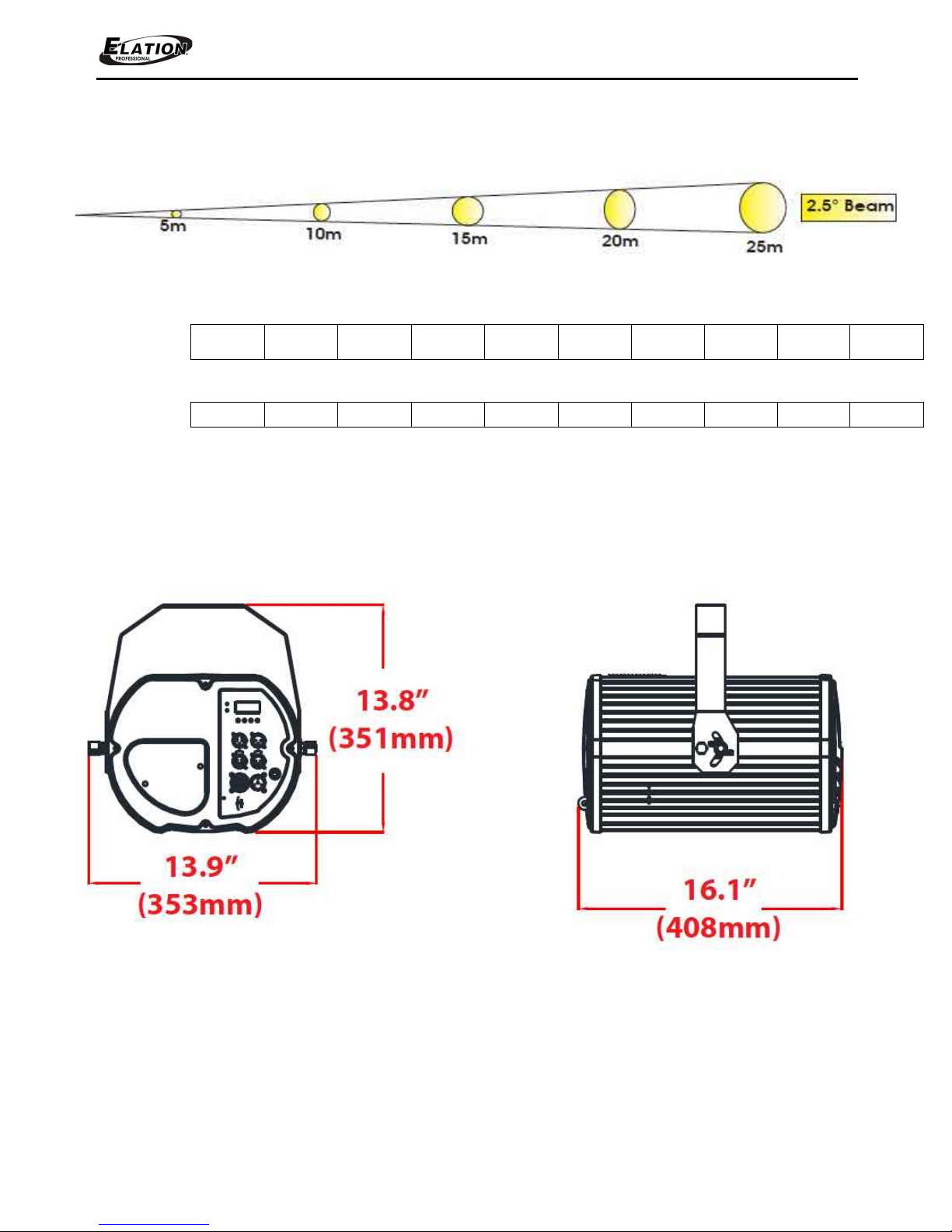

Technical Specifications

32

Optional Accessories

35

www.elationlighting.com

3 SNIPER PRO™ User Manual

www.elationlighting.com

GENERAL INFORMATION

INTRODUCTION

Congratulations, you have just purchased one of the most innovative and

revolutionary new hybrid lighting fixtures on the market today! The fixture has

been designed to perform reliably for years when the guidelines in this booklet

are followed. Please read and understand the instructions in this manual carefully

and thoroughly before attempting to operate this unit. These instructions contain

important information regarding safety during use and maintenance.

UNPACKING

Every fixture has been thoroughly tested and has been shipped in perfect

operating condition. Carefully check the shipping carton for damage that may

have occurred during shipping. If the carton appears to be damaged, carefully

inspect your unit for damage and be sure all accessories necessary to

operate the unit have arrived intact. In the event damage has been found or

parts are missing, please contact our customer support team for further

instructions. Please do not return this unit to your dealer without first contacting

customer support at the number listed below. Please do not discard the shipping

carton in the trash. Please recycle whenever possible.

BOX CONTENTS

 (1) powerCON TRUE1 Cable

4 SNIPER PRO™ User Manual

www.elationlighting.com

CUSTOMER SUPPORT

Elation Professional® provides a customer support line, to provide set up help and

to answer any question should you encounter problems during your set up or

initial operation. You may also visit us on the web at www.elationlighting.com for

any comments or suggestions. For service related issue please contact Elation

Professional®.

ELATION SERVICE USA - Monday - Friday 8:00am to 5:00pm PST

Voice: 323-582-3322 Fax: 323-832-9142

E-mail: [email protected]

ELATION SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET

Voice: +31 45 546 85 30 Fax: +31 45 546 85 96

E-mail: [email protected]

WARRANTY REGISTRATION

Please complete and mail in the enclosed warranty card or register online:

http://www.elationlighting.com/Login.aspx to validate your purchase. All

returned service items whether under warranty or not, must be freight pre-paid

and accompany a return authorization (R.A.) number. The R.A. number must be

clearly written on the outside of the return package. A brief description of the

problem as well as the R.A. number must also be written down on a piece of

paper and included in the shipping container. If the unit is under warranty, you

must provide a copy of your proof of purchase invoice. Items returned without a

R.A. number clearly marked on the outside of the package will be refused and

returned at customer’s expense. You may obtain a R.A. number by contacting

customer support.

IMPORTANT NOTICE!

There are no user serviceable parts inside this unit. Do not attempt any repairs

yourself; doing so will void your manufactures warranty. Damages resulting from

modifications to this fixture and/or the disregard of safety and general user

instructions found in this user manual void the manufactures warranty and are

not subject to any warranty claims and/or repairs.

5 SNIPER PRO™ User Manual

www.elationlighting.com

LIMITED WARRANTY

A. Elation Professional® hereby warrants, to the original purchaser, Elation Professional® products to be free of manufacturing defects in material and workmanship for a period of two years (730 days), and Elation Professional® product rechargeable batteries to be free of manufacturing defects in material and workmanship for a period of six months (180 days), from the original date of purchase. This warranty excludes discharge lamps and all product accessories. This warranty shall be valid only if the product is purchased within the United States of America, including possessions and territories. It is the owner’s responsibility to establish the date and place of purchase by acceptable evidence, at the time service is sought. B. For warranty service, send the product only to the Elation Professional® factory. All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, Elation Professional® will pay return shipping charges only to a designated point within the United States. If any product is sent, it must be shipped in its original package and packaging material. No accessories should be shipped with the product. If any accessories are shipped with the product, Elation Professional® shall have no liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof. C. This warranty is void if the product serial number and/or labels are altered or removed; if the product is modified in any manner which Elation Professional® concludes, after inspection, affects the reliability of the product; if the product has been repaired or serviced by anyone other than the Elation Professional® factory unless prior written authorization was issued to purchaser by Elation Professional®; if the product is damaged because not properly maintained as set forth in the product instructions, guidelines and/or user manual. D. This is not a service contract, and this warranty does not include any maintenance, cleaning or periodic check-up. During the periods as specified above, Elation Professional® will replace defective parts at its expense, and will absorb all expenses for warranty service and repair labor by reason of defects in material or workmanship. The sole responsibility of Elation Professional® under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of Elation Professional®. All products covered by this warranty were manufactured after January 1, 1990, and bare identifying marks to that effect. E. Elation Professional® reserves the right to make changes in design and/or performance improvements upon its products without any obligation to include these changes in any products theretofore manufactured. F. No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with the products described above. Except to the extent prohibited by applicable law, all implied warranties made by Elation Professional® in connection with this product, including warranties of merchantability or fitness, are limited in duration to the warranty periods set forth above. And no warranties, whether expressed or implied, including warranties of merchantability or fitness, shall apply to this product after said periods have expired. The consumer’s and/or dealer’s sole remedy shall be such repair or replacement as is expressly provided above; and under no circumstances shall Elation Professional® be liable for any loss and/or damage, direct and/or consequential, arising out of the use of, and/or the inability to use, this product. G. This warranty is the only written warranty applicable to Elation Professional® products and supersedes all prior warranties and written descriptions of warranty terms and conditions heretofore published.

6 SNIPER PRO™ User Manual

www.elationlighting.com

SAFETY INSTRUCTIONS AND GUIDELINES

This fixture is an extremely sophisticated piece of electronic equipment. To

guarantee a smooth operation, it is important to follow all instructions and guidelines

in this manual. The manufacturer of this device is not responsible for injury and/or

damages resulting from the misuse of this fixture due to the disregard of the

information printed in this manual. Only qualified and/or certified personnel should

perform installation of this fixture and only the original rigging parts (omega brackets)

included with this fixture should be used for installation. Any modifications to the

fixture and/or the mounting hardware included will void the original manufactures

warranty and increase the risk of damage and/or personal injury.

PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED

DO NOT PLUG FIXTURE INTO A DIMMER PACK!

NEVER OPEN THIS FIXTURE WHILE IN USE!

UNPLUG POWER BEFORE SERVICING FIXTURE!

NEVER TOUCH FIXTURE DURING OPERATION, AS IT MAY BE HOT!

KEEP FLAMMABLE MATERIALS AWAY FROM FIXTURE!

INDOOR / DRY LOCATIONS USE ONLY!

DO NOT EXPOSE FIXTURE TO RAIN AND MOISTURE!

NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE!

RETINA INJURY RISK - MAY INDUCE BLINDNESS!

SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!

7 SNIPER PRO™ User Manual

www.elationlighting.com

SAFETY INSTRUCTIONS AND GUIDELINES

 DO NOT TOUCH the fixture housing during operation. Turn OFF the power and

allow approximately 15 minutes for the fixture to cool down before serving.

 DO NOT shake fixture, avoid brute force when installing and/or operating fixture.

 DO NOT operate fixture if the power cord has become frayed, crimped and/or

damaged. If the power cord is damaged, replace it immediately with a new one

of similar power rating.

 DO NOT block any air ventilation slots. All fan and air inlets must remain clean and

never blocked. Allow approx. 6” (15cm) between fixture and other devices or a

wall for proper cooling.

 When installing fixture in a suspended environment, always use mounting

hardware that is no less than M10 x 25 mm, and always install fixture with an

appropriately rated safety cable.

 Always disconnect fixture from main power source before performing any type of

service and/or cleaning procedure. Only handle the power cord by the plug

end, never pull out the plug by tugging the wire portion of the cord.

 During the initial operation of this fixture, a light smoke or smell may emit from the

interior of the fixture. This is a normal process and is caused by excess paint in the

interior of the casing burning off from the heat associated with the lamp and will

decrease gradually over time.

 Consistent operational breaks will ensure the fixture will function properly for

many years to come.

 Use the original packaging and materials to transport the fixture in for service.

8 SNIPER PRO™ User Manual

This fixture emits intense UV radiation, which is harmful to the

eyes and skin. The intense luminance of the lamp can cause

e this fixture with

ANY of the protective covers removed. These covers have

R

fixture,

platinum lamps. Other

www.elationlighting.com

DISCHARGE LAMP WARNING

This fixture is fitted with a DISCHARGE LAMP, which is highly

susceptible to damage if improperly handled. NEVER touch the

lamp with your bare hands, as the oil from your hands will

shorten the life of the lamp. Also, NEVER move the fixture until the

lamp has had ample time to cool. Lamps are NOT covered

under warranty conditions.

Avoid switching the fixture ON and OFF repeatedly in short

intervals, as this will reduce lamp life and intensity. To achieve the intensity

associated with discharge lamps, these lamps use gas sealed in a high-pressure

environment to emit a brilliant output.

Due to the high pressure involved with the construction of the lamp, the lamp MAY

EXPLODE DURING PROLONGED EXTENSIVE USE. This risk is increased with age; added

care is encouraged when dealing with older lamps. Thus, the lamp must always be

replaced at the end of their recommended duty cycle. Extreme caution should be

used when operating this or any fixture fitted with a gas discharge lamp.

UV RADIATION NOTICE

severe damage to the retina. NEVER operat

been specially designed to shield against UV radiation.

LAMP REPLACEMENT

Please note that due to the nature of the Phillips™ Platinum 14 Lamp and the optical path of the Elation SNIPER PRO™ the lamp MUST BE replaced at 2,000 hours.

Use only Genuine Original Phillips™ brand lamps may cause damage and void warranty!

9 SNIPER PRO™ User Manual

FIXTURE OVERVIEW

www.elationlighting.com

1. Adjustable Mounting Yoke

2. LCD Menu Function Display

3. MENU, DOWN, UP, ENTER Buttons

4. Safety Cable Attachment Hook

5. Fuse

6. powerCON TRUE 1 IN/OUT

7. 3/5pin DMX IN/OUT

8. Lamp Cover Plate

9. Lens

10 SNIPER PRO™ User Manual

R

, the

amps. Other

www.elationlighting.com

LAMP INSTALLATION INSTRUCTIONS

LAMP REPLACEMENT

INSTALLING OR REPLACING THE LAMP

To ensure a proper/safe lamp change, carefully read all the following instructions.

LAMP SAFETY INSTRUCTIONS

 ALWAYS replace lamp after 2,000 Hours.

 Use only Genuine Original Phillips™ Platinum 14R lamps. Other brand lamps may

cause damage and void the warranty!

 NEVER touch the lamp with your bare hands, as the oil from your hands will

Please note that due to the nature of the Phillips™ Platinum 14 Lamp and the optical path of the Elation SNIPER PRO fixture lamp MUST BE replaced at 2,000 hours.

Use only Genuine Original Phillips™ Platinum 14R L brand lamps may cause damage and void warranty!

shorten the life of the lamp.

 Always disconnect the fixture’s main power supply before replacing lamp.

 Allow fixture to cool for at least 15 minutes before attempting any type of service.

 Make sure ALL covers/panels are replaced/secured before operating the fixture

to prevent any risk and/o damage to eye retina from UV Radiation exposure!

11 SNIPER PRO™ User Manual

www.elationlighting.com

LAMP INSTALLATION PROCEDURE

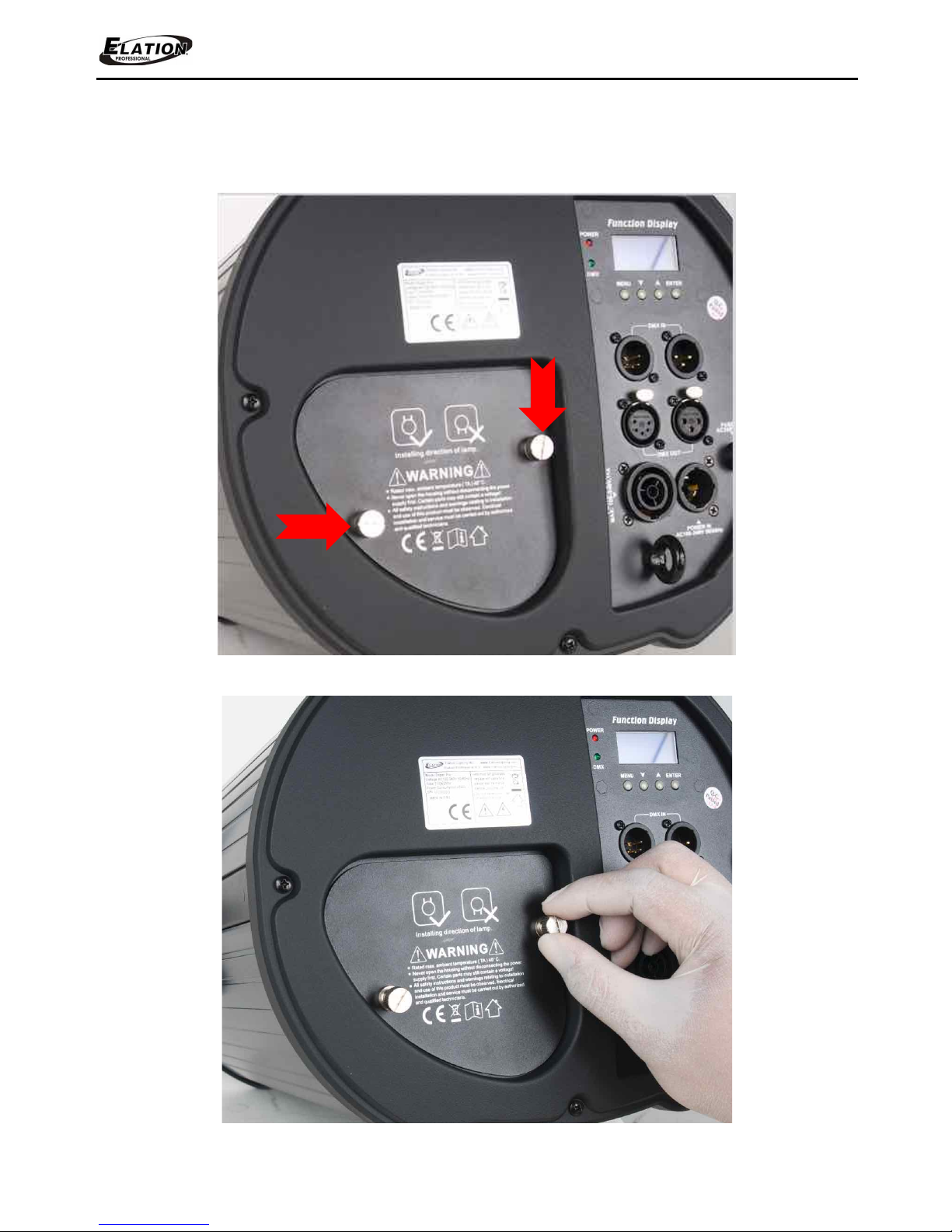

1. Remove (2) screws on the lamp cover plate as indicated below.

12 SNIPER PRO™ User Manual

www.elationlighting.com

LAMP INSTALLATION PROCEDURE - continued

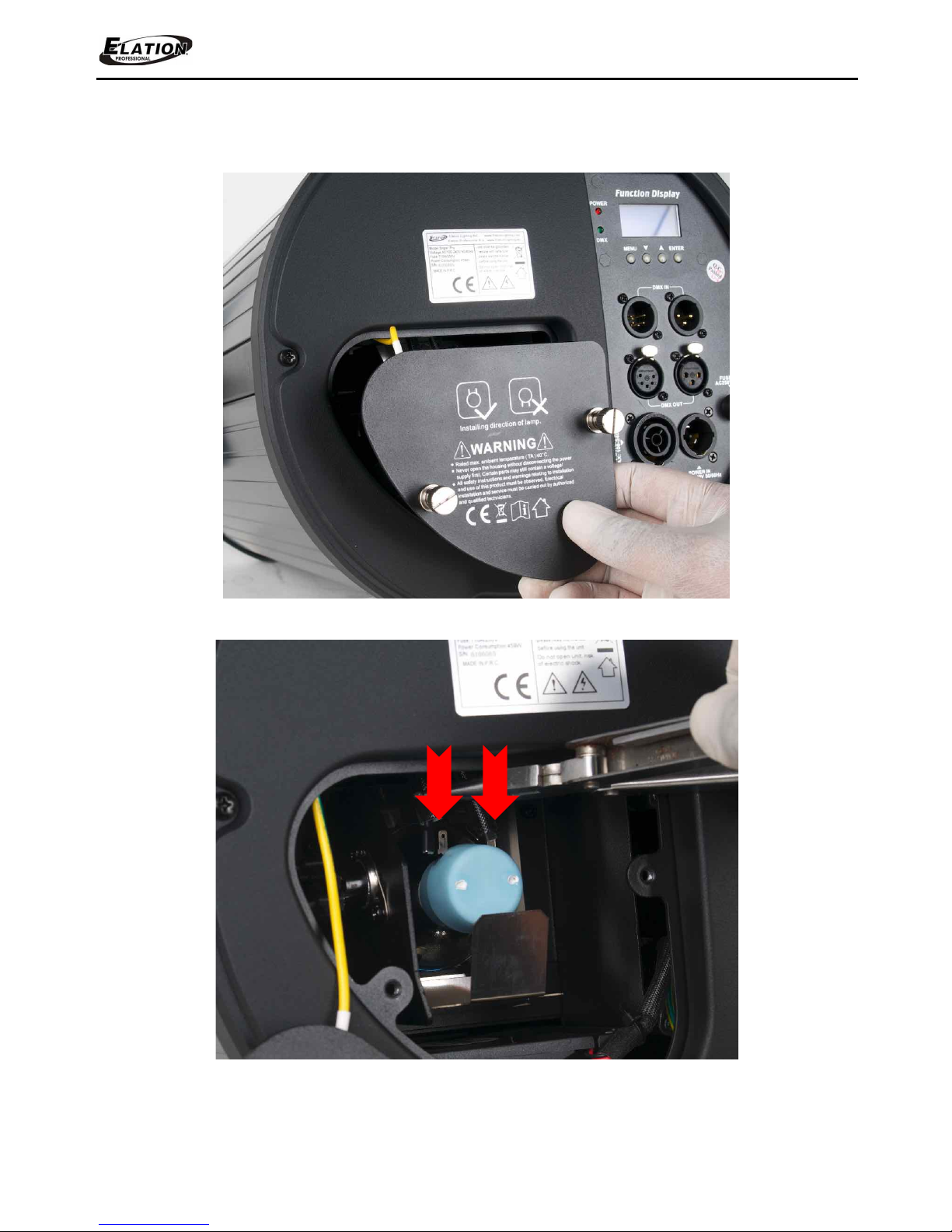

2. Remove the lamp cover plate to access the lamp.

3. Gently remove (2) Wires connected to spade terminals on base of lamp.

13 SNIPER PRO™ User Manual

www.elationlighting.com

LAMP INSTALLATION PROCEDURE - continued

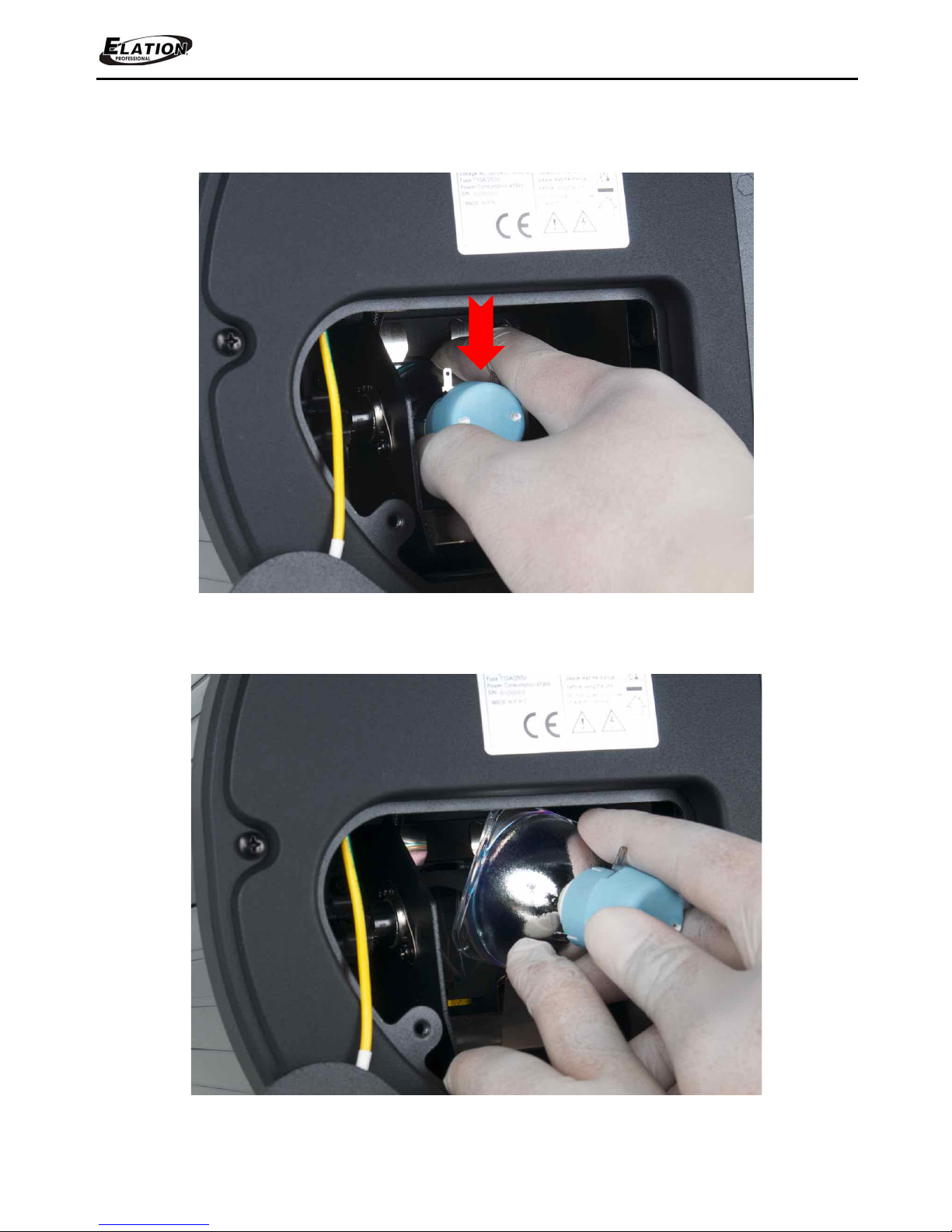

4. Gently push the base of the lamp DOWN to release.

5. Once lamp is released, grab the lamp base with your thumb and index finger

and gently pull the lamp OUT towards and AWAY from the fixture.

14 SNIPER PRO™ User Manual

LAMP INSTALLATION PROCEDURE - continued

www.elationlighting.com

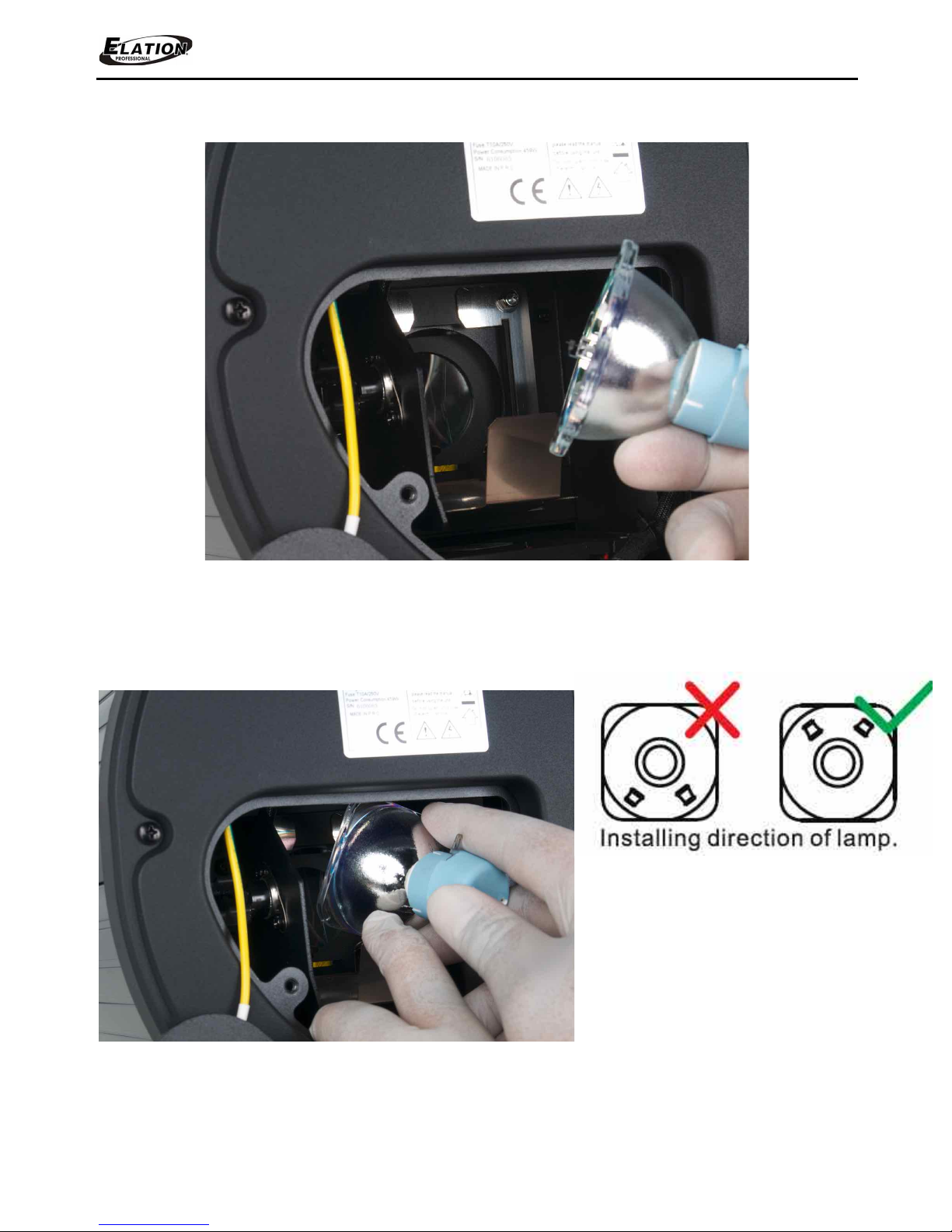

6. Using a clean cloth or gloves, gently install the new lamp into the fixture using

your thumb and index finger, making sure the spade terminals on the base of the

lamp are facing straight UP.

15 SNIPER PRO™ User Manual

www.elationlighting.com

LAMP INSTALLATION PROCEDURE - continued

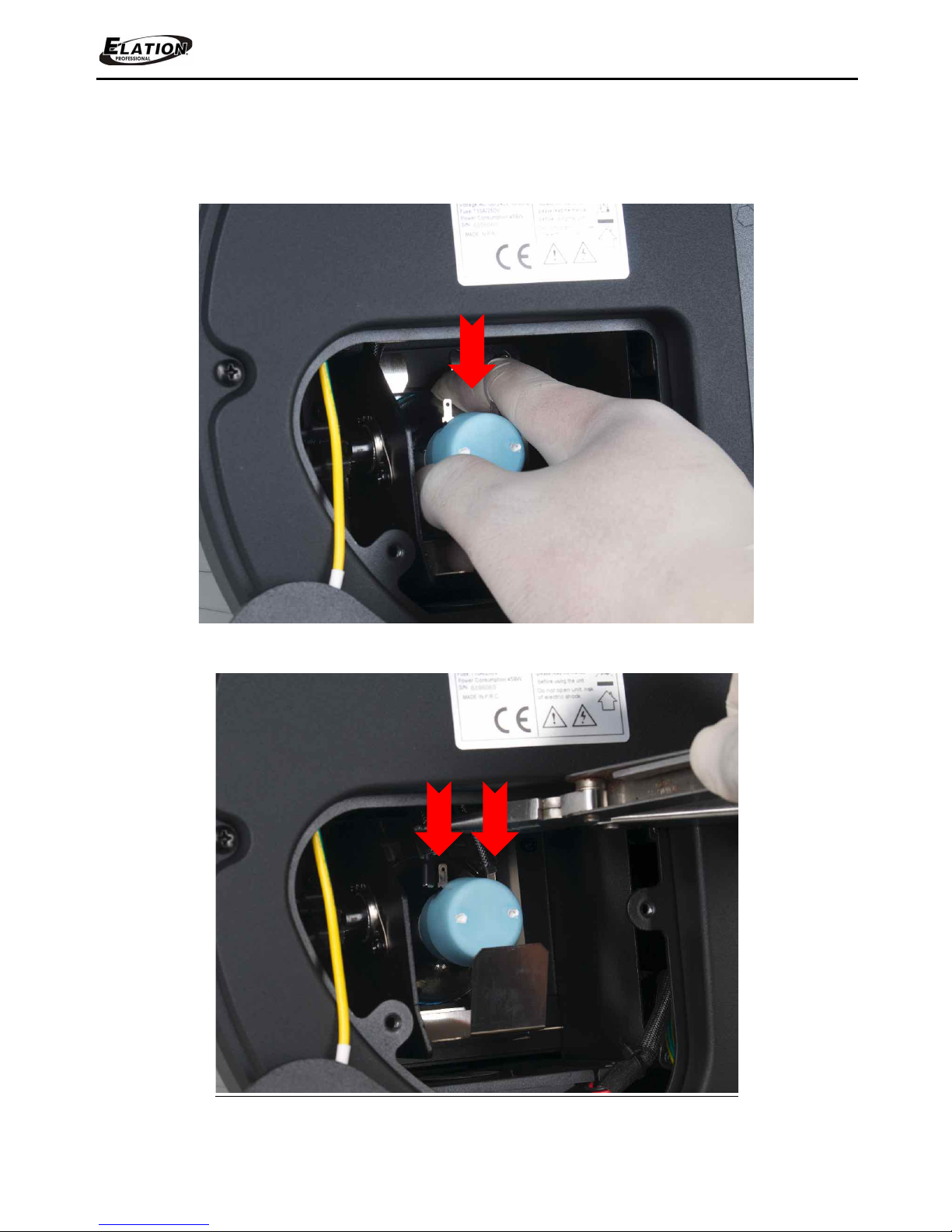

7. Seat the bottom edge of the lamp first; push the base of the lamp DOWN until

the lamp locks into place, making sure lamp is properly seated into place.

8. Gently attach the (2) Wires to spade terminals securely on the base of the lamp.

16 SNIPER PRO™ User Manual

www.elationlighting.com

LAMP INSTALLATION PROCEDURE - continued

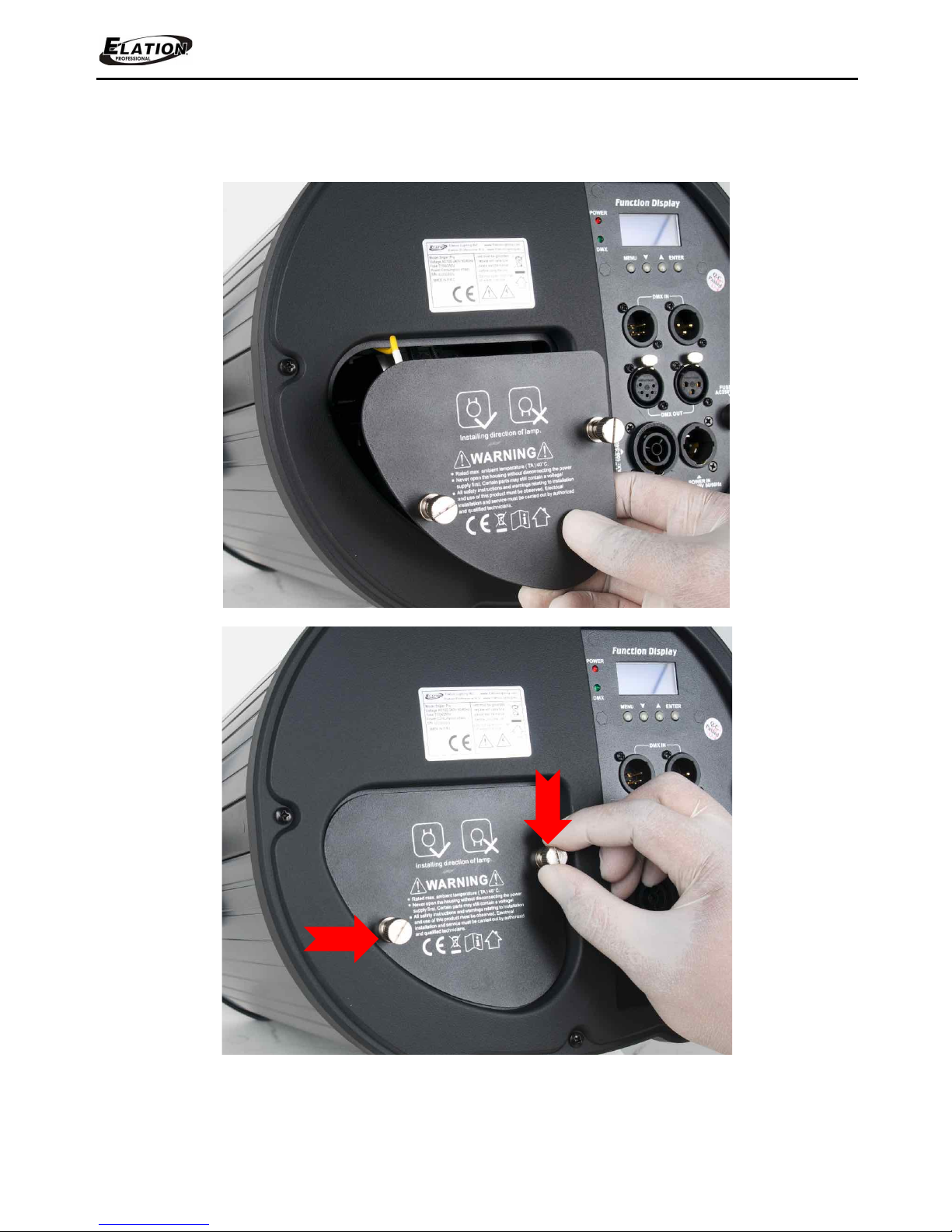

9. Replace the lamp cover plate back into place and secure the (2) screws.

10. Power fixture ON and make sure the lamp strikes ON.

17 SNIPER PRO™ User Manual

LAMP HOURS RESET PROCEDURE

1. Access the main menu by pressing the MENU button and then pressing the UP or

DOWN buttons until “LAMP TIME” is displayed.

2. Press the ENTER button and then press the UP or DOWN to until “Clearn” is displayed.

3. Press the ENTER button to clear the lamp timer.

4. Press the MENU button to exit and return to the home screen.

LAMP OPTIMIZATION

Unlike traditional discharge lamps the Phillips™ Platinum 14R Lamp does NOT require

www.elationlighting.com

optimization. The lamp orientation and optimization procedure has been preset

during the manufacturing process of the lamp. Please remember the Phillips™

Platinum 14R Lamp is NOT a hot-restrike lamp therefore, therefore you must wait

approximately 15 minutes before you can attempt to restrike the lamp once it has

been turned off.

18 SNIPER PRO™ User Manual

(1.5m) away from any

A qualified electrician should be used for all

flammable

materials, decorations, pyrotechnics, etc.

FIXTURE INSTALLATION

www.elationlighting.com

FLAMMABLE MATERIAL WARNING

Keep fixture at least 5.0 ft. flammable materials, decorations, pyrotechnics, etc.

ELECTRICAL CONNECTIONS

electrical connections and/or installations.

CAUTIONS

 For added protection, mount the fixture in areas outside walking paths, seating

areas, or in areas were unauthorized personnel might reach the fixture.

 Max ambient operating temperature for this fixture is 185°F. (85°C)

Do not use the fixture under or above this temperature.

 Before mounting the fixture to any surface, make sure the installation area can

hold a minimum point load of 10 times the weight of the fixture.

 Fixture installation must always be secured with a secondary safety attachment,

such as an appropriate safety cable.

 Never stand directly below the device when mounting, removing or servicing.

POWER LINKING

Max number of units that can be power linked is 3 units @120V / 7 units @230V.

WARNING

MINIMUM distance to lighted objects must be 16.5 feet (5m)

MAXIMUM temperature of external surface 185

MINIMUM distance of inflammable materials from surface 1.6 feet (0.5m)

Keep fixture at least 5.0 feet (1.5m) away from any

° F (85° C)

19 SNIPER PRO™ User Manual

www.elationlighting.com

TRUSS RIGGING

Fixture can be attached to truss or like rigging structures. Overhead mounting

requires extensive experience, including amongst others calculating working load

limits, installation material being used, and periodic safety inspection of all

installation material and the device. If you lack these qualifications, do not attempt

the installation yourself. Improper installation can result in bodily injury.

SAFETY CABLE

ALWAYS ATTACH A SAFETY CABLE TO

THE FIXTURE WHENEVER INSTALLING

IN A SUSPENDED ENVIRONMENT TO

ENSURE THE FIXTURE WILL NOT DROP

IF CLAMP FAILS.

20 SNIPER PRO™ User Manual

www.elationlighting.com

CLAMP MOUNTING

The fixture includes an adjustable mounting yoke that attaches to both sides of the

fixture. When mounting this fixture to truss or like rigging structures, be sure to secure

an appropriately rated pro clamp to the mounting yoke using a M10 screw fitted

through the center hole of the mounting yoke. Be sure to attach a Safety Cable to

the fixture using the safety cable rigging point on the back panel.

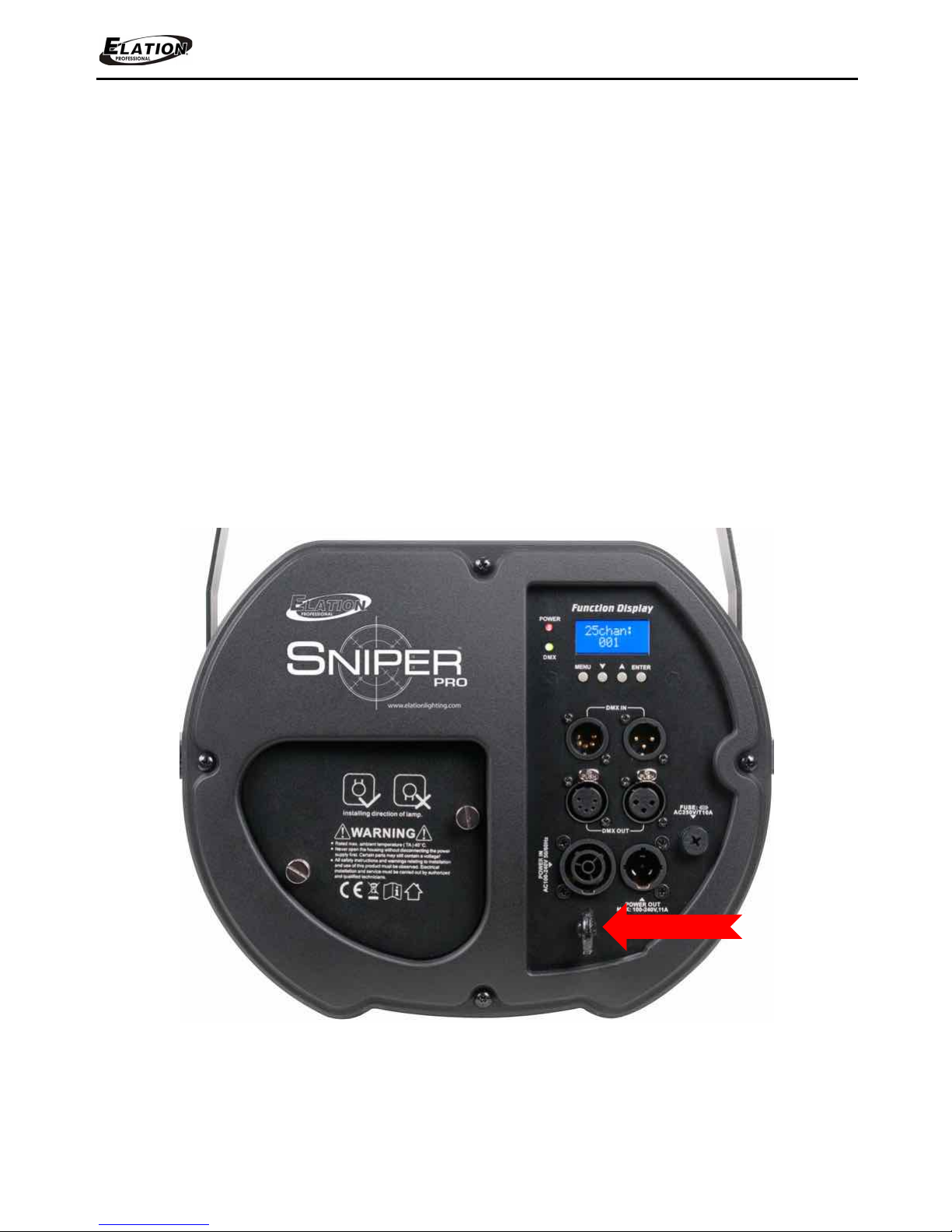

SECURING

Regardless of the rigging option you choose for your fixture always be sure to secure

your fixture with a Safety Cable. The fixture provides a built-in rigging point for a

Safety Cable on the back of the fixture as illustrated below. Be sure to only use the

designated rigging point for the Safety Cable.

21 SNIPER PRO™ User Manual

SNIPER

www.elationlighting.com

FIXTURE MENU

ON-BOARD SYSTEM MENU

The fixture comes with an easy to navigate system menu. The next section will detail

the functions of each command in the system menu.

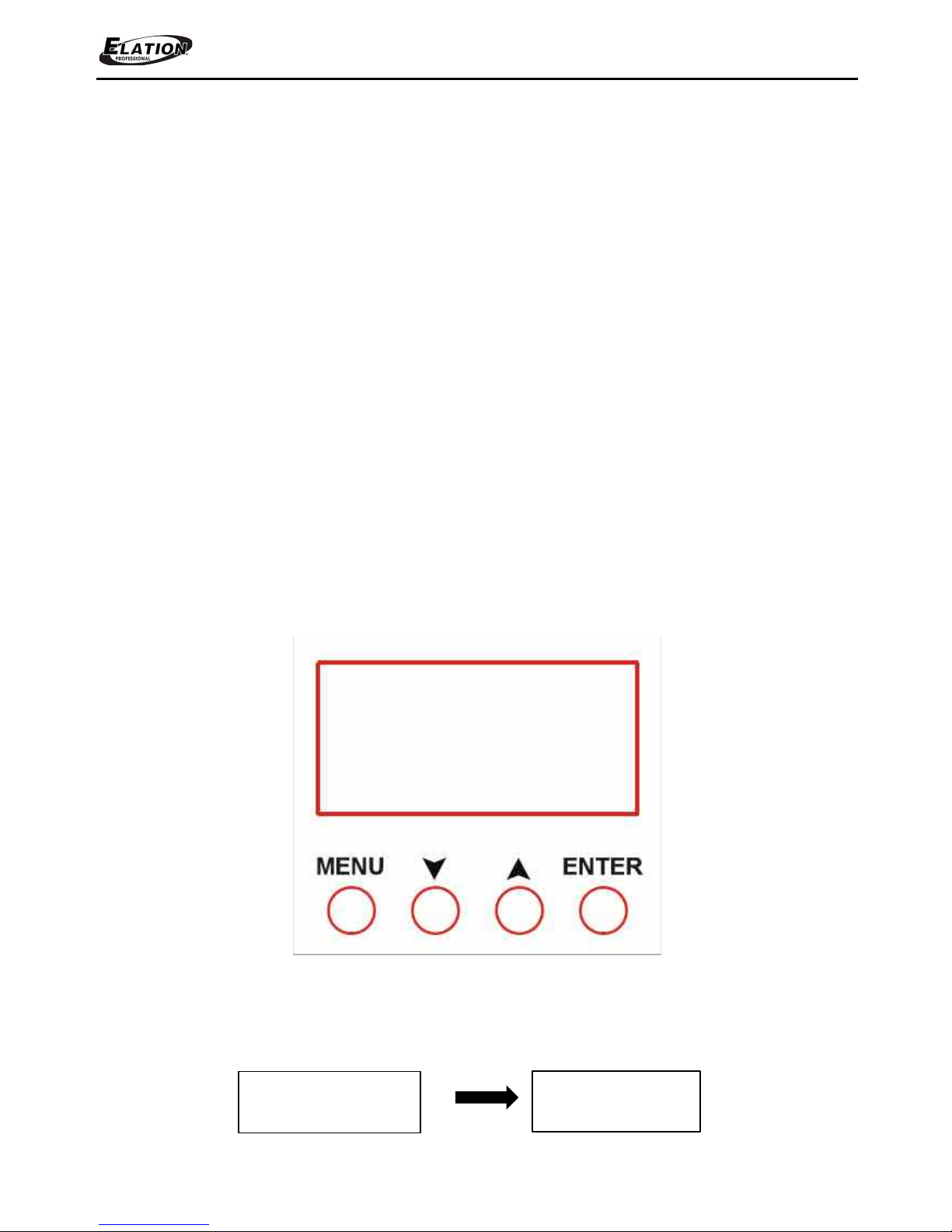

LCD MENU CONTROL PANEL

The control panel (see image below) located on back of the fixture allows you to

access the main menu and make all necessary adjustments to the fixture. During

normal operation, pressing the MENU button for 5 seconds will unlock the display.

Once the display is unlocked, pressing the MENU button once will access the

fixture’s main system menu. Once in the main menu you can navigate through the

different functions and access the sub-menus with the UP and DOWN buttons. Once

you reach a field that requires adjusting, press the ENTER button to activate that field

and use the UP and DOWN buttons to adjust the field. Pressing the ENTER button

once more will confirm your setting. You may exit the main menu at any time

without making any adjustments by pressing and holding the MENU button for 3

seconds.

INFORMATION DISPLAYED DURING INITIAL POWER ON

When the fixture is initially powered ON, the display shows the following information:

ELATION

22 SNIPER PRO™ User Manual

PRO

ELATION© SNIPER PRO™

M A I N M E N U

www.elationlighting.com

Supports Software Versions ≥: A: 1.0 Ab:1.1 | B: 1.0 Bb:1.1 | C:1.0 Cb:1.1 | D: 1.0 Db:1.1

Features are subject to change without any prior written notice.

*Rotation direction (Clockwise or Counterclockwise) of effects depends on orientation of the fixture head and Pan/Tilt Invert setting.

MENU

OPTIONS / VALUES

(Default Settings in BOLD)

DESCRIPTION

DMX

Address

Channel

Mode

DMX Last

State

Back

Light

Pan

Invert

Tilt

Invert

Auto

Test

Lamp

On/Off

001-255

27chan, 25chan

Blackout, LastStat

Off, On

Normal, Invert

On, Off

Set DMX Address

Set DMX Channel Mode

Set How Fixture Reacts to Loss of DMX Signal or Power

Turn LCD Display Back Light On/Off

Invert (flip) PAN Control 180°

Invert (flip) TILT Control 180°

Run Self-Test Using Internal Programs

Turn Lamp On/Off

Lamp

Power On

Lamp Delay

Lamp

Time

Fixture

Time

Firmware

Version ≥

On, Off

10s (0s - 255s)

xxx

A: 1.0 B: 1.0 C: 1.0 D :1.0 Ab:1.0 Bb:1.0 Cb:1.0 Db:1.1

Defaults No, Yes

Reset

Function

All, Pan/Tilt, Effect

Set Lamp State While Power is On

Set Delay Time Between Power On and Lamp On

Displays Total Lamp Usage Time

Displays Total Fixture Run Time

Displays Software Version of Fixture

Return All Settings Back to Factory Default

Select which Motors to Reset.

23 SNIPER PRO™ User Manual

ELATION© SNIPER PRO™

O F F S E T A D J U S T M E N U

Supports Software Versions ≥: A: 1.0 Ab:1.1 | B: 1.0 Bb:1.1 | C:1.0 Cb:1.1 | D: 1.0 Db:1.1

www.elationlighting.com

OFFSET ADJUSTMENTS – Calibration

ONLY QUALIFIED TECHNICIANS SHOULD PERFORM THESE FUNCTIONS.

This function allows small adjustments to be made to the home positions of the

motors, drive, wheels, and effects, to compensate for ware and/or in the event a

sensor has been knocked slightly out of place.

To access the OFFSET ADJUSTMENTS MENU press and release the MENU button and

immediately press and hold the ENTER button for at least 5 seconds. The fixture will

now be in the OFFSET ADJUSTMENTS MENU where you can make adjustments to the

functions listed below.

To exit the OFFSET ADJUSTMENTS MENU press and hold the MENU button for at least 3

seconds, until the display shows ELATION SNIPER.

SHUTTER AND BEAM POSITION AFTER EXITING OFFSET ADJUSTMENTS MENU

The SHUTTER and BEAM POSITION after exiting the OFFSET ADJUSTMENT MENU will

depend on the DMX STATE setting (“Blackout” or “Last State”) and/or if the fixture is

receiving a DMX signal.

*Rotation direction (Clockwise or Counterclockwise) of effects depends on orientation of the fixture head and Pan/Tilt Invert settings.

MENU

Pan Offset (0) - (255)

Tilt Offset (0) - (255)

Eccentri Offset (-127) - (127)

Color Offset (-127) - (127)

Gobo Offset (-127) - (127)

Shutter Offset (0) - (255)

Cyan Offset (-127) - (127)

Features are subject to change without any prior written notice.

OPTIONS / VALUES

(Default Settings in BOLD)

Adjustment The PAN Home Position

Adjustment The TILT Home Position

Adjustment of the Eccentric Drive

Adjustment of the Color Wheel

Adjustment of the Gobo Wheel

Adjustment of the Shutter

Adjustment of Cyan

DESCRIPTION

Magenta Offset (-127) - (127)

Yellow Offset (-127) - (127)

Focus (0) - (255)

Rprism Offset (-127) - (127)

Prism Offset (-127) - (127)

Adjustment of Magenta

Adjustment of Yellow

Adjustment Focus

Adjustment of the Prism Rotation

Adjustment of the Prism

24 SNIPER PRO™ User Manual

ELATION© SNIPER PRO™

www.elationlighting.com

DMX CHANNEL FUNCTIONS AND VALUES

DMX Channel Values / Functions (27 DMX Channels)

Supports Software Versions ≥: A: 1.0 Ab:1.1 | B: 1.0 Bb:1.1 | C:1.0 Cb:1.1 | D: 1.0 Db:1.1

Features are subject to change without any prior written notice.

*Rotation direction (Clockwise or Counterclockwise) of effects depends on orientation of the fixture head and Pan/Tilt Invert settings.

MODE / CHANNEL

25CH 27CH

1 1

2

2 3

4

3 5

4 6

5 7

6 8

7 9

8 10

9 11

VALUE FUNCTION

0-255 PAN Movement

0-255 PAN Movement FINE [16bit]

0-255 TILT Movement

0-255 TILT Movement FINE [16bit]

0-255 PAN Shaking Movement SLOW to FAST

0-255 PAN Scope MAX to MIN

0-255 TILT Shaking Movement SLOW to FAST

0-255 TILT Scope MAX to MIN

0-255 CYAN 0 to 100%

0-255 MAGENTA 0 to 100%

0-255 YELLOW 0 to 100%

PAN

PAN FINE [16 BIT]

TILT

TILT FINE [16 BIT]

PAN SHAKING

PAN SCOPE

TILT SHAKING

TILT SCOPE

CYAN

MAGENTA

YELLOW

25 SNIPER PRO™ User Manual

ELATION© SNIPER PRO™

DMX Channel Values / Functions (27 DMX Channels)

Color 1 / Color 2

Color 2

Color 2 / Color 3

Color 3

Color 3 / Color 4

Color 4

Color 4 / Color 5

Color 5

Color 5 / Color 6

Color 6

Color 6 / Color 7

Color 7

Color 7 / Color 8

Color 8

Color 8 / Color 9

Color 9

Color 9 / Color 10

Color 10

Color 10 / Color 11

Color 11

Color 11 / Color 12

Color 12

Color 12 / Color 13

Color 13

ANIMATION EFFECT

ANIMATION Shake from SLOW to FAST

*Clockwise Color Wheel Rotation from FAST to SLOW

STOP

*Counterclockwise Color Wheel Rotation from SLOW to FAST

www.elationlighting.com

Supports Software Versions ≥: A: 1.0 Ab:1.1 | B: 1.0 Bb:1.1 | C:1.0 Cb:1.1 | D: 1.0 Db:1.1

Features are subject to change without any prior written notice.

*Rotation direction (Clockwise or Counterclockwise) of effects depends on orientation of the fixture head and Pan/Tilt Invert settings.

MODE / CHANNEL

25CH 27CH

10 12

VALUE FUNCTION

0-4 Color 1

5-9

10-14

15-19

20-24

25-29

30-34

35-39

40-44

45-49

50-54

55-59

60-63

64-68

69-70

74-78

79-83

84-88

89-93

94-98

99-103

104-108

109-113

114-118

119-123

124-127

128-133

134-192

193-196

197-255

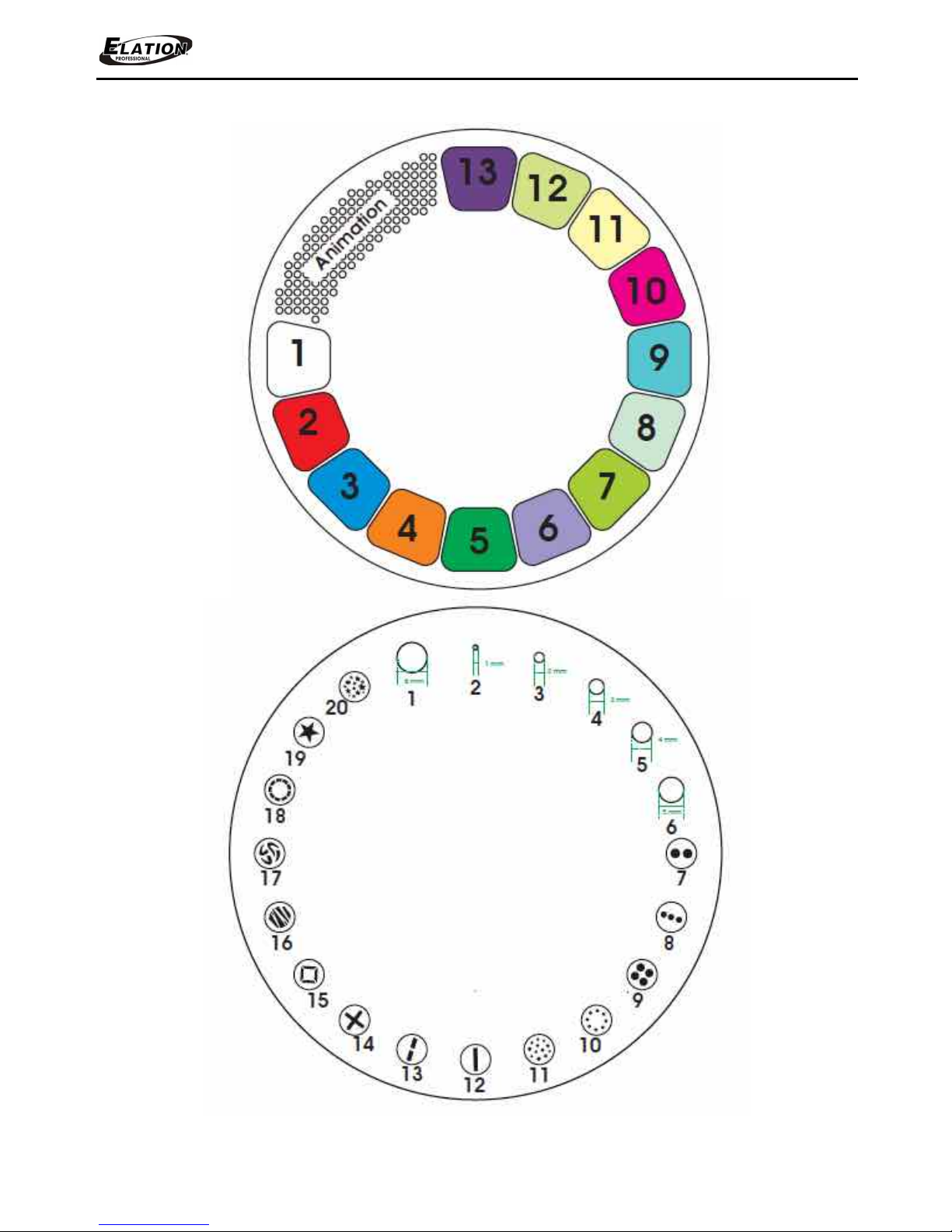

COLORS

26 SNIPER PRO™ User Manual

ELATION© SNIPER PRO™

DMX Channel Values / Functions (27 DMX Channels)

www.elationlighting.com

Supports Software Versions ≥: A: 1.0 Ab:1.1 | B: 1.0 Bb:1.1 | C:1.0 Cb:1.1 | D: 1.0 Db:1.1

Features are subject to change without any prior written notice.

*Rotation direction (Clockwise or Counterclockwise) of effects depends on orientation of the fixture head and Pan/Tilt Invert settings.

MODE / CHANNEL

25CH 27CH

11 13

12 14

13 15

14 16

VALUE FUNCTION

0-6 OPEN

7-13 Gobo 1

14-21 Gobo 2

22-26 Gobo 3

27-33 Gobo 4

34-40 Gobo 5

41-46 Gobo 6

47-53 Gobo 7

54-60 Gobo 8

61-66 Gobo 9

67-73 Gobo 10

74-80 Gobo 11

81-87 Gobo 12

88-93 Gobo 13

94-100 Gobo 14

101-107 Gobo 15

108-113 Gobo 16

114-120 Gobo 17

121-127 Gobo 18

128-133 Gobo 19

134-192 Gobo 20

193-196 *Clockwise Gobo Wheel Rotation From FAST to SLOW

197-255 *Counterclockwise Gobo Wheel Rotation From SLOW to FAST

0-7 BLACKOUT

8-15 OPEN

16-131 STROBE SLOW to FAST

132-139 OPEN

140-181 FAST OPEN to SLOW CLOSE

182-189 OPEN

190-231 FAST CLOSE to SLOW OPEN

232-239 OPEN

240-247 RANDOM STROBE

248-255 OPEN

0-255 Dimmer Intensity 0 to 100%

0-255 FOCUS 0 to 100%

GOBOS

SHUTTER, STROBE

DIMMER INTENSITY

FOCUS

27 SNIPER PRO™ User Manual

www.elationlighting.com

DMX Channel Values / Functions (27 DMX Channels)

Supports Software Versions ≥: A: 1.0 Ab:1.1 | B: 1.0 Bb:1.1 | C:1.0 Cb:1.1 | D: 1.0 Db:1.1

Features are subject to change without any prior written notice.

*Rotation direction (Clockwise or Counterclockwise) of effects depends on orientation of the fixture head and Pan/Tilt Invert settings.

MODE / CHANNEL

25CH 27CH

15 17

VALUE FUNCTION

0-8 OFF

9-16 Pattern Macro 1

17-25 Pattern Macro 2

26-33 Pattern Macro 3

34-42 Pattern Macro 4

43-50 Pattern Macro 5

51-59 Pattern Macro 6

60-67 Pattern Macro 7

68-76 Pattern Macro 8

77-84 Pattern Macro 9

85-93 Pattern Macro 10

94-101 Pattern Macro 11

102-110 Pattern Macro 12

111-118 Pattern Macro 13

119-127 Pattern Macro 14

128-135 Pattern Macro 15

136-144 Pattern Macro 16

145-152 Pattern Macro 17

153-161 Pattern Macro 18

162-169 Pattern Macro 19

170-178 Pattern Macro 20

179-186 Pattern Macro 21

187-195 Pattern Macro 22

196-203 Pattern Macro 23

204-212 Pattern Macro 24

213-220 Pattern Macro 25

221-229 Pattern Macro 26

230-237 Pattern Macro 27

238-246 Pattern Macro 28

247-255 Pattern Macro 29

PATTERN MACROS

28 SNIPER PRO™ User Manual

www.elationlighting.com

DMX Channel Values / Functions (27 DMX Channels)

Supports Software Versions ≥: A: 1.0 Ab:1.1 | B: 1.0 Bb:1.1 | C:1.0 Cb:1.1 | D: 1.0 Db:1.1

Features are subject to change without any prior written notice.

*Rotation direction (Clockwise or Counterclockwise) of effects depends on orientation of the fixture head and Pan/Tilt Invert settings.

MODE / CHANNEL

25CH 27CH

16 18

17 19

18 20

19 21

20 22

21 23

22 24

23 25

24 26

VALUE FUNCTION

0-9 STOP

10-120 *Clockwise Pattern Rotation from FAST to SLOW

121-134 STOP

135-245 *Counterclockwise Pattern Rotation from SLOW to FAST

246-255 STOP

0-9 STOP

10-120 *Horizontal Pattern Rotation from FAST to SLOW

121-134 STOP

135-245 *Vertical Pattern Rotation from SLOW to FAST

246-255 STOP

0-127 Pattern ZOOM Manual

128-255 Pattern ZOOM SLOW to FAST

0-7 CENTER

8-255 RIGHT to LEFT

0-7 CENTER

8-255 DOWN to UP

0-63 0°

64-127 90°

128-191 180°

192-255 270°

0-63 0° - 360° INDEXING

64-127 Shaking

128-189 *Clockwise Rotation FAST to SLOW

190-193 STOP

194-255 *Counterclockwise Rotation SLOW to FAST

0-63 STOP

64-127 8-FACET PRISM

128-191 3-FACET

192-255 LINEAR PRISM

0-127 PRISM Indexing

128-189 *Clockwise PRISM Rotation FAST to SLOW

190-193 STOP

194-255 *Counterclockwise PRISM Rotation SLOW to FAST

PATTERN ROTATION - *CLOCKWISE / *COUNTERCLOCKWISE

PATTERN ROTATION - *HORIZONTAL / *VERTICAL

PATTERN ZOOM

PATTERN PAN TRANSPORTATION

PATTERN TILT TRANSPORTATION

PATTERN ROTATION

PATTERN SCAN

PRISM

PRISM ROTATION

29 SNIPER PRO™ User Manual

www.elationlighting.com

DMX Channel Values / Functions (27 DMX Channels)

Supports Software Versions ≥: A: 1.0 Ab:1.1 | B: 1.0 Bb:1.1 | C:1.0 Cb:1.1 | D: 1.0 Db:1.1

Features are subject to change without any prior written notice.

*Rotation direction (Clockwise or Counterclockwise) of effects depends on orientation of the fixture head and Pan/Tilt Invert settings.

MODE / CHANNEL

25CH 27CH

25 27

VALUE FUNCTION

0-39 NO FUNCTION

40-59 LAMP ON

60-79 LAMP OFF

80-84 ALL MOTORS Reset

85-87 PAN / TILT Motors Reset

88-90 COLOR Motor Reset

91-93 GOBO Motor Reset

94-96 SHUTTER & DIMMER Motors Reset

97-99 OTHER Motors Reset

100-109 ENABLE BLACKOUT WHILE PAN/TILT MOVEMENT

110-119 ENABLE BLACKOUT WHILE COLOR CHANGE

120-129 ENABLE BLACKOUT WHILE GOBO CHANGE

130-255 NO FUNCTION

FUNCTIONS

30 SNIPER PRO™ User Manual

www.elationlighting.com

CLEANING AND MAINTENANCE

CAUTION

Disconnect power before cleaning or maintenance.

CLEANING

Frequent cleaning is recommended to insure proper function, optimized light output,

and an extended life. The frequency of cleaning depends on the environment in

which the fixture operates: damp, smoky or particularly dirty environments can

cause greater accumulation of dirt on the fixture’s optics.

 Clean the external lens surface at least every 20 days with a soft cloth to avoid

dirt/debris accumulation.

 Never use alcohol, solvents, or ammonia based cleaners.

MAINTENANCE

Regular inspections are recommended to insure proper function and extended life.

There are no user serviceable parts inside this fixture, please refer all other service

issues to an authorized Elation service technician. Should you need any spare parts,

please order genuine parts from your local Elation dealer.

Please refer to the following points during routine inspections:

 A detailed electric check by an approved electrical engineer every three months,

to make sure the circuit contacts are in good condition and prevent overheating.

 Be sure all screws and fasteners are securely tightened at all times. Lose screws may

fall out during normal operation resulting in damage or injury as larger parts could fall.

 Check for any deformations on the housing, color lenses, rigging hardware and

rigging points (ceiling, suspension, trussing). Deformations in the housing could

allow for dust to enter into the fixture. Damaged rigging points or unsecured

rigging could cause the fixture to fall and seriously injure a person(s).

 Electric power supply cables must not show any damage, material fatigue or

sediments. Never remove the ground prong from the power cable.

31 SNIPER PRO™ User Manual

www.elationlighting.com

TECHNICAL SPECIFICATIONS

SOURCE Philips MSD Platinum 14R™ 280W Lamp

2,000 Hour Average Lamp Life*

*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

EFFECTS Bidirectional Animation 3-Facet, 8-Facet, and Linear Rotating Prisms Liquid Sky, Laser Wave, and Cone Effects Pattern and Control Macros

COLOR (12) Dichroic Colors + White and Split Colors

GOBOS (20) Static-Stamped Gobos

CONTROL / CONNECTIONS

(2) DMX Channel Modes (25 / 27) 4 Button Control Panel 3/5pin DMX In/Out powerCON TRUE 1 In/Out

SIZE / WEIGHT

Length: 16.1” (408mm) Width: 13.9” (353mm) Vertical Height: 13.8” (351mm) Weight: 33.0 lbs. (15.0kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz 460W Max Power Consumption Multiple Unit Power Linking (max 3 @120V / 7 @230V) 104°F (40°C) Max Ambient Temperature

APPROVALS / RATINGS

CE | IP20

Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice.

32 SNIPER PRO™ User Manual

COLORS AND GOBOS

www.elationlighting.com

33 SNIPER PRO™ User Manual

2.5° Beam

lux

fc

lux

fc

lux

fc

lux

fc

lux

fc

FULL ON

84,330

7,834

23,200

2,155

10,270

954

5,800

539

3,700

344

www.elationlighting.com

PHOTOMETRIC DATA

Distance 5m 16.4 ft 10m 32.8 ft 15m 49.2 ft 20m 65.6 ft 25m 82.0 ft

Diameter

Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice.

0.25 0.8 0.49 1.6 0.74 2.4 1.02 3.3 1.26 4.1

DIMENSIONAL DRAWINGS

Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice.

34 SNIPER PRO™ User Manual

www.elationlighting.com

OPTIONAL ACCESSORIES

ORDER CODE ITEM

TRIGGER CLAMP Heavy Duty Wrap Around Hook Style Clamp

SCABLE60 24” (610mm) 60 lbs. (27 kg) Rated Safety Cable

AC3PDMX5PRO 5 ft. (1.5m) 3pin PRO DMX Cable

AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable

NEU088 3 ft. (1m) powerCON TRUE1 Power Link Cable

Additional Cable Lengths Available

35 SNIPER PRO™ User Manual
