Elation FUZE SFX Specifications

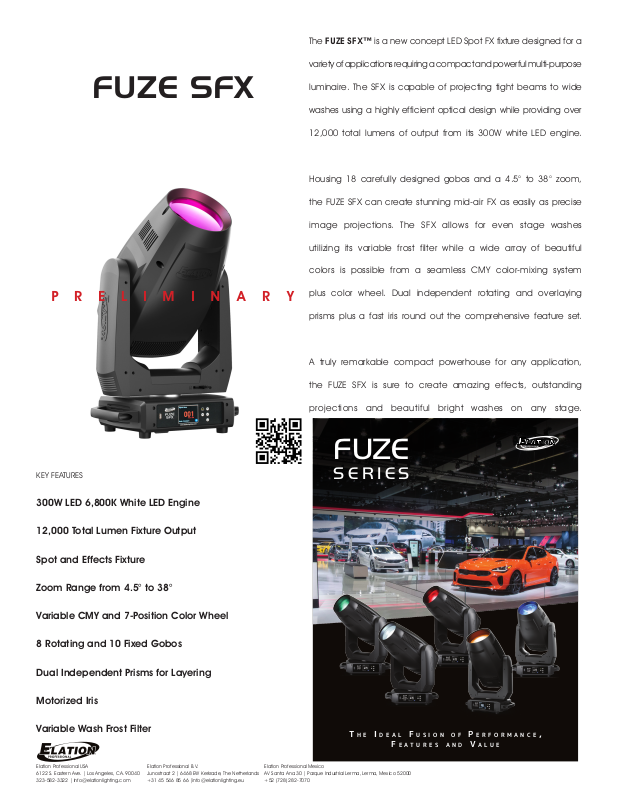

The FUZE SFX™ is a new concept LED Spot FX fixture designed for a
variety of applications requiring a compact and powerful multi-purpose
FUZE SFX
PRELIMINARY
luminaire. The SFX is capable of projecting tight beams to wide
washes using a highly efficient optical design while providing over
12,000 total lumens of output from its 300W white LED engine.
Housing 18 carefully designed gobos and a 4.5° to 38° zoom,
the FUZE SFX can create stunning mid-air FX as easily as precise
image projections. The SFX allows for even stage washes
utilizing its variable frost filter while a wide array of beautiful
colors is possible from a seamless CMY color-mixing system
plus color wheel. Dual independent rotating and overlaying
prisms plus a fast iris round out the comprehensive feature set.
A truly remarkable compact powerhouse for any application,
KEY FEATURES
300W LED 6,800K White LED Engine
12,000 Total Lumen Fixture Output
Spot and Effects Fixture
Zoom Range from 4.5° to 38°
Variable CMY and 7-Position Color Wheel
8 Rotating and 10 Fixed Gobos
Dual Independent Prisms for Layering
the FUZE SFX is sure to create amazing effects, outstanding
projections and beautiful bright washes on any stage.
FUZE
SERIES
Motorized Iris
Variable Wash Frost Filter
Elation Professional USA
6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | info@elationlighting.com
Elation Professional B.V.
Junostraat 2 | 6468 EW Kerkrade, The Netherlands
+31 45 546 85 66 |info@elationlighting.eu
T h e I d e a l F u s I o n o F P e r F o r m a n c e ,
Elation Professional Mexico
AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000
+52 (728) 282-7070
F
e a T u r e s a n d V a l u e
ELATION FUZE SFX I PRELIMINARY Technical Specifications
Specifications subject to change without notice ©Elation Professional 11/22/19
SOURCE
300W 6,800K Bright White LED Engine
20,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, Dimming, and Lamp Mode.
PHOTOMETRIC DATA
12,000 Total Lumen Fixture Output
CRI 70
EFFECTS
4.5° - 38° Motorized Zoom
Remote Focus
Variable Frost Filter
Dual Independent Prisms for Layering
Motorized Iris
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
COLOR
CMY Variable Color Mixing
7 Position Color Wheel
GOBOS
2 Gobo Wheels
Wheel #1 with 8 Rotating / Interchangeable Glass Gobos
Wheel #2 with 10 Static Gobos
CONTROL / CONNECTIONS
31 DMX Channels
16-bit Pan, Tilt and Dimming Control
DMX Adjustable LED Frequency
DMX, RDM, E-FLY Wireless, Art-Net, sACN Protocol Support
(4) Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Locking 5pin XLR Connector In/Out
Locking RJ45 Ethernet Connector In/Out
Locking IP65 Power Connector In/Out
USB Connection (Firmware Updates)
SIZE / WEIGHT
Length: 14.6” (370mm)
Width: 10.1” (230mm)
Vertical Height: 23.41” (594.5mm)
Weight: 46.3 lbs. (19.3kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
432 Max Power Consumption
14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE | cETLus (pending) | IP20
ORDERING INFORMATION
#FUZ406 FUZE SFX (US)
***TBA*** FUZE SFX ROAD CASE (US)
#1237000223 FUZE SFX (EU)
398.5mm [15.69in]89.63mm [3.53in]
594.5mm [23.41in]
269.79mm [10.62in]
15mm [0.59in]
Elation Professional USA
6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | info@elationlighting.com
353.45mm [13.92in]
362mm [14.25in]
Elation Professional B.V.
Junostraat 2 | 6468 EW Kerkrade, The Netherlands
+31 45 546 85 66 |info@elationlighting.eu
217.36mm [8.56in]
329mm [12.95in]
99mm [3.90in]
74.66mm [2.94in]
232.98mm [9.17in]
Elation Professional Mexico
AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000
+52 (728) 282-7070
248.59mm [9.79in]
422.75mm [16.64in]
*PRELIMINARY DRAWINGS NOT TO SCALE
