ELATION
|
CUEPIX 16IP
|
user manual
CUEPIX 16IP™
user manual
©2018 ELATION PROFESSIONAL all rights reserved. Information, specifications,
Date
Document
Version
Software
Version ≥
DMX
Channel Modes
Notes
06/05/18
1
1.04
14
Initial release.
06/19/18
1.2
N/C
NO CHANGE
Updated release.
06/20/18
1.4
N/C
NO CHANGE
Updated DMX traits.
diagrams, images, and instructions herein are subject to change without notice. ELATION
PROFESSIONAL logo and identifying product names and numbers herein are trademarks
of ELATION PROFESSIONAL. Copyright protection claimed includes all forms and matters
of copyrightable materials and information now allowed by statutory or judicial law or
hereinafter granted. Product names used in this document may be trademarks or
registered trademarks of their respective companies and are hereby acknowledged. All
non-ELATION brands and product names are trademarks or registered trademarks of their
respective companies.
ELATION PROFESSIONAL and all affiliated companies hereby disclaim any and all
liabilities for property, equipment, building, and electrical damages, injuries to any persons,
and direct or indirect economic loss associated with the use or reliance of any information
contained within this document, and/or as a result of the improper, unsafe, insufficient and
negligent assembly, installation, rigging, and operation of this product.
Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands
+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu
Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000
+52 (728) 282-7070
DOCUMENT VERSION
Due to additional product features and/or enhancements, an updated
version of this document may be available online.
Please check www.elationlighting.com for the latest revision/update of this
manual, before beginning installation and/or programming.
www.elationlighting.com 2
CONTENTS
General Information
4
Limited Warranty (USA Only)
5
Safety Guidelines
6
Maintenance Guidelines
8
Fixture Overview
9
Installation Guidelines
10
System Menu
16
Pixel Control
19
DMX Channel Functions and Values
20
Tec hni ca l S pe ci fica ti ons
34
Optional Accessories
37
3 www.elationlighting.com
GENERAL INFORMATION
INTRODUCTION
This fixture has been designed to perform reliably for years when the information in this
manual are followed. Please read and understand all the instructions and guidelines
carefully and thoroughly before operating this unit. This manual contains important
information regarding safety, installation, use, and maintenance.
UNPACKING
Each fixture has been thoroughly tested and shipped in perfect operating condition.
Carefully check the outer shipping carton for signs of any damage that may have occurred
during shipping. If the outer carton appears to be damaged, carefully inspect the fixture for
damage and be sure all included accessories have arrived intact. In the event damage has
been found and/or parts are missing, please contact our customer support team for further
instructions. Please do NOT return this fixture to your dealer without first contacting
customer support at the number listed below. Please do NOT discard the outer shipping
carton in the trash. Please recycle whenever possible.
CUSTOMER SUPPORT
Elation Professional provides a customer support line to provide set up help and answer
any set up or operation questions. You may also visit us on the web at
www.elationlighting.com for any comments or suggestions. For service related issue please
contact Elation Professional.
ELATION SERVICE USA - Monday - Friday 8:00am to 5:00pm PST
Voice: 323-582-3322 Fax: 323-832-9142
E-mail: support@elationlighting.com
ELATION SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET
Voice: +31 45 546 85 30 Fax: +31 45 546 85 96
E-mail: support@elationlighting.eu
WARRANTY REGISTRATION / RETURNS
Please register online: http://www.elationlighting.com/Login.aspx to validate your purchase.
All returned service items whether under warranty or not, must be freight pre-paid and
accompany a return authorization (R.A.) number. The R.A. number must be clearly written
on the outside of the return package. A brief description of the problem as well as the R.A.
number must also be written down on a piece of paper and included in the shipping
container. If the unit is under warranty, you must provide a copy of your proof of purchase
invoice. Items returned without a R.A. number clearly marked on the outside of the package
will be refused and returned at customer’s expense. You may obtain a R.A. number by
contacting customer support.
www.elationlighting.com 4
LIMITED WARRANTY (USA ONLY)
A. Elation Professional hereby warrants, to the original purchaser, Elation Professional products to
be free of manufacturing defects in material and workmanship for a period of two years (730 days),
and Elation Professional product rechargeable batteries to be free of manufacturing defects in
material and workmanship for a period of six months (180 days), from the original date of purchase.
This warranty excludes discharge lamps and all product accessories. This warranty shall be valid
only if the product is purchased within the United States of America, including possessions and
territories. It is the owner’s responsibility to establish the date and place of purchase by acceptable
evidence, at the time service is sought.
B. For warranty service, send the product only to the Elation Professional factory. All shipping
charges must be pre-paid. If the requested repairs or service (including parts replacement) are
within the terms of this warranty, Elation Professional will pay return shipping charges only to a
designated point within the United States. If any product is sent, it must be shipped in its original
package and packaging material. No accessories should be shipped with the product. If any
accessories are shipped with the product, Elation Professional shall have no liability what so ever
for loss and/or or damage to any such accessories, nor for the safe return thereof.
C. This warranty is void if the product serial number and/or labels are altered or removed; if the
product is modified in any manner which Elation Professional concludes, after inspection, affects
the reliability of the product; if the product has been repaired or serviced by anyone other than the
Elation Professional factory unless prior written authorization was issued to purchaser by Elation
Professional; if the product is damaged because not properly maintained as set forth in the product
instructions, guidelines and/or user manual.
D. This is not a service contract, and this warranty does not include any maintenance, cleaning or
periodic check-up. During the periods as specified above, Elation Professional will replace defective
parts at its expense, and will absorb all expenses for warranty service and repair labor by reason of
defects in material or workmanship. The sole responsibility of Elation Professional under this
warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the
sole discretion of Elation Professional. All products covered by this warranty were manufactured
after January 1, 1990, and bare identifying marks to that effect.
E. Elation Professional reserves the right to make changes in design and/or performance
improvements upon its products without any obligation to include these changes in any products
theretofore manufactured.
F. No warranty, whether expressed or implied, is given or made with respect to any accessory
supplied with the products described above. Except to the extent prohibited by applicable law, all
implied warranties made by Elation Professional in connection with this product, including
warranties of merchantability or fitness, are limited in duration to the warranty periods set forth
above. And no warranties, whether expressed or implied, including warranties of merchantability or
fitness, shall apply to this product after said periods have expired. The consumer’s and/or dealer’s
sole remedy shall be such repair or replacement as is expressly provided above; and under no
circumstances shall Elation Professional be liable for any loss and/or damage, direct and/or
consequential, arising out of the use of, and/or the inability to use, this product.
G. This warranty is the only written warranty applicable to Elation Professional products and supersedes
all prior warranties and written descriptions of warranty terms and conditions heretofore published.
5 www.elationlighting.com
SAFETY GUIDELINES
PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED
THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT.
DO NOT ATTEMPT ANY REPAIRS YOURSELF; DOING SO WILL VOID
YOUR MANUFACTURES WARRANTY. DAMAGES RESULTI N G FROM
MODIFICATIONS TO THIS FIXTURE AND/OR THE DISREGARD OF
SAFETY INSTRUCTIONS AND GUIDELINES IN THIS MANUAL VOID
THE MANUFACTURES WARRANTY AND ARE NOT SUBJECT TO ANY
WARRANTY CLAIMS AND/OR REPAIRS.
DO NOT PLUG FIXTURE INTO A DIMMER PACK!
NEVER OPEN THIS FIXTURE WHILE IN USE!
UNPLUG POWER BEFORE SERVICING FIXTURE!
NEVER TOUCH FIXTURE DURING OPERATION, AS IT MAY BE HOT!
KEEP FLAMMABLE MATERIALS AWAY FROM FIXTURE!
ENSURE ALL CONNECTIONS AND END CAPS ARE PROPERLY
SEALED WITH A DIELECTRIC GREASE (AVAILABLE AT MOST
ELECTRICAL SUPPLIERS) TO PREVENT WATER CORROSION
AND/OR ELECTRICAL SHORT CIRCUIT.
NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE!
RETINA INJURY RISK - MAY INDUCE BLINDNESS!
SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!
This fixture is a sophisticated piece of electronic equipment. To guarantee a smooth
operation, it is important to follow all instructions and guidelines in this manual. Elation
Professional is not responsible for injury and/or damages resulting from the misuse of this
fixture due to the disregard of the information printed in this manual. Only qualified and/or
certified personnel should perform installation of this fixture and only the original rigging
parts (omega brackets) included with this fixture should be used for installation. Any
modifications to the fixture and/or the included mounting hardware will void the original
manufactures warranty and increase the risk of damage and/or personal injury.
www.elationlighting.com 6
SAFETY GUIDELINES
DO NOT TOUCH the fixture housing during operation. Turn OFF the power and allow
approximately 15 minutes for the fixture to cool down before serving.
DO NOT shake fixture, avoid brute force when installing and/or operating fixture.
DO NOT operate fixture if the power cord is frayed, crimped, damaged and/or if any of the
power cord connectors are damaged and do not insert into the fixture securely with ease.
NEVER force a power cord connector into the fixture. If the power cord or any of its
connectors are damaged, replace it immediately with a new one of similar power rating.
DO NOT block any air ventilation slots.
All fan and air inlets must remain clean and never blocked.
Allow approx. 6” (15cm) between fixture and other devices or a wall for proper cooling.
When installing fixture in a suspended environment, always use mounting hardware that is no
less than M10 x 25 mm, and always install fixture with an appropriately rated safety cable.
Always disconnect fixture from main power source before performing any type of service
and/or cleaning procedure. Only handle the power cord by the plug end, never pull out the
plug by tugging the wire portion of the cord.
During the initial operation of this fixture, a light smoke or smell may emit from the interior of
the fixture. This is a normal process and is caused by excess paint in the interior of the casing
burning off from the heat associated with the lamp and will decrease gradually over time.
Consistent operational breaks will ensure fixture will function properly for many years.
ONLY use the original packaging and materials to transport the fixture in for service.
7 www.elationlighting.com
MAINTENANCE GUIDELINES
DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE!
CLEANING
Frequent cleaning is recommended to insure proper function, optimized light output, and
an extended life. The frequency of cleaning depends on the environment in which the
fixture operates: damp, smoky or particularly dirty environments can cause greater
accumulation of dirt on the fixture’s optics. Clean the external lens surface at least every 20
days with a soft cloth to avoid dirt/debris accumulation.
NEVER use alcohol, solvents, or ammonia-based cleaners.
MAINTENANCE
Regular inspections are recommended to insure proper function and extended life.
There are no user serviceable parts inside this fixture, please refer all other service issues to
an authorized Elation service technician. Should you need any spare parts, please order
genuine parts from your local Elation dealer.
Please refer to the following points during routine inspections:
A detailed electric check by an approved electrical engineer every three months, to make
sure the circuit contacts are in good condition and prevent overheating.
Be sure all screws and fasteners are securely tightened at all times. Lose screws may fall out
during normal operation resulting in damage or injury as larger parts could fall.
Check for any deformations on the housing, color lenses, rigging hardware and rigging
points (ceiling, suspension, trussing). Deformations in the housing could allow for dust to
enter into the fixture. Damaged rigging points or unsecured rigging could cause the fixture
to fall and seriously injure a person(s).
Electric power supply cables must not show any damage, material fatigue or sediments.
NEVER remove the ground prong from the power cable.
www.elationlighting.com 8
FIXTURE OVERVIEW
INCLUDED ITEMS
Safety Cable
IP65 Power Cable
9 www.elationlighting.com
INSTALLATION INSTRUCTIONS
IP65 RATED
An IP rated lighting fixture is one, which is commonly installed in outdoor environments and
has been designed with an enclosure that effectively protects the ingress (entry) of external
foreign objects such as dust and water. The International Protection (IP) rating system is
commonly expressed as "IP" (Ingress Protection) followed by two numbers (i.e. IP65)
where the numbers define the degree of protection. The first digit (Foreign Bodies
Protection) indicates the extent of protection against particles entering the fixture and the
second digit (Water Protection) indicates the extent of protection against water entering the
fixture. An IP65 rated lighting fixture is one, which has been designed and tested to protect
against the ingress of dust (6) and high-pressure water jets from any direction (5).
MARINE/COASTAL ENVIRONMENT INSTALLATIONS
Please note although this fixture is IP rated, the fixture is NOT suitable for marine and/or
coastal environment installations. Installing this fixture in a marine and/or coastal
environment may cause corrosion and/or excessive wear to the interior and/or exterior
components of the fixture. Damages and/or performance issues resulting from installation
in a marine and/or coastal environment will void the manufactures warranty and will NOT
be subject to any warranty claims and/or repairs.
OPTIONAL CORROSION-RESISTANT COATING
Optional Corrosion-Resistant Coatings may be available for this fixture.
Please contact Elation Professional for more details.
FLAMMABLE MATERIAL WARNING
Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics.
ELECTRICAL CONNECTIONS
A qualified electrician should be used for all electrical connections and/or installations.
ENSURE ALL CONNECTIONS AND END CAPS ARE PROPERLY SEALED WITH A
NON-CONDUCTIVE DIELECTRIC GREASE (AVAILABLE AT MOST ELECTRICAL
SUPPLIERS) TO PREVENT WATER INGRESS/CONDENSATION AND/OR
CORROSION.
USE CAUTION WHEN POWER LINKING OTHER MODEL FIXTURES AS THE
POWER CONSUMPTION OF OTHER MODEL FIXTURES MAY EXCEED THE MAX
POWER OUTPUT ON THIS FIXTURE. CHECK SILK SCREEN FOR MAX AMPS.
www.elationlighting.com 10
INSTALLATION I NSTRUCTIONS
!"#$%#$$%&'&!"(%
)*''")+, * ')#-!%
!"#$%#$$%&'&!"(%
)*''")+, * ')#-!%
DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO!
Fixture MUST be installed following all local, national, and country commercial electrical
and construction codes and regulations.
Before rigging/mounting a single fixture or multiple interconnected fixtures for custom
matrix designs to any metal truss/structure or placing the fixture(s) on any surface, a
professional equipment installer MUST be consulted to determine if the metal
truss/structure or surface is properly certified to safely hold the combined weight of the
fixture(s), clamps, cables, and accessories.
Fixture ambient operating temperature range is 14° to 113°F. (-10° to 45°C)
Do not use the fixture under or above this temperature.
Fixture(s) should be installed in areas outside walking paths, seating areas, or away from
areas were unauthorized personnel might reach the fixture by hand.
NEVER stand directly below the fixture(s) when rigging, removing or servicing.
Overhead fixture installation must always be secured with a secondary safety attachment,
such as an appropriately rated safety cable that can hold 10 times the weight of the fixture.
Allow approximately 15 minutes for the fixture to cool down before serving.
TO MAINTAIN IP65 RATING INTEGRITY AND PREVENT WATER FROM ENTERING
FIXTURE, ALL UNUSED CONNECTION RUBBER CAPS MUST BE SEALED.
11 www.elationlighting.com
INSTALLATION INSTRUCTIONS
!#:"+7%)#6$"%
4,00,'0%-*,'+%
!#:"+7%)#6$"%
4,00,'0%-*,'+%
7*8"%
/#'($"%8'*6%
7*8"%
/#'($"%8'*6%
CLAMP MOUNTING
A 90-degree adjustable yoke bracket and a fixed yoke bracket are attached to the fixture,
both include 3-position holes for versatile fixture positioning. Optional Omega Brackets are
available which can be attached to yoke brackets for easy clamp rigging. See the Optional
Accessories at the end of this manual for the order code. When mounting this fixture to
truss or a metal structure, be sure to secure an appropriately rated clamp (not included) to
one of the yoke brackets using an M10 screw. Depending on rigging position of the fixture,
it may be best to use more than one clamp attached to the yoke.
./"'%&!,'0%+/"%123("04""%#(5&!+#6$"%7*8"%+*%9*&'+%+/"%:,;+&4"<% %
9#8"%!&4"%6*+/%7*8"%/#'($"%8'*6!%#4"%!")&4"$7%+,0/+"'%)$*)8.,!"=!
SAFETY CABLE
The fixture includes 2 integrated safety cable rigging points. (see image below)
#$.#7!%#++#)/%#%!#:"+7%)# 6$"%. /"'" >"4%, '!+#$$,'0%+/,!%:,;+&4"%,'%#%!&!-"'("(%
"'>,4*'9"'+%+*%"' !&4"% +/"%:, ;+&4"%. ,$$%'*+%(4* -%,:%+/"%)$#9-%:#,$!=%
%
!
www.elationlighting.com 12
INSTALLATION INSTRUCTIONS
#$,0'9"'+%-,'%
,'+"4$*)8%
&'$*)8?*-"'%
-*!,+,*'%
,'+"4$*)8%
:,;"(%7*8"%
INTERLOCKING PANELS
The fixture includes integrated alignment pins and interlocks which are used to connect
multiple panels together horizontally and vertically to create seamless custom matrix
designs. See images below for interlocking steps.
THE PINS AND INTERLOCKS ARE FOR ALIGNMENT PURPOSES ONLY!
EACH PANEL MUST BE SECURED WITH ITS OWN CLAMP(S) AND SAFETY CABLE!
FOR MULTIPLE PANEL RIGGING, USE ONLY THE FIXED YOKE BRACKET!
1. Push out alignment pins on panel by pulling up and holding round knob while sliding out.
Release round knob to lock alignment pin into fully extended position. MAKE SURE EACH
ALIGNMENT PIN IS FULLY EXTENDED OUT AND THE ROUND TAB IS IN THE
LOCKED POSITION!
2. UNLOCK/OPEN interlocks on panel by pulling up and holding lock while turning 45
degrees to 9/3 o’clock position. Release lock so it sits completely into position. MAKE
SURE EACH INTERLOCK IS COMPLETELY IN THE 9/3 O’CLOCK UNLOCK/OPEN
POSITION!
13 www.elationlighting.com
INSTALLATION INSTRUCTIONS
,'+"4$*)8%
$*)8?)$*!"%
-*!,+,*'%
INTERLOCKING PANELS
3. Push panels together (horizontally and/or vertically) by inserting alignment pins of one
panel into the marrying interlocks of another panel. Once alignment pins are fully inserted,
LOCK/CLOSE interlocks on panels by pulling up and holding lock while turning 45 degrees
to 12/6 o’clock position. MAKE SURE EACH INTERLOCK IS COMPLETELY IN THE 12/6
O’CLOCK LOCK/CLOSE POSITION AND EACH ALIGNMENT PIN ROUND TAB IS IN
THE LOCKED POSITION!
4. Repeat steps 1-3 for as needed for each horizontally/vertically connected panel.
OVERHEAD RIGGING
Overhead rigging requires extensive experience, including amongst others calculating
working load limits, installation material being used, and periodic safety inspection of all
installation material and the fixture. If you lack these qualifications, do not attempt the
installation yourself. Improper installation can result in bodily injury and property damage.
www.elationlighting.com 14
INSTALLATION INSTRUCTIONS
POWER LINKING
USE CAUTION WHEN POWER LINKING OTHER MODEL FIXTURES AS THE
POWER CONSUMPTION OF OTHER MODEL FIXTURES MAY EXCEED THE MAX
POWER OUTPUT ON THIS FIXTURE. CHECK SILK SCREEN FOR MAX AMPS.
KLING-NET / ART-NET CONNECTION
When connecting fixture to a network switch to control multiple devices, a Gigabit
Ethernet Switch that supports IGMP (Internet Group Management Protocol) is required.
Using a Gigabit Ethernet Switch that does not support IGMP can cause erratic behavior
of all connected devices to the switch. Click link below for more information about IGMP.
https://en.wikipedia.org/wiki/Internet_Group_Management_Protocol
15 www.elationlighting.com
SYSTEM MENU

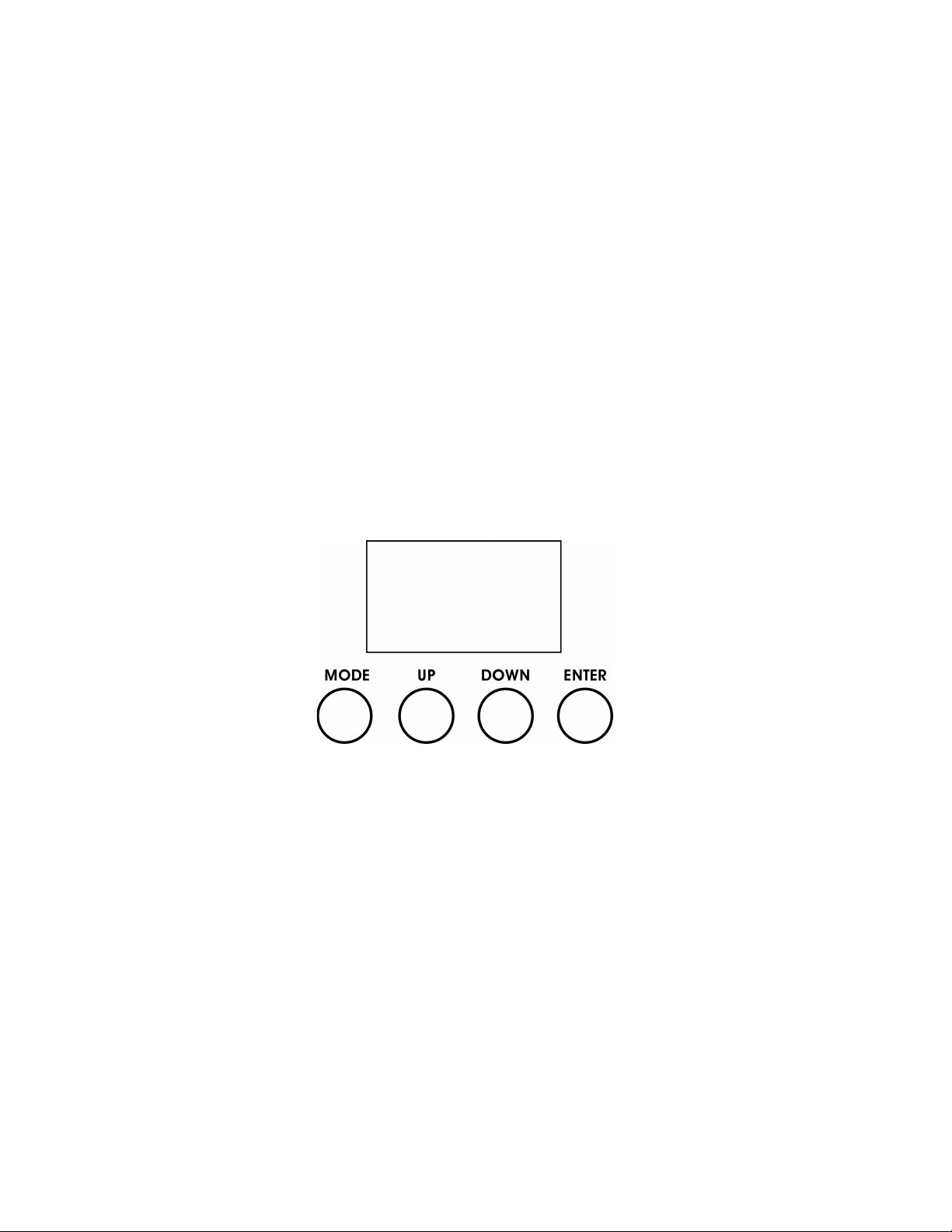

The fixture includes an easy to navigate system menu where fixture settings can be
adjusted via the LCD control panel located on the back of the fixture. (see image below)
During normal operation, pressing the MODE button once will access the main menu.
Navigate through the various sub-menus by pressing the UP and DOWN buttons, press the
ENTER button to select a specific sub-menu, press the UP and DOWN buttons to adjust
the selected sub-menu settings, and press the ENTER button again to confirm the
sub-menu setting selection. Exit the main system menu at any time without making any
adjustments by pressing the MODE button.
To access the system menu press and hold the MODE button for 3 seconds. The LCD Menu
Control Display will shut OFF automatically about 1 minute from the last button press.
www.elationlighting.com 16
S Y S T E M M E N U
Supports Software Versions: ≥ 1.04
Features are subject to change without any prior written notice.
MENU
SUB MENU
OPTIONS / VALUES (Default Settings in BOLD)
DESCRIPTION
Address
ADDR:
001 ~ xxx
DMX Address Setting
UserMode
03CH, 04CH, 07CH, 07CH, 06CH, 08CH, 08CH,
11CH, 12CH, 12CH, 48CH, 64CH, 72CH, 128CH
Set DMX Channel / User Mode
Function
Status
No Dmx
Black / Hold
Function If NO DMX Detected
LCD.Set
Display
ON / OFF
LCD Backlight Shut Off Time
Key Lock
ON / OFF
Control Front Panel Buttons Key Lock
Flash
ON / OFF
Display flashes when NO DMX
Invert
ON / OFF
Flips Display 180 Degrees
Temp. C/F
F / C
Temperature Switch Between F˚/ C˚
DimCurve
Standard, Stage, TV, Architec, Theatre, Stage2
Set Dimmer Curve Mode
Disp.Set
ADDR, Disp.CH, Slave
Select Default Display
Flip
Standard, Flip1, Flip2, Flip3, Flip4

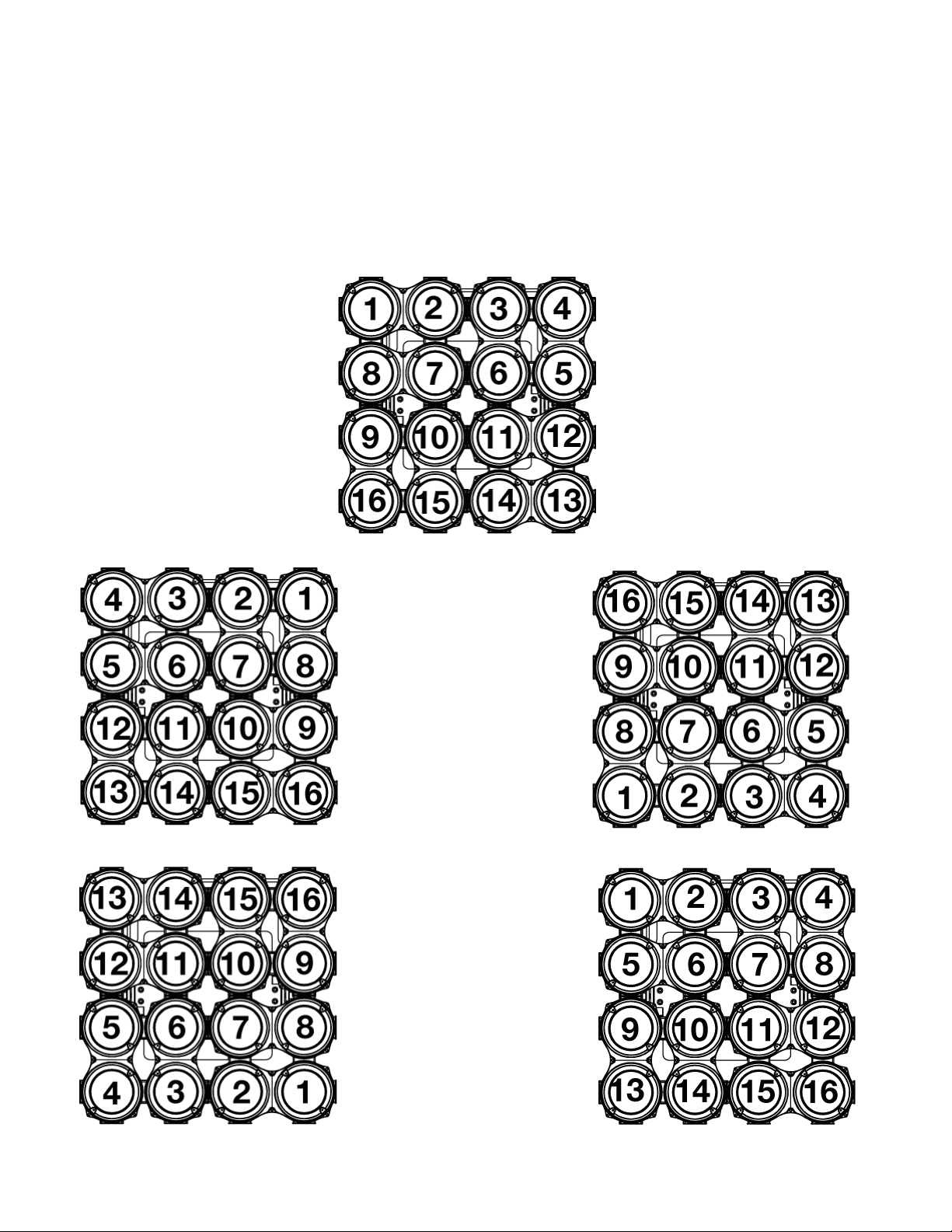

Set Pixel Flip Mode (See page 19 for more info)
Macro
00-63
Select Internal Color Macro
Gamma
2.0, 2.2, 2.4, 2.8
Set Gamma Brightness
Frequen
900Hz, 1000Hz, 1100Hz, 1200Hz, 1300Hz,
1400Hz, 1500Hz, 2500Hz, 4000Hz, 5000Hz,
10Hz, 15Hz, 20Hz, 25Hz
Set LED Refresh Frequency
PROTOCOL
ArtNet, KlingNet
Select Network Protocol
NET_SWIT
ON / OFF
Enable Network Protocol Auto-Detection
FIX_ID
Password
050
Enter Password to Access Fixture ID Menu
DeviceIP
XXX.XXX.XXX.XXX
Enter Device IP Address
Universe
000-255
Enter Device Universe
DFSE
ON / OFF
Restore Factory Settings
USB
ON / OFF
Enable Service Port for Software Updates
Info
TimeInfo
Current
XXXX (Hours)
Fixture Run Time from Power ON
Total
XXXX (Hours)
Fixture Total Run Time
Last PassWord
XXXX (Hours)
Clear Fixture Last Run Time
TimerPIN
PIN= 066
Enter PIN to Access Clear Last. Menu
TempInfo
LED Temp
XXX F° / C°
Temperature in Fixture Head
Err.Info
Error Record 1 ~ Error Record 10
Display 10 Recent Error Messages
ModelInf
Cuepix 16 IP
Display Model Name
SoftWare
≥V1.04
Software Versions
17 www.elationlighting.com
Supports Software Versions: ≥ 1.04
Features are subject to change without any prior written notice.
MENU
SUB MENU
OPTIONS / VALUES (Default Settings in BOLD)
DESCRIPTION
Manual
Manual
Strobe
000 - 255
Set Strobe DMX Value
Dimmer
000 - 255
Set Master Dimmer DMX Value
DimFine
000 - 255
Set Dimmer Fine DMX Value
DimMode
000 - 255
Select Dimmer Curve Mode
Red1
000 - 255
Set RGBA DMX Values of Pixel #1
Green1
000 - 255
Blue1
000 - 255
Amber1
000 - 255
Red2
000 - 255
Set RGBA DMX Values of Pixel #2
Green2
000 - 255
Blue2
000 - 255
Amber2
000 - 255
▼
▼
▼
Red15
000 - 255
Set RGBA DMX Values of Pixel #15
Green15
000 - 255
Blue15
000 - 255
Amber15
000 - 255
Red16
000 - 255
Set RGBA DMX Values of Pixel #16
Green16
000 - 255
Blue16
000 - 255
Amber16
000 - 255
Test
ManCtrl
Strobe
000 - 255
Set Strobe DMX Value
Dimmer
000 - 255
Set Master Dimmer DMX Value
DimFine
000 - 255
Set Dimmer Fine DMX Value
DimMode
Select Dimmer Curve Mode
Red1
000 - 255
Set RGBA DMX Values of Pixel #1
Green1
000 - 255
Blue1
000 - 255
Amber1
000 - 255
Red2
000 - 255
Set RGBA DMX Values of Pixel #2
Green2
000 - 255
Blue2
000 - 255
Amber2
000 - 255
▼
▼
▼
Red15
000 - 255
Set RGBA DMX Values of Pixel #15
Green15
000 - 255
Blue15
000 - 255
Amber15
000 - 255
Red16
000 - 255
Set RGBA DMX Values of Pixel #16
Green16
000 - 255
Blue16
000 - 255
Amber16
000 - 255
Calibrat
Password
050
Enter Password to Access Calibration Menu
NOTE: ONLY QUALIFIED TECHNICIANS
SHOULD PERFORM THIS FUNCTION!
www.elationlighting.com 18
PIXEL CONTROL
!+#'(#4(%
:$,-%@%
:$,-%A%
:$,-%B%
:$,-%C%
There are 5 pixel modes which can be selected from the FLIP sub menu in the FUNCTION
main system menu, each having a different starting pixel location and sequence on the
panel. This feature makes it easy to configure the pixels of all panels to be the same
regardless of their installation orientation. See diagrams below for each pixel flip mode.
19 www.elationlighting.com
DMX CHANNEL FUNCTIONS AND VALUES
DMX Channel Values / Functions (128 DMX Channels)
Supports Software Versions: ≥ 1.05
Features subject to change without any prior written notice.
*Pixel control of effects depends on flip system menu settings.
DYNAMIC AMBER AUTOMATICALLY ADDED TO RGB CHANNELS
MODE / CHANNEL
VAL UE
FUNCTION
03CH
RGB
04CH
RGBA
07CH
RGBA+
07CH
DA+
06CH
RGBI
08CH
16Bit
08CH
RGBA
11CH
Basic
12CH
RGBA
12CH
RGBI
1
1
SHUTTER / STROBE
0-31
LED OFF
32-63
LED ON
64-95
Strobe Effect SLOW to FAST
96-127
LED ON
128-159
Strobe Pulse Effect In Sequences SLOW to FAST
160-191
LED ON
192-223
Random Strobe Effect SLOW to FAST
224-255
LED ON
1 1 1 1 2 1 1 1 1
2
RED - ALL PIXELS
0-255
0-100%
2
RED FINE - ALL PIXELS
0-255
16-bit FINE Adjustment
2 2 2 2 3 3 2 2 2
3
GREEN - ALL PIXELS
0-255
0-100%
4
GREEN FINE - ALL PIXELS
0-255
16-bit FINE Adjustment
3 3 3 3 4 5 3 3 3
4
BLUE - ALL PIXELS
0-255
0-100%
6
BLUE FINE - ALL PIXELS
0-255
16-bit FINE Adjustment
4 4 4 5 7 4 4 4
5
AMBER - ALL PIXELS
0-255
0-100%
8
AMBER FINE - ALL PIXELS
0-255
16-bit FINE Adjustment
www.elationlighting.com 20
DYNAMIC AMBER AUTOMATICALLY ADDED TO RGB CHANNELS
MODE / CHANNEL
VAL UE
FUNCTION
03CH
RGB
04CH
RGBA
07CH
RGBA+
07CH
DA+
06CH
RGBI
08CH
16Bit
08CH
RGBA
11CH
Basic
12CH
RGBA
12CH
RGBI
5 5
COLOR MACROS
1-4
Color Macro 01
5-8
Color Macro 02
9-12
Color Macro 03
13-16
Color Macro 04
17-20
Color Macro 05
21-24
Color Macro 06
25-28
Color Macro 07
29-32
Color Macro 08
33-36
Color Macro 09
37-40
Color Macro 10
41-44
Color Macro 11
45-48
Color Macro 12
49-52
Color Macro 13
53-56
Color Macro 14
57-60
Color Macro 15
61-64
Color Macro 16
65-68
Color Macro 17
69-72
Color Macro 18
73-76
Color Macro 19
77-80
Color Macro 20
81-84
Color Macro 21
85-88
Color Macro 22
89-92
Color Macro 23
93-96
Color Macro 24
97-100
Color Macro 25
101-104
Color Macro 26
105-108
Color Macro 27
109-112
Color Macro 28
113-116
Color Macro 29
117-120
Color Macro 30
121-124
Color Macro 31
125-128
Color Macro 32
129-132
Color Macro 33
133-136
Color Macro 34
137-140
Color Macro 35
141-144
Color Macro 36
145-148
Color Macro 37
149-152
Color Macro 38
21 www.elationlighting.com
DYNAMIC AMBER AUTOMATICALLY ADDED TO RGB CHANNELS
MODE / CHANNEL
VAL UE
FUNCTION
03CH
RGB
04CH
RGBA
07CH
RGBA+
07CH
DA+
06CH
RGBI
08CH
16Bit
08CH
RGBA
11CH
Basic
12CH
RGBA
12CH
RGBI
5 5
COLOR MACROS (continued)
153-156
Color Macro 39
157-160
Color Macro 40
161-164
Color Macro 41
165-168
Color Macro 42
169-172
Color Macro 43
173-176
Color Macro 44
177-180
Color Macro 45
181-184
Color Macro 46
185-188
Color Macro 47
189-192
Color Macro 48
193-196
Color Macro 49
197-200
Color Macro 50
201-204
Color Macro 51
205-208
Color Macro 52
209-212
Color Macro 53
213-216
Color Macro 54
217-220
Color Macro 55
221-224
Color Macro 56
225-228
Color Macro 57
229-232
Color Macro 58
233-236
Color Macro 59
237-240
Color Macro 60
241-244
Color Macro 61
245-248
Color Macro 62
249-252
Color Macro 63
253-255
Color Macro 64
www.elationlighting.com 22
DYNAMIC AMBER AUTOMATICALLY ADDED TO RGB CHANNELS
MODE / CHANNEL
VAL UE
FUNCTION
03CH
RGB
04CH
RGBA
07CH
RGBA+
07CH
DA+
06CH
RGBI
08CH
16Bit
08CH
RGBA
11CH
Basic
12CH
RGBA
12CH
RGBI
5 6 6
SHUTTER / STROBE
0-31
LED OFF
32-63
LED ON
64-95
Strobe Effect SLOW to FAST
96-127
LED ON
128-159
Strobe Pulse Effect In Sequences SLOW to FAST
160-191
LED ON
192-223
Random Strobe Effect SLOW to FAST
224-255
LED ON
5 5 6 6 7 7
6
MASTER DIMMER / INTENSITY
0-255
Dimmer (0-100%)
6 6 7 8
7
MASTER DIMMER / INTENSITY FINE
0-255
Dimmer (0-100%)
8 9
8
PROGRAM MACROS
0-19
NO FUNCTION
1-20
PROGRAM 01
21-40
PROGRAM 02
41-60
PROGRAM 03
62-80
PROGRAM 04
81-100
PROGRAM 05
101-120
PROGRAM 06
121-140
PROGRAM 07
141-160
PROGRAM 08
161-180
PROGRAM 09
181-200
PROGRAM 10
201-220
PROGRAM 11
221-240
PROGRAM 12
241-250
PROGRAM 13
251-255
PROGRAM 14
9 10
9
PROGRAM MACRO SPEED
0-255
Program Macro SPEED SLOW to FAST
10
11
10
PROGRAM MACRO FADE
0-255
Program Macro FADE SLOW to FAST
23 www.elationlighting.com
DYNAMIC AMBER AUTOMATICALLY ADDED TO RGB CHANNELS
MODE / CHANNEL
VAL UE
FUNCTION
03CH
RGB
04CH
RGBA
07CH
RGBA+
07CH
DA+
06CH
RGBI
08CH
16Bit
08CH
RGBA
11CH
Basic
12CH
RGBA
12CH
RGBI
11
COLOR MACROS
1-4
Color Macro 01
5-8
Color Macro 02
9-12
Color Macro 03
13-16
Color Macro 04
17-20
Color Macro 05
21-24
Color Macro 06
25-28
Color Macro 07
29-32
Color Macro 08
33-36
Color Macro 09
37-40
Color Macro 10
41-44
Color Macro 11
45-48
Color Macro 12
49-52
Color Macro 13
53-56
Color Macro 14
57-60
Color Macro 15
61-64
Color Macro 16
65-68
Color Macro 17
69-72
Color Macro 18
73-76
Color Macro 19
77-80
Color Macro 20
81-84
Color Macro 21
85-88
Color Macro 22
89-92
Color Macro 23
93-96
Color Macro 24
97-100
Color Macro 25
101-104
Color Macro 26
105-108
Color Macro 27
109-112
Color Macro 28
113-116
Color Macro 29
117-120
Color Macro 30
121-124
Color Macro 31
125-128
Color Macro 32
129-132
Color Macro 33
133-136
Color Macro 34
137-140
Color Macro 35
141-144
Color Macro 36
145-148
Color Macro 37
149-152
Color Macro 38
www.elationlighting.com 24
DYNAMIC AMBER AUTOMATICALLY ADDED TO RGB CHANNELS
MODE / CHANNEL
VAL UE
FUNCTION
03CH
RGB
04CH
RGBA
07CH
RGBA+
07CH
DA+
06CH
RGBI
08CH
16Bit
08CH
RGBA
11CH
Basic
12CH
RGBA
12CH
RGBI
11
COLOR MACROS (continued)
153-156
Color Macro 39
157-160
Color Macro 40
161-164
Color Macro 41
165-168
Color Macro 42
169-172
Color Macro 43
173-176
Color Macro 44
177-180
Color Macro 45
181-184
Color Macro 46
185-188
Color Macro 47
189-192
Color Macro 48
193-196
Color Macro 49
197-200
Color Macro 50
201-204
Color Macro 51
205-208
Color Macro 52
209-212
Color Macro 53
213-216
Color Macro 54
217-220
Color Macro 55
221-224
Color Macro 56
225-228
Color Macro 57
229-232
Color Macro 58
233-236
Color Macro 59
237-240
Color Macro 60
241-244
Color Macro 61
245-248
Color Macro 62
249-252
Color Macro 63
253-255
Color Macro 64
7 7 8
11
12
12
DIMMING MODES
0-20
STANDARD
21-40
STAGE
41-60
TV
61-80
ARCHITECTURAL
81-100
THEATER
101-120
STAGE 2
121-255
DEFAULT TO UNIT SETTING
25 www.elationlighting.com
www.elationlighting.com 26
DYNAMIC AMBER AUTOMATICALLY ADDED TO RGB CHANNELS
MODE / CHANNEL
VAL UE
FUNCTION
48CH
DA
64CH
RGBA
72CH
Pixel
128CH
16Bit
1 1 1
1
RED - PIXEL 1
0-255
0-100%
2
RED FINE - PIXEL 1
0-256
16-bit FINE Adjustment
2 2 2
3
GREEN - PIXEL 1
0-255
0-100%
4
GREEN FINE - PIXEL 1
0-256
16-bit FINE Adjustment
3 3 3
5
BLUE - PIXEL 1
0-255
0-100%
6
BLUE FINE - PIXEL 1
0-256
16-bit FINE Adjustment
4 4
7
AMBER - PIXEL 1
0-256
0-100%
8
AMBER FINE - PIXEL 1
0-257
16-bit FINE Adjustment
4 5 5
9
RED - PIXEL 2
0-255
0-100%
10
RED FINE - PIXEL 2
0-256
16-bit FINE Adjustment
5 6 6
11
GREEN - PIXEL 2
0-255
0-100%
12
GREEN FINE - PIXEL 2
0-256
16-bit FINE Adjustment
6 7 7
13
BLUE - PIXEL 2
0-255
0-100%
14
BLUE FINE - PIXEL 2
0-256
16-bit FINE Adjustment
8 8
15
AMBER - PIXEL 2
0-256
0-100%
16
AMBER FINE - PIXEL 2
0-257
16-bit FINE Adjustment
7 9 9
17
RED - PIXEL 3
0-255
0-100%
18
RED FINE - PIXEL 3
0-255
16-bit FINE Adjustment
8
10
10
19
GREEN - PIXEL 3
0-255
0-100%
20
GREEN FINE - PIXEL 3
0-256
16-bit FINE Adjustment
9
11
11
21
BLUE - PIXEL 3
0-255
0-100%
22
BLUE FINE - PIXEL 3
0-255
16-bit FINE Adjustment
12
12
23
AMBER - PIXEL 3
0-256
0-100%
24
AMBER FINE - PIXEL 3
0-256
16-bit FINE Adjustment
27 www.elationlighting.com
DYNAMIC AMBER AUTOMATICALLY ADDED TO RGB CHANNELS
MODE / CHANNEL
VAL UE
FUNCTION
48CH
DA
64CH
RGBA
72CH
Pixel
128CH
16Bit
10
13
13
25
RED - PIXEL 4
0-255
0-100%
26
RED FINE - PIXEL 4
0-255
16-bit FINE Adjustment
11
14
14
27
GREEN - PIXEL 4
0-255
0-100%
28
GREEN FINE - PIXEL 4
0-255
16-bit FINE Adjustment
12
15
15
29
BLUE - PIXEL 4
0-255
0-100%
30
BLUE FINE - PIXEL 4
0-255
16-bit FINE Adjustment
16
16
31
AMBER - PIXEL 4
0-256
0-100%
32
AMBER FINE - PIXEL 4
0-256
16-bit FINE Adjustment
13
17
17
33
RED - PIXEL 5
0-255
0-100%
34
RED FINE - PIXEL 5
0-255
16-bit FINE Adjustment
14
18
18
35
GREEN - PIXEL 5
0-255
0-100%
36
GREEN FINE - PIXEL 5
0-255
16-bit FINE Adjustment
15
19
19
37
BLUE - PIXEL 5
0-255
0-100%
38
BLUE FINE - PIXEL 5
0-255
16-bit FINE Adjustment
20
20
39
AMBER - PIXEL 5
0-256
0-100%
40
AMBER FINE - PIXEL 5
0-256
16-bit FINE Adjustment
16
21
21
41
RED - PIXEL 6
0-255
0-100%
42
RED FINE - PIXEL 6
0-255
16-bit FINE Adjustment
17
22
22
43
GREEN - PIXEL 6
0-255
0-100%
44
GREEN FINE - PIXEL 6
0-255
16-bit FINE Adjustment
18
23
23
45
BLUE - PIXEL 6
0-255
0-100%
46
BLUE FINE - PIXEL 6
0-255
16-bit FINE Adjustment
24
24
47
AMBER - PIXEL 6
0-256
0-100%
48
AMBER FINE - PIXEL 6
0-256
16-bit FINE Adjustment
www.elationlighting.com 28
DYNAMIC AMBER AUTOMATICALLY ADDED TO RGB CHANNELS
MODE / CHANNEL
VAL UE
FUNCTION
48CH
DA
64CH
RGBA
72CH
Pixel
128CH
16Bit
19
25
25
49
RED - PIXEL 7
0-255
0-100%
50
RED FINE - PIXEL 7
0-255
16-bit FINE Adjustment
20
26
26
51
GREEN - PIXEL 7
0-255
0-100%
52
GREEN FINE - PIXEL 7
0-255
16-bit FINE Adjustment
21
27
27
53
BLUE - PIXEL 7
0-255
0-100%
54
BLUE FINE - PIXEL 7
0-255
16-bit FINE Adjustment
28
28
5
AMBER - PIXEL 7
0-256
0-100%
56
AMBER FINE - PIXEL 7
0-256
16-bit FINE Adjustment
22
29
29
57
RED - PIXEL 8
0-255
0-100%
58
RED FINE - PIXEL 8
0-255
16-bit FINE Adjustment
23
30
30
59
GREEN - PIXEL 8
0-255
0-100%
60
GREEN FINE - PIXEL 8
0-255
16-bit FINE Adjustment
24
31
31
61
BLUE - PIXEL 8
0-255
0-100%
62
BLUE FINE - PIXEL 8
0-255
16-bit FINE Adjustment
32
32
63
AMBER - PIXEL 8
0-256
0-100%
64
AMBER FINE - PIXEL 8
0-256
16-bit FINE Adjustment
25
33
33
65
RED - PIXEL 9
0-255
0-100%
66
RED FINE - PIXEL 9
0-255
16-bit FINE Adjustment
26
34
34
67
GREEN - PIXEL 9
0-255
0-100%
68
GREEN FINE - PIXEL 9
0-255
16-bit FINE Adjustment
27
35
35
69
BLUE - PIXEL 9
0-255
0-100%
70
BLUE FINE - PIXEL 9
0-255
16-bit FINE Adjustment
36
36
71
AMBER - PIXEL 9
0-256
0-100%
72
AMBER FINE - PIXEL 9
0-256
16-bit FINE Adjustment
29 www.elationlighting.com
DYNAMIC AMBER AUTOMATICALLY ADDED TO RGB CHANNELS
MODE / CHANNEL
VAL UE
FUNCTION
48CH
DA
64CH
RGBA
72CH
Pixel
128CH
16Bit
28
37
37
73
RED - PIXEL 10
0-255
0-100%
74
RED FINE - PIXEL 10
0-255
16-bit FINE Adjustment
29
38
38
75
GREEN - PIXEL 10
0-255
0-100%
76
GREEN FINE - PIXEL 10
0-255
16-bit FINE Adjustment
30
39
39
77
BLUE - PIXEL 10
0-255
0-100%
78
BLUE FINE - PIXEL 10
0-255
16-bit FINE Adjustment
40
40
79
AMBER - PIXEL 10
0-256
0-100%
80
AMBER FINE - PIXEL 10
0-256
16-bit FINE Adjustment
31
41
41
81
RED - PIXEL 11
0-255
0-100%
82
RED FINE - PIXEL 11
0-255
16-bit FINE Adjustment
32
42
42
83
GREEN - PIXEL 11
0-255
0-100%
84
GREEN FINE - PIXEL 11
0-255
16-bit FINE Adjustment
33
43
43
85
BLUE - PIXEL 11
0-255
0-100%
86
BLUE FINE - PIXEL 11
0-255
16-bit FINE Adjustment
44
44
87
AMBER - PIXEL 11
0-256
0-100%
88
AMBER FINE - PIXEL 11
0-256
16-bit FINE Adjustment
34
45
45
89
RED - PIXEL 12
0-255
0-100%
90
RED FINE - PIXEL 12
0-255
16-bit FINE Adjustment
35
46
46
91
GREEN - PIXEL 12
0-255
0-100%
92
GREEN FINE - PIXEL 12
0-255
16-bit FINE Adjustment
36
47
47
93
BLUE - PIXEL 12
0-255
0-100%
94
BLUE FINE - PIXEL 12
0-255
16-bit FINE Adjustment
48
48
95
AMBER - PIXEL 12
0-256
0-100%
96
AMBER FINE - PIXEL 12
0-256
16-bit FINE Adjustment
www.elationlighting.com 30
DYNAMIC AMBER AUTOMATICALLY ADDED TO RGB CHANNELS
MODE / CHANNEL
VAL UE
FUNCTION
48CH
DA
64CH
RGBA
72CH
Pixel
128CH
16Bit
37
49
49
97
RED - PIXEL 13
0-255
0-100%
98
RED FINE - PIXEL 13
0-255
16-bit FINE Adjustment
38
50
50
99
GREEN - PIXEL 13
0-255
0-100%
100
GREEN FINE - PIXEL 13
0-255
16-bit FINE Adjustment
39
51
51
101
BLUE - PIXEL 13
0-255
0-100%
102
BLUE FINE - PIXEL 13
0-255
16-bit FINE Adjustment
52
52
103
AMBER - PIXEL 13
0-256
0-100%
104
AMBER FINE - PIXEL 13
0-256
16-bit FINE Adjustment
40
53
53
105
RED - PIXEL 14
0-255
0-100%
106
RED FINE - PIXEL 14
0-255
16-bit FINE Adjustment
41
54
54
107
GREEN - PIXEL 14
0-255
0-100%
108
GREEN FINE - PIXEL 14
0-255
16-bit FINE Adjustment
42
55
55
109
BLUE - PIXEL 14
0-255
0-100%
110
BLUE FINE - PIXEL 14
0-255
16-bit FINE Adjustment
56
56
111
AMBER - PIXEL 14
0-256
0-100%
112
AMBER FINE - PIXEL 14
0-256
16-bit FINE Adjustment
43
57
57
113
RED - PIXEL 15
0-255
0-100%
114
RED FINE - PIXEL 15
0-255
16-bit FINE Adjustment
44
58
58
115
GREEN - PIXEL 15
0-255
0-100%
116
GREEN FINE - PIXEL 15
0-255
16-bit FINE Adjustment
45
59
59
117
BLUE - PIXEL 15
0-255
0-100%
118
BLUE FINE - PIXEL 15
0-255
16-bit FINE Adjustment
60
60
119
AMBER - PIXEL 15
0-256
0-100%
120
AMBER FINE - PIXEL 15
0-256
16-bit FINE Adjustment
DYNAMIC AMBER AUTOMATICALLY ADDED TO RGB CHANNELS
MODE / CHANNEL
VAL UE
FUNCTION
48CH
DA
64CH
RGBA
72CH
Pixel
128CH
16Bit
46
61
61
121
RED - PIXEL 16
0-255
0-100%
122
RED FINE - PIXEL 16
0-255
16-bit FINE Adjustment
47
62
62
123
GREEN - PIXEL 16
0-255
0-100%
124
GREEN FINE - PIXEL 16
0-255
16-bit FINE Adjustment
48
63
63
125
BLUE - PIXEL 16
0-255
0-100%
126
BLUE FINE - PIXEL 16
0-255
16-bit FINE Adjustment
64
64
127
AMBER - PIXEL 16
0-256
0-100%
128
AMBER FINE - PIXEL 16
0-256
16-bit FINE Adjustment
65
PROGRAM MACROS
0-19
NO FUNCTION
1-20
PROGRAM 01
21-40
PROGRAM 02
41-60
PROGRAM 03
62-80
PROGRAM 04
81-100
PROGRAM 05
101-120
PROGRAM 06
121-140
PROGRAM 07
141-160
PROGRAM 08
161-180
PROGRAM 09
181-200
PROGRAM 10
201-220
PROGRAM 11
221-240
PROGRAM 12
241-250
PROGRAM 13
251-255
PROGRAM 14
66
PROGRAM MACRO SPEED
0-255
Program Macro SPEED SLOW to FAST
67
PROGRAM MACRO FADE
0-255
Program Macro FADE SLOW to FAST
31 www.elationlighting.com
DYNAMIC AMBER AUTOMATICALLY ADDED TO RGB CHANNELS
MODE / CHANNEL
VAL UE
FUNCTION
48CH
DA
64CH
RGBA
72CH
Pixel
128CH
16Bit
68
COLOR MACROS
1-4
Color Macro 01
5-8
Color Macro 02
9-12
Color Macro 03
13-16
Color Macro 04
17-20
Color Macro 05
21-24
Color Macro 06
25-28
Color Macro 07
29-32
Color Macro 08
33-36
Color Macro 09
37-40
Color Macro 10
41-44
Color Macro 11
45-48
Color Macro 12
49-52
Color Macro 13
53-56
Color Macro 14
57-60
Color Macro 15
61-64
Color Macro 16
65-68
Color Macro 17
69-72
Color Macro 18
73-76
Color Macro 19
77-80
Color Macro 20
81-84
Color Macro 21
85-88
Color Macro 22
89-92
Color Macro 23
93-96
Color Macro 24
97-100
Color Macro 25
101-104
Color Macro 26
105-108
Color Macro 27
109-112
Color Macro 28
113-116
Color Macro 29
117-120
Color Macro 30
121-124
Color Macro 31
125-128
Color Macro 32
129-132
Color Macro 33
133-136
Color Macro 34
137-140
Color Macro 35
141-144
Color Macro 36
145-148
Color Macro 37
149-152
Color Macro 38
www.elationlighting.com 32
DYNAMIC AMBER AUTOMATICALLY ADDED TO RGB CHANNELS
MODE / CHANNEL
VAL UE
FUNCTION
48CH
DA
64CH
RGBA
72CH
Pixel
128CH
16Bit
68
COLOR MACROS (continued)
153-156
Color Macro 39
157-160
Color Macro 40
161-164
Color Macro 41
165-168
Color Macro 42
169-172
Color Macro 43
173-176
Color Macro 44
177-180
Color Macro 45
181-184
Color Macro 46
185-188
Color Macro 47
189-192
Color Macro 48
193-196
Color Macro 49
197-200
Color Macro 50
201-204
Color Macro 51
205-208
Color Macro 52
209-212
Color Macro 53
213-216
Color Macro 54
217-220
Color Macro 55
221-224
Color Macro 56
225-228
Color Macro 57
229-232
Color Macro 58
233-236
Color Macro 59
237-240
Color Macro 60
241-244
Color Macro 61
245-248
Color Macro 62
249-252
Color Macro 63
253-255
Color Macro 64
69
MASTER DIMMER / INTENSITY
0-255
Dimmer (0-100%)
70
MASTER DIMMER / INTENSITY FINE
0-255
Dimmer (0-100%)
71
SHUTTER / STROBE
0-31
LED OFF
32-63
LED ON
64-95
Strobe Effect SLOW to FAST
96-127
LED ON
128-159
Strobe Pulse Effect In Sequences SLOW to
FAS T
160-191
LED ON
192-223
Random Strobe Effect SLOW to FAST
224-255
LED ON
72
DIMMING MODES
0-20
STANDARD
21-40
STAGE
41-60
TV
61-80
ARCHITECTURAL
81-100
THEATER
101-120
STAGE 2
121-255
DEFAULT TO UNIT SETTING
33 www.elationlighting.com
TECHNICAL SPECIFICATIONS
SOURCE
16 30W 4-in-1 RGBA COB LEDs
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environme ntal Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
EFFECTS
Full Pixel Control with Pixel Flip Modes
RGB + Dynamic Amber Channel Modes
Smooth Color Mixing and 64 Internal Color Macros
High Speed Electronic Shutter and Strobe
16Bit Dimming and Variable Dimming Curve Modes
COLOR
RGBA
CONTROL / CONNECTIONS
14 DMX Channel Modes (128 total channels)
Adjustable Refresh Rate (900-1500, 25,000 Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
4 Button Control Panel / OLED Menu Display
DMX, RDM, Kling-NET, and Art-NET Protocol Support
IP65 5pin DMX and RJ45 etherCON In/Out
IP65 Power In/Out
Fixture-to-Fixture Interlocking Alignment Pins/Locks
SIZE / WEIGHT
Length: 17.3” (440mm)
Width: 8.1” (206mm)
Vertical Height: 17.3” (440mm)
Weight: 33.0 lbs. (15.0 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
520W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE | IP65
Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice.
www.elationlighting.com 34
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FCC RADIO FREQUENCY INTERFERENCE WARNINGS & INSTRUCTIONS
This product has been tested and found to comply with the limits as per Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This device uses and can radiate radio frequency energy and, if not installed
and used in accordance with the included instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this device does cause harmful interference to radio or television reception, which
can be determined by turning the device off and on, the user is encouraged to try to correct the
interference by one or more of the following methods:
•! Reorient or relocate the device.
•! Increase the separation between the device and the receiver.
•! Connect the device to an electrical outlet on a circuit different from which the radio receiver is connected.
•! Consult the dealer or an experienced radio/TV technician for help.
35 www.elationlighting.com

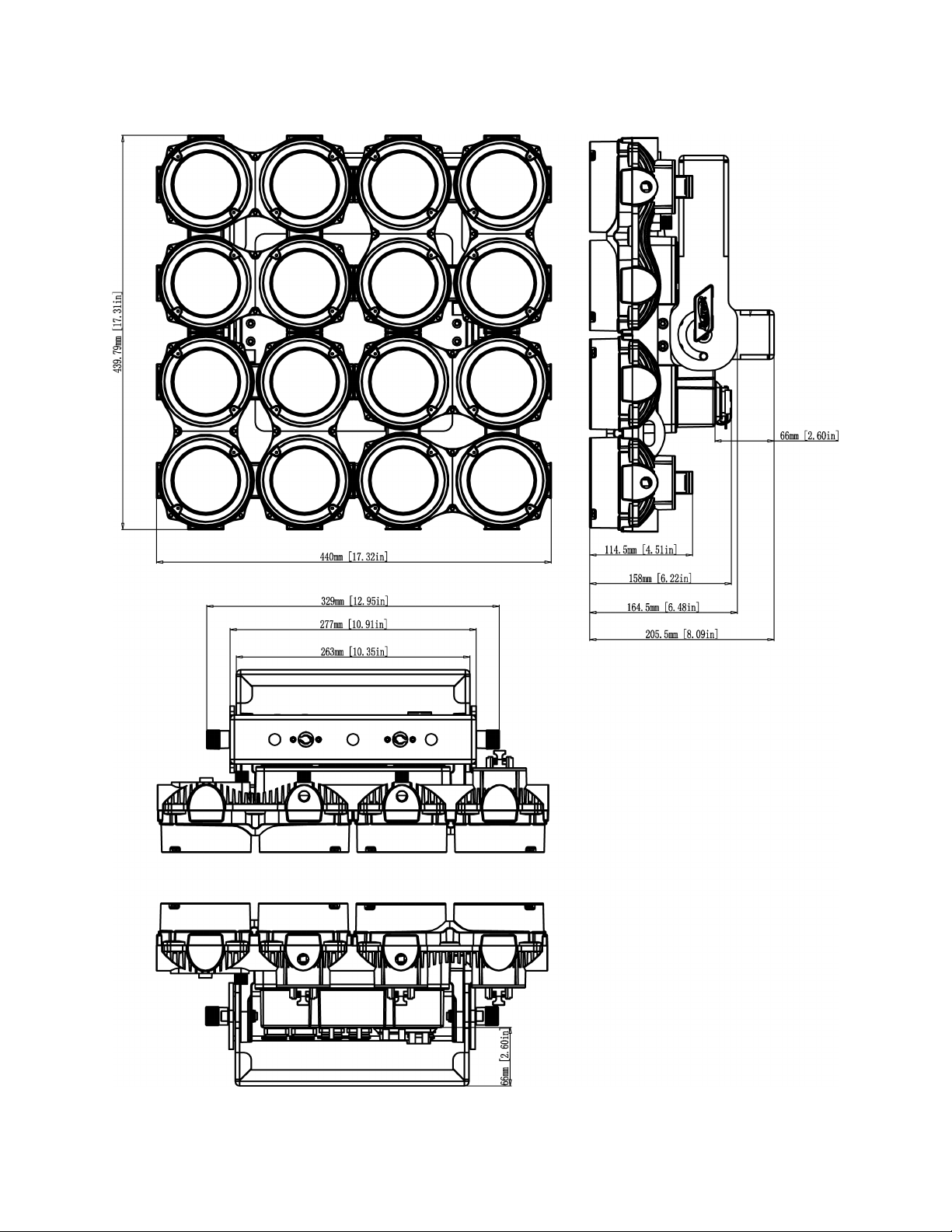

DIMENSIONAL DRAWINGS
Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice.
www.elationlighting.com 36
OPTIONAL ACCESSORIES
ORDER CODE
ITEM
TRIGGER CLAMP
Heavy Duty Wrap Around Hook Style Clamp
SCABLE60
Safety Cable 24” (610mm) 60 lbs. (27kg) Rating
8050000053
Omega Bracket 107mm
STR527
5 ft. (1.5m) IP65 5pin DMX Cable
NEU088
3 ft. (1m) powerCON TRUE1 Power Link Cable
Additional Cable Lengths Available
37 www.elationlighting.com
Loading...
