ELATION
|
|
ACL 360I™
user manual
ACL 360I
™
user manual
3U01: ≥1.04
www.elationlighting.com
©2016 ELATION PROFESSIONAL all rights reserved. Information, specifications,
diagrams, images, and instructions herein are subject to change without notice.
ELATION PROFESSIONAL logo and identifying product names and numbers herein
are trademarks of ELATION PROFESSIONAL. Copyright protection claimed includes
all forms and matters of copyrightable materials and information now allowed by
statutory or judicial law or hereinafter granted. Product names used in this
document may be trademarks or registered trademarks of their respective
companies and are hereby acknowledged. All non-ELATION brands and product
names are trademarks or registered trademarks of their respective companies.
ELATION PROFESSIONAL and all affiliated companies hereby disclaim any and all
liabilities for property, equipment, building, and electrical damages, injuries to any
persons, and direct or indirect economic loss associated with the use or reliance of
any information contained within this document, and/or as a result of the improper,
unsafe, insufficient and negligent assembly, installation, rigging, and operation of
this product.
Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands
+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu
DOCUMENT VERSION
Please check www.elationlighting.com for the latest revision/update of this manual.
DMX
Channel Modes
16 / 18/ 20
16 / 18 / 20
UserA/UserB
17 /15
Notes
Initial release.
Added new User A/B Modes DMX traits,
and 10
° / 45° frost filter photometric data.
Date
12/31/15
1/26/16
Document
Version
1
2
Software
Version
IU01: ≥1.04
2U01: ≥1.04
Basic/Stand/Extend
IU01: ≥1.07
2U01: ≥1.07
3U01: ≥1.07
2 ACL 360I™ User Manual
CONTENTS
General Information
4
Warranty
6
Safety Instructions
7
General Guidelines
8
Fixture Overview
9
Frost Lens Installation
10
Fixture Installation
13
Fixture Menu
16
DMX Channel Functions And Values
20
Error Codes
28
Cleaning and Maintenance
29
Technical Specifications
30
Optional Accessories
33
www.elationlighting.com
3 ACL 360I™ User Manual
www.elationlighting.com
GENERAL INFORMATION
INTRODUCTION
Congratulations, you have just purchased one of the most innovative and
reliable lighting fixtures on the market today! This fixture has been designed to
perform reliably for years when the guidelines in this booklet are followed. Please
read and understand the instructions in this manual carefully and thoroughly
before attempting to operate this unit. These instructions contain important
information regarding safety during use and maintenance.
UNPACKING
Every fixture has been thoroughly tested and has been shipped in perfect
operating condition. Carefully check the shipping carton for damage that may
have occurred during shipping. If the carton appears to be damaged, carefully
inspect your unit for damage and be sure all accessories necessary to operate
the unit have arrived intact. In the event damage has been found or parts are
missing, please contact our customer support team for further instructions. Please
do not return this unit to your dealer without first contacting customer support at
the number listed below. Please do not discard the shipping carton in the trash.
Please recycle whenever possible.
BOX CONTENTS
(1) 10 Degree Frost Lens
(1) 45 Degree Frost Lens
(1) Omega Bracket
(1) powerCON Cable
4 ACL 360I™ User Manual
www.elationlighting.com
CUSTOMER SUPPORT
Elation Professional® provides a customer support line, to provide set up help and
to answer any question should you encounter problems during your set up or
initial operation. You may also visit us on the web at www.elationlighting.com for
any comments or suggestions. For service related issue please contact Elation
Professional®.
ELATION SERVICE USA - Monday - Friday 8:00am to 5:00pm PST
Voice: 323-582-3322 Fax: 323-832-9142
E-mail: support@elationlighting.com
ELATION SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET
Voice: +31 45 546 85 30 Fax: +31 45 546 85 96
E-mail: support@elationlighting.eu
WARRANTY REGISTRATION
Please complete and mail in the enclosed warranty card or register online:
http://www.elationlighting.com/Login.aspx to validate your purchase. All
returned service items whether under warranty or not, must be freight pre-paid
and accompany a return authorization (R.A.) number. The R.A. number must be
clearly written on the outside of the return package. A brief description of the
problem as well as the R.A. number must also be written down on a piece of
paper and included in the shipping container. If the unit is under warranty, you
must provide a copy of your proof of purchase invoice. Items returned without a
R.A. number clearly marked on the outside of the package will be refused and
returned at customer’s expense. You may obtain a R.A. number by contacting
customer support.
IMPORTANT NOTICE!
There are no user serviceable parts inside this unit. Do not attempt any repairs
yourself; doing so will void your manufactures warranty. Damages resulting from
modifications to this fixture and/or the disregard of safety and general user
instructions found in this user manual void the manufactures warranty and are
not subject to any warranty claims and/or repairs.
5 ACL 360I™ User Manual
www.elationlighting.com
LIMITED WARRANTY
A. Elation Professional® hereby warrants, to the original purchaser, Elation Professional® products to
be free of manufacturing defects in material and workmanship for a period of two years (730 days),
and Elation Professional® product rechargeable batteries to be free of manufacturing defects in
material and workmanship for a period of six months (180 days), from the original date of purchase.
This warranty excludes discharge lamps and all product accessories. This warranty shall be valid only
if the product is purchased within the United States of America, including possessions and territories. It
is the owner’s responsibility to establish the date and place of purchase by acceptable evidence, at
the time service is sought.
B. For warranty service, send the product only to the Elation Professional® factory. All shipping
charges must be pre-paid. If the requested repairs or service (including parts replacement) are within
the terms of this warranty, Elation Professional® will pay return shipping charges only to a designated
point within the United States. If any product is sent, it must be shipped in its original package and
packaging material. No accessories should be shipped with the product. If any accessories are
shipped with the product, Elation Professional® shall have no liability what so ever for loss and/or or
damage to any such accessories, nor for the safe return thereof.
C. This warranty is void if the product serial number and/or labels are altered or removed; if the
product is modified in any manner which Elation Professional® concludes, after inspection, affects
the reliability of the product; if the product has been repaired or serviced by anyone other than the
Elation Professional® factory unless prior written authorization was issued to purchaser by Elation
Professional®; if the product is damaged because not properly maintained as set forth in the product
instructions, guidelines and/or user manual.
D. This is not a service contract, and this warranty does not include any maintenance, cleaning or
periodic check-up. During the periods as specified above, Elation Professional® will replace
defective parts at its expense, and will absorb all expenses for warranty service and repair labor by
reason of defects in material or workmanship. The sole responsibility of Elation Professional® under
this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at
the sole discretion of Elation Professional®. All products covered by this warranty were manufactured
after January 1, 1990, and bare identifying marks to that effect.
E. Elation Professional® reserves the right to make changes in design and/or performance
improvements upon its products without any obligation to include these changes in any products
theretofore manufactured.
F. No warranty, whether expressed or implied, is given or made with respect to any accessory
supplied with the products described above. Except to the extent prohibited by applicable law, all
implied warranties made by Elation Professional® in connection with this product, including
warranties of merchantability or fitness, are limited in duration to the warranty periods set forth above.
And no warranties, whether expressed or implied, including warranties of merchantability or fitness,
shall apply to this product after said periods have expired. The consumer’s and/or dealer’s sole
remedy shall be such repair or replacement as is expressly provided above; and under no
circumstances shall Elation Professional® be liable for any loss and/or damage, direct and/or
consequential, arising out of the use of, and/or the inability to use, this product.
G. This warranty is the only written warranty applicable to Elation Professional® products and
supersedes all prior warranties and written descriptions of warranty terms and conditions heretofore published.
6 ACL 360I™ User Manual
is an extremely sophisticated piece of electronic equipment. To
guarantee a smooth operation, it is important to follow the guidelines in this
manual. The manufacturer of this device will not accept responsibility for
this fixture due to the disregard of the
. It’s essential this device be
perform all electrical
SAFETY INSTRUCTIONS
www.elationlighting.com
This fixture
damages resulting from the misuse of
information printed in this manual.
This device falls under PROTECTION CLASS 1
grounded properly. Only qualified personnel should
connections.
INDOORS USE ONLY!
DO NOT EXPOSE FIXTURE RAIN AND MOISTURE!
UNPLUG POWER BEFORE SERVICING FIXTURE!
DO NOT PLUG FIXTURE INTO A DIMMER PACK!
NEVER TOUCH FIXTURE DURING OPERATION, AS IT MAY BE HOT!
NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE!
SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!
For proper operation, follow the Installation guidelines described in this manual. Only qualified
and certified personnel should perform installation of this fixture and only the original rigging parts
(brackets) included with this fixture should be used for installation. Any modifications will void the
original manufactures warranty and increase the risk of damage and/or personal injury.
Never look directly into the light source of this fixture to prevent risk of injury to your retina, which
may induce blindness. Those suffering from EPILEPSY should avoid looking directly into the light
source of this unit at all times.
The fan and air inlets must remain clean and never blocked. Allow approx. 6” (15cm) between
this fixture and other devices or a wall for proper cooling.
Always disconnect from main power source before performing any type of service and/or
cleaning procedure. Only handle the power cord by the plug end, never pull out the plug by
tugging the wire portion of the cord.
Do not operate this fixture if the power cord has become frayed, crimped and/or damaged. If
the power cord is damaged, replace it immediately with a new one of similar power rating.
7 ACL 360I™ User Manual
www.elationlighting.com
GENERAL GUIDELINES
NEVER OPEN THIS FIXTURE WHILE IN USE!
During the initial operation of this fixture, a light smoke or smell may emit from the
interior of the fixture. This is a normal process and is caused by excess paint in the
interior of the casing burning off from the heat associated with the lamp and will
decrease gradually over time.
This fixture is a professional lighting effect designed for INDOOR / DRY LOCATIONS
ONLY on stage, in nightclubs, theatres, etc.
Please make sure there are NO FLAMMABLE MATERIALS close to the fixture while
operating, to prevent any fire hazard.
The fixture must be installed in a location with adequate ventilation, at least 1.5
feet (.5m) from adjacent surfaces. Be sure no air ventilation slots are blocked.
DO NOT attempt installation and/or operation without knowledge how to do so.
DO NOT permit operation by persons who are not qualified to operate this type
of fixture. Most damages are the result of operations by nonprofessionals.
Consistent operational breaks may ensure the fixture will function properly for
many years to come.
DO NOT shake fixture, avoid brute force when installing and/or operating fixture.

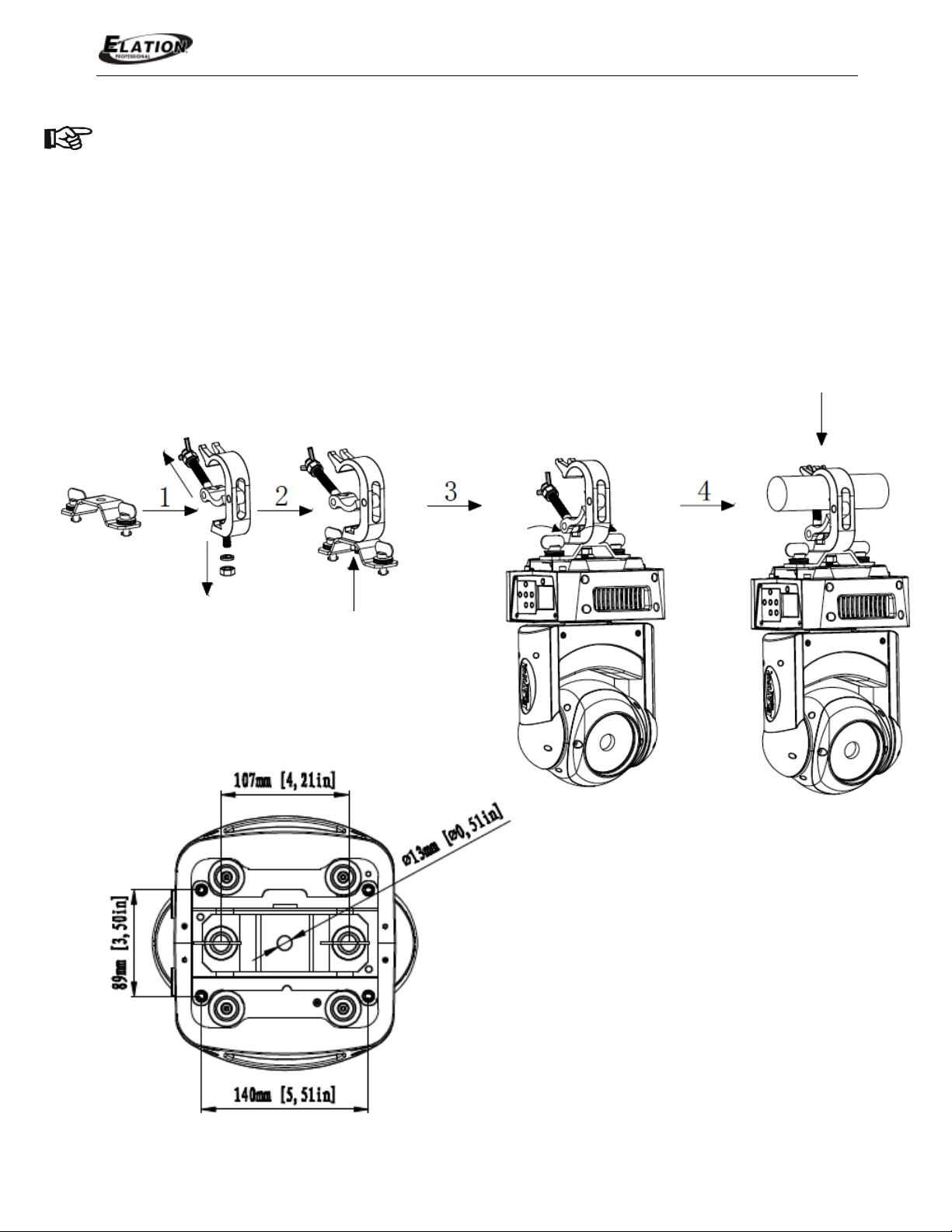

Always install the fixture with an appropriate safety cable. When installing the
fixture in a suspended environment, always use mounting hardware that is no less
than M10 x 25 mm, also be sure the hardware is insert in the pre-arranged screw
holes in the bracket of the fixture.
Use the original packaging and materials to transport the fixture in for service.
DO NOT TOUCH the housing bare-hand during its operation. Turn OFF the power
and allow approximately 15 minutes for the fixture to cool down before replacing
or serving.
LED LIFE
The average LED Life (hours) may vary depending on several factors including
but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns
(On-Off Cycling), Control and Dimming.
8 ACL 360I™ User Manual
FIXTURE OVERVIEW
1
2
3
4 5 6 8 9
7
www.elationlighting.com
1: LCD Control Display 6: Fuse
2: DC Switch 7: NET IN/OUT (RJ45 Ethernet)
3: UP, DOWN, LEFT, RIGHT, ENTER Buttons 8: 5pin DMX IN/OUT
4: MODE Button 9: powerCON OUT
5: powerCON IN
9 ACL 360I™ User Manual
www.elationlighting.com
F ROST LENS INSTALLATION
The fixture includes two FROST Lens options (10° and 45°) which can be easily
installed unto the fixture’s head. See below for installation instructions.
1. Place fixture on a flat surface and remove (2) screws of the lens cover assembly.
2. Remove the lens cover,
10 ACL 360I™ User Manual
www.elationlighting.com
F ROST LENS INSTALLATION [continued]
3. Gently place the desired FROST Lens on top and in the middle of the LED reflector.
11 ACL 360I™ User Manual
www.elationlighting.com
F ROST LENS INSTALLATION [continued]
4. Replace the lens cover and install / tighten the (2) screws securely.
12 ACL 360I™ User Manual
Keep fixture at least 5.0 ft (1.5m) away from any
A qualified electrician should be used for all
FIXTURE INSTALLATION
www.elationlighting.com
FLAMMABLE MATERIAL WARNING
flammable materials, decorations, pyrotechnics, etc.
ELECTRICAL CONNECTIONS
electrical connections and/or installations.
CAUTIONS
For added protection, mount the fixture in areas outside walking paths, seating
areas, or in areas were unauthorized personnel might reach the fixture.
Ambient operating temperature range for this fixture is 5° to 113°F. (-15° to 45°C)
Do not use the fixture under or above this temperature.
Before mounting the fixture to any surface, make sure the installation area can
hold a minimum point load of 10 times the weight of the fixture.
Fixture installation must always be secured with a secondary safety attachment,
such as an appropriate safety cable.
Never stand directly below the device when mounting, removing or servicing.
13 ACL 360I™ User Manual
MOUNTING POINTS
Overhead mounting requires extensive experience, including amongst others
calculating working load limits, installation material being used, and periodic
safety inspection of all installation material and the device. If you lack these
qualifications, do not attempt the installation yourself. Improper installation can
result in bodily injury.
Fixture is fully operational in the specific mounting positions as illustrated below.
www.elationlighting.com
SAFETY CABLE
ALWAYS USE A SAFETY CABLE WHENEVER INSTALLING THIS FIXTURE IN A SUSPENDED
ENVIRONMENT TO ENSURE THE FIXTURE WILL NOT DROP IF THE CLAMP FAILS.
14 ACL 360I™ User Manual
POWER LINKING
Max number of units that can be power linked is 15 units @110V and 31 units @240V.
CLAMP MOUNTING
The fixture provides a unique mounting assembly (Omega Bracket) that attaches to
the bottom of the base. (See the illustration below). When mounting this fixture to
truss be sure to secure an appropriately rated clamp to the included Omega
Bracket using a M10 screw fitted through the center hole of the Omega Bracket. Be
sure to attach an appropriate Safety Cable (not included) to the fixture using the
safety cable rigging point integrated in the base assembly.
www.elationlighting.com
15 ACL 360I™ User Manual
Software Update
Motor Reset
www.elationlighting.com
FIXTURE MENU
ON-BOARD SYSTEM MENU
The fixture comes with an easy to navigate system menu. The next section will detail
the functions of each command in the system menu.

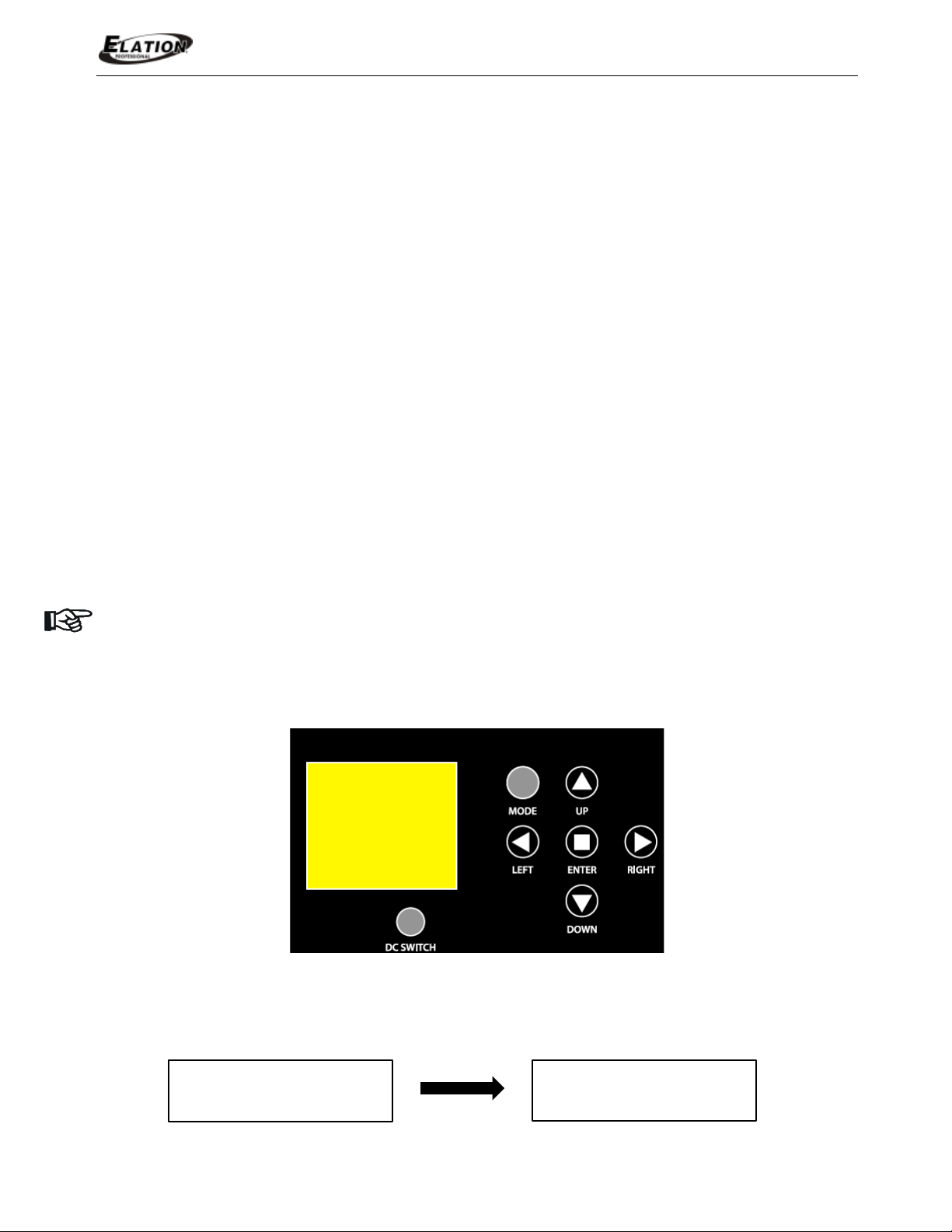

LCD MENU CONTROL PANEL
The control panel (see image below) located on back of the fixture allows you to
access the main menu and make all necessary adjustments to the fixture. During
normal operation, pressing MODE button once will access the fixture’s main menu.
Once in the main menu you can navigate through the different functions and
access the sub-menus with the UP, DOWN, RIGHT, and LEFT buttons. Once you reach
a field that requires adjusting, press the ENTER button to activate that field and use
the UP and DOWN buttons to adjust the field. Pressing the ENTER button once more
will confirm your setting. You may exit the main menu at any time without making
any adjustments by pressing the MODE/ESC button.
NOTE: To access the LCD Menu Control Display via the internal battery, press and
hold the DC SWITCH button for 3 seconds. The LCD Menu Control Display will shut
OFF automatically about 1 minute from the last button press.
INFORMATION DISPLAYED DURING INITIAL POWER ON
When the fixture is initially powered ON, the display shows the following information:
16 ACL 360I™ User Manual
Please Wait...
Please Wait...
ELATION© ACL 360i™
S Y S T E M M E N U
Specifications and features are subject to change without any prior written notice.
MAIN MENU
SUB MENU
OPTIONS / VALUES
DESCRIPTION
Receive
Set DMX Address
001 ~ XXX
DMX Address Setting
Standard, Basic, Extend, User A, User B, User
C
Edit A
Edit B
Edit C
Remote Add
ON/OFF
Address Via DMX
Hold / Auto /
Blackout
Pan Invert
ON / OFF
Pan Reverse Movement
Tilt Invert
ON /
Tilt Reverse Movement
Pan Degree
630/540
Pan Degree Select
Feedback
/OFF
Movement Feedback
Move. Spd
Speed 1 ~ 4
Movement Mode Select
Stand By
OFF, 01M~99M, 15M
Stand By Mode
ServicePIN
PIN=XXX
Service PIN 050
Unit IP Addr
XXX.XXX.XXX.XXX.
Enter Fixture's IP Address
ProtocolSet
ArtNet, Kling-Net
Set Network Protocol
Fan. Set
Head Fan
Auto, High, Low
Fan Speed Set
Backlight
02~60m
LCD Backlight Shut Off Time
FlipDisplay
ON / OFF
Flip Display 180º
Key Lock
ON /
Control Buttons Key Lock
Disp Flash
ON / OFF
Display flashes when NO DMX
Dim Curve
Standard, Stage, TV, Architectur, Theatre
Set Dimmer Curve Mode
Temp. C/F
Celsius/Fahrenheit
/;CF;H7JKH;.M?J9>;JM;;D[
ELATION© ACL 360i™
S Y S T E M M E N U
Specifications and features are subject to change without any prior written notice.
MAIN MENU
SUB MENU
OPTIONS / VALUES
DESCRIPTION
Reset. M
Pan&Tilt
Reset of Pan/Tilt Motors
Panel. Ctrl
Fine Adjustments
Calibrate
Password
Password=
Calibration of Motors and LEDs
Auto Pro Part1 = Program 1~9 (Program 1)
Auto Pro Part2 = Program 1~9
Auto Pro Part3 = Program 1~9 (Program 3)
Program 1
Program Test
Testing Program
:
Step 01=SCxxx
Program In Loop
Program 9
Step 64=SCxxx
Save and Exit
Pan,Tilt,……
Save and Automatically Return
Sce. Input
XX~XX
Automatic Scenes Recorder
(Default Settings in BOLD)
www.elationlighting.com
Test
Program
Test. Chan Test Functions
050
Select. Pro
Edit. Pro
Edit. Sce
Scene 001
~
Scene 250
(Program 2)
--Fade Time--
--Scene Time--
Input By Outside Stores Scenes via Ext DMX Console
Select Programs To Be Run
Manual Scenes Edit
Function - Status - Remote Add
When ON, define the desired DMX address of fixture via an external controller.
1. Connect the fixture to the external controller and power ON.
2. Set the DMX value of Channel 1 on the controller to (7).
3. Set the DMX value of Channel 2 on the controller to (7) or (8).
When set to (7), the DMX address can be set between (1) and (255).
When set to (8), the DMX address can be set between (256) and (511).
4. Using Channel 3 on the controller set the desired DMX address of the fixture.
Example 1:
If the desired DMX address is 57, set Channel 1 to a value of (7), set Channel 2 to
a value of (7), and then set Channel 3 to a value of (57).
Example 2:
If the desired DMX address is 420, set Channel 1 to a value of (7), set Channel 2 to
a value of (8), and then set Channel 3 to a value of (164). (256+164=420)
5. After setting Channel 3 to the desired DMX address value, wait for approximately
20 seconds for the fixture to complete the address reset function.
18 ACL 360I™ User Manual
Function - Dim Curve
Select desired DIMMER MODE (Standard, Stage, TV, Architectural, Theatre).
www.elationlighting.com
Test – Calibrate
ONLY QUALIFIED TECHNICIANS SHOULD PERFORM THIS FUNCTION
This function allows small adjustments to be made to the effect wheels to
compensate for ware or in the event a sensor has been knocked slightly out of
place. Because improper use of this function can result in undesired operation this
function has been password protected. The password is 050 and must be entered
each time the calibration menu function is entered. Because calibration is an
extremely delicate procedure, instructions on performing this action are left out of
this manual. For a first time calibrator, please contact our customer support team for
step-by-step instructions.
19 ACL 360I™ User Manual
ELATION© ACL 360i™
DMX Channel Values / Functions Version 1 (20 DMX Channels)
www.elationlighting.com
DMX CHANNEL FUNCTIONS AND VALUES
Supports Software Versions: ≥ 1.04
Features are subject to change without any prior written notice.
MODE / CHANNEL
BASIC STAND EXTEND
1 1 1
2
2 2 3
4
3 3 5
4 4 6
5 5 7
6 6 8
7 7 9
8 8 10
VALUE FUNCTION
0-255 PAN Movement 630/540
0-255 Fine Control of PAN Movement
0-255 TILT Movement
0-255 Fine Control of TILT Movement
0-127 NO FUNCTION
128-189 PAN Clockwise from FAST to SLOW
190-193 NO Rotation
194-255 PAN Counter-Clockwise from SLOW to FAST
0-127 NO FUNCTION
128-189 TILT Clockwise from FAST to SLOW
190-193 NO Rotation
194-255 TILT Counter-Clockwise from SLOW to FAST
0-255 0 to 100%
0-255 0 to 100%
0-255 0 to 100%
0-255 0 to 100%
PAN MOVEMENT [8 BIT]
PAN FINE MOVEMENT [16 BIT]
TILT MOVEMENT [8 BIT]
TILT MOVEMENT [16 BIT]
PAN CONTINUOUS MOVEMENT
TILT CONTINUOUS MOVEMENT
RED
GREEN
BLUE
WHITE
20 ACL 360I™ User Manual
ELATION© ACL 360i™
DMX Channel Values / Functions Version 1 (20 DMX Channels)
Supports Software Versions: ≥ 1.04
Features are subject to change without any prior written notice.
MODE / CHANNEL
BASIC STAND EXTEND
9 9 11
www.elationlighting.com
VALUE FUNCTION
0 OFF
1-4 COLOR PRESET 01
5-8 COLOR PRESET 02
9-12 COLOR PRESET 03
13-16 COLOR PRESET 04
17-20 COLOR PRESET 05
21-24 COLOR PRESET 06
25-28 COLOR PRESET 07
29-32 COLOR PRESET 08
33-36 COLOR PRESET 09
37-40 COLOR PRESET 10
41-44 COLOR PRESET 11
45-48 COLOR PRESET 12
49-52 COLOR PRESET 13
53-56 COLOR PRESET 14
57-60 COLOR PRESET 15
61-64 COLOR PRESET 16
65-68 COLOR PRESET 17
69-72 COLOR PRESET 18
73-76 COLOR PRESET 19
77-80 COLOR PRESET 20
81-84 COLOR PRESET 21
85-88 COLOR PRESET 22
89-92 COLOR PRESET 23
93-96 COLOR PRESET 24
97-100 COLOR PRESET 25
101-104 COLOR PRESET 26
105-108 COLOR PRESET 27
109-112 COLOR PRESET 28
113-116 COLOR PRESET 29
117-120 COLOR PRESET 30
121-124 COLOR PRESET 31
125-128 COLOR PRESET 32
COLOR PRESETS
21 ACL 360I™ User Manual
ELATION© ACL 360i™
DMX Channel Values / Functions Version 1 (20 DMX Channels)
Supports Software Versions: ≥ 1.04
Features are subject to change without any prior written notice.
MODE / CHANNEL
BASIC STAND EXTEND
9 9 11
10 10 12
www.elationlighting.com
VALUE FUNCTION
129-132 COLOR PRESET 33
133-136 COLOR PRESET 34
137-140 COLOR PRESET 35
141-144 COLOR PRESET 36
145-148 COLOR PRESET 37
149-152 COLOR PRESET 38
153-156 COLOR PRESET 39
157-160 COLOR PRESET 40
161-164 COLOR PRESET 41
165-168 COLOR PRESET 42
169-172 COLOR PRESET 43
173-176 COLOR PRESET 44
177-180 COLOR PRESET 45
181-184 COLOR PRESET 46
185-188 COLOR PRESET 47
189-192 COLOR PRESET 48
193-196 COLOR PRESET 49
197-200 COLOR PRESET 50
201-204 COLOR PRESET 51
205-208 COLOR PRESET 52
209-212 COLOR PRESET 53
213-216 COLOR PRESET 54
217-220 COLOR PRESET 55
221-224 COLOR PRESET 56
225-228 COLOR PRESET 57
229-232 COLOR PRESET 58
233-236 COLOR PRESET 59
237-240 COLOR PRESET 60
241-244 COLOR PRESET 61
245-248 COLOR PRESET 62
249-252 COLOR PRESET 63
253-255 COLOR PRESET 64
0-31 LED OFF
32-63 LED ON
64-95 Strobe Effect SLOW to FAST
96-127 LED ON
128-159 Pulse Effect in Sequences
160-223 Random Strobe Effect SLOW to FAST
224-255 LED ON
COLOR PRESETS [continued]
FLASH / STROBE
22 ACL 360I™ User Manual
ELATION© ACL 360i™
DMX Channel Values / Functions Version 1 (20 DMX Channels)
Features are subject to change without any prior written notice.
www.elationlighting.com
Supports Software Versions: ≥ 1.04
MODE / CHANNEL
BASIC STAND EXTEND
11 11 13
12 14
12 13 15
13 14 16
14 15 17
16 18
15 17 19
VALUE FUNCTION
0-255 Intensity 0 to 100%
0-255 Dimmer Intensity FINE Adjustment
1-14 LED OFF
15-30 COLOR MACRO 01
31-46 COLOR MACRO 02
47-62 COLOR MACRO 03
63-78 COLOR MACRO 04
79-94 COLOR MACRO 05
95-110 COLOR MACRO 06
111-126 COLOR MACRO 07
127-142 COLOR MACRO 08
143-158 COLOR MACRO 09
159-174 COLOR MACRO 10
175-190 COLOR MACRO 11
191-206 COLOR MACRO 12
207-222 COLOR MACRO 13
223-238 COLOR MACRO 14
239-255 COLOR MACRO CROSSFADE
0-255 Auto Program Macro Speed SLOW to FAST
0-255 0-100%
0-20 STANDARD
21-40 STAGE
41-60 TV
61-80 ARCHITECTURAL
81-100 THEATRE
101-255 Default to Unit Setting
0-225 MAX to MIN SPEED
226-235 Blackout By Movement
236-255 NO FUNCTION
DIMMER INTENSITY
DIMMER INTENSITY FINE
COLOR MACROS
0 NO FUNCTION
COLOR MACRO SPEED
COLOR MACRO FADE
DIMMING CURVE MODES
PAN / TILT MOVEMENT SPEED
23 ACL 360I™ User Manual
ELATION© ACL 360i™
DMX Channel Values / Functions Version 1 (20 DMX Channels)
Supports Software Versions: ≥ 1.04
Features are subject to change without any prior written notice.
MODE / CHANNEL
BASIC STAND EXTEND
16 18 20
VALUE FUNCTION
0-79 Normal
80-84 ALL Motor Reset
85-99 NO FUNCTION
100-119 Internal Program 1 (scene1~8)
120-139 Internal Program 2 (scene9~16)
140-159 Internal Program 3 (scene17~24)
160-179 Internal Program 4 (scene25~32)
180-199 Internal Program 5 (scene33~40)
200-219 Internal Program 6 (scene41~48)
220-239 Internal Program 7 (scene49~56)
240-255 NO FUNCTION
LAMP ON/OFF, RESET, INTERNAL PROGRAMS
www.elationlighting.com
24 ACL 360I™ User Manual
ELATION© ACL 360i™
DMX Channel Values / Functions (17 DMX Channels)
Supports Software Versions: ≥ 1.07
Specifications are subject to change without any prior written notice.
USER A
USER B
MODE / CHANNEL
www.elationlighting.com
VALUE FUNCTION
1 1
2
3 2
4
5 3
6 4
7 5
8 6
9 7
10 8
11 9
12 10
0-255 PAN Movement 630/540
0-255 Fine Control of PAN Movement
0-255 TILT Movement
0-255 Fine Control of TILT Movement
0-225 MAX to MIN SPEED
226-235 BLACKOUT by Movement
236-255 NO FUNCTION
0-127 NO FUNCTION
128-189 PAN Clockwise from FAST to SLOW
190-193 NO Rotation
194-255 PAN Counter-Clockwise from SLOW to FAST
0-127 NO FUNCTION
128-189 TILT Clockwise from FAST to SLOW
190-193 NO Rotation
194-255 TILT Counter-Clockwise from SLOW to FAST
0-255 0 to 100%
0-255 0 to 100%
0-255 0 to 100%
0-255 0 to 100%
0-31 LED OFF
32-63 LED ON
64-95 Strobe Effect SLOW to FAST
96-127 LED ON
128-159 Pulse Effect in Sequences
160-223 Random Strobe Effect SLOW to FAST
224-255 LED ON
PAN MOVEMENT [8 BIT]
PAN FINE MOVEMENT [16 BIT]
TILT MOVEMENT [8 BIT]
TILT MOVEMENT [16 BIT]
SPEED PAN/TILT MOVEMENT
PAN CONTINUOUS MOVEMENT
TILT CONTINUOUS MOVEMENT
RED
GREEN
BLUE
WHITE
SHUTTER / STROBE
25 ACL 360I™ User Manual
ELATION© ACL 360i™
DMX Channel Values / Functions (17 DMX Channels)
Supports Software Versions: ≥ 1.07
Specifications are subject to change without any prior written notice.
MODE / CHANNEL
USER A USER B
13 11
14 12
15 13
16 14
www.elationlighting.com
VALUE FUNCTION
0-255 Intensity 0 to 100%
0-7 NO FUNCTION
8-39 from RED to YELLOW
40-71 from YELLOW to GREEN
72-103 from GREEN to CYAN
104-135 from CYAN to BLUE
136-167 from BLUE to MAGENTA
168-199 from MAGENTA to RED
200-231 from RED to WHITE
232-255 Crossfading Colors from SLOW to FAST
0-4 NO FUNCTION
5-9 WHITE 2,700K
10-14 WHITE 3,200K
15-19 WHITE 4,200K
20-24 WHITE 5,600K
25-29 WHITE 6,500K
30-34 WHITE 8,000K
35-39 YELLOW
40-44 MAGENTA
45-49 CYAN
50-54 SALMON
55-59 TURQUOISE
60-64 LIGHT GREEN
65-69 STEEL BLUE
70-74 ORANGE
75-79 STRAW
80-84 PALE LAVENDER
85-89 PINK
90-94 RED
95-99 GREEN
100-104 BLUE
105-109 WHITE
110-255 RESERVED
0-255 Intensity 100% to 0%
DIMMER INTENSITY
COLOR MACROS
COLOR PRESETS
COLOR PRESETS DIMMER
26 ACL 360I™ User Manual
ELATION© ACL 360i™
DMX Channel Values / Functions (17 DMX Channels)
Supports Software Versions: ≥ 1.07
Specifications are subject to change without any prior written notice.
MODE / CHANNEL
USER A USER B
17 15
VALUE FUNCTION
0-79 Normal
80-84 ALL Motor Reset
85-87 Scan Motor Reset
88-90 NO FUNCTION
91-93 NO FUNCTION
94-96 NO FUNCTION
97-99 NO FUNCTION
100-119 Internal Program 1 (scene1~8 of EEPROM)
120-139 Internal Program 2 (scene9~16 of EEPROM)
140-159 Internal Program 3 (scene17~24 of EEPROM)
160-179 Internal Program 4 (scene25~32 of EEPROM)
180-199 Internal Program 5 (scene33~40 of EEPROM)
200-219 Internal Program 6 (scene41~48 of EEPROM)
220-239 Internal Program 7 (scene49~56 of EEPROM)
240-255 NO FUNCTION
LAMP ON/OFF, RESET, INTERNAL PROGRAMS
www.elationlighting.com
27 ACL 360I™ User Manual
ERROR CODE
DESCRIPTION
www.elationlighting.com
E RROR CODES
When power is applied, the unit will automatically enter a “Motor Reset” mode,
which brings all the internal motors to a home position. If there is an internal problem
with one or more of the motors, an error code (see below) will flash on the control
display.
The TILT movement is not located in the default position after the reset.
This message will appear after a fixture reset if the magnetic-indexing
TILT Er
PAN Er
circuit malfunctions (sensor failed or magnet is missing) or there is a motor
failure (defective motor or defective motor IC drive on main PCB). This error
may also be displayed if the head was blocked during a reset function
The PAN movement is not located in the default position after the reset.
This message will appear after a fixture reset if the magnetic-indexing
circuit malfunctions (sensor failed or magnet is missing) or there is a motor
failure (defective motor or a defective motor IC drive on the main PCB).
This error may also be displayed if the head/yoke was blocked during a
reset function.
28 ACL 360I™ User Manual
www.elationlighting.com
CLEANING AND MAINTENANCE
CAUTION
Disconnect power before cleaning or maintenance.
CLEANING
Frequent cleaning is recommended to insure proper function, optimized light output,
and an extended life. The frequency of cleaning depends on the environment in
which the fixture operates: damp, smoky or particularly dirty environments can
cause greater accumulation of dirt on the fixture’s optics.
Clean the external lens surface at least every 20 days with a soft cloth to avoid
dirt/debris accumulation.
Never use alcohol, solvents, or ammonia based cleaners.
MAINTENANCE
Regular inspections are recommended to insure proper function and extended life.
There are no user serviceable parts inside this fixture, please refer all other service
issues to an authorized Elation service technician. Should you need any spare parts,
please order genuine parts from your local Elation dealer.
Please refer to the following points during routine inspections:
A detailed electric check by an approved electrical engineer every three
months, to make sure the circuit contacts are in good condition and prevent
overheating.
Be sure all screws and fasteners are securely tightened at all times. Lose screws
may fall out during normal operation resulting in damage or injury as larger parts
could fall.
Check for any deformations on the housing, color lenses, rigging hardware and
rigging points (ceiling, suspension, trussing). Deformations in the housing could
allow for dust to enter into the fixture. Damaged rigging points or unsecured
rigging could cause the fixture to fall and seriously injure a person(s).
Electric power supply cables must not show any damage, material fatigue or
sediments. Never remove the ground prong from the power cable.
29 ACL 360I™ User Manual
www.elationlighting.com
TECHNICAL SPECIFICATIONS
SOURCE
60W RGBW 4-in-1 LEDs
100,000 Hour Average Lamp Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
EFFECTS
Strobe and Selectable Dimming Curves
Color Macros
COLOR
RGBW
CONTROL / CONNECTIONS
(5) DMX Channel Modes (16 / 18 / 20) (17 / 15)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
5pin DMX In/Out
RJ45 Ethernet In/Out (KlingNET™ / Art-NET)
powerCON Power In/Out

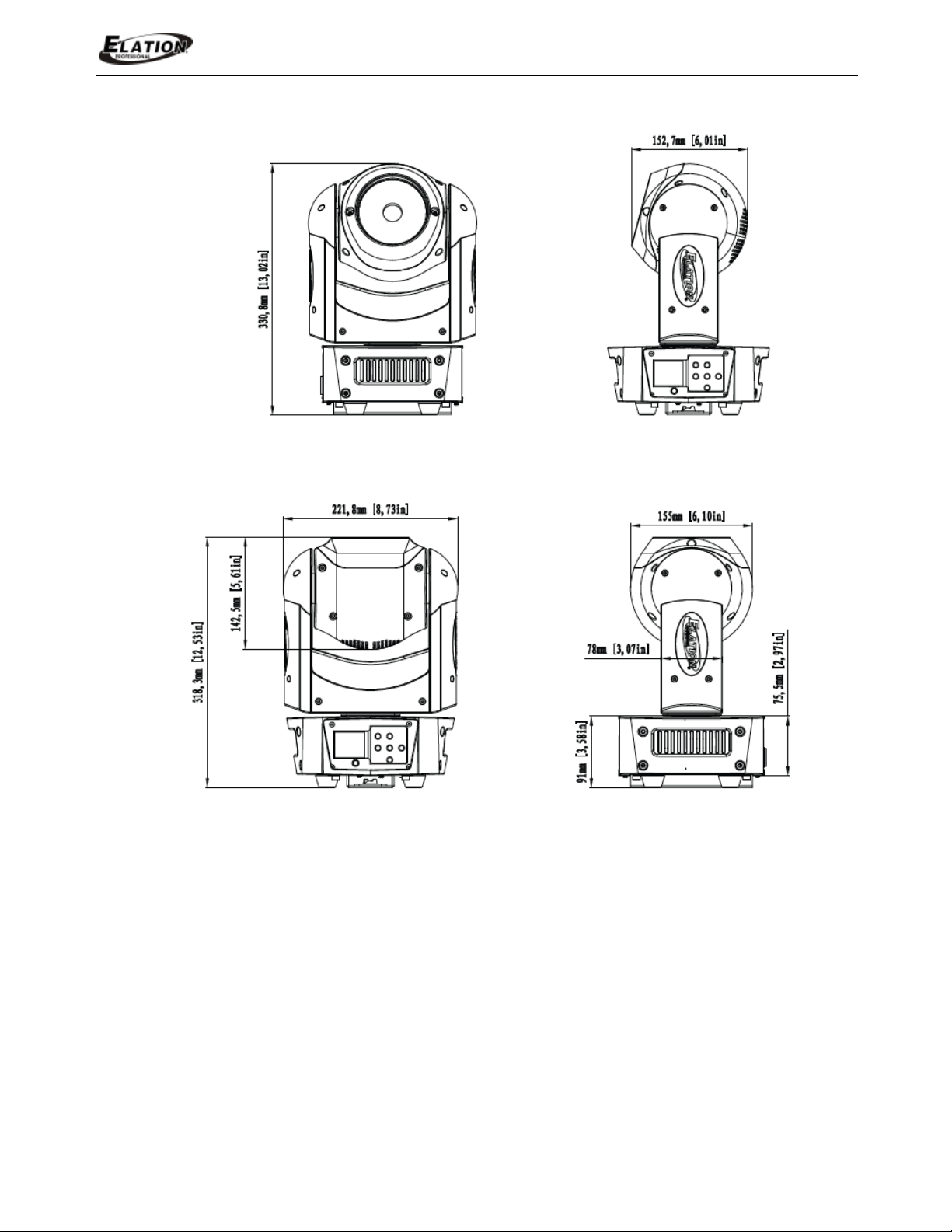

SIZE / WEIGHT
Length: 8.7” (222mm)
Width: 7.3” (186mm)
Vertical Height: 13.0” (330mm)
Weight: 12.0 lbs. (5.4 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
110W Max Power Consumption
5F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
CE | IP30
Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice.
30 ACL 360I™ User Manual
PHOTOMETRIC DATA
2 m
6.6 ft
3 m
9.8 ft
4 m
13.1 ft
5 m
16.4 ft
4° Beam
lux
fc
lux
fc
lux
fc
lux
fc
6,934
644
3,338
310
1,722
160
1,149
107
GREEN LEDs
10,411
967
4,724
439
2,644
246
1,773
165
BLUE LEDs
1,746
162
856
80
488
45
308
29
WHITE LEDs
17,512
1,627
7,438
691
4,013
373
2,803
260
FULL ON
30,601
2,843
12,955
1,204
7,687
714
5,112
475
2 m
6.6 ft
3 m
9.8 ft
4 m
13.1 ft
5 m
16.4 ft
lux
fc
lux
fc
lux
fc
lux
fc
2,408
224
1,068
99
659
61
433
40
GREEN LEDs
3,782
351
1,617
150
975
91
663
62
BLUE LEDs
778
72
346
32
222
21
133
12
WHITE LEDs
6,658
619
3,089
287
1,806
168
1,168
109
11,140
1,035
5,437
505
2,708
252
1,969
183
2 m
6.6 ft
3 m
9.8 ft
4 m
13.1 ft
5 m
16.4 ft
lux
fc
lux
fc
lux
fc
lux
fc
358
33
179
17
99 9 68
6
GREEN LEDs
569
53
277
26
159
15
113
10
BLUE LEDs
118
11
65 6 38 4 29
3
WHITE LEDs
1,032
96
417
39
275
26
143
13
FULL ON
1,649
153
772
72
479
44
312
29
www.elationlighting.com
Diameter
10° Field
Diameter
RED LEDs
10° FROST
Diameter
RED LEDs
0.15 0.5
0.35 1.1
0.62 2.0
0.24 0.8
0.52 1.7
1 3.3
0.33 1.1
0.7 2.3
1.3 4.3
0.41 1.3
0.87 2.9
1.6 5.2
FULL ON
45° FROST
Diameter
RED LEDs
0.88 2.9
1.33 4.4
1.77 5.8
2.21 7.3
31 ACL 360I™ User Manual
DIMENSIONAL DRAWINGS
www.elationlighting.com
Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice.
32 ACL 360I™ User Manual
www.elationlighting.com
OPTIONAL ACCESSORIES
ORDER CODE ITEM
TRIGGER CLAMP Heavy Duty Wrap Around Hook Style Clamp
* * * pending * * * ACL 360i Road Case
CAT005 5’ (1.5m) CAT6 EtherCON Cable
PLC3 3 ft. (1m) PowerCON PRO Link Cable
AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable
Additional Cable Lengths Available
33 ACL 360I™ User Manual
Loading...
