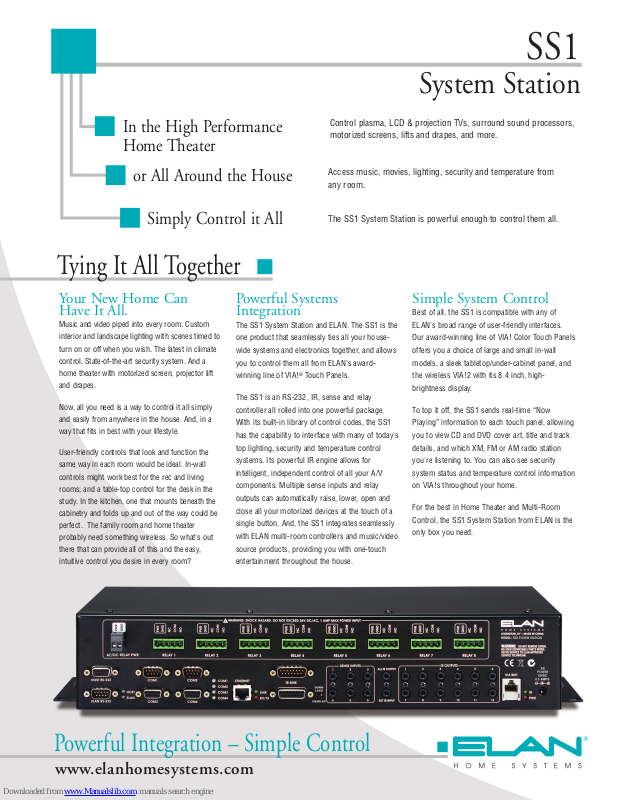

Page 1
SS1
System Station
In the High Performance
Home Theater
or All Around the House
Simply Control it All
Tying It All Together
Your New Home Can
Have It All.
Music and video piped into every room. Custom
interior and landscape lighting with scenes timed to
turn on or off when you wish. The latest in climate
control. State-of-the-art security system. And a
home theater with motorized screen, projector lift
and drapes.
Now, all you need is a way to control it all simply
and easily from anywhere in the house. And, in a
way that fits in best with your lifestyle.
User-friendly controls that look and function the
same way in each room would be ideal. In-wall
controls might work best for the rec and living
rooms; and a table-top control for the desk in the
study. In the kitchen, one that mounts beneath the
cabinetry and folds up and out of the way could be
perfect. The family room and home theater
probably need something wireless. So what's out
there that can provide all of this and the easy,
intuitive control you desire in every room?
Powerful Systems
Integration
The SS1 System Station and ELAN. The SS1 is the
one product that seamlessly ties all your house-
wide systems and electronics together, and allows
you to control them all from ELAN's award-
winning line of VIA!®Touch Panels.
The SS1 is an RS-232, IR, sense and relay
controller all rolled into one powerful package.
With its built-in library of control codes, the SS1
has the capability to interface with many of today's
top lighting, security and temperature control
systems. Its powerful IR engine allows for
intelligent, independent control of all your A/V
components. Multiple sense inputs and relay
outputs can automatically raise, lower, open and
close all your motorized devices at the touch of a
single button. And, the SS1 integrates seamlessly
with ELAN multi-room controllers and music/video
source products, providing you with one-touch
entertainment throughout the house.
Control plasma, LCD & projection TVs, surround sound processors,
motorized screens, lifts and drapes, and more.
Access music, movies, lighting, security and temperature from
any room.
The SS1 System Station is powerful enough to control them all.
Simple System Control
Best of all, the SS1 is compatible with any of
ELAN's broad range of user-friendly interfaces.
Our award-winning line of VIA! Color Touch Panels
offers you a choice of large and small in-wall
models, a sleek tabletop/under-cabinet panel, and
the wireless VIA!2 with its 8.4 inch, high-
brightness display.
To top it off, the SS1 sends real-time “Now
Playing” information to each touch panel, allowing
you to view CD and DVD cover art, title and track
details, and which XM, FM or AM radio station
you're listening to. You can also see security
system status and temperature control information
on VIA!s throughout your home.
For the best in Home Theater and Multi-Room
Control, the SS1 System Station from ELAN is the
only box you need.
Powerful Integration – Simple Control
www.elanhomesystems.com
Page 2
Features & Specifications
Features
RS-232, IR, Sense & Relay Controller all in one
An ideal, do-it-all Home Theater Controller
Built-in serial driver library for control of lighting,
temperature, security, ELAN systems & sources
System-wide conditional macros
Advanced if/then/else IR engine
Control serial devices with external IR commands
12 steerable IR output ports, plus “ALL” port & external
IR input
6 Sense Input ports
8 configurable Relay Outputs
4 RS-232 COM ports plus RS-232 Host & ELAN ports
®
RJ-45 VIA!
Independent LED activity indicators for COM, Ethernet,
Host & ELAN ports
Companion component for the VIA!
Touch Panel
2007 RELEASE NOTES (as of this printing)
One SS1 is required for ea. VIA!2-8.4 Wireless Touch
Panel.
The SS1 now replaces the SC4 as a system-wide RS232 controller.
A dedicated SS1 (in addition to the SS1 required for
each VIA!2-8.4 Wireless Touch Panel) is required for
system-wide RS-232 control & 2-way feedback display
on VIA!2-8.4 Wireless Touch Panels, VIA! wired touch
panels & Olé Touchpads.
NET & Ethernet ports
®
2-8.4 Wireless
Specifications
IR Outputs (x12)
ALL Port: . . . . . . . . . . . . . . . . . . . . . . . . . .3.5 mm mono jack, 100mA
EXT IR Input: . . . . . . . . . . . . . 3.5 mm mono jack, 12VDC active high
Relays (x8)
Type: . . . . . . . . . . . . . . . . . . . . . . . . . . . .NO/NC closed-contact relay
Contact Rating: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1A @ 24VDC
DC Relay Power: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24VDC max.
Sense Inputs (x6)
Type: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .closed-contact
Connector: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.5 mm stereo jack
Power: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5VDC
COM Ports (x4): . . . . . . . . . . . . . . . . . . . . . .RS-232 DB-9 connectors,
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110-115.2k Baud
HOST Port: . . . . . . . . . . . . . . . . . . . . . . . . . .RS-232 DB-9 connector,
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110-115.2k Baud
ELAN Port: . . . . . . . . . . . . . . . . . . . . . . . . . . .RS-232 DB-9 connector,
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19.2k Baud
IR Link Ports (x2): . . . . . . . . . . . . . . . . . . . . . . . . .DB-15 connectors
VIA!NET Port: . . . . . . . . . . . . . . . . . . . . . . . . . .ELAN standard RJ-45
Ethernet Port: . . . . . . . . . . . . . . . . . . . . . . .TIA568A standard RJ-45,
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 BaseT
Power Requirements: . . . . . . . . . . . . . . . . .12VDC @ 1.2mA nominal,
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .power supply (incl.)
. . . . . . . . . . . . . . . . . . . . . . . . . . .ETL®& C-tick listed, CE approved
ELAN Home Systems reserves the right to change hardware and specifications without notice.
ELAN-related products are registered trademarks of ELAN Home Systems.
Shown below (from L to R): VIA!4.0, VIA!2-8.4, OleTMFilm Interactive Touchpad,
VIA!Valet6.4 and the VIA!6.4 Touch Panel
Two-Year Limited Warranty
www.elanhomesystems.com
© ELAN Home Systems • 2007 • All rights reserved • ELAN Home Systems is a trademark of ELAN Home Systems, LLC • CSSS1 REV A
