Elan S1616A User Manual

AMPLIFIER MODE

INSTALLATION MANUAL

S1616A

Multi-Zone Controller Amplifier

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 1

Amplifier Mode Introduction

Provides an introduction to ELAN Home Systems’ S1616A used in Amplifier Mode, along with system features to include Front and Rear panel controls, indicators and connections, along with a short description of each.

Amplifier Mode Connections

Provides a description of the S1616A used in Amplifier Mode system connections and direct connections from the S1616A to other components.

Troubleshooting

Provides troubleshooting tables to help fix common problems that may be encountered when installing the S1616A used in Amplifier Mode.

IR Command Set

Appendix A provides a list of the IR commands and their functions.

Preface

Purpose of this Manual

This manual provides step-by-step installation instructions and connection examples, along with basic user information for installation and ongoing use of the S1616A in Amplifier Mode.. This manual is written for the installer of this equipment.

Organization

The following information is contained in this manual including practices and procedures allowing for the safe installation and operation of the S1616A used in Amplifier Mode.

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 2

Safety Information

IMPORTANT SAFETY INFORMATION

Read Information — All the safety and operating information should be read before the appliance is operated. Follow Information — All operating and use information should be followed. Retain Information — The safety and operating information should be retained for future reference. Heed Warnings — All warnings on the appliance and in the operating instructions should be heeded. Wall Mounting — Mounting of this appliance should be done only by an authorized installer. Ventilation — The appliances should be situated so that their location or position does not interfere with their proper ventilation. These

appliances should never be placed near or over a radiator or heat register. These appliances should not be placed in a built-in installation such as a

bookcase or cabinet that may impede the flow of air through the ventilation openings.

Non-Use Periods — Appliances that are left unattended and unused for long periods of time should be de-energized. Grounding or Polarization — Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with

one blade wider than the other blade. A grounding type plug has two blades and a third grounding prong. The polarized wide blade and the third prong are provided for your safety. If the provided plug does not fit your outlet, consult an electrician for replacement of the obsolete outlet.

Power Cord Protection — Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles and the

point where they exit from the apparatus.

Water — Do not use the apparatus near water. Cleaning — Unplug the apparatus from the power outlet before cleaning. Use only a dry cloth to clean the apparatus. Object and Liquid Entry — Never insert objects of any kind through the openings of these appliances, as they may touch dangerous voltage

points or short-out parts that could result in a fire or electric shock. Care should be taken so that objects do not fall and liquids are not spilled into the appliance through openings in the enclosure.

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 3

Servicing — Do not attempt to service these appliances yourself, as opening or removing covers may expose you to dangerous voltage or other

hazards. Refer all servicing to qualified service personnel.

Damage Requiring Service — These appliances should be serviced by qualified service personnel when:

 A power supply connection or a plug has been damaged or  If liquid has been spilled into the appliance or objects have fallen into the appliance or  The appliance has been exposed to water or moisture or  The appliance does not appear to operate normally or exhibits a marked change in performance or  The appliance has been dropped or the enclosure damaged.

Replacement Parts — When replacement parts are required, be sure the service technician has used replacement parts specified by the

manufacturer or that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

Safety Check — Upon completion of any service or repairs to this audio product, ask the service technician to perform safety checks to

determine that the audio product is in proper operating condition.

Lightning Storms — Unplug this apparatus during lightning storms or when unused for long periods of time. Attachments and Accessories — Use only attachments/accessories specified by the manufacturer. Cart, Stand, Tripod, Bracket or Table — Use only with a cart, stand, tripod, bracket or table specified by the

manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip over.

Disconnect Device — Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect

device shall remain operable.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help.

CAUTION:

Changes or modifications not expressly approved by ELAN Home Systems could void the user’s authority to operate the equipment.

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 4

Table of Contents

Preface .................................................................................................. Error! Bookmark not defined.

Purpose of this Manual .............................................................................................................. 1

Organization .............................................................................................................................. 1

Safety Information ........................................................................................................................... 2

Chapter 1: Introduction ........................................................................................6

The ELAN Story ................................................................................... Error! Bookmark not defined.

S1616A Features .............................................................................................................................. 7

S1616A Functions & Indicators ...................................................................................................... 8

Front Panel ................................................................................................................................ 8

S1616A Rear Panel Connections ................................................................................................... 9

Chapter 2: Operation & Settings ........................................................................ 10

Front Panel Controls ..................................................................................................................... 10

Channel Button .............................................................................................................................. 10

Menu Button ................................................................................................................................... 10

Up & Down Arrow Buttons............................................................................................................ 10

Consumer Menu Options .............................................................................................................. 11

Current Volume Settings Display ............................................................................................. 11

Volume Adjustment Menu ........................................................................................................ 11

Fault Menu ............................................................................................................................... 12

Installer Menu Options .................................................................................................................. 13

Amplifier Status Screen ........................................................................................................... 13

Normal Mode .................................................................................................................................. 14

Volume Menu ........................................................................................................................... 14

Input Select Menu .................................................................................................................... 17

Channel Lock Menu ................................................................................................................. 19

ACE Menu ............................................................................................................................... 20

Input View Menu ...................................................................................................................... 21

Output View Menu ................................................................................................................... 22

Utility Sub-Menu ...................................................................................................................... 22

Operating Mode Menu ............................................................................................................. 23

LCD Contrast ........................................................................................................................... 23

LCD Brightness ........................................................................................................................ 24

LCD Sleep Timer ..................................................................................................................... 24

Bus A Input Menu .................................................................................................................... 25

Bus B Input Menu .................................................................................................................... 25

Power Saving Menu ................................................................................................................. 26

Firmware Version ..................................................................................................................... 27

Diagnostics Menu .................................................................................................................... 27

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 5

Ambient Temperature .............................................................................................................. 28

Save Dealer Defaults ............................................................................................................... 28

Restore Defaults ...................................................................................................................... 29

ELAN Mode..................................................................................................................................... 31

Absolute Max Volume Menu .................................................................................................... 31

Minimum Turn-On Volume Menu ............................................................................................. 32

Maximum Turn-On Volume Menu ............................................................................................ 32

Address Menu ............................................................................ Error! Bookmark not defined.

Channel Range Menu .............................................................................................................. 33

Chapter 3: Connections ...................................................................................... 34

Line Level Audio Inputs ........................................................................................................... 34

BUS Inputs ............................................................................................................................... 35

BUS Outputs ............................................................................................................................ 36

Speaker Binding Post .............................................................................................................. 37

Triggers .................................................................................................................................... 38

ALL ON Trigger Input ............................................................................................................... 39

+12VDC Trigger Out ................................................................................................................ 40

IR LOOP INPUT/OUTPUT Connections .................................................................................. 41

USB Connector ........................................................................................................................ 42

AC Power Connector ............................................................................................................... 42

Chapter 4: Applications ...................................................................................... 43

Stereo Input with Stereo Output .............................................................................................. 43

Multiple Stereo Inputs .............................................................................................................. 45

Single Stereo Input with Stereo and Mono Output .................................................................. 46

Multiple Bus Inputs with Stereo and Mono Outputs ................................................................. 47

Stand-Alone Stereo Bussing with Multiple Chassis ................................................................. 49

Multi-Room Stereo Zones .......................................................... Error! Bookmark not defined.

S1616A and S128P Sub-Zones W/O Volume Controls ............. Error! Bookmark not defined.

Chapter 5: Troubleshooting ............................................................................... 51

Appendix A: IR Command Set ...................................................................................................... 56

Appendix A: IR Command Set (Continued)................................................................................. 57

Appendix B: Rack Mounting ......................................................................................................... 58

Limited Warranty ........................................................................................................................... 59

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 6

 Power Amplifiers  Multi-Zone Pre-Amps  Intelligent Keypads  In-Wall LCD Color Touch Panels  Film Interactive Touchpads  Hand Held Remote Controls  In-Wall and In-Ceiling Speakers

 System Controllers  Volume Controls  Telephone-Based Intercom Controllers  Video Switchers  Satellite Radio  Accessories for Home Systems Installation  Outdoor Speakers

Items in Package:

 S1616A Power Amplifier  Rack Mount Brackets  Power Cord  Safety Flyer

Chapter 1: Introduction

The S1616A is the culmination of twenty four years of ELAN experience in the design and perfection of multi-channel amplification. Designed specifically for the custom installer, the S1616A used in Amplifier Mode is the perfect solution for multi-room whole-house applications. Providing cool performance and flexibility, the S1616A Amplifier Mode delivers 16 channels of powerful audio that can be configured into many combinations to suit any situation that may be encountered in a whole-house, distributed audio system.

The S1616A utilizes low heat/high efficiency Class D digital technology which features an 8x oversampling rate and 48 bit signal processing delivering the cleanest and most efficient audio amplification available. Each channel of the S1616A has a true power rating of 50 watts @ 8 ohms and 75 watts @ 4 ohms – all channels driven.

Configuration of the S1616A is performed via the front panel interface and includes advanced features such as max volume output, and min/max turn on levels. An advanced set of IR commands provides an impressive degree of operability of the S1616A allowing it to be used in many different control environments.

The ELAN Story

Located in Carlsbad, CA USA, ELAN is a part of The AVC Group, a collection of integration-centric brands. ELAN has designed innovative multi-room audio/video systems since 1989. ELAN systems were the first to integrate music, intercom and TV distribution features that used the homeowner’s stereos, televisions and telephones to create the whole-house entertainment experience. These systems allow people to move from room to room, controlling centrally located equipment with ease.

ELAN’s product line includes:

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 7

S1616A Amplifier Mode Features

 Class D Digital Technology

Provides clean, transparent audio amplification while greatly reducing power consumption

 50 Watts Per Channel

Easily produces 50W/Ch into an 8 ohm load and 75W/Ch into 4 ohm loads

 Automatic Clipping Eliminator (ACE)

This S1616A limiter constantly monitors the amplified output to prevent signal clipping

 Automatic Volume Reduction (AVR)

This S1616A limiter constantly monitors the overall output to prevent over-driving the amplifier

 Intelligent Load Monitoring

The S1616A automatically detects load faults and shuts down only the affected channels, thereby protecting speakers, wiring and the amplifier itself

 Multiple Bus Inputs

The S1616A can utilize up to 8 stereo bus inputs to allow sharing a single audio source between multiple speaker outputs (no jumper wires required)

 Buffered Loop Outputs

Every input channel has a buffered loop output that allows the user to easily share audio sources with other equipment

 IR Controllable

Each channel can be independently controlled via IR commands

 USB Port

Allows easy in-field firmware updates

 Rack Mount Brackets Included

No need to worry about field compatibility

 Available in 240 Volt Version  cTUVus, CE

®

, and C-Tick Certified

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 8

Item

Function

1

Channel Button

Cycles through information pertaining to each of the 16 audio channels

2

Menu Button

Cycles through various advanced setup features

3

Up Arrow Button

Increments selected menu item

4

Power Indicator

Illuminates when AC power is present and the power switch is on.

5

Down Arrow Button

Decrements selected menu item

6

IR Receive Indicator

Illuminates when the S1616A receives ELAN IR commands

S1616A Functions & Indicators

Front Panel

Figure 0-1: S1616A Front Panel Controls and Display

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 9

Item

Function

Item

Function

1

Power Switch

Unit master power switch

8

12V Trigger Out

12VDC output when any channel is on

2

Speaker Outputs

Channels 1-16, Five Way Binding Posts

9

IR Input & Output

Used to control the amplifier with IR signals

3

Bus Inputs, A-H

Used to connect multiple speaker outputs to the same audio source

10

Digital Audio Bus Inputs

Connects S/P-DIF audio source to Bus A or Bus B using TOSLINK connections

4

Line Level Audio Inputs

Channels 1-16

11

VIA!NET Input & Output

Not used in Amplifier Mode

5

Line Level Audio Outputs

Used for sharing audio sources between chassis

12

USB Mini B Port

For in-field firmware updates

6

12V Trigger Inputs

Used to turn on/off pairs of amplifier channels

13

Fuse Holder

Replace only with T12.5AL250V

7

Trigger All On

Used to turn on all amplifier channels at once

14

Power Cable Connector

IEC type C14

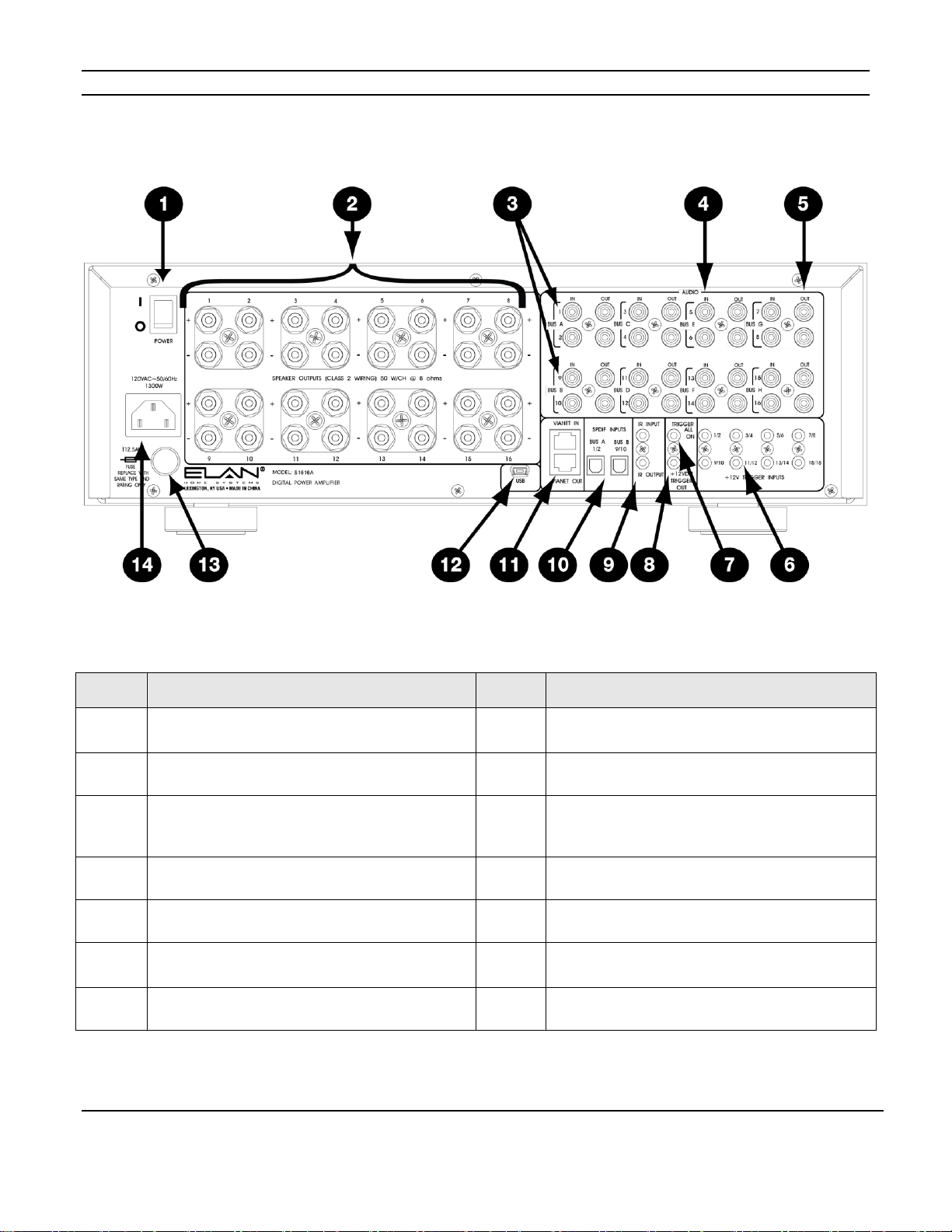

S1616A Amplifier Mode Rear Panel Connections

Figure 0-2

Note: All 3.5mm connectors are mono (two conductors)

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 10

Figure 2-1 Front Panel Controls

Operation & Settings

Front Panel Controls

The S1616A front panel buttons provide control for the initial setup and amplifier status. Any button press activates the front panel display which shows important system information until the display times out.

Channel Button

Menu Button

Up & Down Arrow Buttons

The CHANNEL button toggles through front panel display information pertaining to the individual 16 channels plus an ALL channel option that is available in the Installer Menus.

The menu button allows access to consumer oriented functions as well as options reserved for installers. In CONSUMER MODE the end user can adjust volume settings on a channel by channel basis, provided that the channel is UNLOCKED, as well as see current volume/gain and signal presence information. Installers can access additional setup functions.

In NORMAL MODE, the MENU button toggles through the following menu choices: STATUS, VOLUME, INPUT SELECT, LOCK, ACE, INPUT VIEW, OUTPUT VIEW, and UTILITY.

Similarly, while in ELAN MODE, the MENU button toggles through the following menu choices:

STATUS, VOLUME, INPUT SELECT, LOCK, ACE, INPUT VIEW, OUTPUT VIEW, ABSOLUTE MAX VOLUME, MIN TURN ON VOLUME, MAX TURN ON VOLUME, and UTILITY.

These menu items are explained in detail in the following pages as well as how to access installer menu screens and switch between NORMAL MODE and ELAN MODE.

These buttons are used to increment and decrement the currently selected menu item.

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 11

Figure 2-2 Current Volume Settings

Figure 2-3 Volume Adjustment Display

Consumer Menu Options

Current Volume Settings Display

The first press of the MENU button will bring up the following display showing all 16 channels’ current volume/gain settings and signal presence indicators.

Volume Adjustment Menu

The next press of the MENU button will display the volume screen for the last selected channel as shown below.

Note: “Channel Locked” - “Output Clipping” - “Input Clipping” and “Fault” status information will

only display if that condition is true. The “IR” indicator will display only when the S1616A is

receiving an ELAN formatted IR signal.

Volume Adjustment Menu (continued)

Use the CHANNEL button to select the desired channel and the up and down arrow buttons to increment and decrement the gain setting.

A bar graph displays the current channel output (in dBu). The arrowhead indicates a recent output peak level.

Current trigger status for the selected channel is shown as well as an indication if power saving mode is engaged (PS). (See Power Saving Menu on page 26.)

The consumer menu does not allow selecting ALL channels at once. This feature is reserved for installers.

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 12

Figure 2-4 Fault Display

Fault Menu

If a channel is FAULTED the following screen will show in the display.

This shows the faulted channel’s number as well as how many times the channel has faulted due to high temperature and low impedance combined. It also shows high temperature warnings separately. The end user can attempt to clear the fault by pressing the UP or DOWN arrows.

If the end user is unable to clear the fault they should contact the dealer for assistance. It is not necessary to stop using the amplifier in the meantime; continuing to use the amplifier WILL NOT cause additional damage.

The speaker wires should not be connected to different amplifier channels without first checking for shorts or low impedance on the speakers.

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 13

Figure 2-5 Amplifier Status

Installer Menu Options

The S1616A Amplifier Mode has two operating modes, Normal and ELAN.

(See Operating Mode Menu on page 23.)

ELAN mode allows the amplifier to respond to S1616A IR commands that can affect its channels. (See Appendix A for the Command Set.)

NORMAL mode does not allow IR control of the S1616A.

To access the installer menu screens press and hold the MENU button for five seconds until the following screen shows in the display window. To exit the installer menu screens press and hold the MENU button again for five seconds or power cycle the amplifier.

Amplifier Status Screen

The Amplifier Status screen allows you to view the current assignments for amplifier gain and input routing for each of the 16 channels. Press the UP and DOWN arrow buttons to see information for the next group of four channels. Alternatively, press the CHANNEL button to move forward one channel at a time.

The top of the screen displays the mode the amplifier is in, either ELAN MODE or NORMAL MODE, followed by the channel designations of the chassis, I.E. CH1 – CH16.

CH:1 V:75 IN:1 means that audio input 1 (IN:1) is being amplified at 75% (V:75) and is being routed to the channel 1 (CH:1) amplified output.

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 14

Figure 2-6 Volume Menu

Normal Mode

Volume Menu

To adjust amplifier output gain on an individual channel, press the MENU button to cycle through the setting options until the following screen appears:

Use the CHANNEL button to select the desired channel and the UP and DOWN arrow buttons to increment and decrement the gain setting. Selecting ALL with the CHANNEL button applies settings to all 16 channels.

Current trigger status for the selected channel is shown as well as an indication if power saving mode is engaged (PS).

The VOLUME Menu will allow any or all channel's volume to be adjusted from 0% (MUTE) to 100% (maximum gain).

The Factory Default setting for each channel is 75.

The VU (Volume Unit) bar displays real time (current) volume (in dBu) detected at the selected channel output. The range is from -15 dBu to+30 dBu. The arrowhead indicates a recent output

peak level.

TRIGGER and PS (Power Sense) status are also displayed.

(See Power Saving Menu on page 26, and Trigger information on pages 39-41.)

(Continued on next page)

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 15

Figure 2-7 Volume Menu with Ace

Figure 2-8 Volume Menu with AVR

Volume Menu (Continued)

Trigger ON is the factory default.

The TRIGGER options are:

• On: The selected channel is on (consuming energy) and the trigger jack on the rear panel is active.

• Off: The selected channel is off (NOT consuming energy) and the trigger jack on the rear panel is not active.

• On/PS: The selected channel is off (NOT consuming energy) because the selected channel is in Power Saving Mode even though the trigger jack on the rear panel is active.

When ACE (Automatic Clip Elimination) is active on the selected channel, ACE will be displayed above Volume %.

(See "ACE Menu" on page 20.)

When AVR (Automatic Volume Reduction) is active, AVR is displayed above Volume %. AVR is active whenever the amp is being overdriven. When AVR is active, the S1616A turns its volume down until it is not being overdriven. The S1616A will return to its normal volume setting when it is no longer being overdriven.

(See the Troubleshooting section for more information on AVR.)

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 16

Setting System Volume Levels

1. Set each S1616A's channel level to 25%.

2. Raise the volume of all touch panels, touchpads or volume controls to near maximum.

3. Play source program material, such as a CD or a radio station.

4. Have someone step into the room and listen.

5. Enable ACE for all channels. (See ACE Menu on page 20.)

6. On the Volume screen, select the channel that is wired to the speaker where the person is

listening.

7. Slowly adjust Volume Up for this channel until the audio begins to distort, and then drop the

level one or two percentage points.

8. Follow this procedure for all channels to achieve a good balance of sound from the most used

listening position in the zone.

9. Enable or Disable ACE for all applicable channels.

Note: High volume levels can cause clipping and distortion. This can damage the loudspeaker's components and cause the amplifier to go into protection mode. The protection circuits will reset when the output signal conditions have returned to normal. Overdriving the amplifier can damage the amplifier and void the manufacturer's warranty.

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 17

Figure 2-9 Input Select Menu

Input Select Menu

To change the input used for each output, press the MENU button to cycle through the setting options until the following screen appears:

Select the channel whose input you wish to change by pressing the CHANNEL button until the correct channel is displayed. Once the desired output channel is selected pressing the UP and DOWN arrows will cycle through the following input options:

 Input 1 Direct: This is the default, Channel's audio is taken from audio input 1  Input 1 + 2 Mono Direct: Channel's audio is the sum of audio inputs 1 and 2

(Mono)

 Input 1 Bus A: Channel's audio is taken from audio input 1 which is Bus A*  Input 1 + 2 Mono Bus A: Channel's audio is the sum of audio inputs 1 and 2

(Mono) which is Bus A*

 Input 9 Bus B: Channel's audio is taken from audio input 9 which is Bus B*  Input 9 + 10 Mono Bus B: Channel's audio is the sum of audio inputs 9 and 10

(Mono) which is Bus B*

 Input 3 Bus C: Channel's audio is taken from audio input 3 which is Bus C  Input 3 + 4 Mono Bus C: Channel's audio is the sum of audio inputs 3 and 4

(Mono) which is Bus C

 Input 11 Bus D: Channel's audio is taken from audio input 11 which is Bus D  Input 11 + 12 Mono Bus D: Channel's audio is the sum of audio inputs 11 and 12

(Mono) which is Bus D

(Continued on next page)

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 18

Figure 2-10 All Channels Selected

Input Select Menu (Continued)

 Input 5 Bus E: Channel's audio is taken from audio input 5 which is Bus E  Input 5 + 6 Mono Bus E: Channel's audio is the sum of audio inputs 5 and 6 (Mono) which

is Bus E

 Input 13 Bus F: Channel's audio is taken from audio input 13 which is Bus F  Input 13 + 14 Mono Bus F: Channel's audio is the sum of audio inputs 13 and 14 (Mono)

which is Bus F

 Input 7 Bus G: Channel's audio is taken from audio input 7 which is Bus G  Input 7 + 8 Mono Bus G: Channel's audio is the sum of audio inputs 7 and 8 (Mono) which

is Bus G

 Input 15 Bus H: Channel's audio is taken from audio input 15 which is Bus H  Input 15 + 16 Mono Bus H: Channel's audio is the sum of audio inputs 15 and 16 (Mono)

which is Bus H

*Bus A and/or Bus B can be either analog input or digital input. (See pages 25 and 36 for

additional information.)

The following example is with Channel ALL EVEN and Channel ALL ODD selected. Instead of a single channel's audio being affected like the previous example, all 16 channels are being affected.

All of the Odd channels (1, 3, 5, 7, 9, 11, 13, 15) are taken from Audio Input 1 which is Bus A and All of the Even channels (2, 4, 6, 8, 10, 12, 14, 16) are taken from audio input 2 which is also Bus A.

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 19

Figure 2-11 Lock Menu

Channel Lock Menu

To LOCK or UNLOCK the settings for the channels press the MENU button to cycle through the setting options until the following screen appears:

This menu allows any or all channels to be locked or unlocked after initial set-up selections have been determined.

When locked, channel settings cannot be altered even by IR Commands in ELAN mode.

Individual channels 1 - 16 options are LOCKED or UNLOCKED.

When the All channel option is selected the possible status options displayed are MIXED, LOCKED, or UNLOCKED. MIXED means that some channels are locked and some channels are not locked.

Press the Channel button to change the channel.

Press the UP and DOWN buttons to LOCK or UNLOCK the selected channel.

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 20

Figure 2-12 ACE Menu

ACE Menu

To enable or disable ACE (Automatic Clipping Eliminator) for the channels press the MENU button to cycle through the setting options until the following screen appears:

When ACE is set to ON, (Factory Default) the amplified output is continuously monitored for signal clipping. Extremely fast transients are ignored but if it sees a consistent clipping trend, it turns the respective channel down by one increment. This action is repeated until no more clipping is detected for five seconds. After 5 seconds it gradually increases the gain of the channel back to its last setting.

ACE will be displayed on the Volume screen. (See Volume Menu on page 14.)

Individual channels 1 - 16 options are ON or OFF.

When the All channel option is selected the possible status options are MIXED, ON or OFF. MIXED means that some channels are ON and some channels are OFF. Press the CHANNEL

button to change the channel. Press UP and DOWN buttons to enable or disable ACE for the selected channel.

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 21

Figure 2-13 Input View Menu

Input View Menu

For information relating to the signal inputs for the S1616As channels press the MENU button to cycle through the setting options until the following screen appears:

This menu selection displays four bar graphs which correspond to the input signal strength for each of the 16 channels. Press the UP and DOWN arrow buttons to see information for the next group of four channels. Press the CHANNEL button to move forward one channel at a time.

A clipping indicator is located in the bottom left of the screen. The indicator will show if any of the four currently displayed channels are clipping.

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 22

Figure 2-14 Output View Menu

Output View Menu

For information relating to the amplified outputs for the S1616A press the MENU button to cycle through the setting options until the following screen appears:

This menu selection displays four bar graphs which correspond to the output channel levels for each of the 16 channels. Press the UP and DOWN arrow buttons to see information for the next group of four channels. Press the CHANNEL button to move forward one channel at a time.

A clipping indicator is located in the bottom left of the screen. The indicator will show if any of the four currently displayed channels are clipping.

Utility Sub-Menu

The S1616A features a Utility sub-menu that is designed to provide easy access to the amplifier’s operational functions.

Once the Utility sub-menu has been accessed by cycling through the MAIN Menu functions until you see “UTILITY” at the top of the display, use the CHANNEL button to cycle to the next sub- menu option. Pressing the MENU button will return the S1616A to the MAIN Menu options.

NOTE:

Whenever the LCD times out, the Utility menu will reset to display the Operating Mode screen first. However, if you navigate to ANY OTHER screen in the Utility menu by pressing the Channel button and then navigate through the Main menu by pressing the Menu button without an LCD timeout, the first Utility screen displayed will be the previously selected Utility menu screen.

The Utility sub-menu options will be discussed in detail on the following pages.

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 23

Figure 2-15 Operating Mode Menu

Figure 2-16 LCD Contrast Menu

Utility Sub-Menu (Continued)

Operating Mode Menu

The initial screen shown in the Utility Sub-Menu is the Operating Mode Menu. Use the arrow UP or Down buttons to toggle between Normal and ELAN mode. If you have not allowed for an LCD time-out to reset the Utility sub-menu back to the Operating Mode Menu press the CHANNEL button to cycle through the Utility sub-menu options until you see the screen below.

LCD Contrast

This menu adjusts the Contrast of the front panel LCDs. Once you have selected the Utility submenu by cycling through the MAIN Menu options using the MENU button, use the CHANNEL

button to select the LCD Contrast menu. Use the UP and DOWN arrow buttons to adjust the contrast.

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 24

Figure 2-17 LCD Brightness Menu

Figure 2-18 LCD Sleep Timer Menu

Utility Sub-Menu (Continued)

LCD Brightness

This menu adjusts the Brightness of the front panel LCD. Once you have selected the Utility sub-menu by cycling through the MAIN Menu options using the MENU button, use the CHANNEL

button to select the LCD Brightness menu. Use the UP and DOWN arrow buttons to adjust the brightness.

LCD Sleep Timer

This menu setting determines the amount of time that the front panel’s graphical LCD display and backlight are active after a front panel button press.

The factory default setting is 1 minute.

Once you have selected the Utility sub-menu by cycling through the MAIN Menu options using the MENU button, use the CHANNEL button to select the LCD Sleep Timer menu. Use the UP and DOWN arrow buttons to adjust the timeout. The options are one minute, two minutes, five minutes, and disable.

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 25

Figure 2-19 BUS A Input Menu

Figure 2-20 BUS B Input Menu

Utility Sub-Menu (Continued)

Bus A Input Menu

This menu setting determines if BUS A audio signal is routed from the ANALOG audio input for inputs 1 and 2 or is routed from OPTICAL DIGITAL audio input A.

Once you have selected the Utility sub-menu by cycling through the MAIN Menu options using the MENU button, use the CHANNEL button to select the BUS A Input menu. Use the UP and

DOWN arrow buttons to select the desired input.

Bus B Input Menu

This menu setting determines if BUS B audio signal is routed from the ANALOG audio input for inputs 9 and 10 or is routed from OPTICAL DIGITAL audio input B.

Once you have selected the Utility sub-menu by cycling through the MAIN Menu options using the MENU button, use the CHANNEL button to select the BUS B Input menu. Use the UP and DOWN arrow buttons to select the desired input.

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 26

Figure 2-21 Power Saving Menu

Utility Sub-Menu (Continued)

Power Saving Menu

The Power Saving mode uses Music Sense detection to determine if audio signals are present. If signals are not present, the enabled amplifier channels power OFF. When a source signal is detected the channels will power ON.

The factory default is ALL ENABLED.

When ALL ENABLED is selected, any channel will shut itself off after 5 minutes with no audio detected.

ALL ENABLED examples:

If a zone is turned off on an ELAN A/V Controller and the A/V Controller's triggers are not connected, the S1616A's channels will turn off after 5 minutes of not detecting audio.

If a zone is muted on the ELAN A/V Controller, the S1616A's channels will turn off after 5 minutes of not detecting audio.

The S1616A audio may drop out in ALL ENABLED mode if the audio being sent to it is at an extremely low level for five minutes.

(See Trigger information on pages 39-41.)

Once you have selected the Utility sub-menu by cycling through the MAIN Menu options using the MENU button, use the CHANNEL button to select the POWER SAVING menu. Use the UP and DOWN arrow buttons to select between All Enabled and All Disabled.

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 27

Figure 2-22 Firmware Version Screen

Figure 2-23 Diagnostics Screen

Utility Sub-Menu (Continued)

Firmware Version

This menu displays the current Firmware Version of the S1616A chassis. Once you have selected the Utility sub-menu by cycling through the MAIN Menu options using the MENU button, use the

CHANNEL button to select the Firmware Version screen.

Diagnostics Menu

The Diagnostics menu provides easy access to current S1616A system status. Diagnostics information displayed on the S1616A’s front panel include the number of times the unit has suffered fault conditions (F) and high temperatures (T) for each channel.

A Fault (F) problem occurs when a channel is shorted or the impedance drops below 4 ohms.

A Temperature (T) warning will occur when the temperature rises above 125C.

Once you have selected the Utility sub-menu by cycling through the MAIN Menu options using the MENU button, use the CHANNEL button to select the Diagnostics screen. Use the UP and DOWN arrow buttons to display additional channels.

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 28

Figure 2-24 Ambient Temperature Screen

Figure 2-25 Save Defaults Menu A

Utility Sub-Menu (Continued)

Ambient Temperature

This menu displays the current AMBIENT TEMPERATURE of the S1616A chassis as well as minimum and maximum temperatures that are logged in memory.

Once you have selected the Utility sub-menu by cycling through the MAIN Menu options using the MENU button, use the CHANNEL button to select the Ambient Temperature display. Use the

UP and DOWN arrow buttons to select between Fahrenheit or Celsius displays.

Save Dealer Defaults

A 4 digit code may be used to save all Dealer Default settings. This code is set to 3526 and cannot be changed.

Once you have selected the Utility sub-menu by cycling through the MAIN Menu options using the MENU button, use the CHANNEL button to select the Save Dealer Defaults menu.

To save the current settings:

Press UP and DOWN buttons to change the digits to 3526.

Press the CHANNEL button to cycle to the next digit.

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 29

Figure 2-26 Save Defaults Menu B

Figure 2-27 Restore Defaults Menu A

Utility Sub-Menu (Continued)

Save Dealer Defaults (Continued)

Pressing the CHANNEL button when the fourth digit is highlighted will bring up the following screen:

Press the UP and DOWN arrows to select SAVE or NO SAVE. If the correct code has been entered the S1616A will save the current settings. If an incorrect code has been entered the

bottom line of the display will read, “INVALID PIN, Retry”

Restore Defaults

This menu allows the restoration of the amplifier’s factory default settings as well as dealer

programmed settings.

Once you have selected the Utility sub-menu by cycling through the MAIN Menu options using the MENU button, use the CHANNEL button to select the Restore Defaults menu.

Use the UP and DOWN buttons to change options. The options are DO NOT RESTORE,

FACTORY, DEALER and TRIGGER CONTROL.

(For more information on Trigger Control see pages 39-41.)

(Continued on next page)

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 30

Figure 2-28 Restore Defaults Menu B

Utility Sub-Menu (Continued)

Restore Defaults (Continued)

After selecting the restore type press the CHANNEL button to display the CANCEL and RESTORE options. Use the UP and DOWN buttons to select the desired option and press CHANNEL to commit the selection.

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 31

Figure 2-29 Absolute Max Volume Menu

ELAN Mode

The ELAN mode menu items are the same except for the following additional menu items that are after Output View:

Absolute Max Volume, Min Turn On Volume, and Max Turn On Volume.

MAIN Menu Screens: Amplifier Status, Volume, Input Select, Lock, ACE, Input View, Output View, Absolute Max Volume, Min Turn On Volume, and Max Turn On Volume and Utility

The Utility mode menu items are the same except for the following additional menu items that are after Operating Mode:

Channel Range.

Utility Sub-Menu Screens: Operating Mode, Channel Range, LCD Contrast, LCD Brightness,

LCD Sleep Timer, BUS Input A, BUS Input B, Power Saving Mode, Firmware Version, Diagnostics, Ambient Temperature, Save Dealer Defaults, and Restore Defaults.

Absolute Max Volume Menu

To set the upper gain limits for the S1616A press the MENU button to cycle through the setting options until the following screen appears:

Channel gain adjustments are performed by following the Volume Menu steps or by using IR Commands.

When Absolute Max Volume is set to less than 100%, the gain will not adjust higher than the set value.

(See Volume Menu on page 14.)

Use the CHANNEL button to select the desired channel and the UP and DOWN arrow buttons to increment and decrement the gain setting. Selecting ALL with the CHANNEL button applies settings to all 16 channels.

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 32

Figure 2-30 Minimum Turn-On Volume Menu

Figure 2-31 Maximum Turn-On Volume Menu

ELAN Mode (Continued)

Minimum Turn-On Volume Menu

To set the Minimum Turn-On Volume for the S1616A press the MENU button to cycle through the setting options until the following screen appears:

This will allow an individual channel or All channels to turn on to a specific or predetermined volume level if the volume level prior to turning the channel off is lower than this setting. This applies to IR controlled channels. It does not apply to trigger controlled channels.

Maximum Turn-On Volume Menu

To set the Maximum Turn-On Volume for the S1616A press the MENU button to cycle through the setting options until the following screen appears:

This will allow an individual channel or All channels to turn on to a specific or predetermined volume level if the volume level prior to turning the channel off is higher than this setting. This applies to IR controlled channels. It does not apply to trigger controlled channels.

Note: Maximum Turn-On Volume cannot be higher than the Absolute Max Volume level setting. (See page 31.)

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 33

Figure 2-33 Channel Range Menu

Utility Sub-Menu Additions (In ELAN MODE)

Channel Range Menu

Once you have selected the Utility sub-menu by cycling through the MAIN Menu options using the MENU button, use the CHANNEL button to select the Channel Range menu.

This menu sets the IR Codes Commands to be processed based on the channel numbers selected.

The default setting is 1-16.

16 chassis can be used for a total of 256 channels.

S1616As can have the same channel range settings if you want the S1616As to respond to the same IR Commands.

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 34

Connections

The S1616A has many rear panel connections so it is important to label cables with their destination or source correctly.

Use high quality line level RCA connector type cables for source connections to ensure the lowest possible noise and best sound performance.

For most applications, use 16AWG 2 conductor speaker cable. For wiring runs longer than 80 ft., it is recommended to use 14AWG 2 conductor speaker cable. The S1616A's high quality, gold plated 5-way binding post will accommodate speaker cabling sizes up to 12AWG. Attaching banana plugs will enable the connection of larger cable sizes.

3.5mm mono interconnect cables may be used for amplifier / channel triggering.

Line Level Audio Inputs

Connect line level input audio by inserting RCA cable into the audio input connectors.

Figure 3-1 Line Level Direct Inputs

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 35

BUS Inputs

The S1616A BUS Inputs A and B enable custom configuration of listening areas. Large or irregular shaped rooms may be configured for both mono and stereo as coverage is needed. Hallways, passageways, bathrooms and laundry rooms are the most popular areas that can benefit from a mono BUS application. BUS Input application examples are shown in the Applications section of this manual.

Channels 1 and 2 analog inputs are used for the Bus A input channels and channels 9 and 10 analog inputs are used for the Bus B inputs.

The S1616A also features optical digital audio inputs for Bus A and Bus B.

(See Bus Input Menus on page 25.)

Figure 3-2 Analog Bus Inputs

Figure 3-3 Optical Digital Bus Inputs

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 36

BUS Outputs

BUS audio outputs enable connection of additional amplifiers to allow further system expansion. Audio input 1 is buffered and routed out the audio output 1 connector, input 2 to output 2 and so forth. There are eight Bus Ins and Outs, labeled A for channels 1 / 2, B for 3 / 4, C for 5 / 6, D for 7 / 8, E for 9 / 10, F for 11 / 12, G for 13 / 14, and H for 15 / 16.

Digital audio inputs do not “loop out” of the S1616A. If multiple amplifiers are to be used in Bus mode you should use the analog Bus inputs.

Figure 3-4 Analog Bus Outputs

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 37

Speaker Binding Post

The S1616A is equipped with gold plated, 5-way speaker binding post. This will allow for five methods of speaker wire termination; bare wire, spade lug, pin, single banana and dual banana plug. Label all speaker wires with their destination to ensure easy configuration. To attach speaker wires use the following method:

1. Carefully split the speaker wire insulation at least two inches.

2. Strip 1/2 inch of the insulation from the speaker wire conductor exposing the bare wire.

3. Twist the wire strands of each conductor, if using banana plugs, attach wire to banana plug

observing polarity.

4. If using banana plug; insert plug ends into binding post observing correct polarity. If using the

bare wire method; loosen red and black binding post caps and insert the bare wire through the hole in the post. Tighten the knob until the wire is securely clamped.

CAUTION! Speaker Wire connections must be made with the amplifier OFF

Figure 3-5 Speaker Binding Posts

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 38

Triggers

+12V Trigger Inputs

A 3.5mm mono interconnect cable is used for the +12V Trigger Input connection. Each channel pair 1/2, 3/4, 5/6, 7/8, 9/10, 11/12, 13/14 and 15/16 have dedicated triggers. Trigger 1 is assigned to channel pair 1/2, trigger 2 is assigned to channel pair 3/4 and so forth.

When the trigger is active the channel pairs turn on.

When the trigger is not active the channel pairs turn off.

If no cables are used, the triggers will be turned on by default.

(See note on triggers on page 41)

Figure 3-6 S1616A Zone Trigger Connections

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 39

ALL ON Trigger Input

A 3.5mm mono interconnect cable is used for the ALL ON Trigger Input connection. This Turn-On Trigger activates ALL channels.

When the trigger is active all channels turn on.

When the trigger is not active all channels turn off.

(See note on triggers on page 41)

Figure 3-7 S1616A All On Trigger Connections

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 40

Figure 3-8 System Trigger Out

+12VDC Trigger Out

A +12VDC Output Trigger is located below the ALL ON Trigger. This allows daisy chained amplifiers to turn on and off.

This signal is active when any of the top or first amplifier channel(s) is active or "ON". When all amplifier channels are "OFF", the +12VDC trigger signal is removed or "OFF"

Special Note on Triggers

Once any channel receives any of the following commands, it will stop watching the trigger input jack related to the channel:

Mute, Unmute, Mute Toggle, Power ON, Power OFF, Power Toggle.

The only way to return a channel to watching the trigger input is to restore Trigger Control or restore Factory Defaults. Restoring Dealer Defaults may work, but it would depend on when the IR command was sent (before or after the Dealer Save).

Once a channel is controlled by IR, it will always AC power on to the OFF state. This is to prevent accidental music playing due to an AC power loss with an always on audio source. This is shown on the Volume Menu as Trigger OFF. When the channel is turned on with a Power ON command, it will display as Trigger ON with audio or Trigger ON/PS if there is no audio present and the Power Save is enabled. The Power ON command will restore the volume level using the Min/Max Turn On Volume parameters. When a channel is turned on by ending Mute, the volume is restored to the previous level, regardless of the preset Min/Max Turn On parameters.

(See pages 14, 26, 29, 30, and 32 for additional information.)

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 41

IR LOOP INPUT/OUTPUT Connections

The 3.5mm mono IR Loop is located beside the ALL ON trigger. This loop allows IR commands to be sent to each S1616A amplifier that is connected. Before the amplifier will respond to IR Commands, the S1616A amplifier must be set to ELAN Mode.

(See Operating Mode Menu on page 23.)

Figure 3-9 IR Loop Input / Output

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 42

Figure 3-11 Mini-USB Port

Figure 3-12 AC Power Connection

USB Connector

Used to update and configure the S1616A firmware.

Note: A Standard USB-A to USB-Mini-B cable must be utilized for firmware updates and is not included with the S1616A.

AC Power Connector

A removable IEC compatible AC Power cord is included for connecting the AC Power Connector to 120VAC power.

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 43

Applications

Stereo Input with Stereo Output

Standard application

Prerequisites: Factory Default the amp and set to NORMAL Mode.

See: Restore Defaults on page 29, Operating Mode Menu on page 23

This example displays a basic stereo setup. Stereo from a source device is connected to audio inputs 1 and 2. Audio input 1 is routed to output channel 1 and audio input 2 is routed to output channel 2.

Volume is adjusted by an ELAN A/V Controller or by another Audio Device.

Figure 4-1 Stereo Connections

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 44

ELAN Special Application - IR Control

Prerequisites: Factory Default the amp and set to ELAN Mode.

Channel Range: Set to 1 to 16.

Connect IR input.

See:

Restore Defaults on page 29, Operating Mode Menu on page 23

Channel Range on page 34

Link / Unlink commands in Appendix A: IR Command Set

With the IR input connected you can control the S1616A's volume output directly.

Instead of sending ELAN zone volume commands to the ELAN A/V Controller, send S1616A's Channel 1 Volume Up/Down or Channel 2 Volume Up/Down IR Commands to the S1616A.

ELAN Special Application - IR Control (additional chassis)

Prerequisites: Factory Default the S1616As and set to ELAN Mode.

Channel Range: Set chassis one to 1-16 and chassis two to 17 – 32.

Connect IR Loop between the chassis.

Instead of sending ELAN zone volume commands to the ELAN A/V Controller, send S1616A's Channel 17 Volume Up/Down or Channel 18 Volume Up/Down IR Commands to the S1616A.

Since Channel Range is set to 17 - 32, you must control the channel's volume using different commands. When a S1616A Channel Range is set to 17 - 32, the S1616A is the second chassis in a two S1616A chassis system.

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 45

Multiple Stereo Inputs

This example shows different audio sources connected to each audio input.

With Channel Range set to Channel All Direct, Audio Input 1 is routed to Channel 1; Audio Input 2 is routed to Channel 2, etc...and Audio Input 16 is routed to Channel 16.

Prerequisites: Factory Default the amp and set to ELAN or Normal Mode

Channel Range: Set to 1 to 16

Input Select Menu: Channel Direct

See:

Restore Defaults on page 29, Operating Mode Menu on page 23

Input Select Menu on page 17

Figure 4-2 Multiple Stereo Inputs

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 46

Single Stereo Input with Stereo and Mono Output

ELAN Special Application

Prerequisites: Factory Default the amp and set to ELAN or Normal Mode

Input Select Menu: Channel 3 with Input set to 1 + 2 Mono Bus A

See:

Restore Defaults on page 29, Operating Mode Menu on page 23

Input Select Menu on page 17

With the Input Select Menu set to the above settings, the S1616A sums audio input 1 and 2 (Mono) and routes it to channel 3. This eliminates the need to use a “Y” cable.

Volume is adjusted by the ELAN A/V Controller or by the other Audio Device. Increasing or decreasing the volume increases stereo channels 1 and 2 and mono channel 3.

Figure 4-3 Stereo/Mono Using S1616A Settings

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 47

Multiple Bus Inputs with Stereo and Mono Outputs

ELAN Special Application

Scenario: Zone one has four stereo speaker pairs, zone two has two stereo pairs and two

summed mono speakers, zones three and four have a single summed mono speaker each.

Prerequisites: Factory Default the amp and set to ELAN or Normal Mode.

Input Select Menu:

Zone 1 - Channels 1, 3, 5, 7 - Set Inputs to 1 Bus A

Zone 1 - Channels 2, 4, 6, 8 - Set Inputs to 2 Bus A

Zone 2 - Channels 9, 11 - Set Inputs to 9 Bus B

Zone 2 - Channels 10, 12 - Set Input to 10 Bus B

Zone 2 - Channel 13 - Set Input to 9+10 Mono Bus B

Zone 2 - Channel 14 - Set Input to 9+10 Mono Bus B

Zone 3 - Channel 15 - Set Input to 13+14 Mono Bus F

Zone 4 - Channel 16 - Set Input to 15+16 Mono Bus H

See:

Restore Defaults on page 29, Operating Mode Menu on page 23

Channel Range Menu on page 34, Input Select Menu on page 17

Also see Analog / Digital Bus Input information on page 25

Volume is adjusted by the ELAN A/V Controller.

(Wiring example on next page.)

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 48

Figure 4-4 Multiple Bus Inputs with Stereo and Mono Outputs

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 49

Stand-Alone Stereo Bussing with Multiple Chassis

Prerequisites First S1616A Chassis: Factory Default the amp and set to ELAN Mode.

Channel Range: Set to 1 to 16

Input Select Menu: Channel All ODD with Input set to 1 Bus A

Channel All Even with Input set to 2 Bus A

Prerequisites Second S1616A Chassis: Factory Default the amp and set to ELAN Mode.

Channel Range: Set to 17 to 32

Input Select Menu:

Channel All ODD with Input set to 1 Bus A

Channel All Even with Input set to 2 Bus A

See:

Restore Defaults on page 29, Operating Mode Menu on page 23

Channel Range Menu on page 34,

Input Select Menu on page 17

Appendix A: IR Command Set

This example shows the preamp output of an A/V Receiver being distributed in a wide-area application, such as a great room. Speakers for both chassis are stereo for up to 32 pairs of speakers.

(Wiring example on next page.)

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 50

Figure 4-5 Multi-Chassis Bussing

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 51

Symptom

Possible Cause

Solution

Amplifier will not power up.

1. Power switch is OFF

2. Circuit breaker tripped

1. Turn switch ON. Switch is on the back of the unit.

2. Set circuit breaker.

The S1616A draws 12 amps of AC current. Ensure that combined current draw of all devices on circuit does not exceed the circuit’s capacity.

Menus do not appear as shown in manual.

1. Wrong Firmware

1. Load correct S1616A Amplifier Mode firmware.

Symptom

Possible Cause

Solution

No audio out on one or more channels.

View Diagnostics Menu on page 27

1. Loose/bad speaker cable connection

1. Check cable ends at binding posts and speaker terminals.

2. Break/short in speaker cable

2. Check continuity of each speaker cable using multi-meter. If

short or open is indicated, check wiring for proper connections.

3. Speaker is defective

3. Swap with known good speaker.

4. RCA patch cable defective

4. Swap with known good patch cable.

5. Source not sending audio

5. Verify source is powered up and playing.

Check any tape monitor settings on A/V Receiver.

6. Amplifier is overheating due to

inadequate ventilation or prolonged operation at clipping levels.

6. (a) Turn the amplifier off and allow the internal circuits to

cool.

(b) Ensure that the amplifier has proper ventilation. Add

cooling fan if necessary.

(c) Lower the volume level controls for that channel pair.

7. “Trigger OFF” command has been sent

to channel.

7. Restore Trigger Control defaults (See Restore Defaults

on page 29.)

Troubleshooting

General

Audio

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 52

Symptom

Possible Cause

Solution

Audio hum

1. Ground potential difference between

source components (ground loop)

1. (a) Test AC outlet using ground tester.

(b) Reverse the AC plug of components with non-polarized

ends plugged into the same outlet strip as amp.

2. Faulty/damaged cables

2. Check source equipment cables for damage and faulty connections.

3. Faulty wiring

3. (a) Make sure volume controls are not hooked up

.backwards.

(b) Check for shorts in wiring

(see item 2 in “No audio…”).

Distorted audio at normal volume levels

1. Input gain set too high

1. Reduce gain to the channel in question.

2. Defective/incompatible speaker

2. (a) Check for physical damage to speaker.

(b) Ensure speakers have appropriate power rating for

amplifier.

(c) Ensure speakers have at least 4 Ohm impedance. This

amp is compatible with speakers with 4-8 Ohm impedance or greater.

3. Volume control wired incorrectly.

3. Check for proper input/output connections at volume control. Verify that the input comes from amplifier and the output goes to speakers.

4. Volume control Impedance Match

settings incorrect.

4. Verify/correct Impedance Match settings.

Audio is unclear, bass response low

Speakers are out of phase

Verify that + of amplifier goes to + of speaker and - of amplifier goes to - of speaker on ALL speaker leads.

Audio (Continued)

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 53

Symptom

Possible Cause

Solution

Incorrect source playing on speakers

1. Source connected to wrong input of

amplifier or A/V Controller.

1. Verify/correct input connections.

2. Speakers connected to incorrect

speaker outputs.

2. Verify/correct speaker connections.

3. Incorrect input selected for channel.

3. Verify Input Select Menu settings.

Volume level/gain cannot be increased

1. ACE Limiter engaged

1. Check Volume Menu for ACE indication, if indicated, check

and verify procedures as listed in “Distorted Audio at Normal Volume Levels.”

2. AVR (Automatic Volume Reduction) is

engaged.

2. Check Volume Menu for AVR indication, check Ambient

Temperature Menu for possible overheating. Check and verify proper ventilation. If well ventilated follow the steps for “Distorted Audio at Normal Volume Levels.”

3. Gain increase would exceed the

ABSOLUTE MAX VOLUME setting.

3. Adjust setting on the ABSOLUTE MAX VOLUME Menu.

(See page 31)

First notes of audio track missing

Power Save enabled

Disable Power Save. (See Power Saving Menu on page 26)

Audio (Continued)

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 54

Symptom

Possible Cause

Solution

Low output volume

1. Gain set too low on amplifier channel

1. Adjust gain

2. AVR engaged due to:

2.

a) low impedance

a) check for low impedance or faulty wiring

b) channel has reached max power

peak

b) adjust individual channel gain

c) channel has reached max sustained

power

c) lower output from A/V Controller

d) entire chassis at max power output

d) adjust gain settings on all channels

e) max amp IC temperature reached

e)increase ventilation

f) max Ambient temperature reached

f) increase ventilation

g) high input AC voltage with high output demand

g) spread high output loads (example: outdoor speakers) across multiple amplifiers in multi amp installs.

Audio (Continued)

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 55

Symptom

Possible Cause

Solution

IR Icon does NOT flash when a button is pressed.

1. IR controller not programmed or

programmed with a non-ELAN command.

1. Program IR controller or correct programming.

2. S1616A not set to ELAN Mode

2. Set S1616A to ELAN Mode. (See page 23)

3. IR signal path wiring bad.

3. Verify IR signal path wiring. Check keypads, IR sensors, IR

distribution blocks, S1616A IR Input jack, IR emitters, etc.

No control of channel from IR controller. IR Icon DOES flash when a button is pressed.

1. Incorrect IR commands programmed

(not D16 commands).

1. Verify/correct IR programming.

2. Incorrect channel commands.

2. Verify/correct IR programming.

3. Channel range set incorrectly.

3. Change settings on the Channel Range Menu. (See page

34)

Intermittent control from IR controller.

IR flooding.

Connect a “talk-back” emitter to the IR out of the S1616A. Glowing or flickering when no commands are being sent indicates IR flooding. Possible sources: ambient light or plasma / LCD TV flooding.

Incorrect channel and/or chassis selected.

Incorrect S1616A IR commands programmed.

Verify/correct IR programming.

IR Control

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 56

ALL Channel Commands

Stereo In 1_1

Switches each output to its direct input.

Mono In 2_1

Switches each output to its “summed-mono” input. Outputs 1 & 2 are the “summed” signal of inputs 1 & 2, outputs 3 & 4 are the “summed” signal of inputs 3 & 4, etc.

Stereo Bus A In

Switches all ODD outputs to the BUS A “left” input and all EVEN outputs to the BUS A “right” input.

Mono Bus A In

Switches each output to the “summed” left and right inputs of Bus A.

Stereo Bus B In

Switches all ODD outputs to the BUS B “left” input and all EVEN outputs to the BUS B “right” input.

Mono Bus B In

Switches each output to the “summed” left and right inputs of Bus B.

Volume Down

Decrements the volume of all outputs.

Volume Up

Increments the volume of all outputs.

Unmute

Unmutes all outputs.

Mute

Mutes all outputs.

Mute Toggle

Toggles all outputs between “mute” and “unmated.”

Power Off

Switches all outputs off.

Power On

Switches all outputs on and checks level for min/max turn on values.

Power Toggle

Toggles all outputs between “on” and “off.”

Link

Links stereo pairs (i.e.: 1 & 2, 3 & 4, 5 & 6, etc.) Allows channel pairs to be controlled together.

Example: Channels 1 & 2 are being used for a stereo zone; the Link command will force all IR

commands for either channel 1 or channel 2 to affect both channels. This holds true for all stereo pairs, (3/4, 5/6, 7/8, etc.)

Unlink

Unlinks stereo pairs (i.e.: 1 & 2, 3 & 4, 5 & 6, etc.) Allows channel pairs to be controlled individually.

Appendix A: IR Command Set

The S1616A IR code set includes 16 ALL Channel commands as well as six Scene commands. Additionally, each of the 256 possible individual channels has its own group of 16 commands.

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 57

Scene Commands

Scene Save A

Saves a preset volume configuration or “scene.”

Scene Restore A

Restores preset volume configuration “A.”

Scene Save B

Saves a preset volume configuration or “scene.”

Scene Restore B

Restores preset volume configuration “B.”

Scene Save C

Saves a preset volume configuration or “scene.”

Scene Restore C

Restores preset volume configuration “C.”

Individual Channel Commands

Stereo In 1_1

Switches the selected output to its direct input.

Mono In 2_1

Switches the selected output to its “summed-mono” input. Outputs 1 & 2 are the “summed” signal of inputs 1 & 2, outputs 3 & 4 are the “summed” signal of inputs 3 & 4, etc.

Stereo Bus A In

Switches the selected output to the BUS A input. ODD numbered channels select input 1 and EVEN numbered channels select input 2.

Mono Bus A In

Switches the selected output to the “summed” left and right inputs of Bus A.

Stereo Bus B In

Switches the selected output to the BUS B input. ODD numbered channels select input 9 and EVEN numbered channels select input 10.

Mono Bus B In

Switches the selected output to the “summed” left and right inputs of Bus B.

Volume Down

Decrements the volume of the selected output.

Volume Up

Increments the volume the selected output.

Unmute

Unmutes the selected output.

Mute

Mutes the selected output.

Mute Toggle

Toggles the selected output between “mute” and “unmated.”

Power Off

Switches the selected output off.

Power On

Switches the selected output on and checks level for min/max turn on values.

Power Toggle

Toggles the selected output between “on” and “off.”

Link

Links stereo pairs (i.e.: 1 & 2, 3 & 4, 5 & 6, etc.) Allows channel pairs to be controlled together.

Example: Channels 3 & 4 are being used for a stereo zone; the Link command will force all IR

commands for either channel 3 or channel 4 to affect both channels.

Unlink

Unlinks stereo pairs (i.e.: 1 & 2, 3 & 4, 5 & 6, etc.) Allows channel pairs to be controlled individually.

Appendix A: IR Command Set (Continued)

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 58

Figure B-1

Figure B-2

Figure B-3

Appendix B: Rack Mounting

When mounting the S1616A in an equipment rack, use the included Rack Mount Brackets for secure mounting and proper ventilation. The S1616A requires three rack spaces.

1. Attach the rack mount bracket onto the S1616A chassis from the front as shown in Figure A-1.

2. Ensure that the brackets are flush with the front of the unit. Install each of the eight screws (included) through the side mounting

flanges into the holes in the sides of the unit as shown in Figure A-2. Hand tighten screws! Over-tightening could cause damage to the S1616A chassis.

3. 3. Once the brackets are securely mounted, install the entire assembly into a standard 19” equipment rack from the front using

four rack screws (not included). Three rack spaces will be used. See Figure A-3.

E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE

Page 59

Limited Warranty

ELAN HOME SYSTEMS L.L.C. (“ELAN”) warrants the S1616A Multi-Zone Controller Amplifier to be free from defects in materials and workmanship for the period of two years (2 years) from date of purchase. If within the applicable warranty period above purchaser discovers that such item was not as warranted above and promptly notifies ELAN in writing, ELAN shall repair or replace the

item at the company’s option. This warranty shall not apply (a) to equipment not manufactured by

ELAN, (b) to equipment which shall have been installed by other than an ELAN authorized installer, (c) to installed equipment which is not installed to ELAN’s specifications, (d) to equipment which shall have been repaired or altered by others than ELAN, (e) to equipment which shall have been subjected to negligence, accident, or damage by circumstances beyond ELAN’s control, including, but not limited to, lightning, flood, electrical surge, tornado, earthquake, or other catastrophic

events beyond ELAN’s control, or to improper operation, maintenance or storage, or to other than

normal use of service. With respect to equipment sold by, but not manufactured by ELAN, the warranty obligations of ELAN shall in all respects conform to the warranty actually extended to ELAN by its supplier. The foregoing warranties do not cover reimbursement for labor, transportation, removal, installation or other expenses which may be incurred in connection with repair or replacement.

Except as may be expressly provided and authorized in writing by ELAN, ELAN shall not be subject to any other obligations or liabilities whatsoever with respect to equipment manufactured by ELAN or services rendered by ELAN.

THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESSED AND IMPLIED WARRANTIES EXCEPT WARRANTIES OF TITLE, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

ATTENTION: TO OUR VALUED CONSUMERS

To ensure that consumers obtain quality pre-sale and after-sale support and service, ELAN Home Systems products are sold exclusively through authorized dealers. ELAN products are not sold online. The warranties on ELAN products are NOT VALID if the products have been purchased from an unauthorized dealer or an online E-tailer. To determine if your ELAN reseller is authorized, please contact ELAN Home Systems at (877) 289-3526.

www.elanhomesystems.com

S1616A Amplifier Mode Manual Rev A.

Elan S1616A User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
