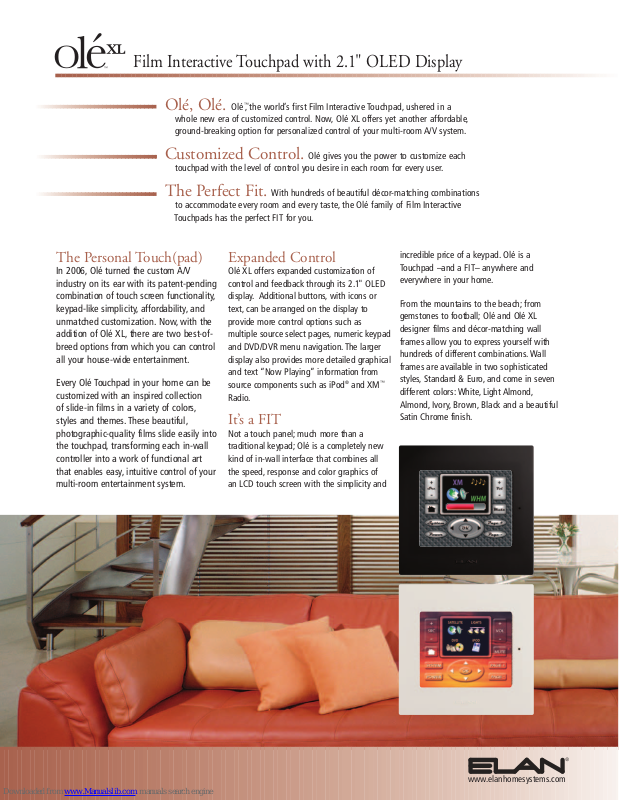

Olé, Olé. Olé
™
, the world’s first Film Interactive Touchpad, ushered in a
whole new era of customized control. Now, Olé XL offers yet another affordable,
ground-breaking option for personalized control of your multi-room A/V system.
Customized Control. Olé gives you the power to customize each
touchpad with the level of control you desire in each room for every user.
The Perfect Fit. With hundreds of beautiful décor-matching combinations
to accommodate every room and every taste, the Olé family of Film Interactive
Touchpads has the perfect FIT for you.
The Personal Touch(pad)
In 2006, Olé turned the custom A/V
industry on its ear with its patent-pending
combination of touch screen functionality,
keypad-like simplicity, affordability, and
unmatched customization. Now, with the
addition of Olé XL, there are two best-ofbreed options from which you can control
all your house-wide entertainment.
Every Olé Touchpad in your home can be
customized with an inspired collection
of slide-in films in a variety of colors,
styles and themes. These beautiful,
photographic-quality films slide easily into
the touchpad, transforming each in-wall
controller into a work of functional art
that enables easy, intuitive control of your
multi-room entertainment system.
Expanded Control
Olé XL offers expanded customization of
control and feedback through its 2.1" OLED
display. Additional buttons, with icons or
text, can be arranged on the display to
provide more control options such as
multiple source select pages, numeric keypad
and DVD/DVR menu navigation. The larger
display also provides more detailed graphical
and text “Now Playing” information from
source components such as iPod
®
and XM
™
Radio.
It’s a FIT
Not a touch panel; much more than a
traditional keypad; Olé is a completely new
kind of in-wall interface that combines all
the speed, response and color graphics of
an LCD touch screen with the simplicity and
incredible price of a keypad. Olé is a
Touchpad –and a FIT– anywhere and
everywhere in your home.
From the mountains to the beach; from
gemstones to football; Olé and Olé XL
designer films and décor-matching wall
frames allow you to express yourself with
hundreds of different combinations. Wall
frames are available in two sophisticated
styles, Standard & Euro, and come in seven
different colors: White, Light Almond,
Almond, Ivory, Brown, Black and a beautiful
Satin Chrome finish.
www.elanhomesystems.com
Film Interactive Touchpad with 2.1" OLED Display
Screen Size ..............................3-3/4 in. diagonal
Viewing Angle ................180° up/down, 180° left/right
Operating Temp .....................32°F-104°F / 0°C-40°C
OLED Display
Type:....................18 bit,2.1" Organic LED (OLED)
Colors:.....................................262K
Resolution:............................160 W x 128 H
Connections
System Port:.....................................RJ-45
Interface Port:.....................5-position screw terminal
Download Port:................................Mini USB
Wiring Requirements ........................Cat-5
Power Requirements . . ......12VDC/150mA or 16VDC/150mA
Dimensions (w/Wall Plate)
...........................(in.) 4-5/8 W x 4-5/8 H x 1-3/16 D
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (mm) 117 W x 117 H x 30 D
Dimensions (w/o Wall Plate)
.........................(in.) 4-7/16 W x 4-7/16 H x 1-1/8 D
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (mm) 112 W x 112 H x 26 D
Fits in 32 cu in. double-gang electrical box
Weight .......................................14 oz./0.4kg
ELAN Home Systems reserves the right to change hardware and specifications
without notice.
Family Features
Two-Year Limited Warranty
© ELAN Home Systems • 2007 • All rights reserved • ELAN is a trademark of ELAN Home Systems LLC
iPod is a registered trademark of Apple Inc. • XM is a trademark of XM Satellite Radio, Inc. • CSOLEXL REVB
www.elanhomesystems.com
All the speed, response & graphics of a touch screen
All the ease-of-use, simplicity-of-programming &
affordability of a keypad
Personalize the look of each Olé with hundreds of different
décor-matching combinations
Largest touch-control area of any 2-gang product on the
market today
Light sensor for auto dimming & brightening
Audible touch feedback through built-in speaker
Integrated IR receiver
IR In/Out port on back for quick connection of
external IR signals
Quick & easy programming
USB port for easy downloads
Compatible with all ELAN multi-room controllers
Compatible with any stand-alone system
Programming with ELAN VIA!TOOLS
®
Fits in a standard 2-gang box
2 wall frame styles, Standard & Euro, in 7 different colors
Patent-Pending, one-of-a-kind design
Ships standard with White frame
Olé™XL
2.1-inch, 16-bit, 262k color OLED display provides:
~ Multiple pages for easy source selection
~ DVD/DVR menu navigation, numeric keys and more
~ Additional “Now Playing” feedback from 2-way sources
36 slide-in designer film styles
Specifications
Olé Family Awards:
At left, Olé XL touchpanel families (top row) VIA! Match,
Scenes, Contempo, Stones, (bottom row) Gems,
Computer Match, Keypad Match,Traditional & Themes.
Seven Frame color options (above) are available in
Standard and Euro. From left to right: White, Light
Almond, Almond, Ivory, Brown, Black & Satin Chrome.
Euro Style shown at right in White.
Film Interactive Touchpad with 2.1" OLED Display
