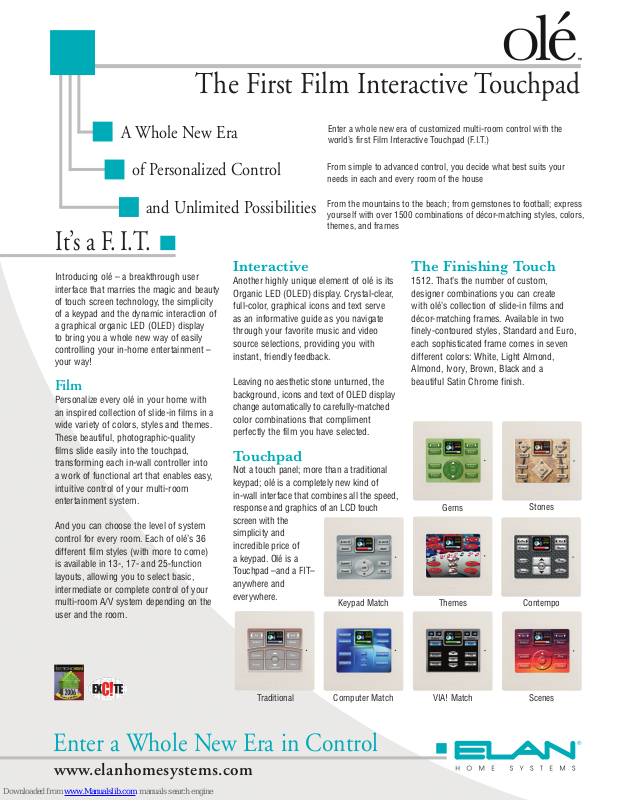

The First Film Interactive Touchpad
A Whole New Era
of Personalized Control
and Unlimited Possibilities
It’s a F. I.T.
Introducing olé – a breakthrough user
interface that marries the magic and beauty
of touch screen technology, the simplicity
of a keypad and the dynamic interaction of
a graphical organic LED (OLED) display
to bring you a whole new way of easily
controlling your in-home entertainment –
your way!
Film
Personalize every olé in your home with
an inspired collection of slide-in films in a
wide variety of colors, styles and themes.
These beautiful, photographic-quality
films slide easily into the touchpad,
transforming each in-wall controller into
a work of functional art that enables easy,
intuitive control of your multi-room
entertainment system.
And you can choose the level of system
control for every room. Each of olé’s 36
different film styles (with more to come)
is available in 13-, 17- and 25-function
layouts, allowing you to select basic,
intermediate or complete control of your
multi-room A/V system depending on the
user and the room.
Enter a whole new era of customized multi-room control with the
world’s first Film Interactive Touchpad (F.I.T.)
From simple to advanced control, you decide what best suits your
needs in each and every room of the house
From the mountains to the beach; from gemstones to football; express
yourself with over 1500 combinations of décor-matching styles, colors,
themes, and frames
Interactive
Another highly unique element of olé is its
Organic LED (OLED) display. Crystal-clear,
full-color, graphical icons and text serve
as an informative guide as you navigate
through your favorite music and video
source selections, providing you with
instant, friendly feedback.
Leaving no aesthetic stone unturned, the
background, icons and text of OLED display
change automatically to carefully-matched
color combinations that compliment
perfectly the film you have selected.
Touchpad
Not a touch panel; more than a traditional
keypad; olé is a completely new kind of
in-wall interface that combines all the speed,
response and graphics of an LCD touch
screen with the
simplicity and
incredible price of
a keypad. Olé is a
Touchpad –and a FIT–
anywhere and
everywhere.
Keypad Match
The Finishing Touch
1512. That’s the number of custom,
designer combinations you can create
with olé’s collection of slide-in films and
décor-matching frames. Available in two
finely-contoured styles, Standard and Euro,
each sophisticated frame comes in seven
different colors: White, Light Almond,
Almond, Ivory, Brown, Black and a
beautiful Satin Chrome finish.
Gems
Themes
Stones
Contempo
Enter a Whole New Era in Control
www.elanhomesystems.com
Traditional
Computer Match
VIA! Match
Scenes
Features & Specifications
Screen Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-3/4 in. diagonal
The world’s first Film Interactive Touchpad (F.I.T.)
All the speed, response & graphics of a touch screen
All the ease-of-use, simplicity-of-programming and affordability
of a keypad
Customize the level of control in each room with 13-, 17- &
25-function layouts
Personalize the look of each ol
décor-matching combinations (upon initial release)
• 36 slide-in film styles
• 108 designer films, with more to come
• 2 wall plate styles, each available in 7 different colors
65,000 color, 16-bit OLED display provides real-time graphical
feedback
Largest touch-control area of any 2-gang product on the market
today
Light sensor for auto dimming & brightening
Audible touch feedback through built-in speaker
Integrated IR receiver
IR In/Out port on back for quick connection of external IR signals
Quick & easy programming
USB port for easy downloads
Compatible with all ELAN multi-room controllers
Compatible with any stand-alone system
Programming with ELAN VIA!TOOLS
Centralized programming of networked olé dramatically reduces
programming time & costs
Fits in a standard 2-gang box
Patent-Pending, one-of-a-kind design, backed by 16 years of
experience & a two-year warranty
é with over 1500 different
®
Viewing Angle . . . . . . . . . . . . . . . . . . . .180° up/down, 180° left/right
Operating Temp. . . . . . . . . . . . . . . . . . . . . . . .32°F-104°F / 0°C-40°C
OLED Display
Type: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.2" Organic LED (OLED)
Colors: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65K
Resolution: . . . . . . . . . . . . . . . . . . . . . .96 pixels (W) x 64 pixels (H)
Connections
System Port: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .RJ-45
Interface Port: . . . . . . . . . . . . . . . . . . . . . .5-position screw terminal
Download Port: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Mini USB
Wiring Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Cat-5
Power Requirements . . . . . . . . . . . .12VDC/150mA or 16VDC/150mA
Dimensions (w/Wall Plate)
(in.) 4-5/8 (W) x 4-5/8 (H) x 1-3/16 (D)
(mm) 117 (W) x 117 (H) x 30 (D)
Dimensions (w/o Wall Plate)
(in.) 4-7/16 (W) x 4-7/16 (H) x 1-1/8 (D)
(mm) 112 (W) x 112 (H) x 26 (D)
Fits in 32 cu in. double-gang electrical box
Unit Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 oz./0.4kg
Shipping Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 oz./0.45kg
7 Frame Color Options are Available in Standard and Euro. From
Left to Right: White, Light Almond, Almond, Ivory, Brown, Black
& Satin Chrome.
13-Function Layout
Two-Year Limited Warranty
www.elanhomesystems.com
© ELAN Home Systems • 2006 • All rights reserved • ELAN Home Systems is a trademark of ELAN Home Systems, LLC • CSOLE2 REVC
17-
Function
Layout
25-
Function
Olé ships with
Traditional Film
Style( shown at
left) in Standard
White Frame.
Other films and
frames sold
separately.
Layout
