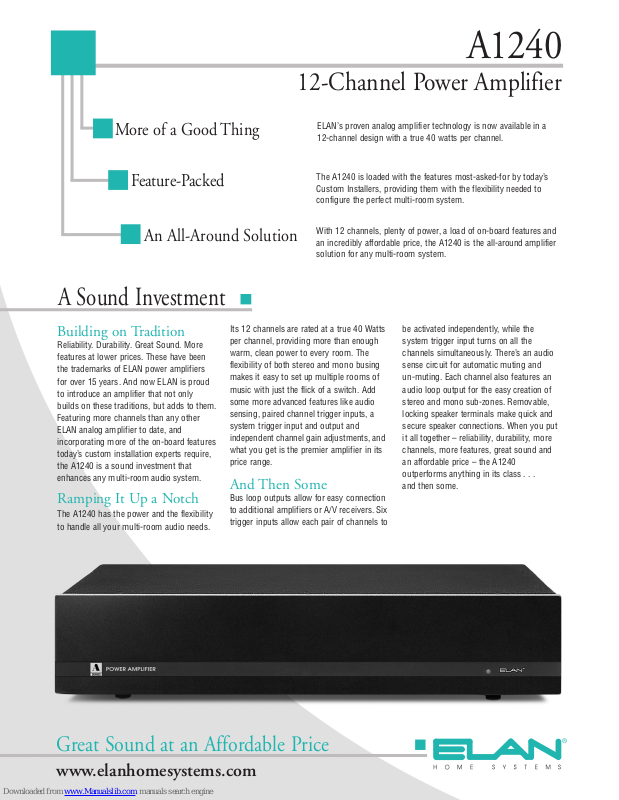

Page 1
A1240
12-Channel Power Amplifier
More of a Good Thing
Feature-Packed
An All-Around Solution
A Sound Investment
Building on Tradition
Reliability. Durability. Great Sound. More
features at lower prices. These have been
the trademarks of ELAN power amplifiers
for over 15 years. And now ELAN is proud
to introduce an amplifier that not only
builds on these traditions, but adds to them.
Featuring more channels than any other
ELAN analog amplifier to date, and
incorporating more of the on-board features
today’s custom installation experts require,
the A1240 is a sound investment that
enhances any multi-room audio system.
Ramping It Up a Notch
The A1240 has the power and the flexibility
to handle all your multi-room audio needs.
Its 12 channels are rated at a true 40 Watts
per channel, providing more than enough
warm, clean power to every room. The
flexibility of both stereo and mono busing
makes it easy to set up multiple rooms of
music with just the flick of a switch. Add
some more advanced features like audio
sensing, paired channel trigger inputs, a
system trigger input and output and
independent channel gain adjustments, and
what you get is the premier amplifier in its
price range.
And Then Some
Bus loop outputs allow for easy connection
to additional amplifiers or A/V receivers. Six
trigger inputs allow each pair of channels to
ELAN’s proven analog amplifier technology is now available in a
12-channel design with a true 40 watts per channel.
The A1240 is loaded with the features most-asked-for by today’s
Custom Installers, providing them with the flexibility needed to
configure the perfect multi-room system.
With 12 channels, plenty of power, a load of on-board features and
an incredibly affordable price, the A1240 is the all-around amplifier
solution for any multi-room system.
be activated independently, while the
system trigger input turns on all the
channels simultaneously. There’s an audio
sense circuit for automatic muting and
un-muting. Each channel also features an
audio loop output for the easy creation of
stereo and mono sub-zones. Removable,
locking speaker terminals make quick and
secure speaker connections. When you put
it all together – reliability, durability, more
channels, more features, great sound and
an affordable price – the A1240
outperforms anything in its class . . .
and then some.
Great Sound at an Affordable Price
www.elanhomesystems.com
Page 2
Features & Specifications
General
12 x 40 WPC @ 8 Ohms
Stereo/Mono Bus
6 Paired Remote Trigger Inputs
System Trigger In/Out
Audio Loop Outputs
Individual Channel Level Adjustments
Audio Sense
Removable Locking Speaker Terminals
2 Rack-Spaces High
3 Rack-Spaces High w/Optional Rack Mount Kit
(RMK3)
Available in 240VAC Version
Specifications
Power Output (RMS) per Channel . . . . . . . . . . .40W @ 8 Ohms
Frequency Response . . . . . .20Hz to 20kHz, +/-1dB into 8 Ohms
Full Power Bandwidth . . . . . . .5Hz to 55kHz, -3dB into 8 Ohms
Signal-To-Noise . . . . . . . . . . . . . . . . . . . . . > 95dB (A-weighted)
Channel Separation . . . . . ..> 70dB (channel to channel @1kHz)
THD . . . . . . . . . . . . . . . . . . .< .01% @ 1kHz, < 0.06% @ 10kHz
Intermodulation Distortion . . . . . . . . . . . . . . . . . . . . . . . .< 0.1%
Voltage Gain (AV) . . . . . . . . . .Continuously Variable from 0 - 20
Slew Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . > 9 V/microsecond
Input Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47k Ohms
Input Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.707 VRMS
AC Power Requirements . . . . . . . . . . . . . . .120 VAC, 440 Watts
240 VAC, 440 Watts
Current Draw . . . . . . . . . . . . . . . . . . . . . . . . . . .3.7A @ 120VAC
1.85A @ 240VAC
Trigger Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 to 24 VDC
Trigger Loop Output . . . . . . . . . . . . . . . . . . . . .+12 VDC @ 0.1A
Dimensions/Weight
Dimensions (w/feet): . . . . . . . . .(in.) 17 W x 4-1/8 H x 12-3/4 D
(mm) 432 W x 105 H x 324D
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 lbs/9.07 kg
Two Year Limited Warranty
www.elanhomesystems.com
© ELAN Home Systems • 2006 • All rights reserved • ELAN is a trademark of ELAN Home Systems LLC • CSA1240REVB
ELAN Home Systems reserves the right to change hardware and
specifications without notice.
ELAN-related products are registered trademarks of ELAN Home Systems.
