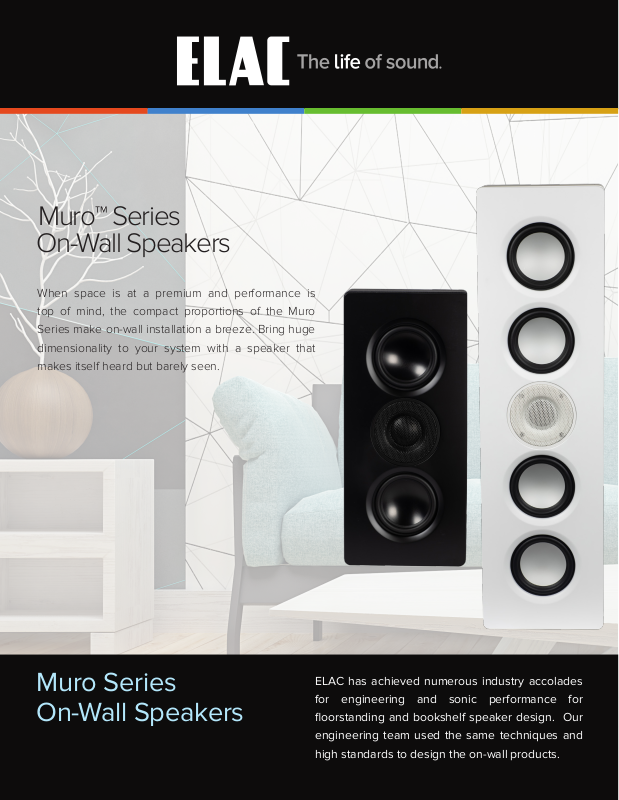

Muro™ Series
On-Wall Speakers
When space is at a premium and performance is
top of mind, the compact proportions of the Muro
Series make on-wall installation a breeze. Bring huge
dimensionality to your system with a speaker that
makes itself heard but barely seen.
Muro Series
On-Wall Speakers
ELAC has achieved numerous industry accolades
for engineering and sonic performance for
floorstanding and bookshelf speaker design. Our
engineering team used the same techniques and
high standards to design the on-wall products.
Page 2
MURO SERIES ONWALL SPEAKER FEATURES
Muro
Silk Dome Tweeter With Deep Spheroid Waveguide
The waveguide surrounding the new ELAC high-frequency driver features a
custom, deep spheroid profile to improve directivity control and efficiency.
Custom-designed woofer with aluminum cones
Aluminum cones offers a superior strength-to-weight ratio and improved
damping characteristics over conventional paper or plastic drivers. This
added strength means arriving at designs that achieve a broader bandwidth
with smoother response.
AXIS Tilt Control
Allows for the listening axis to be directed towards the listener based on
mounting orientation and height. Selectable by a rear panel switch.
Intricate Crossover
A custom multi-element crossover with audio-grade components is
implemented to ensure smooth transition between the drivers
Painted Baffle
A satin black or white painted baffle gives the Muro On-Wall speakers a
luxurious look to fit into practically any decor.
Flexible Mounting Options
Both Muro in-wall allow for both vertical and horizontal mounting options.
OW-V41S OW-V41L
SPECIFICATIONS
On-wall Muro On-wall Muro
4” Surround Speaker Dual 4” LCR Speaker
Enclosure type.................................. 2-way 2-way, dual passive radiator, sealed
Tweeter............................................... 1 x 1-inch soft dome 1 x 1-inch soft dome
Woofer................................................ 1 x 4-inch Aluminum cone 2 x 4-inch Aluminum cone
Passive Woofer................................. 1 x 4-inch Aluminum cone 2 x 4-inch Aluminum cone
Crossover frequency....................... 2,800 Hz 2,800 Hz
Frequency response........................ 75 to 35,000 Hz 75 to 35,000 Hz
Sensitivity........................................... 86 db at 2.83 v/1m 86 db at 2.83 v/1m
Max power input.............................. 80 watts 80 watts
Nominal impedance........................ 6 W 8 W
Binding posts.................................... 5-way metal 5-way metal
Cabinet............................................... CARB2 rated MDF CARB2 rated MDF
Cabinet Finish...................................
Painted Satin Black or White Front Bae
with vinyl wrapped cabinet
Painted Satin Black or White Front Bae
with vinyl wrapped cabinet
Grille.................................................... Magnetic White or Black Fabric Grill Magnetic White or Black Fabric Grill
Accessories included...................... Mounting template, manual Mounting template, manual
Height................................................. 15 11/16” 25 1/2”
Width.................................................. 7” 7 13/16”
Depth.................................................. 3 3/8” 3 3/8”
- PRELIMINARY SPECIFICATIONS -
Muro
©2019 ELAC Americas, Inc. All rights reserved. Specifications and design subject to change without notice.
