EK WaterBlocks EK-DDC X-TOP User guide

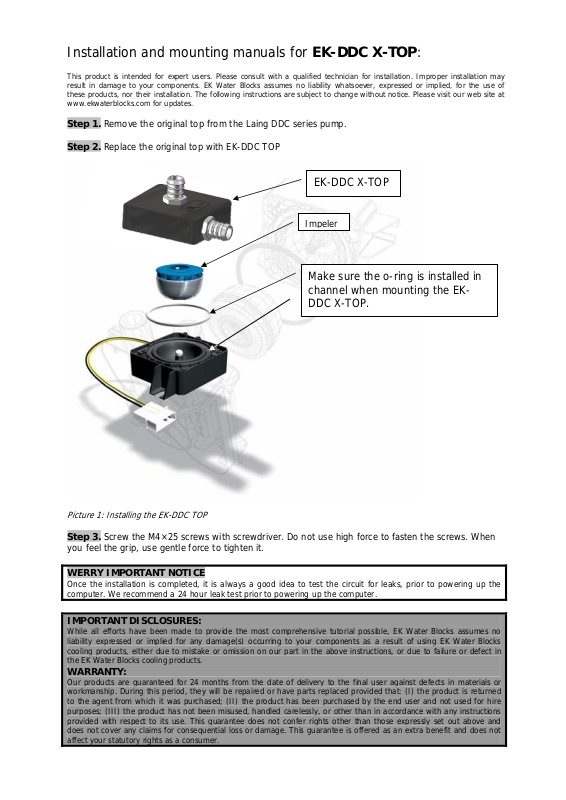

Installation and mounting manuals for EK-DDC X-TOP:

This product is intended for expert users. Please consult with a qualified technician for installation. Improper installat ion may
result in damage to your components. EK Wat er Blocks assumes no liability whatsoever, expressed or implied, for the use of
these products, nor their installation . The followi ng instructions ar e subject to cha nge without no tice. Please visit our web site at
www.ekwaterblocks.com for updates.

Step 1. Remove the original top from the Laing DDC series pump.
Step 2. Replace the original top with EK-DDC TOP

EK-DDC X-TOP

Impeler

Make sure the o-ring is installed in
channel when mounting the EK­DDC X-TOP.

Picture 1: Installing the EK-DDC TOP

Step 3. Screw the M4×25 screws with screwdriver. Do not use high force to fasten the screws. When
you feel the grip, use gentle force to tighten it.

WERRY IMPORTANT NOTICE

Once the installation is completed, it is always a good idea to test the circuit for leaks, prior to powering up the
computer. We recommend a 24 hour leak test prior to powering up the computer.

IMPORTANT DISCLOSURES:

While all efforts have been made to provide the most comprehensive tutorial possible, EK Water Blocks assumes no
liability expressed or implied for any damage(s) occurring to your components as a result of using EK Water Blocks
cooling products, either due to mistake or omission on our part in the above instructions, or due to failure or defect in
the EK Water Blocks cooling products.

WARRANTY:

Our products are guaranteed for 24 months from the date of delivery to the final user against defects in materials or
workmanship. During this period, they will be repaired or hav e parts replaced provided that: (I) the produc t is returned
to the agent from which it was purchased; (II) the product has been purchased by the end user and not used for hire
purposes; (III) the product has not been misused, handled carelessly, or other than in accordance with any instructions
provided with respect to its use. This guarantee does not confer rights other than those expressly set out above and
does not cover any claims for consequential loss or damage. This guarantee is offered as an extra benefit and does not
affect your statutory rights as a consumer.
