Elektrotechnik Karl-Heinz Mauz GmbH
GM37-545-10-21D (Artikel-Nr. 860533)
EKULIT

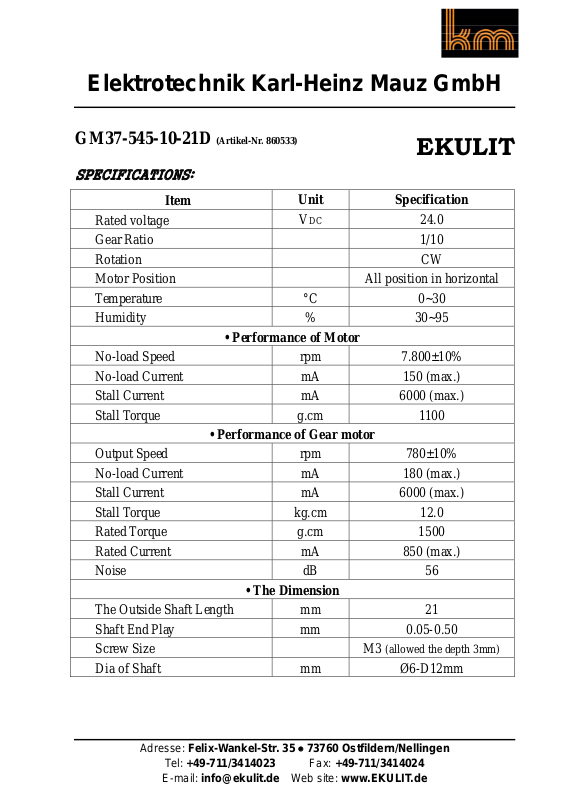

SPECIFICATIONS:
Item
Rated voltage
Gear Ratio 1/10
Rotation CW
Motor Position All position in horizontal
Temperature °C 0~30
Humidity % 30~95
• Performance of Motor
No-load Speed rpm 7.800±10%
No-load Current mA 150 (max.)
Stall Current mA 6000 (max.)
Stall Torque g.cm 1100
• Performance of Gear motor
Output Speed rpm 780±10%
No-load Current mA 180 (max.)
Unit Specification
DC 24.0
V
Stall Current mA 6000 (max.)
Stall Torque kg.cm 12.0
Rated Torque g.cm 1500
Rated Current mA 850 (max.)
Noise dB 56
• The Dimension
The Outside Shaft Length mm 21
Shaft End Play mm 0.05-0.50
Screw Size M3 (allowed the depth 3mm)
Dia of Shaft mm Ø6-D12mm
