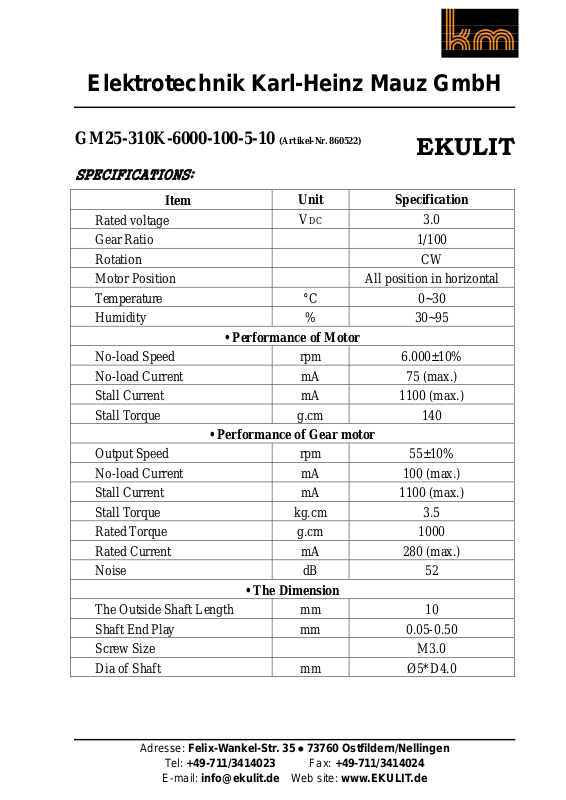

Page 1
Elektrotechnik Karl-Heinz Mauz GmbH
GM25-310K-6000-100-5-10 (Artikel-Nr. 860522)
EKULIT
SPECIFICATIONS:
Item
Rated voltage
Gear Ratio 1/100
Rotation CW
Motor Position All position in horizontal
Temperature °C 0~30
Humidity % 30~95
• Performance of Motor
No-load Speed rpm 6.000±10%
No-load Current mA 75 (max.)
Stall Current mA 1100 (max.)
Stall Torque g.cm 140
• Performance of Gear motor
Output Speed rpm 55±10%
No-load Current mA 100 (max.)
Unit Specification
DC 3.0
V
Stall Current mA 1100 (max.)
Stall Torque kg.cm 3.5
Rated Torque g.cm 1000
Rated Current mA 280 (max.)
Noise dB 52
• The Dimension
The Outside Shaft Length mm 10
Shaft End Play mm 0.05-0.50
Screw Size M3.0
Dia of Shaft mm Ø5*D4.0
Adresse: Felix-Wankel-Str. 35 73760 Ostfildern/Nellingen
Tel: +49-711/3414023 Fax: +49-711/3414024
E-mail: [email protected] Web site: www.EKULIT.de
Page 2
Elektrotechnik Karl-Heinz Mauz GmbH
GM25-310K-6000-100-5-10 (Artikel-Nr. 860522)
EKULIT

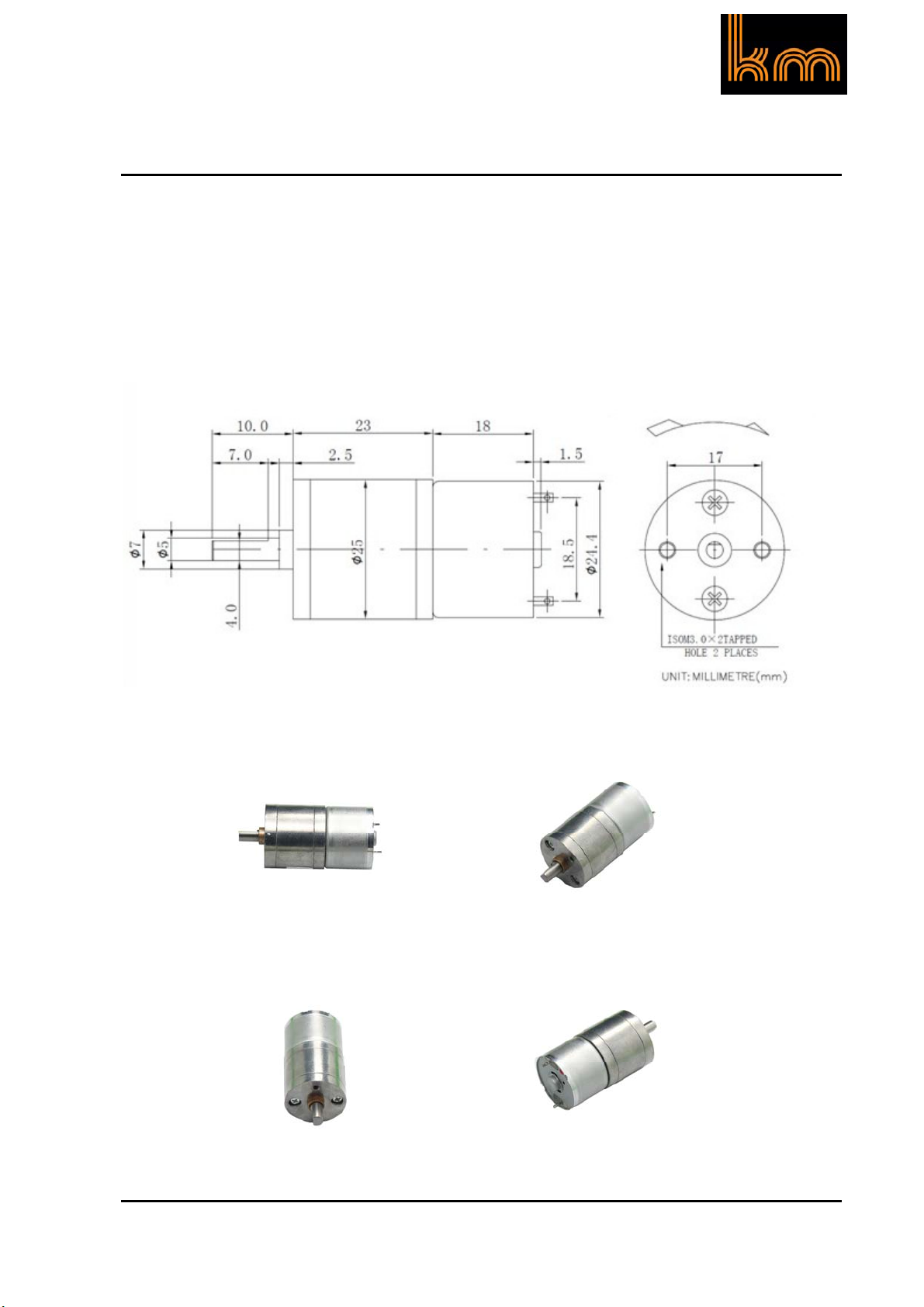

DIMENSIONS :
(Unit: mm)
