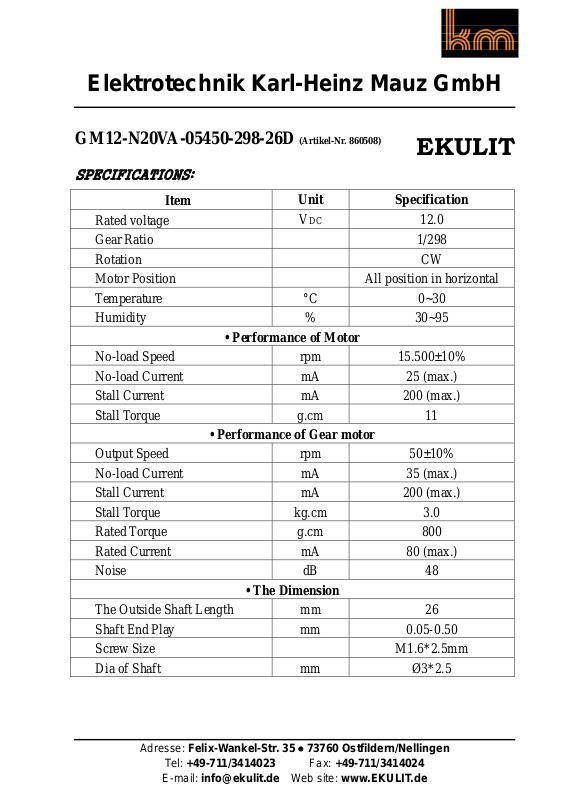

Page 1
Elektrotechnik Karl-Heinz Mauz GmbH
GM12-N20VA-05450-298-26D (Artikel-Nr. 860508)
EKULIT
SPECIFICATIONS:
Item
Rated voltage
Gear Ratio 1/298
Rotation CW
Motor Position All position in horizontal
Temperature °C 0~30
Humidity % 30~95
• Performance of Motor
No-load Speed rpm 15.500±10%
No-load Current mA 25 (max.)
Stall Current mA 200 (max.)
Stall Torque g.cm 11
• Performance of Gear motor
Output Speed rpm 50±10%
No-load Current mA 35 (max.)
Unit Specification
DC 12.0
V
Stall Current mA 200 (max.)
Stall Torque kg.cm 3.0
Rated Torque g.cm 800
Rated Current mA 80 (max.)
Noise dB 48
• The Dimension
The Outside Shaft Length mm 26
Shaft End Play mm 0.05-0.50
Screw Size M1.6*2.5mm
Dia of Shaft mm Ø3*2.5
Adresse: Felix-Wankel-Str. 35 73760 Ostfildern/Nellingen
Tel: +49-711/3414023 Fax: +49-711/3414024
E-mail: [email protected] Web site: www.EKULIT.de
Page 2
Elektrotechnik Karl-Heinz Mauz GmbH
GM12-N20VA-05450-298-26D (Artikel-Nr. 860508)
EKULIT
DIMENSIONS :
(Unit: mm)
Curve drawings:
