Elektrotechnik Karl-Heinz Mauz GmbH
GM16-030-08300-360-10D (Artikel-Nr. 860517)
EKULIT

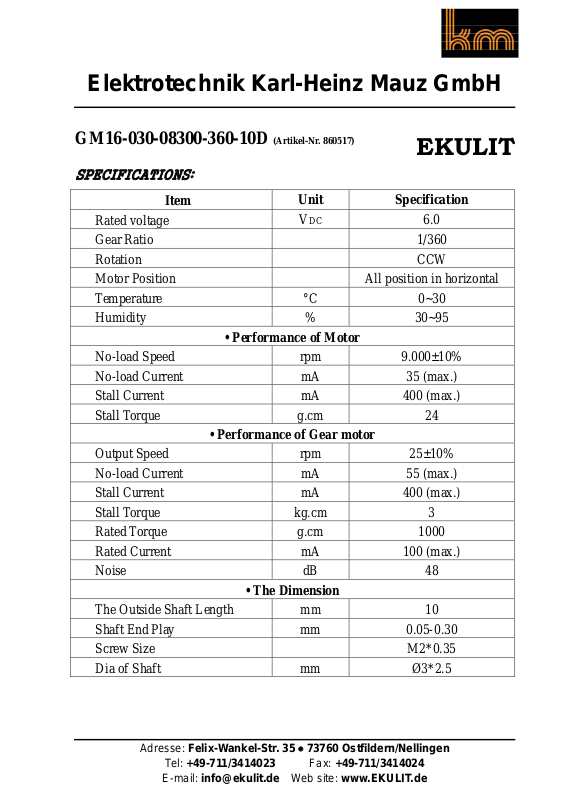

SPECIFICATIONS:
Item
Rated voltage
Gear Ratio 1/360
Rotation CCW
Motor Position All position in horizontal
Temperature °C 0~30
Humidity % 30~95
• Performance of Motor
No-load Speed rpm 9.000±10%
No-load Current mA 35 (max.)
Stall Current mA 400 (max.)
Stall Torque g.cm 24
• Performance of Gear motor
Output Speed rpm 25±10%
No-load Current mA 55 (max.)
Unit Specification
DC 6.0
V
Stall Current mA 400 (max.)
Stall Torque kg.cm 3
Rated Torque g.cm 1000
Rated Current mA 100 (max.)
Noise dB 48
• The Dimension
The Outside Shaft Length mm 10
Shaft End Play mm 0.05-0.30
Screw Size M2*0.35
Dia of Shaft mm Ø3*2.5
Adresse: Felix-Wankel-Str. 35 73760 Ostfildern/Nellingen
Tel: +49-711/3414023 Fax: +49-711/3414024
E-mail: [email protected] Web site: www.EKULIT.de
Page 2
Elektrotechnik Karl-Heinz Mauz GmbH
GM16-030-08300-360-10D (Artikel-Nr. 860517)
EKULIT

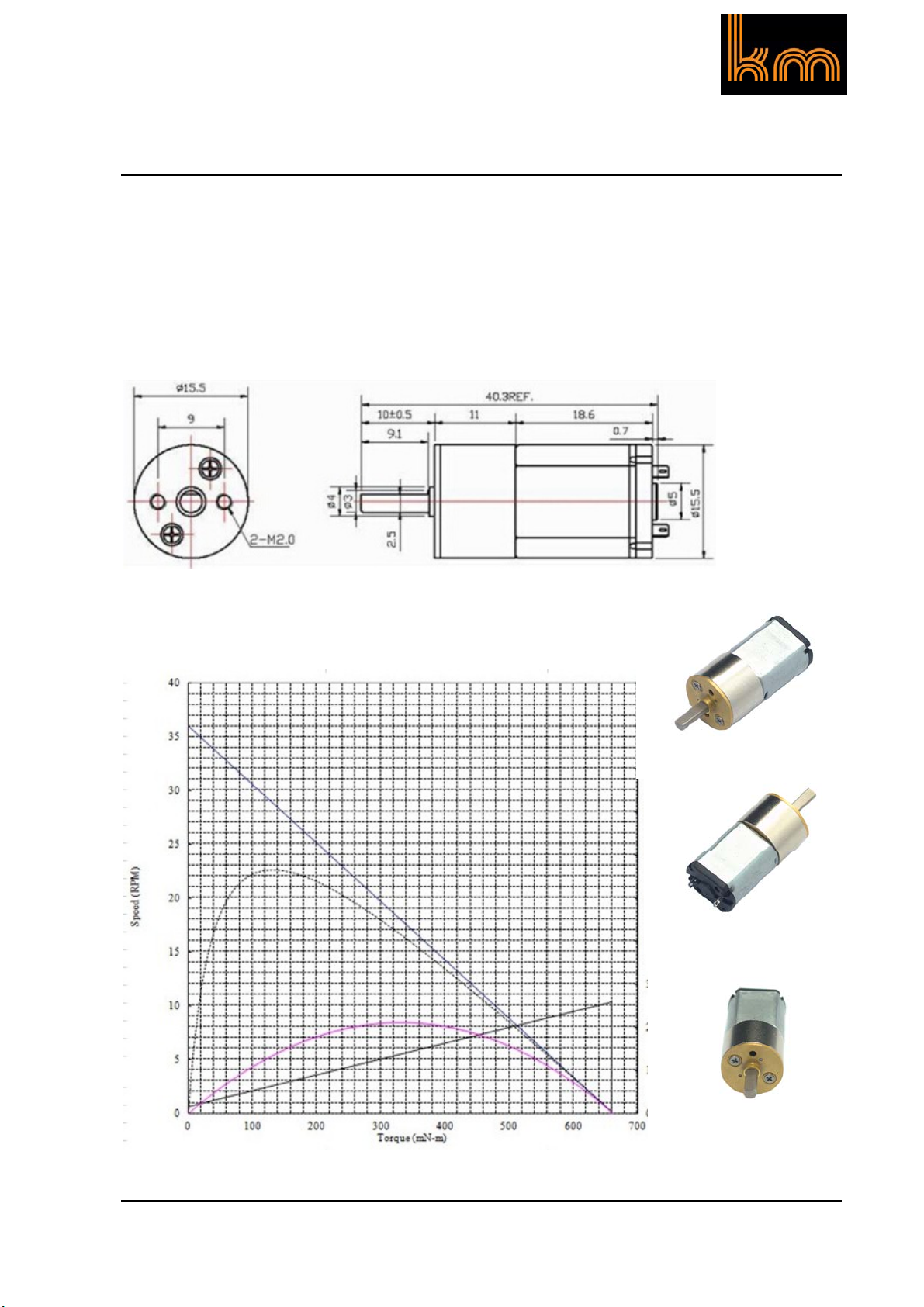

DIMENSIONS :
(Unit: mm)
Curve drawings:
